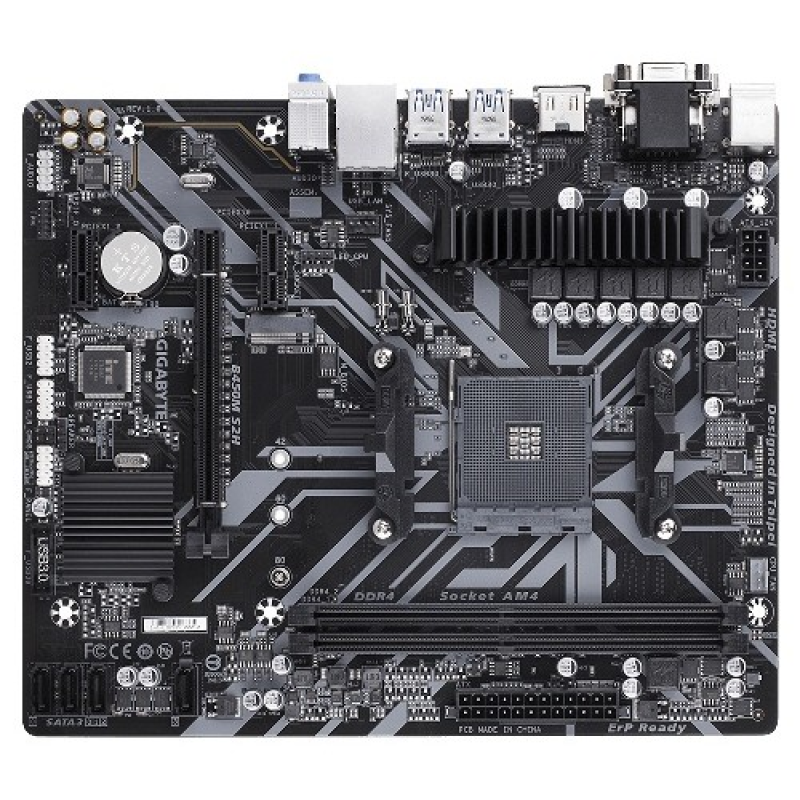

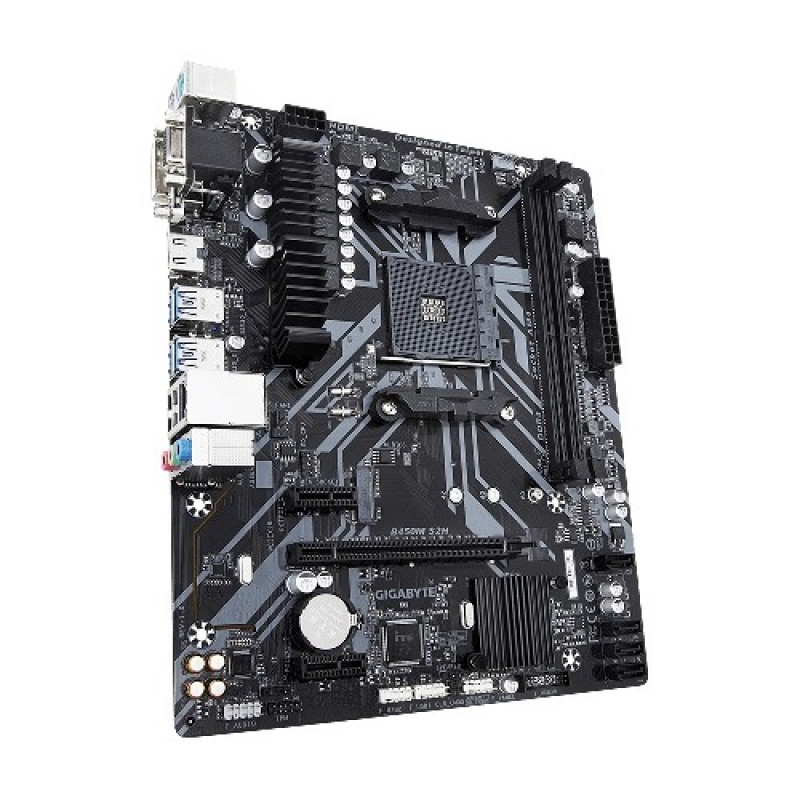

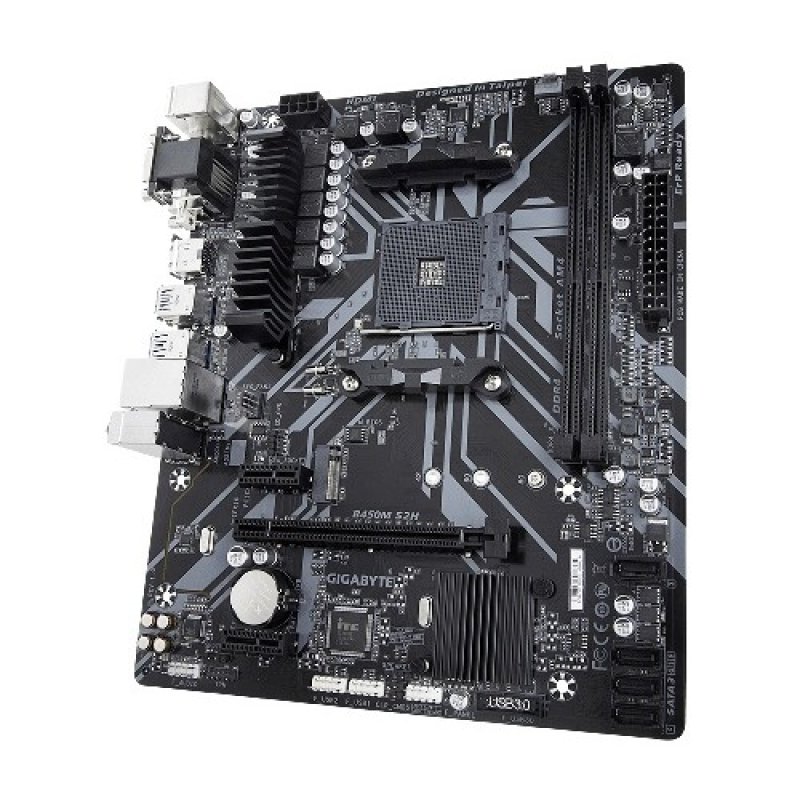

Gigabyte B450M S2H AMD AM4 Micro ATX Motherboard

Regular Price 8,500৳
Product Code 6065
Brand Gigabyte
Short Details
  • Model: Gigabyte B450M S2H ULTRA Durable
  • Supports Up to AMD Ryzen 5000 series Processors
  • Chipset: AMD B450
  • Memory: 2 x DDR4, Max. 32 GB
  • 3 x PCI Express slots
Contact for bulk quantity: 01733-080376 , 01733-080350 ,

Specification

Information
Supported CPU AM4 Socket
Support for AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ Ryzen 1st Generation Processors
Chipset AMD B450
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 20.5cm
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
2 x PCI Express x1 slots
(The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
M.2 Socket 1 x M.2 Socket 3 connector
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
Supports only M.2 SATA SSDs when using an AMD Athlon 200-series/ 7th Generation A-series or Athlon APU.
Memory
Type Dual channel memory architecture
Slots - 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
Supported Memory - Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 32 GB
Graphics
Graphics 1 x D-Sub port, supporting a maximum resolution of 1920x1200 at 60 Hz

1 x DVI-D port, supporting a maximum resolution of 1920x1200 at 60 Hz
The DVI-D port does not support D-Sub connection by adapter.

1 x HDMI port, supporting a maximum resolution of 4096x2160 at 60 Hz(Note)
Support for HDMI 2.0 version and HDCP 2.2.(Note)

Maximum shared memory of 2 GB
(Note) Actual support may vary by CPU.
Max Shared Memory 2 GB
Connector & Ports
HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160 at 60 Hz
Support for HDMI 2.0 version and HDCP 2.2.
1 x HDMI port
D-Sub (s) 1 x D-Sub port, supporting a maximum resolution of 1920x1200 at 60 Hz
DVI-D (s) 1 x DVI-D port, supporting a maximum resolution of 1920x1200 at 60 Hz
USB (s) Chipset:
2 x USB 3.1 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
CPU:
4 x USB 3.1 Gen 1 ports on the back panel
LAN Port (s) Realtek GbE LAN chip (10/100/1000 Mbit)
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
Supports only M.2 SATA SSDs when using an AMD Athlon 200-series/ 7th Generation A-series or Athlon APU.
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
Audio Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x CPU cooler LED strip/RGB LED strip header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x speaker header
1 x Clear CMOS jumper
1 x chassis intrusion header
TPM (Trusted Platform Module ) 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Others
Special Features
Support for APP Center
Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
BIOS
3D OSD
AutoGreen
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
Smart Survey
System Information Viewer
USB Blocker
Support for Q-Flash
Support for Xpress Install
Bundled Software Norton Internet Security (OEM version)
Realtek 8118 Gaming LAN Bandwidth Control Utility
Warranty Information
Manufacturing Warranty 03 years warranty

Description

Gigabyte B450M S2H AMD AM4 Micro ATX Motherboard

Gigabyte B450M S2H UAMD AM4 Motherboard introduce the latest Ryzen 2000 series processors to provide the computing power for gaming need. GIGABYTE's 400 series motherboards perfectly fit the latest AMD Ryzen 2000 series processors' computing performance with more features and more control. Users can enjoy the benefits brought by AMD Ryzen 2000 series processors which maximize your PC's potential with AMD StoreMI technology. By adding this AMD StoreMI, It making the PC experience fast, smooth and easy, optimizing computer responsiveness from system boot to application launch, offering SSD performance with HDD capacity at an affordable cost and also quickly accessing key files by automatically learning users' computing behaviors.

Main Components of the Board

This exclusive Durable Motherboard support AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ Ryzen 1st Generation Processors. Here used AMD B450 Chipset. This exclusive Gigabyte Motherboard supports Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs, HDMI, DVI-D, D-sub Ports for Multiple Display, Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support, GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management, RGB Fusion supports RGB LED Strips in 7-Colors, High Quality Audio Capacitors and Audio Noise Guard Design, Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers and APP Center Including EasyTune and Cloud Station Utilities. This motherboard is compatible with Windows 10 64-bit, Windows 7 64-bit (must install an AMD Pinnacle Ridge & Summit Ridge CPU) and you have to download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7. It has also some special feature which make it uniqe from others, these are-BIOS, 3D OSD, AutoGreen, Cloud, Station, EasyTune, Fast Boot, Game Boost, ON/OFF Charge, RGB Fusion, Smart Backup, Smart Keyboard, Smart TimeLock, Smart HUD, Smart Survey, System Information Viewer, USB Blocker, Support for Q-Flash and also Support for Xpress Install.

Special Features That Must be Considered

This Exclusive motherboard support RGB LED Strips in 7-Colors with High Quality Audio Capacitors and Audio Noise Guard Design and Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers, APP Center Including EasyTune and Cloud Station Utilities which make your performance more faster.
