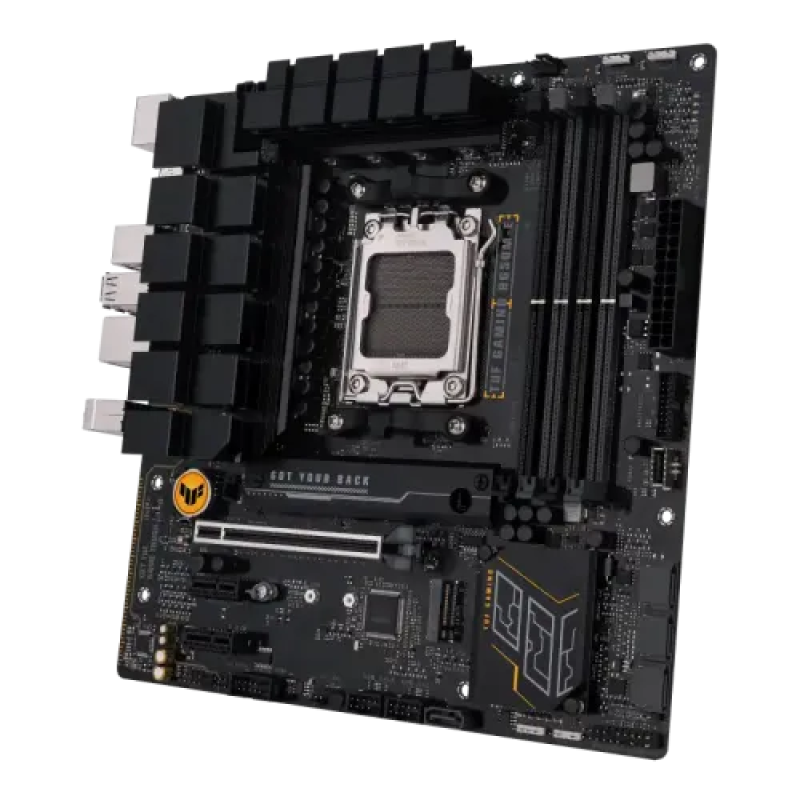

Asus TUF GAMING B650M-E AMD AM5 micro-ATX Motherboard

Regular Price	30,700৳
Status	In Stock
Product Code	6087
Brand	Asus

Short Details

Model: TUF GAMING B650M-E
Supported CPU: Ryzen 8000/ 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5, up to 192GB, 7600+(OC)
Graphics Output: 1x HDMI, 2x Display Port
Features: Realtek 2.5Gb Ethernet

More Info

30700৳

Product Price

Contact for bulk quantity: 01733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Information
Supported CPU	AMD Socket AM5 for AMD Ryzen 8000 & 7000 Series Desktop Processors
Chipset	AMD B650
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
Expansion Slots
PCI	AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot AMD B650 Chipset 2 x PCIe 4.0 x1 slots
Memory
Type	DDR5
Slots	4 DIMMs
Supported Memory	DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ / 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO) OptiMem II
Maximum Memory	192GB
Graphics
Graphics	2 x DisplayPort 1 x HDMITM port
Connector & Ports
HDMI	1x HDMI
Display Port (s)	2x DisplayPort
USB (s)	Rear USB (Total 8 ports) 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s)	1 x Realtek 2.5Gb Ethernet TUF LANGuard
Supported Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset 4 x SATA 6Gb/s ports
RAID	AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Audio	3 x Audio jacks
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function
Others
Special Features	ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeSlot Core+ - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers
Bundled Software	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyASUS Norton 360 for Gamers(60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty	3 Years

Description

Asus TUF GAMING B650M-E AMD AM5 micro-ATX Motherboard

The ASUS TUF GAMING B650M-E motherboard is compatible with the latest AMD Ryzen 8000 & 7000-series processors. This motherboard is built with military-grade components, an upgraded power solution, and an extensive cooling system, ensuring rock-solid and stable performance during marathon gaming sessions. It's not just about performance; this motherboard undergoes rigorous endurance testing to ensure it can withstand challenging conditions. Asus TUF GAMING B650M-E Motherboard features 8+2 power stages, PCIe 5.0 for M.2 storage, DDR5 memory module support, USB 3.2 Gen 2 Type-C, 2.5 Gb Ethernet. This motherboard also offers intelligent control, allowing you to fine-tune and optimize various aspects of your system, including CPU performance, power savings, and more. The UEFI BIOS provides easy configuration options for both beginners and experienced users. It even features advanced tuning capabilities for serious tweakers. The TUF GAMING B650M-E motherboard has an enlarged VRM heatsink, optimized M.2 heatsink design, and comprehensive fan controls. Asus TUF GAMING B650M-E Motherboard comes with ESD Guards, TUF LANGuard, and a stainless steel back I/O panel. It also offers convenient features like M.2 Q-Latch, which simplifies M.2 SSD installation, and Q-LED troubleshooting lights. The motherboard offers ultrafast networking, AI noise cancellation, and high-quality audio with DTS Audio Processing. Its RGB lighting can be customized through Aura Sync, creating a personalized gaming atmosphere.The Asus TUF GAMING B650M-E Motherboard comes with 3 years of warranty.

What is the price of Asus TUF GAMING B650M-E Motherboard in Bangladesh?

The latest price of Asus TUF GAMING B650M-E Motherboard in Bangladesh is 29,100৳. You can buy the Asus TUF GAMING B650M-E Motherboard at best price from our website or visit any of our showrooms.
