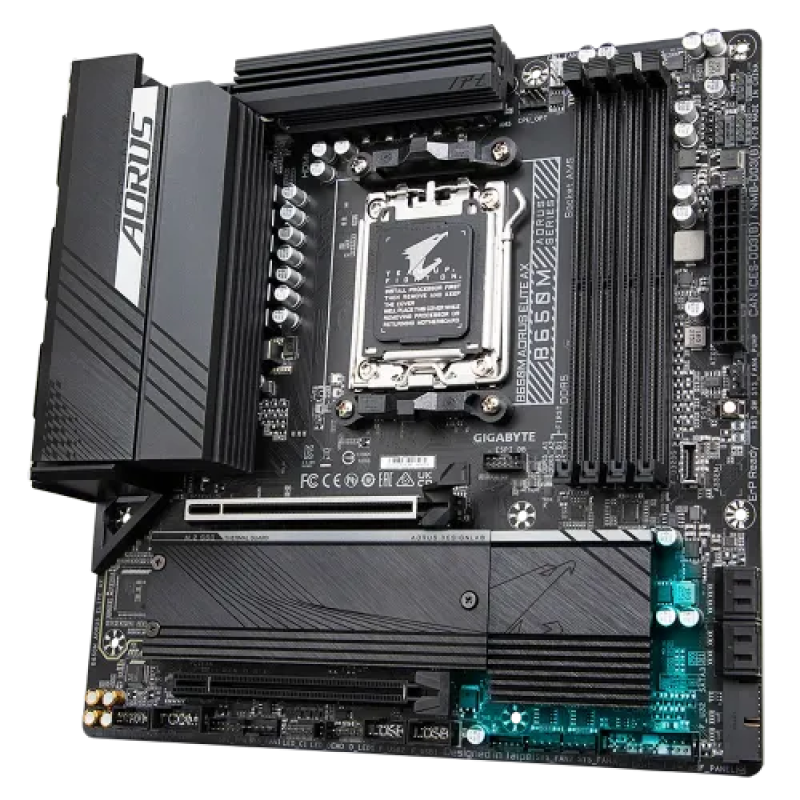

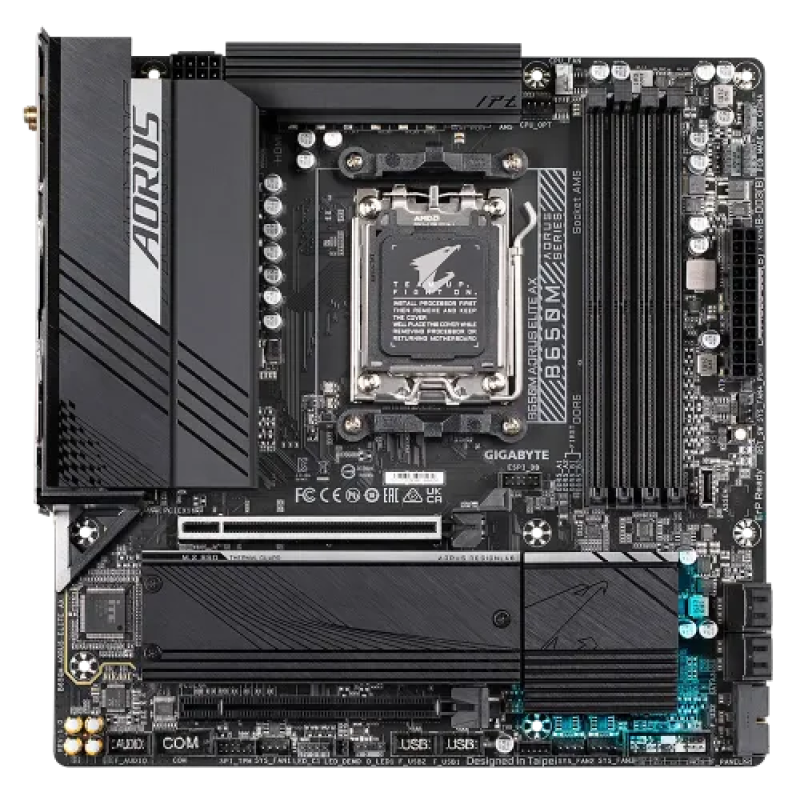

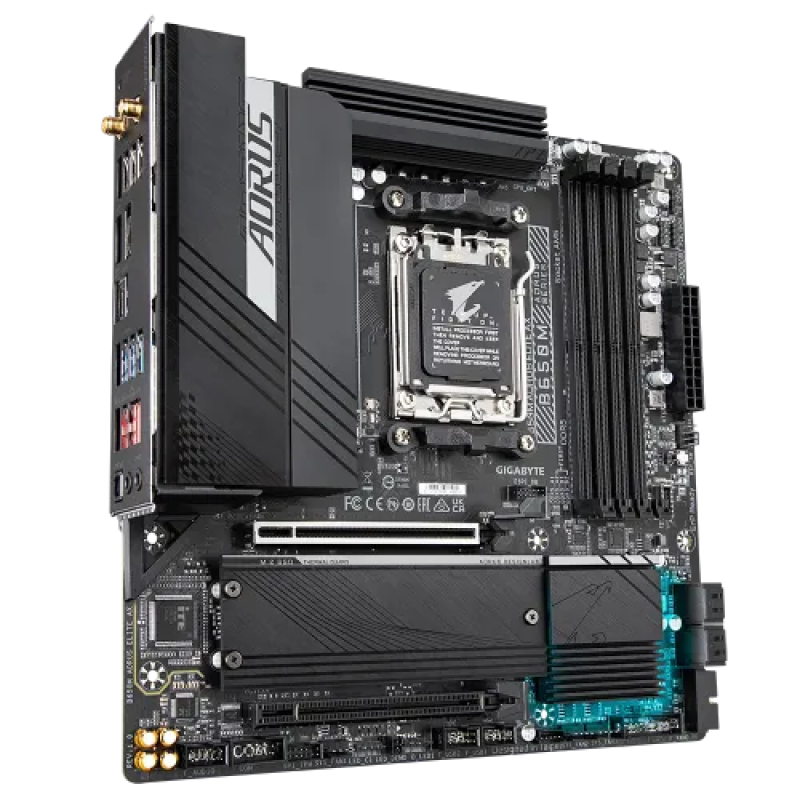

GIGABYTE B650M AORUS ELITE AX DDR5 AMD AM5 Micro-ATX Motherboard

Regular Price 29,300৳
Product Code 6089
Brand Gigabyte
Short Details
  • Model: B650M AORUS ELITE AX
  • Supported CPU: Ryzen 8000/ 7000 Series Processors for Socket AM5
  • Supported RAM: 4x DDR5, up to 128GB, 6666(OC)
  • Graphics Output: 1x Display Port, 1 x HDMI
  • Features: Realtek 2.5GbE LAN & AMD Wi-Fi 6E
Contact for bulk quantity: 01733-080376 , 01733-080350 ,

Specification

Information
Supported CPU AMD Socket AM5, support for: AMD Ryzen 8000/ 7000 Series Processors
Chipset AMD B650
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Expansion Slots
PCI CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Memory
Type DDR5
Slots 4 DIMMs
Supported Memory 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Maximum Memory 128GB
Graphics
Graphics Integrated Graphics Processor:
1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.

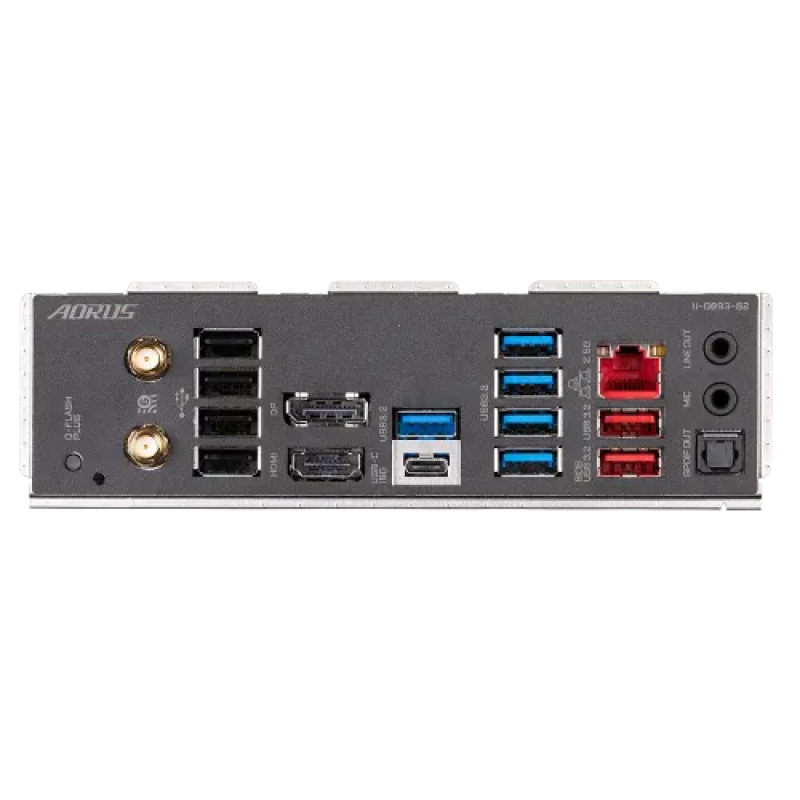

Connector & Ports
HDMI 1x HDMI
Display Port (s) 1 x DisplayPorts
USB (s) CPU:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
CPU + USB 2.0 Hub:
4 x USB 2.0/1.1 ports on the back panel
Chipset:
1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header
3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports on the back pane
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Intel Wi-Fi 6E AX210 (For PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage CPU:
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)
* Actual support may vary by CPU.
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio 2 x Audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x THB_U4 add-in card connector
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty Information
Manufacturing Warranty 3 Years

Description

GIGABYTE B650M AORUS ELITE AX DDR5 AMD AM5 Micro-ATX Motherboard

The GIGABYTE B650M AORUS ELITE AX Motherboard supports AMD Ryzen 8000 & 7000-series processors for socket AM5. It equips the best VRM design ever built with the highest quality components and comes with direct 12+2+1 Phases Digital VRM Solution. It offers advanced thermal heatsinks to improve thermal efficiency with better airflow and heat exchange. It comes with 2x PCIe 4.0 x4 M.2 Connectors. The M.2 Thermal Guard prevents throttling and bottlenecks from high-speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. This motherboard features 2X copper PCBs design effectively lowering the component temperature through its high thermal conductivity and low impedance. The Smart Fan 6 contains several unique cooling features that ensure the gaming PC maintains its performance while staying cool and quiet. Each fan headers support PWM and DC fan and Water Cooling Pump, and up to 24W (12V x 2A) with Over-Current Protection. The GIGABYTE B650M AORUS ELITE AX Motherboard comes with 2.5G LAN which provides up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking. It also supports Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet. The USB 3.2 Gen 2 ports provide speeds up to 10Gbps. With twice the bandwidth compared to its previous generation, The GIGABYTE B650M AORUS ELITE AX Motherboard comes with 3 years of warranty.

What is the price of GIGABYTE B650M AORUS ELITE AX Motherboard in Bangladesh?

The latest price of GIGABYTE B650M AORUS ELITE AX Motherboard in Bangladesh is 29,300৳. You can buy the GIGABYTE B650M AORUS ELITE AX Motherboard at best price from our website or visit any of our showrooms.
