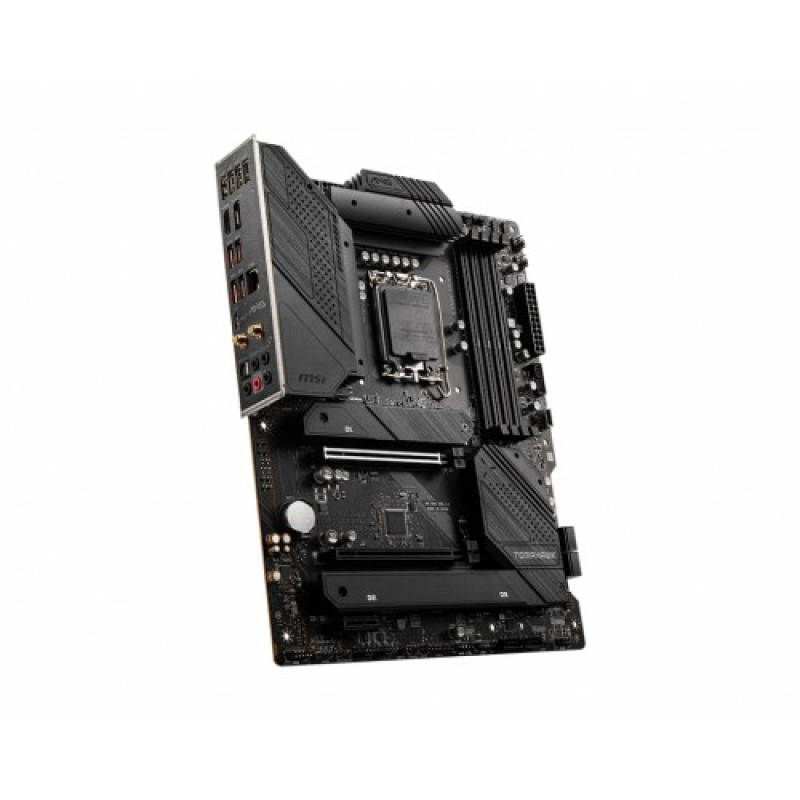

MSI MAG B660 TOMAHAWK WIFI DDR5 ATX Motherboard

Regular Price	26,500৳
Product Code	5705
Brand	MSI

Short Details

Model: MAG B660 TOMAHAWK WI-FI DDR5
Supported Processors: 14th, 13th & 12th Gen Intel Core, Pentium Gold & Celeron
Supported socket: LGA 1700 socket
Supported Memory: DDR5, up to 6200+(OC) MHz
2.5G LAN and Intel Wi-Fi 6E Solution

More Info

26500৳

Product Price

Contact for bulk quantity: 01733-080376 , 01733-080350 ,

Share:

Specification
Description
Products
Question
Review

Specification

Information
Supported CPU	Supports 14th, 13th & 12th Gen Intel Core, Pentium Gold, and Celeron Processor socket LGA1700
Chipset	Processor socket LGA1700
Form Factor	ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Audio	7.1-Channel High Definition Audio Supports S/PDIF output
Expansion Slots
PCI	2x PCIe x16 slots PCI_E1 (From CPU) Support up to PCIe 4.0 PCI_E2 (From B660 chipset) Support up to PCIe 3.0 x4 1x PCIe 3.0 x1 slot (From B660 chipset)
M.2 Socket	3x M.2 slots (Key M)
Memory
Type	DDR5
Slots	4x DDR5 memory slots
Supported Memory	DDR5 Memory : 6200(OC)/ 6133(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max overclocking frequency: Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	128GB
Graphics
Graphics	1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz Supports AMD CrossFire Technology
Connector & Ports
HDMI	HDMI 2.1 Port
Display Port (s)	DisplayPort 1.4
USB (s)	1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
LAN Port (s)	1x Realtek RTL8125B-CG 2.5Gbps LAN controller
Wireless Communication module	The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2
Supported Storage	6x SATA 6Gb/s ports SATA5~8 (From B660 chipset) SATAA~B (From ASM1061) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 & M2_3 slots (From B660 chipset) M2_2 supports up to PCIe 4.0 x4 M2_3 supports up to PCIe 4.0 x2 1 Supports SATA up to 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory
Audio	HD Audio Connectors 1x Front panel audio connector
Internal I/O Ports	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 5x 4-pin system fan connectors 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Tuning Controller connector
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Information
Manufacturing Warranty	3 years

Description

MSI MAG B660 TOMAHAWK WIFI DDR5 ATX Motherboard

MSI MAG B660 TOMAHAWK WIFI DDR5 ATX Motherboard is another motherboard from MSI. This ATX Motherboard Supports 14th, 13th & 12th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1700 socket, DDR5, up to 6200+(OC) MHz. With more coresâ€™ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPUs run at full speed with MSI motherboards. Here, Utilizing 12th Gen Intel processors. This motherboard has Premium Thermal Solution so that Extended Heatsink Design and M.2 Shield Frozr are built for high-performance system and non-stop works. With the 2.5G LAN and Intel Wi-Fi Solution, it helps to Upgraded the network solutions for professional and multimedia use. Delivers a secure, stable, and fast network connection. This motherboard also comes with Running at PCIe Gen 4 maximizes performance for NVMe based SSDs. Here, Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1. MSI extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPUs run at full speed with MSI motherboards. let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for the CPU and motherboard, which will adjust the fan speeds automatically. It has M.2 SHIELD FROZR which is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance. MSI MAG B660 TOMAHAWK WIFI DDR5 ATX Motherboard offers a 3-year warranty.

What is the price of MSI MAG B660 TOMAHAWK WIFI DDR5 Motherboard in Bangladesh?

The latest price of MSI MAG B660 TOMAHAWK WIFI DDR5 Motherboard in Bangladesh is 26,700৳. You can buy the MSI MAG B660 TOMAHAWK WIFI DDR5 Motherboard at best price from our website or visit any of our showrooms.
