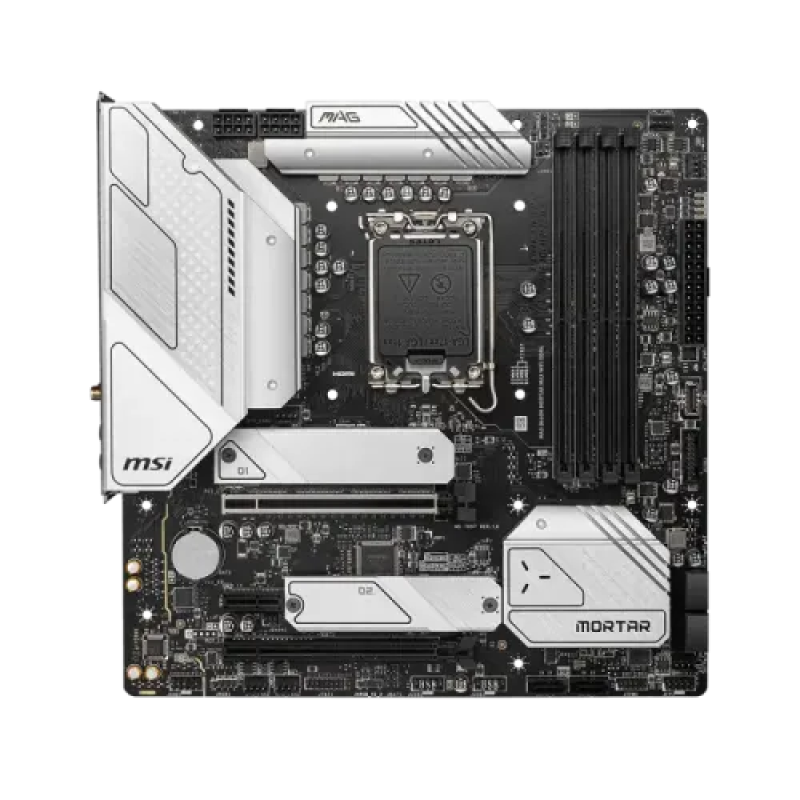

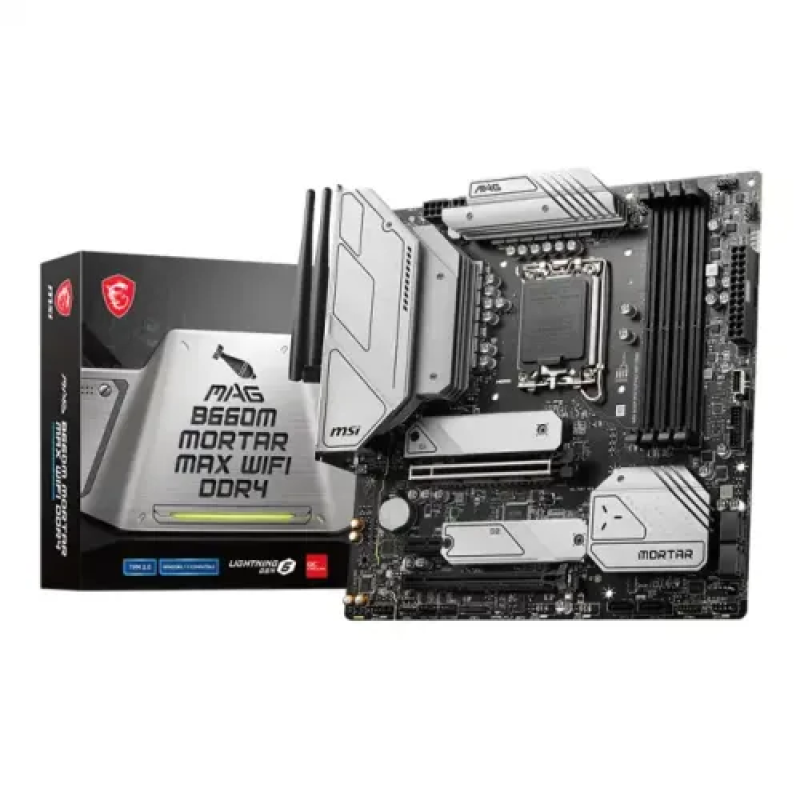

MSI MAG B660M MORTAR MAX WIFI DDR4 Micro-ATX Motherboard

Regular Price 24,000৳
Status In Stock
Product Code 5312
Brand MSI
Short Details
  • Model: MAG B660M MORTAR MAX WIFI DDR4
  • Supported CPU: 14th/12th/13th Gen Intel Processors (LGA1700)
  • Supported RAM: 4x DDR4, Max 128GB 4800+(OC) MHz
  • Graphics Output: 1x HDMI, 1x DisplayPort
  • Features: 2x M.2 slot, 2.5G LAN and Intel Wi-Fi 6E
Contact for bulk quantity: 01733-080376 , 01733-080350 ,

Specification

Information
Supported CPU Supports 14th/12th/ 13th Gen Intel Core, Pentium Gold and Celeron processors
Processor socket LGA1700
Chipset Intel B660 Chipset
Form Factor Micro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Expansion Slots
PCI 2x PCIe x16 slots
PCI_E1 slot (From CPU)
Supports PCIe 5.0 x16
PCI_E3 slot (From B660 Chipset)
Supports PCIe 3.0 x4
1x PCIe 3.0 x1 slot
Memory
Type DDR4
Slots 4
Supported Memory Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5333+ MHz
1DPC 2R Max speed up to 4000+ MHz
2DPC 1R Max speed up to 4000+ MHz
2DPC 2R Max speed up to 3600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Maximum Memory Up to 128GB
Graphics
Graphics Supports AMD CrossFire Technology
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz
Connector & Ports
HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort 1.4
USB (s) Intel B660 Chipset
1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel
1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector
2x USB 3.2 Gen 1 5Gbps ports available through the internal connector
4x USB 2.0 ports on the back panel
USB Hub-GL3590
3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
USB Hub-GL850G
4x USB 2.0 ports available through internal connectors
LAN Port (s) 1x Realtek 8125BG 2.5Gbps LAN controller
Wireless Communication module Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset)
2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061)
2x M.2 slots (Key M)
M2_1 slot (From CPU)
Supports PCIe 4.0 x4
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (From B660 Chipset)
Supports PCIe 4.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Supports Intel Optane Memory
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio HD Audio Connectors
Internal I/O Ports 1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C connector
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
2x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TBT connector (supports RTD3)
1x Tuning Controller connector
TPM (Trusted Platform Module ) 1x TPM module connector
Others
Special Features 4x EZ Debug LED
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
Warranty Information
Manufacturing Warranty 3 years

Description

MSI MAG B660M MORTAR MAX WIFI DDR4 Micro-ATX Motherboard

MSI MAG B660M MORTAR MAX WIFI DDR4 comes with LGA 1700 socket for 12th and 13th Gen Intel Core processors. It comes with four dual-channel DDR4 RAM slots, two M.2 PCIe NVMe interfaces, and 6 SATA III ports giving you multiple high-end storage options for your gaming library. It supports PCIe 5.0 x16 slots and utilizes the PCIe 3.0 x1 and PCIe 3.0 x4 slots for additional expansion cards. Resource-demanding peripherals such as external drives can be connected to the USB-A 3.2 Gen 2 and USB-C 3.2 Gen 2x2 port. There are four USB-A 2.0 ports for less demanding peripherals, ideal for connecting devices such as keyboards, mice, and more. Connect select wireless peripherals with the integrated Bluetooth 5.2 technology. The MSI MAG B660M MORTAR MAX WIFI DDR4 Motherboard is integrated with Wi-Fi 6E (802.11ax) and a 2.5 Gigabit Ethernet Port for a fast connection.

12 + 1 + 1 Duet Rail Power System

MSI MAG B660M MORTAR MAX WIFI DDR4 Motherboard comes with 8 + 8-pin power connectors and exclusive Core Boost technology, this motherboard is prepared to sustain heavy gaming loads. Additionally, load line calibration makes sure your CPU voltage remains stable under any load.

Extended Heatsink Design

MSI MAG B660M MORTAR MAX WIFI DDR4 features extreme cooling solutions. With more cores processors, thermal and power design is more important to make sure the temperature keeps lower. MSI MAG B660M MORTAR MAX WIFI DDR4 has an extended PWM heatsink and enhanced circuit design that ensures even high-end Intel CPUs run at full speed with MSI motherboards.

Networking and Connectivity

The MSI MAG B660M MORTAR MAX WIFI DDR4 comes with 2.5 Gb/s LAN and provides high data transfer speeds that are twice as fast as the general Gigabit LAN. Wi-Fi 6E adopts the latest OFDMA and two-way MU-MIMO technologies and can provide up to four times network capacity in a high-signal-density environment. MSI LAN Manager software automatically classifies and prioritizes the latency-sensitive applications for online games, giving you a strong online gaming experience with low latency.

What is the price of MSI MAG B660M MORTAR MAX WIFI DDR4 Motherboard in Bangladesh?

The latest price of MSI MAG B660M MORTAR MAX WIFI DDR4 Motherboard in Bangladesh is 25,500৳. You can buy the MSI MAG B660M MORTAR MAX WIFI DDR4 Motherboard at best price from our website or visit any of our showrooms.
