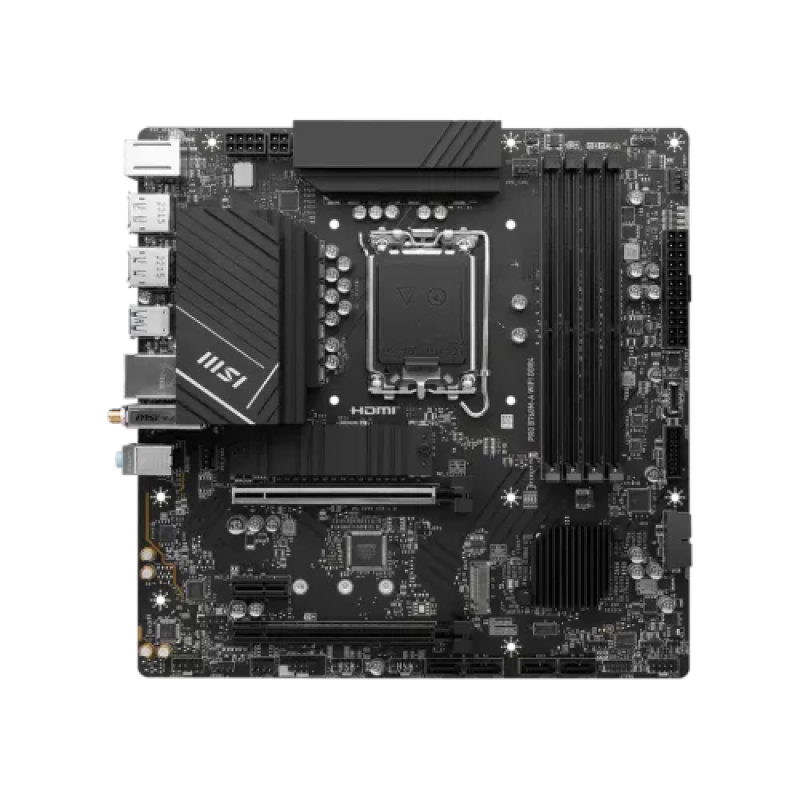

MSI PRO B760M-A WIFI DDR4 mATX Motherboard

Regular Price 17,800৳
Status In Stock
Product Code 5256
Brand MSI
Short Details
  • Model: PRO B760M-A WIFI DDR4
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 4x DDR4, Max 128GB 5333(OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort, 1x VGA
  • Features: 2x M.2 slot, Intel Wi-Fi 6E
Contact for bulk quantity: 01733-080376 , 01733-080350 ,

Specification

 Information
Supported CPU Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
LGA 1700
Chipset INTEL B760
Form Factor mATX
243.84mmx243.84mm
Audio Realtek ALC897 Codec
7.1-Channel High-Definition Audio
Expansion Slots
PCI 2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
M.2 Socket 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
Memory
Type DDR4
Slots 4
Supported Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 5333+ MHz
• 1DPC 2R Max speed up to 4800+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Maximum Memory 128GB
Graphics
Graphics 2x HDMI
Support HDMI 2.1, the maximum resolution of 4K 60Hz*
2x DisplayPort
Support DP 1.4, the maximum resolution of 4K 60Hz

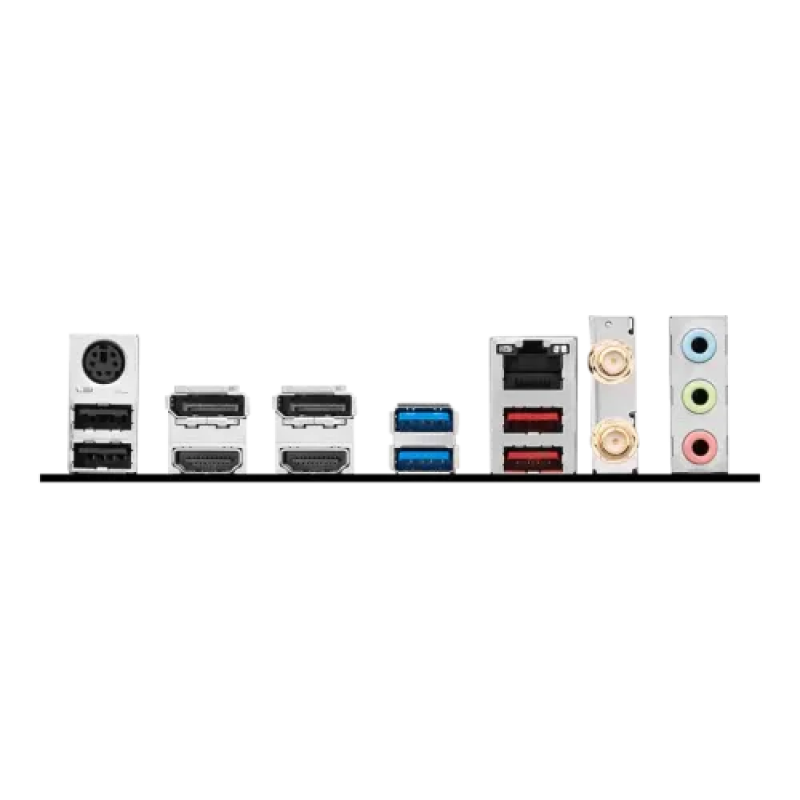

Connector & Ports
HDMI 2x HDMI
Display Port (s) 2x DisplayPort
USB (s) 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen1 Type C (Front)
2x USB 3.2 Gen2 Type A (Rear)
LAN Port (s) Realtek RTL8125BG 2.5G LAN
Wireless Communication module Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen1 Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Others
Special Features 1x RGB LED connector(JRGB)
Warranty Information
Manufacturing Warranty 3 years

Description

MSI PRO B760M-A WIFI DDR4 mATX Motherboard

MSI PRO B760M-P DDR4 Motherboard supports 14th/13th/ 12th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1700 sockets. It comes with four dual-channel RAM slots, and two M.2 slots allowing you to take advantage of the full power of 13th & 12th generation Intel processors. The four SATA III ports allow users to create large storage drive arrays for large file libraries. Two PCIe x16 and one PCIe x1 slot allow you to install high-end graphics cards and other expansion cards. Connect to a wireless network with Wi-Fi 6 (802.11ax) technology, or make a wired connection with the integrated 2.5 Gigabit Ethernet port. Resource-demanding peripherals such as storage drives can be connected to the USB 3.2 Gen 2 and Gen 2x2 ports to quickly transfer data with enhanced speeds. USB 2.0 ports are also available for lower-powered devices such as mice and keyboards. Wireless peripherals such as headphones and controllers can be connected thanks to integrated Bluetooth 5.3 technology. This motherboard is compatible with both Windows 10 and Windows 11 (64-bit).

Enhanced Power Design

MSI PRO B760M-P DDR4 motherboard is designed for gamers and enthusiasts, with a 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost technology, which boosts the performance of your multi-core Intel processor. Overclock your CPU with ease thanks to MSI Game Boost technology, which allows for 1-second rapid overclocking. The Digital Power Design, Overvoltage Protection, Load-Line Calibration, Double Power Connectors, and Supplemental PCIe Power Connectors on the motherboard all work together to provide proper electrical management through your system to stabilize your system, especially under high loads.

Premium Thermal Solution

The MSI PRO B760M-P DDR4 Motherboard features Extended Heatsink Design and M.2 Shield Frozr and is designed for high-performance systems and continuous operation. This motherboard's increased cooling capabilities will keep your components working at optimal temperatures. M.2 Shield Frozr, Fully Fan Control, Frozr AI Cooling, and System Cooling all work together to keep your components cool even while under high loads when gaming or generating content.

High-Quality PCB for Enhanced Protection

The 14th Gen Motherboard features a PCB optimized for higher bandwidth and faster transfer speeds, as well as reliable circuit transmission with 2oz thickened copper that allows the motherboard to easily withstand overclocking while improving heat dissipation and system reliability. The MSI PCI Express Steel Armor slot is soldered to the motherboard to handle the weight of large graphics cards and avoid GPU droop, which can damage PCIe slots. The grounding layer around the mounting holes is doubled for double ESD protection, preventing static discharge spikes from damaging the motherboard.

Lightning Fast Connectivity

Connect to your network wirelessly using Wi-Fi 6 (802.11ax) technology, which provides faster wireless rates and efficiency, making it ideal for uploading and downloading large files. This motherboard also has a 2.5 Gigabit Ethernet connection for wired networking. MSI's LAN Manager software prioritizes your connection, eliminating lag and maintaining a pleasant online experience. The MSI PRO B760M-A WIFI DDR4 Motherboard comes with 3 years warranty.

What is the price of MSI PRO B760M-A WIFI DDR4 mATX Motherboard in Bangladesh?

The latest price of MSI PRO B760M-A WIFI DDR4 mATX Motherboard in Bangladesh is 21,000৳. You can buy the MSI PRO B760M-A WIFI DDR4 mATX Motherboard at best price from our website or visit any of our showrooms.
