MSI MAG B560 Tomahawk WiFi Intel 10th Gen and 11th Gen ATX Motherboard

Regular Price	15,700৳
Product Code	5295
Brand	MSI

Short Details

Model: MAG B560 Tomahawk WiFi
Supports 10th & 11th Gen Intel Core, Pentium Gold & Celeron processors
DDR4 Memory, up to 5066(OC) MHz
Extended Heatsink Design & M.2 Shield Frozr
2.5G LAN and Intel Wi-Fi 6E Solution

More Info

15700৳

Product Price

Contact for bulk quantity: 01733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Information
Supported CPU	Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processor socket LGA1200
Chipset	Intel B560 Chipset
Form Factor	ATX
Audio	7.1-Channel High Definition Audio Supports S/PDIF output
Expansion Slots
PCI	2x PCIe x16 slots PCI_E1 (from CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU PCI_E2 (from B560 chipset) Support up to PCIe 3.0 x4 1x PCIe 3.0 x1 slot (from B560 chipset)
M.2 Socket	3x M.2 slots (Key M)
Memory
Type	DDR4
Slots	4 x DDR4 memory slots
Supported Memory	- Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) - Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) - Max overclocking frequency: - 1DPC 1R Max speed up to 5066 MHz - 1DPC 2R Max speed up to 4600+ MHz - 2DPC 1R Max speed up to 4266+ MHz - 2DPC 2R Max speed up to 4000+ MHz - Supports Dual-Channel mode - Supports non-ECC, un-buffered memory - Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	up to 128GB
Graphics
Graphics	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Connector & Ports

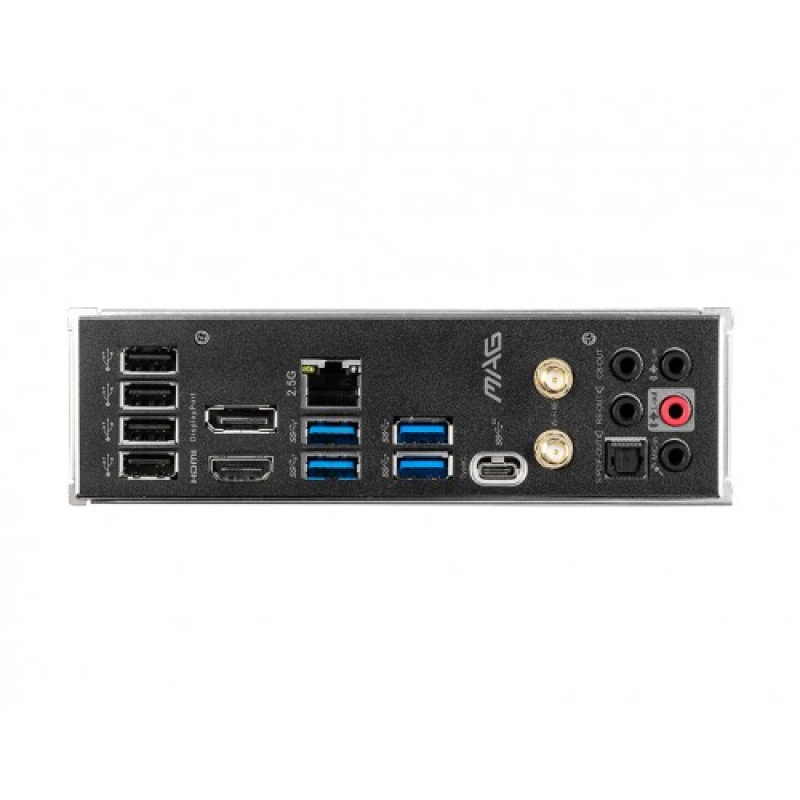

USB (s)	- 1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel) - 1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector) - 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 Type-A ports available through the internal connector) - 4x USB 2.0 ports on the back panel Hub-GL850G - 4x USB 2.0 ports available through the internal connectors
LAN Port (s)	1x Realtek RTL8125B 2.5Gbps LAN controller
Supported Storage	- 6x SATA 6Gb/s ports (from B560 chipset) 1 - 3x M.2 slots (Key M) - M2_1 slot (from CPU) - Available only on 11th Gen Intel CPU - Supports up to PCIe 4.0 x4 - Supports 2242/ 2260/ 2280/ 22110 storage devices -M2_21 slot (from B560 chipset) - Supports up to PCIe 3.0 x4 - Supports SATA up to 6Gb/s - Supports 2242/ 2260/ 2280 storage devices - M2_3 slot (from B560 chipset) - Supports up to PCIe 3.0 x4 - Supports 2242/ 2260/ 2280 storage devices - Intel Optane Memory Ready2 - Supports Intel Smart Response Technology for Intel Core processors
Audio	7.1-Channel High Definition Audio Supports S/PDIF output
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 1x 6-pin PCIE power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 5x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Tuning Controller connector
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Information
Manufacturing Warranty	03 years warranty

Description

MSI MAG B560 Tomahawk WiFi Intel 10th Gen and 11th Gen ATX Motherboard

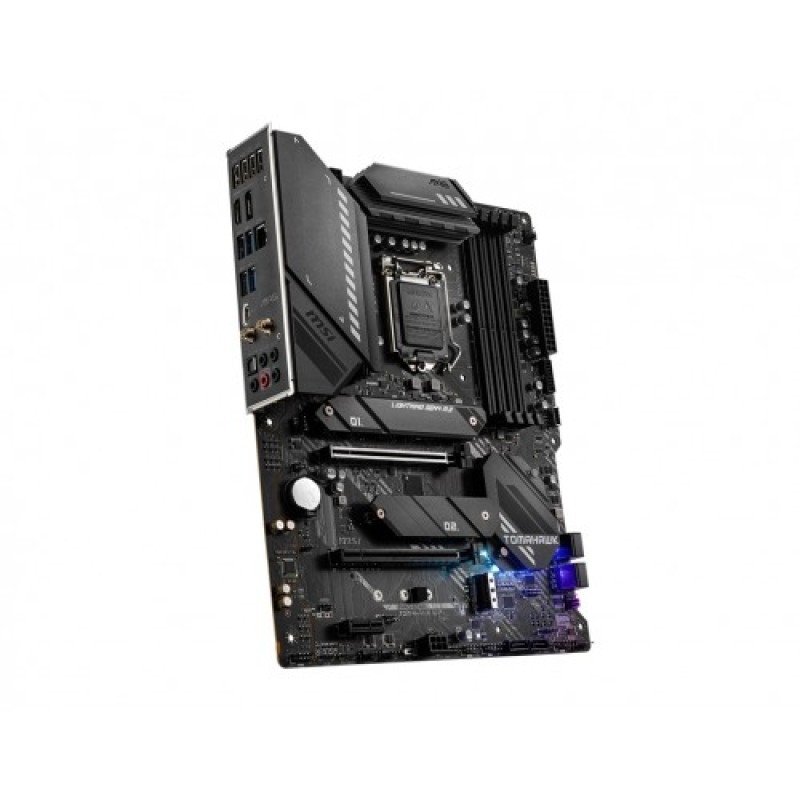

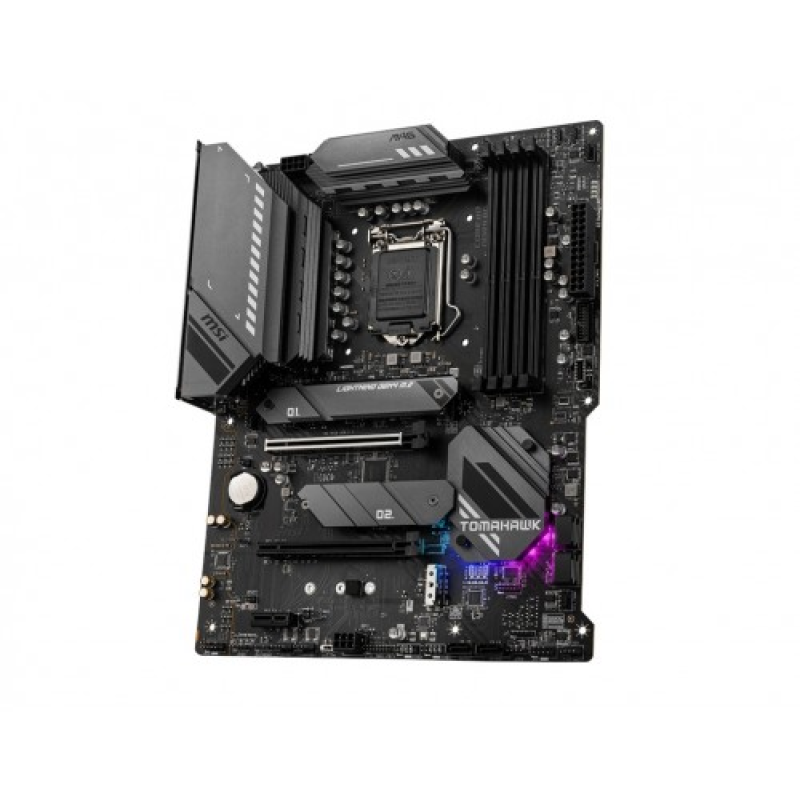

MSI MAG B560 Tomahawk WiFi ATX Motherboard supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket, DDR4 Memory, up to 5066(OC) MHz, Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs, Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works. This Motherboard comes with 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection and it is Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C, Audio Boost: Reward your ears with studio grade sound quality, Multi-GPU: With Steel armor PCIe slots. Supports 2-Way AMD Crossfire. This Motherboard comes with more coresâ€™ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards. Here, Utilizing 11th Gen Intel processors, MSI B560 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. The 2.5Gbps LAN ports provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. This MSI MAG B560 Tomahawk WiFi Intel 10th Gen and 11th Gen ATX Motherboard has 03 years warranty.

What is the price of MSI MAG B560 Tomahawk WiFi Intel 10th & 11th Gen ATX Motherboard in Bangladesh?

The latest price of MSI MAG B560 Tomahawk WiFi Intel 10th & 11th Gen ATX Motherboard in Bangladesh is 15,800৳. You can buy the MSI MAG B560 Tomahawk WiFi Intel 10th & 11th Gen ATX Motherboard at best price from our website or visit any of our showrooms.
