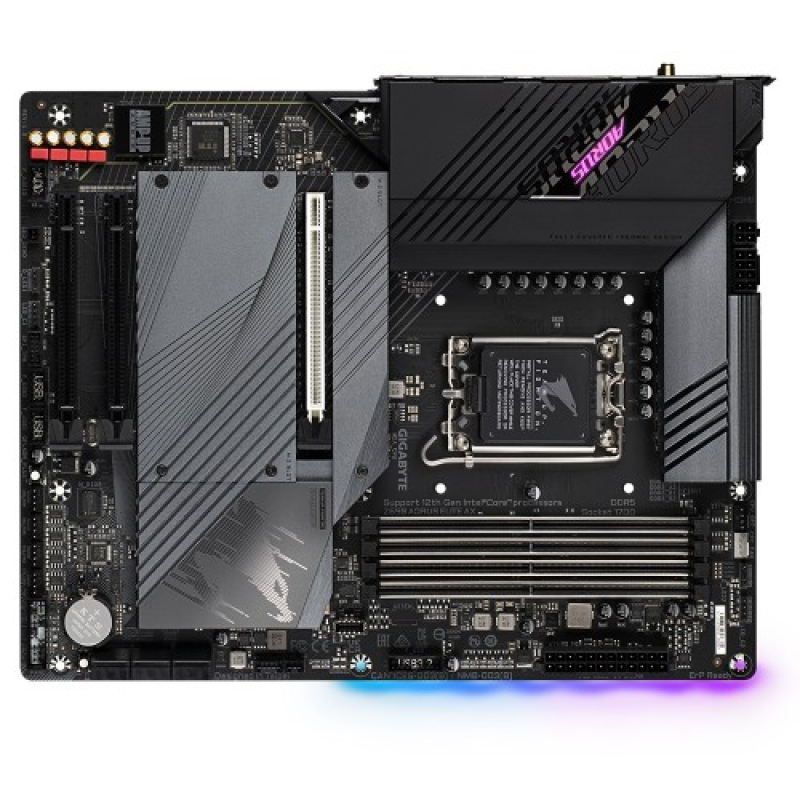

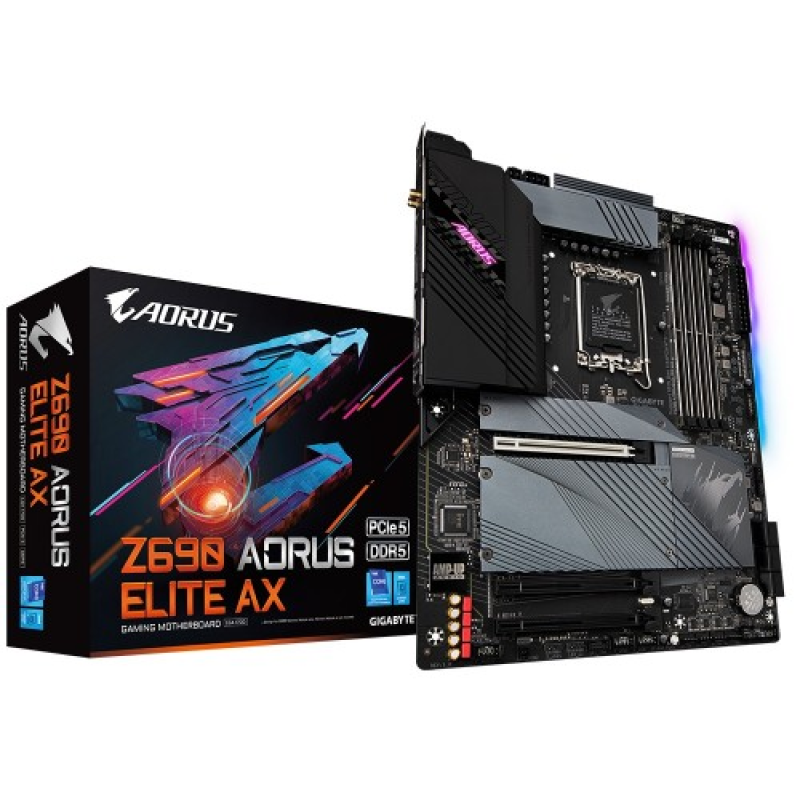

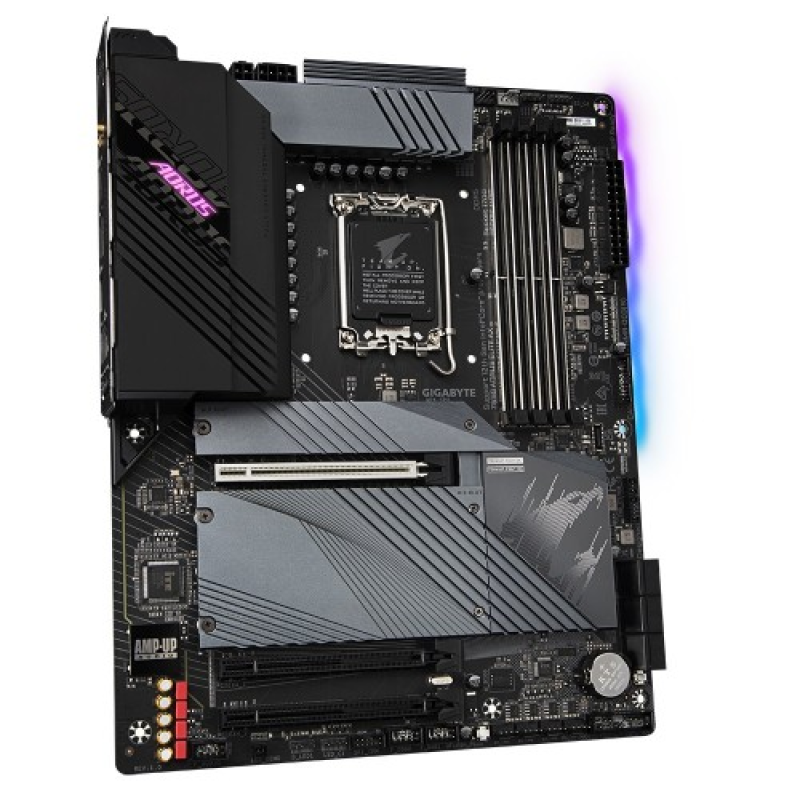

GIGABYTE Z690 AORUS ELITE AX WiFi DDR5 ATX Motherboard

Regular Price 29,300৳
Product Code 6088
Brand Gigabyte
Short Details
  • Model: Z690 AORUS ELITE AX
  • LGA1700 socket for 14th, 13th & 12th Gen Intel Core, Pentium Gold & Celeron
  • Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
  • WIFI 6 802.11ax 2T2R & BT5 with AORUS Antenna
  • 4 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2
Contact for bulk quantity: 01733-080376 , 01733-080350 ,

Specification

Information
Supported CPU LGA1700 socket: Support for 14th, 13th & 12th Gen Intel Core, Pentium Gold, and Celeron Processors
L3 cache varies with the CPU
Chipset Intel Z690 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek ALC1220-VB CODEC
* The back panel line out jack supports DSD audio.
High Definition Audio
2-channel analog output
Support for S/PDIF Out
7.1-channel digital signals
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 5.0 standard.)
2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
(The PCIEX4 slots conform to PCI Express 3.0 standard.)
Memory
Type DDR5
Slots 4 x DIMM
Supported Memory Support for DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory Up to 128 GB (32 GB single DIMM capacity) of system memory
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Connector & Ports
HDMI 1 x HDMI port
Display Port (s) 1 x DisplayPort
USB (s) Chipset:

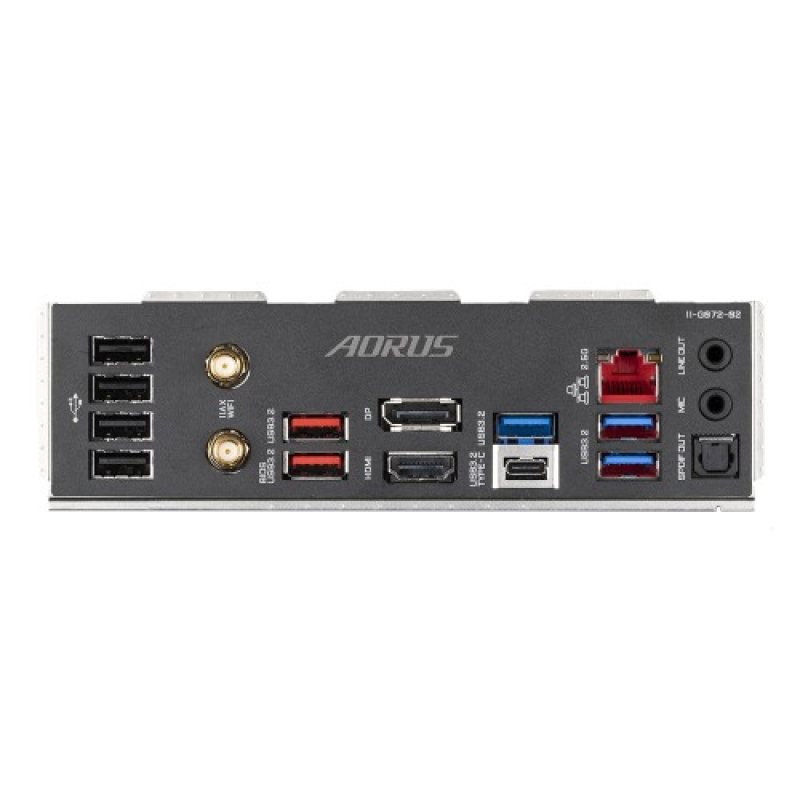

1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hub:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module WIFI Module
WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.2
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
Supported Storage CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2Q_SB/M2P_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "2-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Intel Optane Memory Ready
Audio 2 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software Norton Internet Security (OEM version)
Realtek Gaming LAN Bandwidth Control Utility
Warranty Information
Manufacturing Warranty 3 years

Description

GIGABYTE Z690 AORUS ELITE AX WiFi ATX Motherboard

GIGABYTE Z690 AORUS ELITE AX supports with 14th, 13th & 12th Gen Intel Core Series Processors, Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs. The Z690 AORUS gaming motherboards is the king of gaming platform continues the legendary AORUS bloodline with the most robust power delivery and dominant thermal design, glorified with the complete memory overclocking technology, which helps to crown your PC with the best Alder Lake’s performance in all its gaming glory. This GIGABYTE motherboard designed with GIGABYTE 16 (8+8 phases parallel power design) +1+2 Twin Hybrid Phases Digital Power Design with 60A DrMOS and Tantalum Polymer Capacitor. The GIGABYTE Z690 AORUS ELITE AX featured with DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing, Fully Covered Thermal Design with High Coverage MOSFET Heatsinks, AMP-UP Audio with ALC1220 and WIMA Audio Capacitors, Fast 2.5GbE LAN with Bandwidth Management and 4x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards. GIGABYTE still keep up with the latest trends and features with the latest technology. GIGABYTE Z690 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming.​ The Z690 Motherboards feature the latest DDR5 architecture and XMP 3.0 capability. The new DDR5 memory technology brings 50% more bandwidth to the platform and increases the system performance drastically by implementing Unlocked Native DDR5 Voltage, Xtreme Memory Routing and reliable SMD slot. In addition to the hardware upgrades, the user friendly UI provides full functionality to overclock higher with exclusive DDR5 tuning capability. The Motherboard has SuperSpeed USB 3.2 Gen2x2 TYPE-C delivers up to 20Gb/s transfer speeds, RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips, Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card. The latest GIGABYTE Z690 AORUS ELITE AX comes with 03 years warranty.

What is the price of GIGABYTE Z690 AORUS ELITE AX Motherboard in Bangladesh?

The latest price of GIGABYTE Z690 AORUS ELITE AX Motherboard in Bangladesh is 29,300৳. You can buy the GIGABYTE Z690 AORUS ELITE AX Motherboard at best price from our website or visit any of our showrooms.
