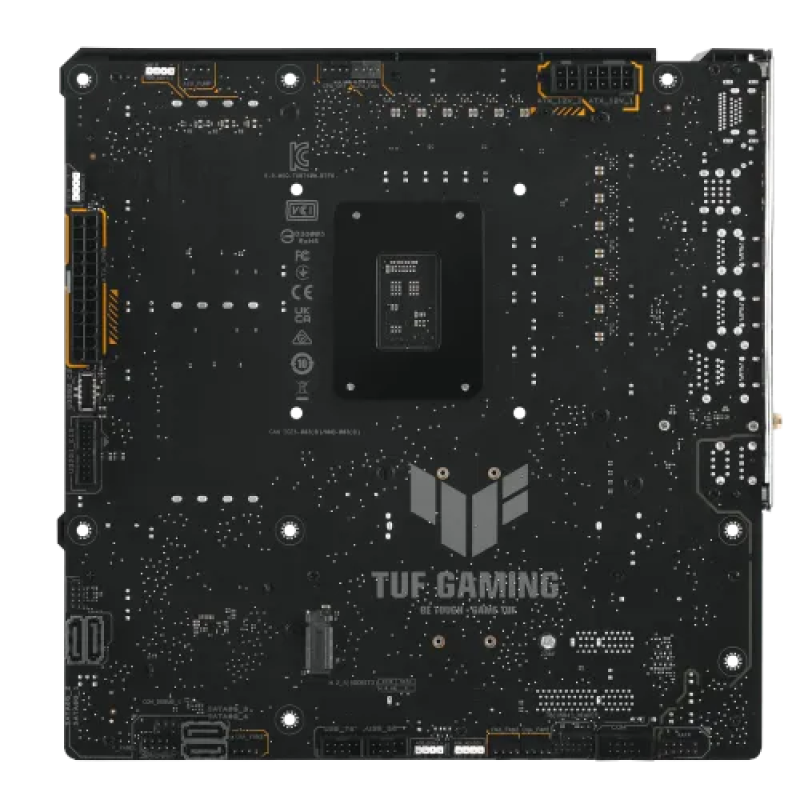

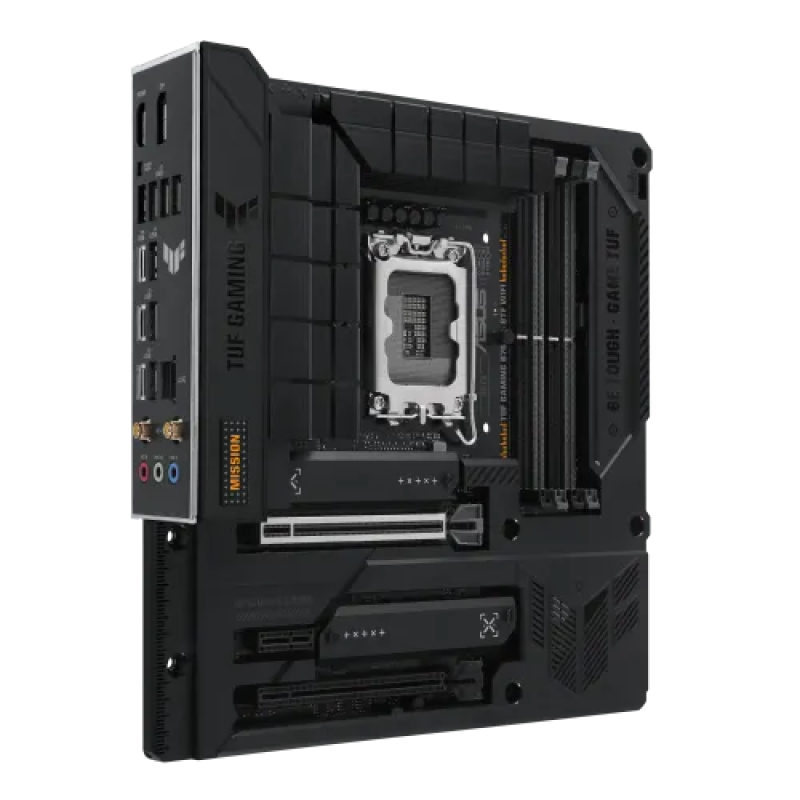

ASUS TUF GAMING B760M-BTF WIFI micro-ATX Motherboard

Regular Price	36,300৳
Status	In Stock
Product Code	6094
Brand	Asus

Short Details

Model: TUF GAMING B760M-BTF WIFI
Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
Supported Memory: 4 x DIMM, Max. 192GB, DDR5 7200(OC)
Graphics Output: 1 x DisplayPort, 1 x HDMI
Features: 1 x Realtek 2.5Gb Ethernet, Wi-Fi 6

More Info

36300৳

Product Price

Contact for bulk quantity: 01733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Information
Supported CPU	Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel B760 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers
Expansion Slots
PCI	Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot
M.2 Socket	3 x M.2
Memory
Type	DDR5
Slots	4 x DIMM
Supported Memory	7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory	Max. 192GB
Graphics
Graphics	x DisplayPort 1 x HDMI® port* Supports max. 4K@60Hz as specified in DisplayPort 1.4. * Supports 4K@60Hz as specified in HDMI® 2.1.
Connector & Ports
HDMI	1 x HDMI
Display Port (s)	1 x DisplayPort
USB (s)	Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C) 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C) 3 x USB 3.2 Gen 1 (5G) ports (2 x Type-A + 1 x USB Type-C) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * U32G1_E1 port, U32G1_E2 port, U32G1_E3 port and U32G1_E4 port share the bandwidth.
LAN Port (s)	1 x Realtek 2.5Gb Ethernet
Wireless Communication module	Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2
Supported Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 only (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
RAID	Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio	3 x Audio jacks
Internal I/O Ports	Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C) 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A, 1 x USB Type-C) 3 x USB 3.2 Gen 1 (5G) ports (2 x Type-A, 1 x USB Type-C) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMITM port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x Clear CMOS button Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 10-1 pin System Panel header 1 x Thunderbolt (USB4) header
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
Others
Special Features	ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - Clear CMOS button - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers
Bundled Software	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - FAN Xpert 2+ - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyASUS Norton 360 for Gamers (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty	3 years

Description

ASUS TUF GAMING B760M-BTF WIFI micro-ATX Motherboard

The ASUS TUF GAMING B760M-BTF WIFI Motherboard is a performance and durability powerhouse ideal for PC DIY gamers. This motherboard supports 14th, 13th, and 12th Generation Intel processors with an LGA1700 socket, assuring support for the most recent and powerful CPUs. Memory is a standout feature, with four DIMM slots supporting up to 192GB DDR5 memory rated at 7200MHz (OC). This enables quick multitasking and excellent performance, especially when overclocking to the limit. In terms of graphics output, the motherboard has 1 x DisplayPort and 1 x HDMI, allowing you to connect high-quality screens with ease. Realtek 2.5Gb Ethernet and Wi-Fi 6 guarantee dependable and fast network access for both wired and wireless installations. The "BTF" designation for the TUF GAMING B760M-BTF WIFI means "Back To (the) Future." As the motherboard conceals its connectors on the underside, this is a forward-thinking design approach, supporting clean cable management and contributing to a streamlined and minimalist construction look. This motherboard was designed with longevity in mind, featuring military-grade components, an innovative power solution, and a complete cooling system. These characteristics work together to provide rock-solid performance, guaranteeing that the motherboard can withstand the demands of long gaming sessions without sacrificing stability. The ASUS TUF GAMING B760M-BTF WIFI Motherboard is a cutting-edge option for gamers who value performance as well as looks. It is a solid basis for a high-performance gaming system, with support for the newest Intel CPUs, outstanding memory capacity, and a slew of gaming-centric features.The ASUS PRIME H770-PLUS Motherboard comes with 3 years warranty.

What is the price of ASUS TUF GAMING B760M-BTF WIFI Motherboard in Bangladesh?

The latest price of ASUS TUF GAMING B760M-BTF WIFI Motherboard in Bangladesh is 36,300৳. You can buy the ASUS TUF GAMING B760M-BTF WIFI Motherboard at best price from our website or visit any of our showrooms.
