GIGABYTE B650M DS3H DDR5 AMD AM5 Micro-ATX Motherboard

Regular Price 22,300৳
Status In Stock
Product Code 6084
Brand Gigabyte
Short Details
  • Model: B650M DS3H
  • Supported CPU: Ryzen 8000/ 7000 Series Processors for Socket AM5
  • Supported RAM: 4x DDR5, up to 128GB, 6400(OC)
  • Graphics Output: 2x Display Port, 1 x HDMI
  • Features: 2.5GbE LAN
Contact for bulk quantity: 01733-080376 , 01733-080350 ,

Specification

 Information
Supported CPU AMD Socket AM5, support for: AMD Ryzen 8000 & 7000 Series Processors
Chipset AMD B650
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Expansion Slots
PCI CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Memory
Type DDR5
Slots 4 DIMMs
Supported Memory Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / MT/s memory modules
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Maximum Memory 128GB
Graphics
Graphics ntegrated Graphics Processor:
2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
Support for up to 3 displays at the same time

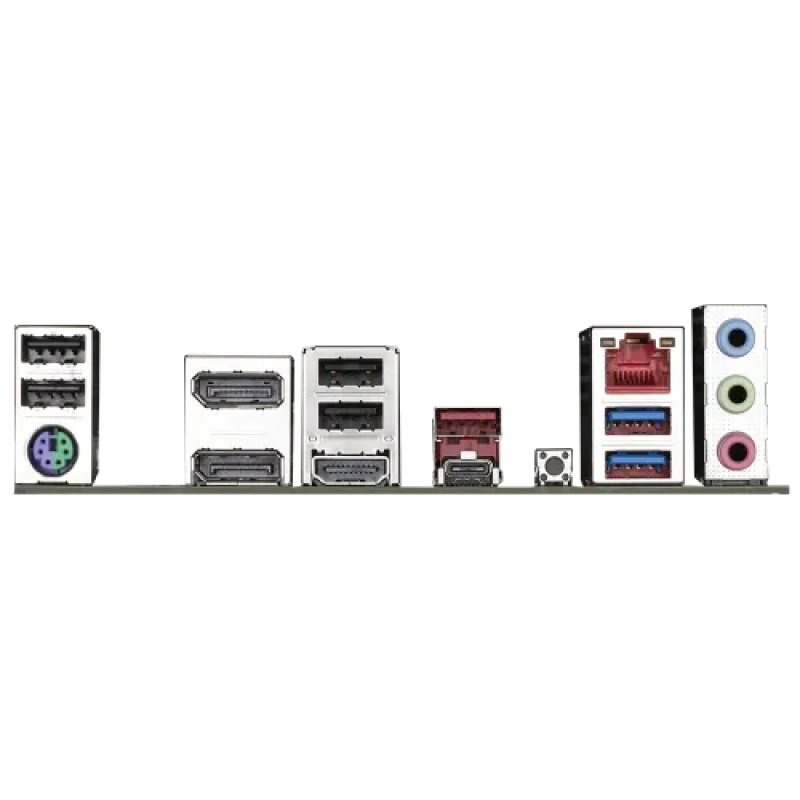

Connector & Ports
HDMI 1x HDMI
Display Port (s) 2 x DisplayPorts
USB (s) CPU:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
CPU + USB 2.0 Hub:
4 x USB 2.0/1.1 ports on the back panel
Chipset:
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage CPU:
2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support)
Chipset:
4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio 3 x Audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty Information
Manufacturing Warranty 3 Years

Description

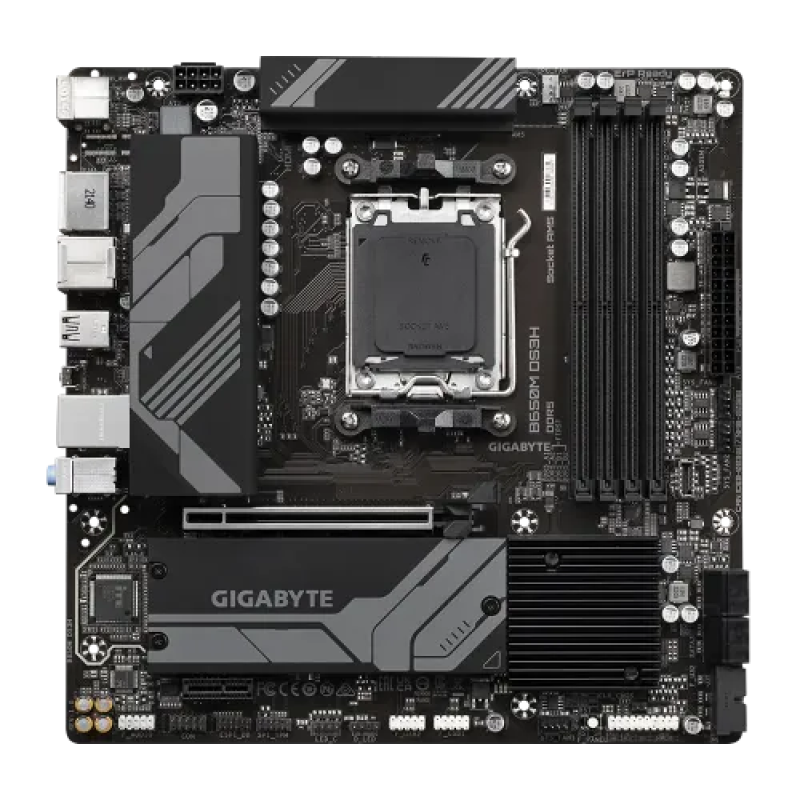

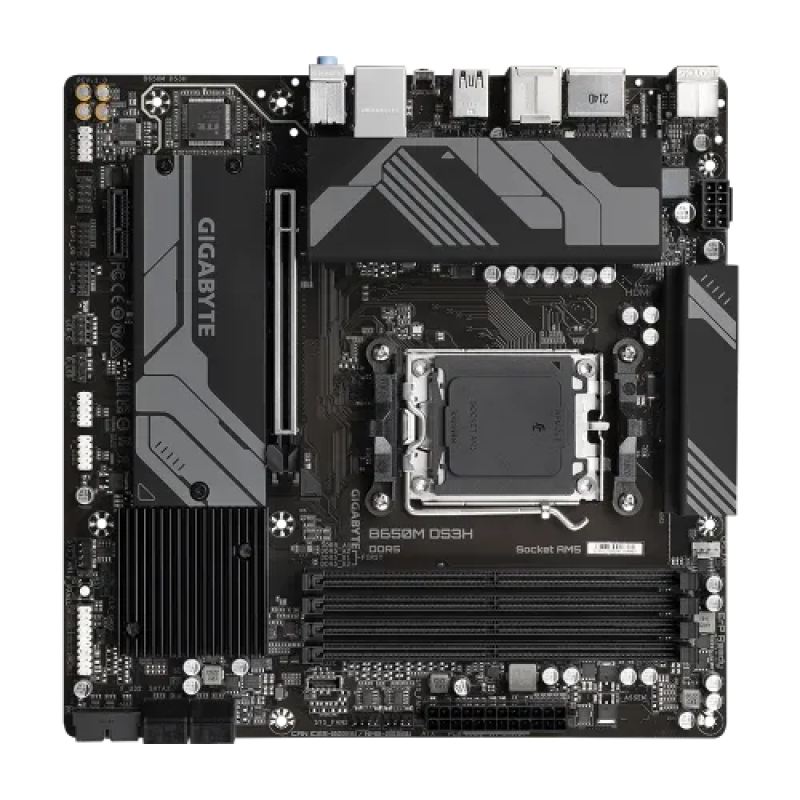

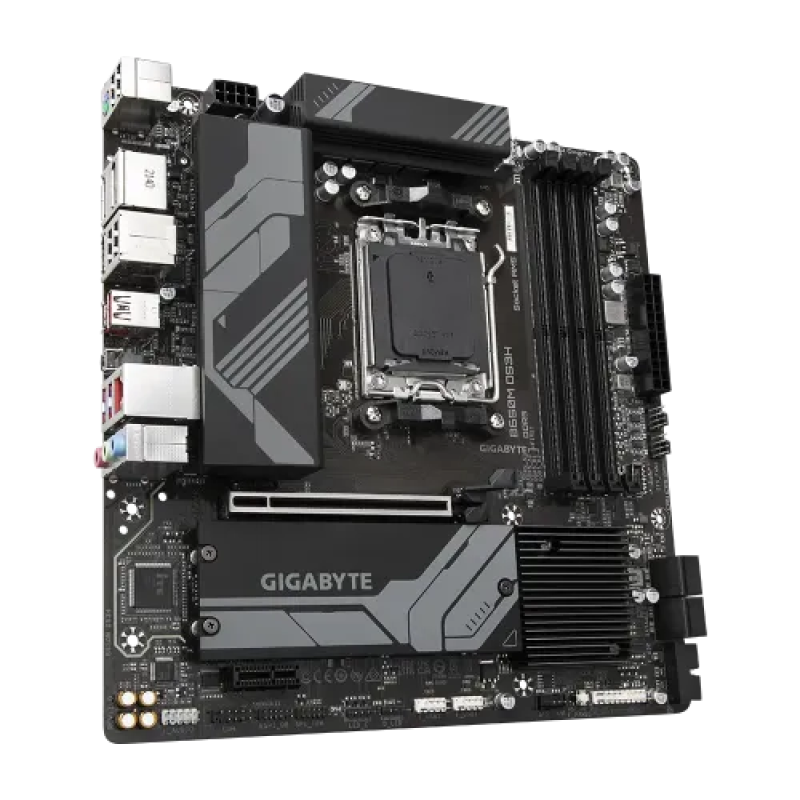

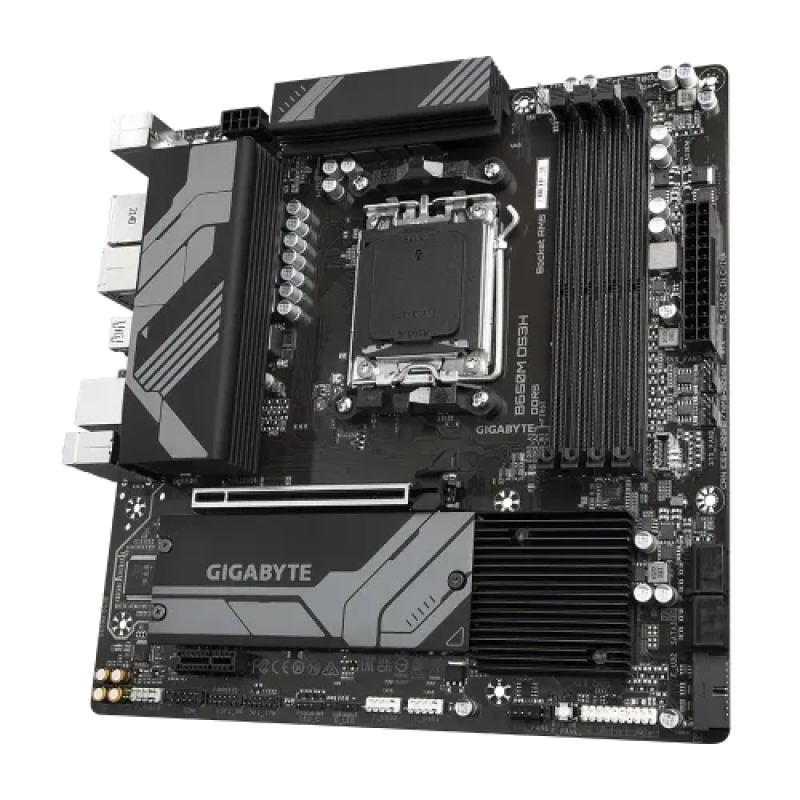

GIGABYTE B650M DS3H DDR5 AMD AM5 Micro-ATX Motherboard

The GIGABYTE B650M DS3H Motherboard supports AMD Ryzen 8000 & 7000-series processors for socket AM5. It equips the best VRM design ever built with the highest quality components and comes with direct 6+2+1 Phases Digital VRM Solution. It offers advanced thermal heatsinks to improve thermal efficiency with better airflow and heat exchange. It comes with 2x PCIe 4.0 x4 M.2 Connectors. The M.2 Thermal Guard prevents throttling and bottlenecks from high-speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. This motherboard features 2X copper PCBs design effectively lowering the component temperature through its high thermal conductivity and low impedance. The Smart Fan 6 contains several unique cooling features that ensure the gaming PC maintains its performance while staying cool and quiet. Each fan headers support PWM and DC fan and Water Cooling Pump, and up to 24W (12V x 2A) with Over-Current Protection. The GIGABYTE B650M DS3H comes with 2.5G LAN which provides up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking. It also supports Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet. The USB 3.2 Gen 2 ports provide speeds up to 10Gbps. With twice the bandwidth compared to its previous generation, The GIGABYTE B650M DS3H Motherboard comes with 3 years of warranty.

What is the price of GIGABYTE B650M DS3H Motherboard in Bangladesh?

The latest price of GIGABYTE B650M DS3H Motherboard in Bangladesh is 22,300৳. You can buy the GIGABYTE B650M DS3H Motherboard at best price from our website or visit any of our showrooms.
