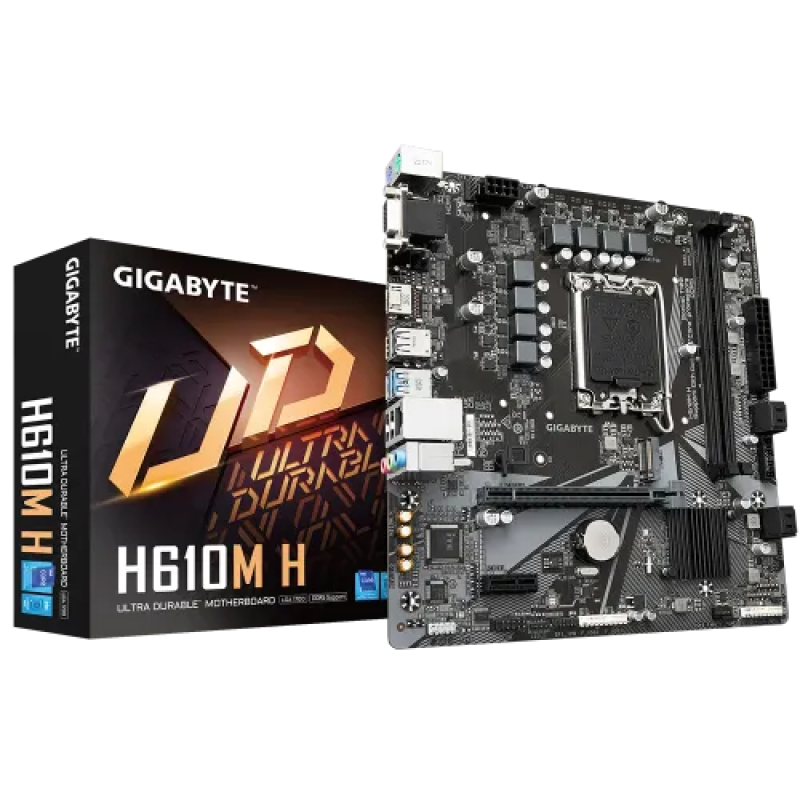

GIGABYTE H610M H DDR5 mATX Motherboard

Regular Price 10,600৳
Product Code 4661
Brand Gigabyte
Short Details
  • Model: H610M H
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 2x DDR5, Max 64GB 4800(OC)
  • Graphics Output: 1x HDMI, 1x D-Sub port
  • Features: Realtek GbE LAN chip (1 Gbps/100 Mbps)
Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Specification

 Information
Supported CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
Chipset Intel H610 Express Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 23.0cm x 21.5cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Expansion Slots
PCI CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Memory
Type DDR5
Slots 2
Supported Memory Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory up to 64 GB (32 GB single DIMM capacity) of system memory
Graphics
Graphics Integrated Graphics Processor-Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Support for HDMI 2.1 version and HDCP 2.3.
Support native HDMI 2.1 TMDS compatible ports
(Graphics specifications may vary depending on CPU support.)

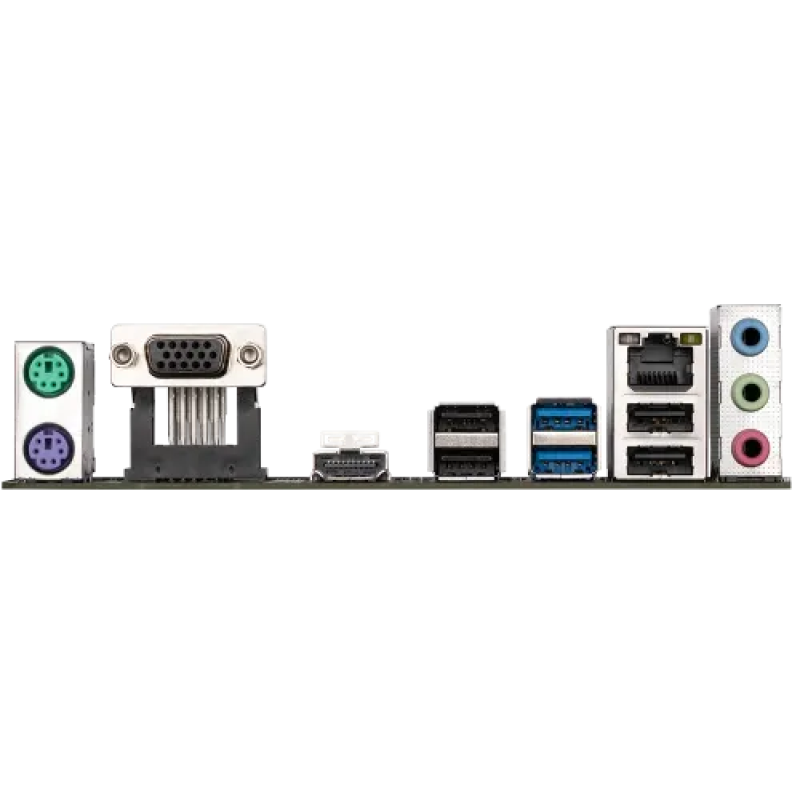

Connector & Ports
HDMI 1x HDMI
D-Sub (s) 1x D-Sub port
USB (s) Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage Chipset:
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
Audio 1 x front panel audio header
2 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features Support for APP Center
Support for Q-Flash
Support for Xpress Install
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty Information
Manufacturing Warranty 3 years

Description



GIGABYTE H610M H DDR5 mATX Motherboard

The GIGABYTE H610M H DDR5 mATX Motherboard is a high-performance motherboard that supports 14th, 13th, and 12th generation Intel processors via the LGA1700 socket. Because it is compatible with Intel Core 14th, 13th, and 12th generation CPUs, it provides a powerful and responsive computer experience. The motherboard supports DDR5 memory with dual-channel non-ECC unbuffered DDR5 slots, with a maximum capacity of 64GB that can be overclocked to 4800MHz. It has 1x HDMI and 1x D-Sub connection for graphics output, accommodating multiple display configurations. A 6+1+1 Hybrid Digital VRM Design for reliable power delivery, PCIe 4.0 Design for better data transfer rates, and Gen3 x4 M.2 for high-speed data transmission with support for NVMe PCIe 3.0 x4 M.2 SSDs are among the advanced features. An Anti-Sulfur Resistor is included to increase longevity, while Smart Fan 6 includes numerous temperature sensors and hybrid fan headers with FAN STOP for effective cooling. For an immersive audio experience, the motherboard also has GbE LAN with Bandwidth Management, high-quality audio capacitors, and Audio Noise Guard. The GIGABYTE APP Center provides a user-friendly interface for quick system customization and control. The GIGABYTE H610M H DDR5 mATX Motherboard provides a dependable and high-performance platform perfect for gamers, content makers, and enthusiasts, with added features such as Anti-Sulfur Resistors Design for better endurance.

Buy GIGABYTE H610M H DDR5 mATX Motherboard from the best Motherboard Shop in BD

In Bangladesh, you can get the original GIGABYTE H610M H DDR5 mATX Motherboard From Star Tech. We have a large collection of the latest GIGABYTE Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at the lowest price. The GIGABYTE H610M H Motherboard comes with 3 years warranty.

What is the price of GIGABYTE H610M H Motherboard in Bangladesh?

The latest price of GIGABYTE H610M H Motherboard in Bangladesh is 11500৳. You can buy the GIGABYTE H610M H Motherboard at best price from our website or visit any of our showrooms.
