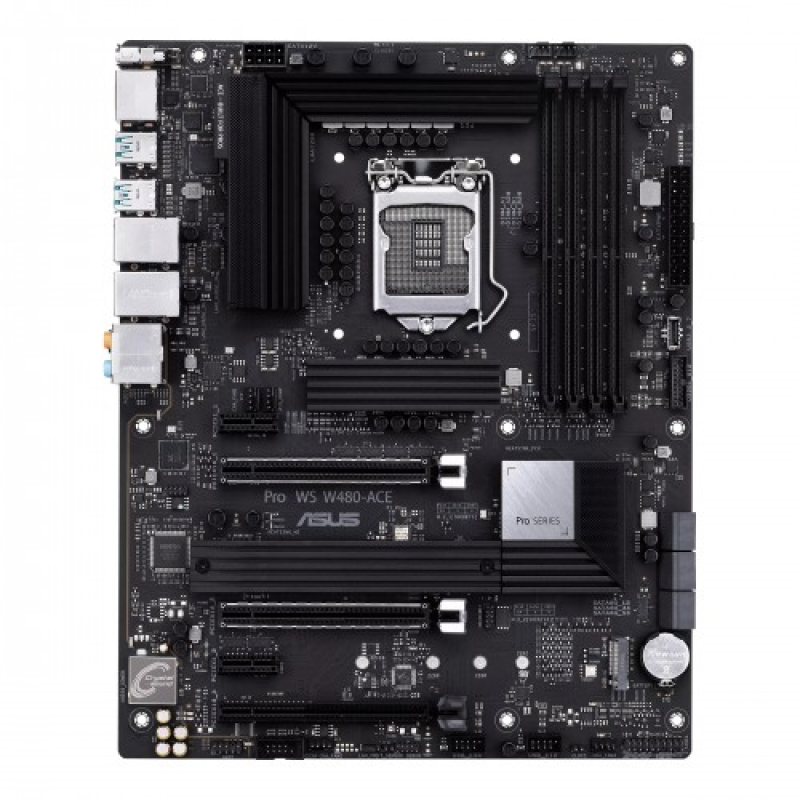

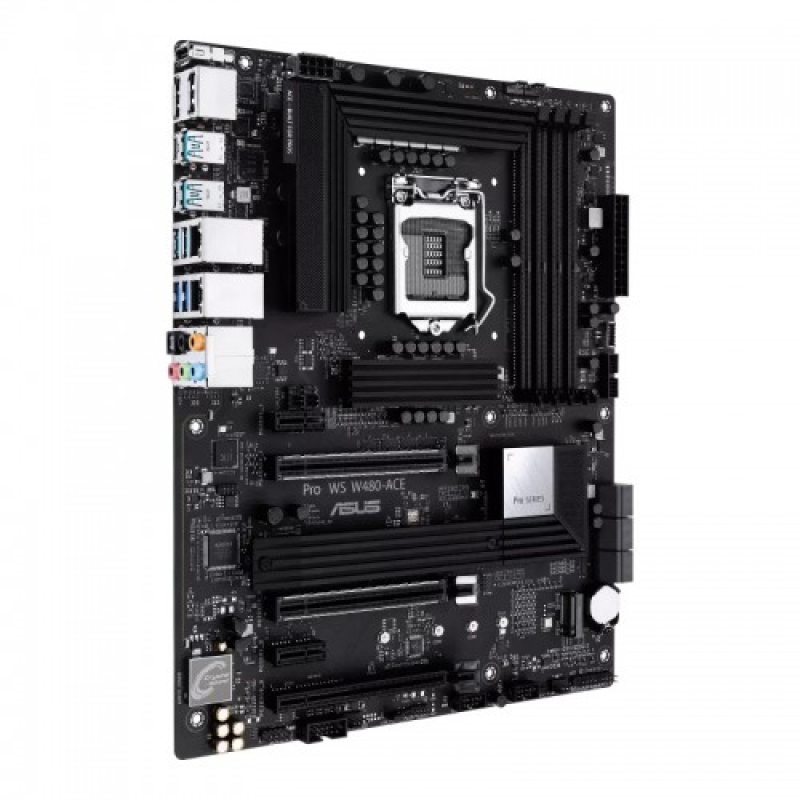

Asus Pro WS W480-ACE Intel Workstation Motherboard

Regular Price 26,200৳
Product Code 178
Brand Asus
Short Details
  • Model: Pro WS W480-ACE
  • Intel Socket LGA 1200 for Xeon W-1200 series processors
  • 4x DDR4 DIMM, Max 128GB
  • Fan-less VRM heatsink
  • 2 x M.2 slots 22110
Contact for bulk quantity: 01733-080376 , 01733-080350 ,

Specification

Basic Information
Supported CPU Intel Socket 1200 for 10th Gen Intel Xeon Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel W480
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
12 inch x 9.2 inch (30.5 cm x 23.4 cm)
Audio Realtek ALC S1220A 8-Channel High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking, up to 24-Bit/192kHz playback
- High quality 120 dB SNR stereo playback output and SNR recording input
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
- Audio Cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
Expansion Slots
PCI Intel 10th Gen Processors
2 x PCIe 3.0 x16 (x16 or dual x8)
Intel W480 Chipset
1 x PCIe 3.0 x16 (x4 mode)
2 x PCIe 3.0 x1
M.2 Socket Total supports 2 x M.2 slots
Memory
Type DDR4
Slots 4 x DIMM
Supported Memory 4800(O.C.)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Maximum Memory 128GB
Graphics
Graphics Integrated Graphics Processor
1 x DisplayPort 1.4
1 x HDMI 1.4b
Supports AMD 3-Way CrossFireX Technology

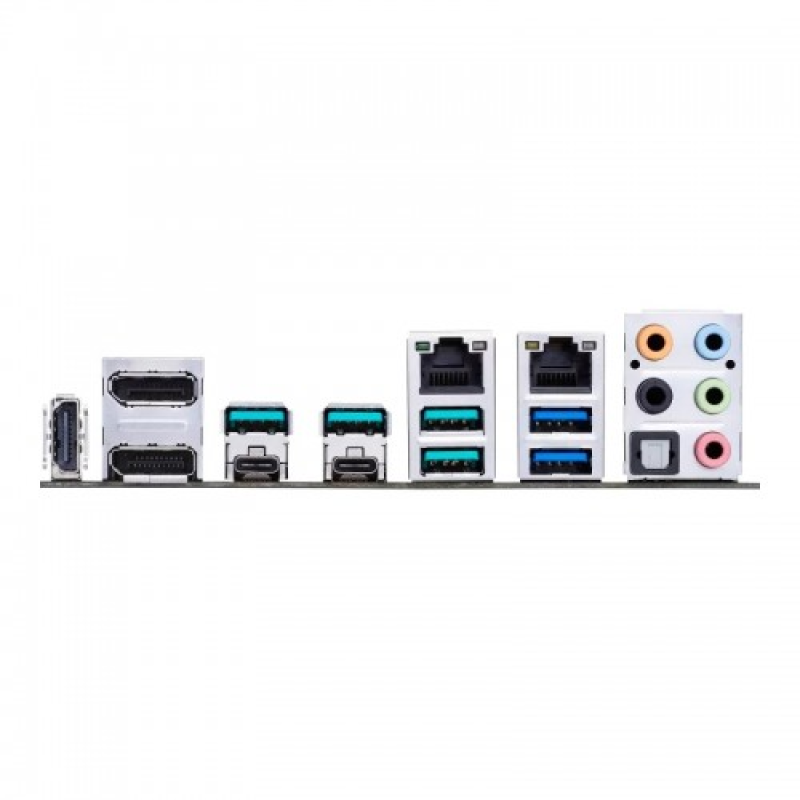

Connector & Ports
HDMI 1 x HDMI
USB (s) Intel Thunderbolt 3 Controller :
2 x USB 3.2 Gen 2 port(s) (USB Type-C)

Rear USB Port ( Total 6 )
4 x USB 3.2 Gen 2 port(s)(4 x Type-A)
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)

Front USB Port ( Total 7 )
1 x USB 3.2 Gen 1 port(s)(1 x USB Type-C)
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)

Thunderbolt:
2 x Intel Thunderbolt 3 ports(TypeC) support DisplayPort and Thunderbolt video outputs
Supports DisplayPort 1.4/ with max. resolution 7680/ x 3840/@ 60 Hz*
* VGA resolution support depends on VGA cards' resolution.
Data transfer rate up to 40 Gbps
Daisy-chain up to 12 Thunderbolt devices
Up to 5V/3A, 15W charging support
LAN Port (s) Intel I225-LM 2.5Gb Ethernet
Realtek RTL8117
Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel W480 Chipset:
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*4
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel Rapid Storage Technology supports
Intel Optane Memory Ready
Audio 5 x Audio jack(s)
Internal I/O Ports 1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 1 USB 3.2 Gen 1 port(s) (20-pin, Type-C)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Chassis intrusion header is inbuilt) x With flexkey function
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x COM port header
Others
Special Features ASUS 5X PROTECTION III
- ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
- ASUS Enhanced DRAM Overcurrent Protection
- ASUS ESD Guards
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core+
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-LED
- ASUS Q-Shield
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS EZ DIY
- Procool II
- SafeSlot
Out-of-band Management
- BIOS Update Indicator LED
- LAN Initialization Indicator LED
Bundled Software ASUS Exclusive Software
Armoury Crate
AI Suite 3
Performance And Power Saving Utility
- TPU
- EPU
- Digi+ VRM
- EZ update
- Fan Xpert 4
- Turbo app
IT Management software supported
- ASUS Control Center Express(ACCE)
AI Charger
ASUS Turbo LAN
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
Warranty Information
Manufacturing Warranty 3 Years

Specification

Basic Information
Supported CPU Intel Socket 1200 for 10th Gen Intel Xeon Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel W480
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
12 inch x 9.2 inch (30.5 cm x 23.4 cm)
Audio Realtek ALC S1220A 8-Channel High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking, up to 24-Bit/192kHz playback
- High quality 120 dB SNR stereo playback output and SNR recording input
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
- Audio Cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
Expansion Slots
PCI Intel 10th Gen Processors
2 x PCIe 3.0 x16 (x16 or dual x8)
Intel W480 Chipset
1 x PCIe 3.0 x16 (x4 mode)
2 x PCIe 3.0 x1
M.2 Socket Total supports 2 x M.2 slots
Memory
Type DDR4
Slots 4 x DIMM
Supported Memory 4800(O.C.)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Maximum Memory 128GB
Graphics
Graphics Integrated Graphics Processor
1 x DisplayPort 1.4
1 x HDMI 1.4b
Supports AMD 3-Way CrossFireX Technology
Connector & Ports
HDMI 1 x HDMI
USB (s) Intel Thunderbolt 3 Controller :
2 x USB 3.2 Gen 2 port(s) (USB Type-C)

Rear USB Port ( Total 6 )
4 x USB 3.2 Gen 2 port(s)(4 x Type-A)
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)

Front USB Port ( Total 7 )
1 x USB 3.2 Gen 1 port(s)(1 x USB Type-C)
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)

Thunderbolt:
2 x Intel Thunderbolt 3 ports(TypeC) support DisplayPort and Thunderbolt video outputs
Supports DisplayPort 1.4/ with max. resolution 7680/ x 3840/@ 60 Hz*
* VGA resolution support depends on VGA cards' resolution.
Data transfer rate up to 40 Gbps
Daisy-chain up to 12 Thunderbolt devices
Up to 5V/3A, 15W charging support
LAN Port (s) Intel I225-LM 2.5Gb Ethernet
Realtek RTL8117
Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel W480 Chipset:
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*4
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel Rapid Storage Technology supports
Intel Optane Memory Ready
Audio 5 x Audio jack(s)
Internal I/O Ports 1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 1 USB 3.2 Gen 1 port(s) (20-pin, Type-C)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Chassis intrusion header is inbuilt) x With flexkey function
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x COM port header
Others
Special Features ASUS 5X PROTECTION III
- ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
- ASUS Enhanced DRAM Overcurrent Protection
- ASUS ESD Guards
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core+
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-LED
- ASUS Q-Shield
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS EZ DIY
- Procool II
- SafeSlot
Out-of-band Management
- BIOS Update Indicator LED
- LAN Initialization Indicator LED
Bundled Software ASUS Exclusive Software
Armoury Crate
AI Suite 3
Performance And Power Saving Utility
- TPU
- EPU
- Digi+ VRM
- EZ update
- Fan Xpert 4
- Turbo app
IT Management software supported
- ASUS Control Center Express(ACCE)
AI Charger
ASUS Turbo LAN
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
Warranty Information
Manufacturing Warranty 3 Years



Description

Asus Pro WS W480-ACE Intel Workstation Motherboard

The Asus Pro WS W480-ACE Intel Workstation Motherboard is powered by the latest Intel Xeon W-1200 workstation processors for always-on usage scenarios and supports ECC memory to automatically detect and correct data corruption, reducing the chance of system crashes to ensure workstation stability. Asus Pro WS W480-ACE Workstation motherboard is designed for professionals in AI training, deep learning, animation, 3D rendering, or media production. Featuring expandable graphics, extensive storage, impressive connectivity, and exceptional overall performance and reliability, Pro Workstation motherboards are the ideal solution for creative professionals. Each motherboard includes centralized management software, so they're also an efficient and cost-effective option for IT administrators. Asus Pro WS W480-ACE features an onboard RTL8117 management LAN port that gives IT administrators reliable remote hardware-level access to the workstation in the event of a system crash or when no OS is installed. With the ability to manage BIOS settings and perform updates, hardware resets and even OS installations, hardware-level access on Pro WS W480-ACE makes IT management of your business systems easier and more efficient. Asus Control Center Express is an intuitive and secure software designed to simplify IT operations and improve workload productivity by providing comprehensive control of all the systems in your organization. Plus, Asus Control Center Express is compatible with over 100 Asus motherboards to give you more upgrade flexibility and fewer compatibility issues. The Asus Pro WS W480-ACE comes with 3 years of warranty.

What is the price of Asus Pro WS W480-ACE Workstation Motherboard in Bangladesh?

The latest price of Asus Pro WS W480-ACE Workstation Motherboard in Bangladesh is 26,300৳. You can buy the Asus Pro WS W480-ACE Workstation Motherboard at best price from our website or visit any of our showrooms.
