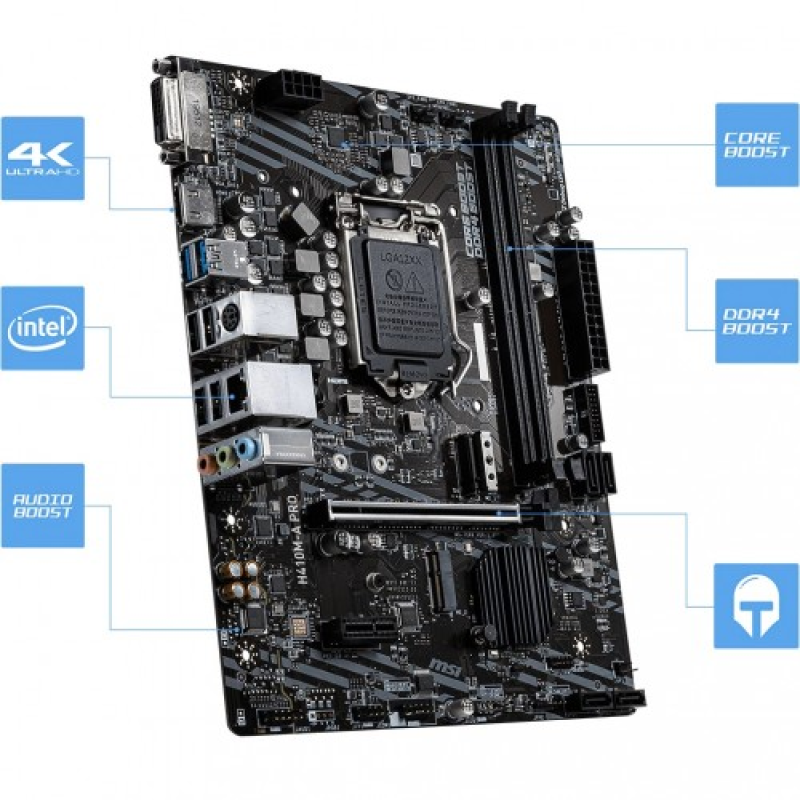

MSI H410M A Pro Intel 10th Gen Micro-ATX Motherboard

Regular Price 8,500৳
Product Code 5268
Brand MSI
Short Details
  • Model: MSI H410M A Pro
  • Intel LGA 1200 socket: Ready for 10th Gen Intel Core processors
  • DDR4, Audio & Core Boost
  • Low Latency Gaming LAN
  • Extreme Stability & Compatibility
Contact for bulk quantity: 01733-080376 , 01733-080350 ,

Specification

Information
Supported CPU Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket
Chipset Intel H410
Form Factor Mirco-ATX Form Factor: 9.3 in. x 7.5 in. (23.6 cm x 19.0 cm)
Expansion Slots
PCI 1x PCIe 3.0 x16 slot (From CPU)
1x PCIe 3.0 x1 slot (From PCH)
M.2 Socket 1x M.2 slot (Key M)
-M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
1x M.2 slot with E key for WiFi module only
Memory
Type Dual Channel Memory Architecture
Slots 2 x DIMM
Supported Memory Intel Core i7/ i9
-Supports up to DDR4 2933 MHz
Intel Core i5 and below
-Supports up to DDR4 2666 MHz
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Maximum Memory 64GB
Graphics
Graphics 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz
1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz
Max Shared Memory 1GB
Connector & Ports
HDMI 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz
DVI-D (s) 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz
USB (s) Intel H410 Chipset
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)
LAN Port (s) 1x Intel I219V Gigabit LAN controller
Supported Storage Intel H410 Chipset
4x SATA 6Gb/s ports
1x M.2 slot (Key M)
-M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
Audio Realtek ALC892 Codec
7.1-Channel High Definition Audio
Internal I/O Ports 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x Front panel connectors
1x Serial port connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
4x EZ Debug LED
TPM (Trusted Platform Module ) 1 x TPM module connector
Warranty Information
Manufacturing Warranty 03 Years

Description

Enhance Your PC with the MSI H410M A Pro Intel 10th Gen Micro-ATX Motherboard

Efficient Performance for Professionals

In the bustling city of Dhaka, where technology drives productivity and creativity, the MSI H410M A Pro Intel 10th Gen Micro-ATX Motherboard stands out as the perfect upgrade for your PC. Designed to deliver stable functionality and high-quality performance, this motherboard is an ideal choice for professionals seeking efficiency and reliability. The MSI H410M A Pro is built to optimize your workflows, ensuring less troubleshooting and more productivity.

Advanced Features for Enhanced Computing

The MSI H410M A Pro Intel 10th Gen Micro-ATX Motherboard is a powerhouse of features designed to elevate your computing experience. One of the standout features is the Total Fan Control, which allows you to manage the speeds and temperatures of your system and CPU fans. With up to four temperature targets for the CPU and motherboard, the fan speeds adjust automatically, ensuring optimal cooling and performance.

Stay connected with Intel LAN, optimized for stable internet throughput, making it perfect for championship-level online play. The MSI LAN Manager prioritizes latency-sensitive applications, providing you with the best online experience with minimal lag. Whether you're working or gaming, this motherboard ensures a seamless and efficient connection.

Robust Memory and Power Delivery

MSI conducts thorough memory testing with popular brands like Corsair, Crucial, Kingston, and G.Skill under extreme conditions to ensure system stability. This rigorous testing guarantees that your system will run smoothly, no matter the demands. The Core Boost technology combines MSI’s premium layout and optimized power design, allowing for faster and undistorted current delivery to the CPU with pinpoint precision. This creates the perfect condition for multi-core CPUs to run at full speed, providing the performance you need for demanding applications.

Key Features of MSI H410M A Pro Intel 10th Gen Micro-ATX Motherboard

  • Total Fan Control: Manage speeds and temperatures with up to four temperature targets for optimal cooling.
  • Intel LAN: Optimized for stable internet throughput, perfect for online gaming and professional use.
  • Robust Memory Compatibility: Thoroughly tested with top memory brands for stability and performance.
  • Core Boost Technology: Ensures efficient and precise power delivery to the CPU for enhanced performance.
  • High-Quality Assembly: Built to last with stable functionality, reducing troubleshooting and increasing productivity.
  • Compact Micro-ATX Form Factor: Fits easily into a variety of cases, making it versatile for different builds.

Technical Specifications and Usage

Here is a detailed breakdown of the technical specifications of the MSI H410M A Pro Intel 10th Gen Micro-ATX Motherboard:

  • Chipset: Intel H410
  • Form Factor: Micro-ATX
  • Memory Support: Up to 64GB DDR4
  • Storage: 4 x SATA 6Gb/s ports, 1 x M.2 slot
  • Expansion Slots: 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
  • USB Ports: Multiple USB 3.2 Gen 1 and USB 2.0 ports
  • Audio: High-Definition Audio

Easy Installation and User-Friendly Design

Setting up the MSI H410M A Pro Intel 10th Gen Micro-ATX Motherboard is a straightforward process. Simply follow these steps:

  1. Power Down Your PC: Ensure your computer is completely powered off and unplugged.
  2. Open Your PC Case: Carefully remove the side panel to access the internal components.
  3. Install the Motherboard: Place the motherboard into the case and secure it with screws.
  4. Connect Components: Attach the CPU, memory, storage, and power supply to the motherboard.
  5. Power On and Install Drivers: Power on your computer, and install the necessary drivers from the MSI website.

Pricing and Availability

The MSI H410M A Pro Intel 10th Gen Micro-ATX Motherboard is available at CTG Computer for 8500 BDT. This competitive price makes it an excellent choice for anyone looking to upgrade their PC with a reliable and high-performance motherboard.

FAQs

1. What is the price of the MSI H410M A Pro Intel 10th Gen Micro-ATX Motherboard in Bangladesh?

The MSI H410M A Pro Intel 10th Gen Micro-ATX Motherboard is priced at 8500 BDT in Bangladesh.

2. Is the MSI H410M A Pro Intel 10th Gen Micro-ATX Motherboard suitable for gaming?

Yes, the motherboard features Intel LAN optimized for stable internet throughput, making it perfect for online gaming.

3. What memory brands are compatible with the MSI H410M A Pro Intel 10th Gen Micro-ATX Motherboard?

The motherboard has been tested with popular memory brands like Corsair, Crucial, Kingston, and G.Skill.

4. How do I control the fan speeds on the MSI H410M A Pro Intel 10th Gen Micro-ATX Motherboard?

The motherboard features Total Fan Control, allowing you to manage fan speeds and temperatures with a simplified graphical interface.

5. What power supply is recommended for the MSI H410M A Pro Intel 10th Gen Micro-ATX Motherboard?

A standard ATX power supply is recommended for optimal performance.

Upgrade Your PC Today

Enhance your computing experience with the MSI H410M A Pro Intel 10th Gen Micro-ATX Motherboard. Whether you're upgrading for better performance, more stable internet connectivity, or efficient power delivery, this motherboard delivers exceptional value at an affordable price. Don’t wait – upgrade your PC today and enjoy the benefits of cutting-edge technology!
