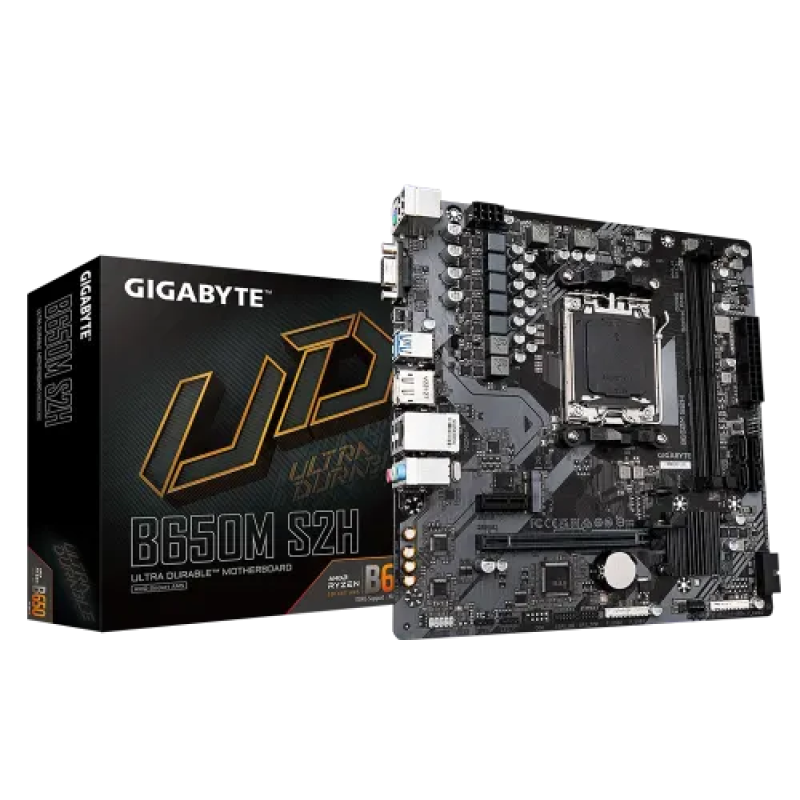

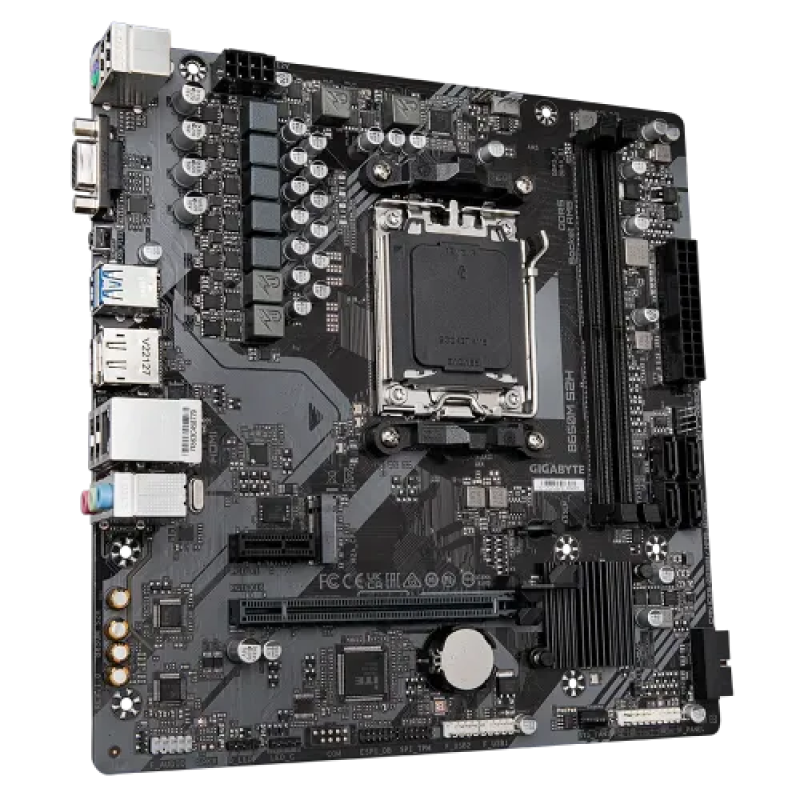

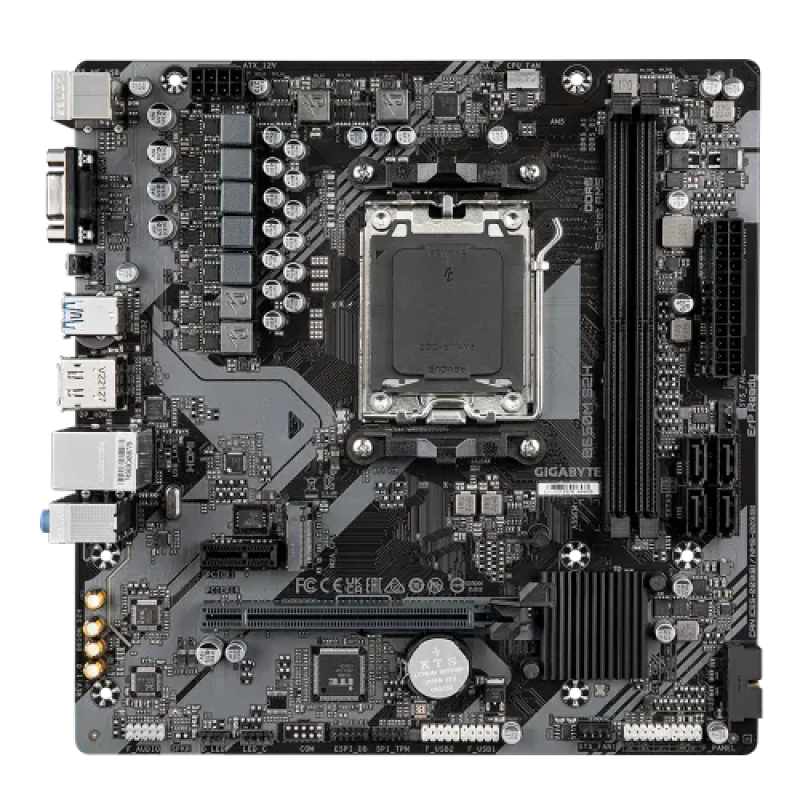

GIGABYTE B650M S2H AM5 Micro-ATX Motherboard

Regular Price 15,700৳
Status In Stock
Product Code 6079
Brand Gigabyte
Short Details
  • Model: B650M S2H
  • Supported CPU: Ryzen 8000 & 7000 Series Processors for Socket AM5
  • Supported Memory: 2 x DDR5 6400(OC) Max. 96GB
  • Graphics Output: 1 x DisplayPort, 1 x HDMI, 1 x D-Sub
  • Features: Realtek GbE LAN chip
Contact for bulk quantity: 01733-080376 , 01733-080350 ,

Specification

Information
Supported CPU AMD Socket AM5, support for:
AMD Ryzen™ 8000 & 7000 Series Processors
Chipset AMD B650
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 23.0cm x 22.5cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Expansion Slots
PCI CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Memory
Type DDR5
Slots 2 x DIMM
Supported Memory Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Maximum Memory up to 96 GB (48 GB single DIMM capacity)
Graphics
Graphics Integrated Graphics Processor:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
Connector & Ports
HDMI 1 x HDMI
Display Port (s) 1 x DisplayPort
D-Sub (s) 1 x D-Sub port
USB (s) CPU:
- 2 x USB 3.2 Gen 1 ports on the back panel
- 1 x USB 2.0/1.1 port on the back panel
Chipset:
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage CPU:
- 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)
Chipset:
- 4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio 3 x audio jacks
Internal I/O Ports Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x Clear CMOS jumper

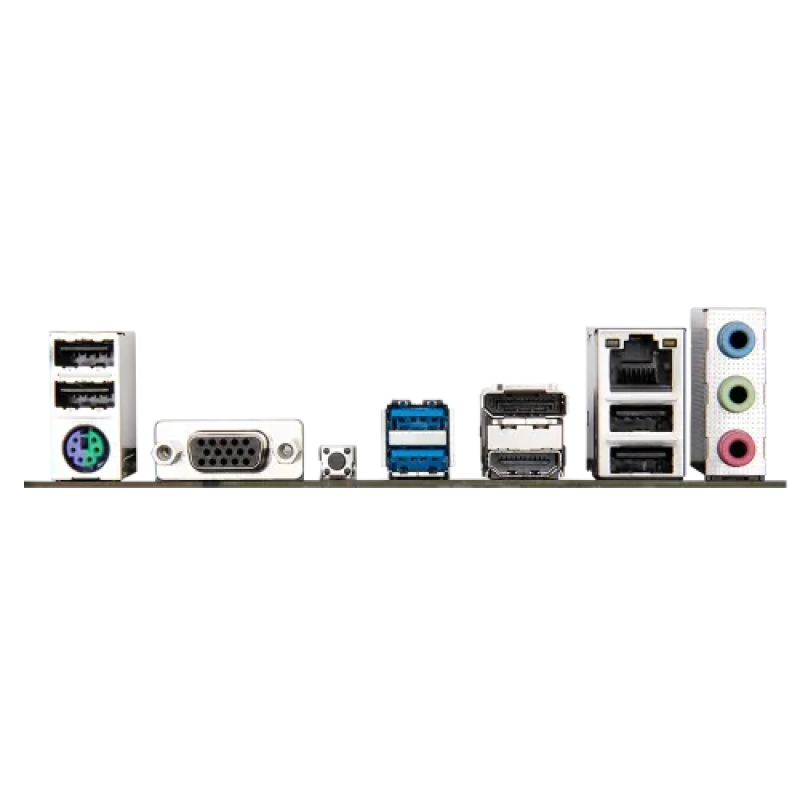

Back Panel Connectors
4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x Q-Flash Plus button
2 x USB 3.2 Gen 1 ports
1 x RJ-45 port
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty Information
Manufacturing Warranty 3 Years

Description

GIGABYTE B650M S2H AM5 Micro-ATX Motherboard



The GIGABYTE B650M S2H Motherboard is a high-performance motherboard designed to meet today's computing demands, with a slew of advanced capabilities and technologies to support AMD Ryzen 7000 Series Processors and provide exceptional performance for a smooth computing experience.  This motherboard is completely compatible with AMD Ryzen 8000 & 7000 Series Processors, allowing you to take advantage of the newest CPU technology for your computing requirements. The GIGABYTE B650M S2H Motherboard has a 5+2+2 Phases Digital VRM Solution, which aids in the effective distribution of power to your CPU, improving stability and performance during heavy workloads like gaming and content production. This motherboard, which has two SMD DIMMs, supports AMD EXPO and Intel XMP memory modules, allowing you to optimize the memory performance of your system. DDR5 memory has quicker data transfer rates than its predecessors, allowing for smoother multitasking and speedier program loading. This motherboard supports high-speed storage options, with a PCIe 4.0 x4 M.2 Connector, making it suitable for installing super-fast SSDs that make use of the PCIe 4.0 interface, offering lightning-fast data access. The PCIe x16 slot on the motherboard has a quick-release design, which makes it easy to install and remove graphics cards without the use of tools or excessive force, providing convenient and efficient maintenance. It has a GbE LAN (Gigabit Ethernet) connector for fast and consistent internet access, which is essential for online gaming, streaming, and other data-intensive operations. With multiple display outputs, including DP, HDMI, and D-Sub, this motherboard supports various display options, making it versatile for different setups and multi-monitor configurations. The Smart Fan 6 technology includes multiple temperature sensors and hybrid fan headers with a FAN STOP feature. This allows for precise and efficient cooling, adjusting fan speeds based on the temperature to maintain an optimal balance between performance and noise. This convenient feature enables you to update the motherboard's BIOS without needing to install the CPU, memory, or graphics card, simplifying the process of keeping your system up to date with the latest firmware. The GIGABYTE B650M S2H AM5 Micro-ATX Motherboard comes with 3 years of warranty.



What is the price of GIGABYTE B650M S2H Motherboard in Bangladesh?

The latest price of GIGABYTE B650M S2H Motherboard in Bangladesh is 15,800৳. You can buy the GIGABYTE B650M S2H Motherboard at best price from our website or visit any of our showrooms.
