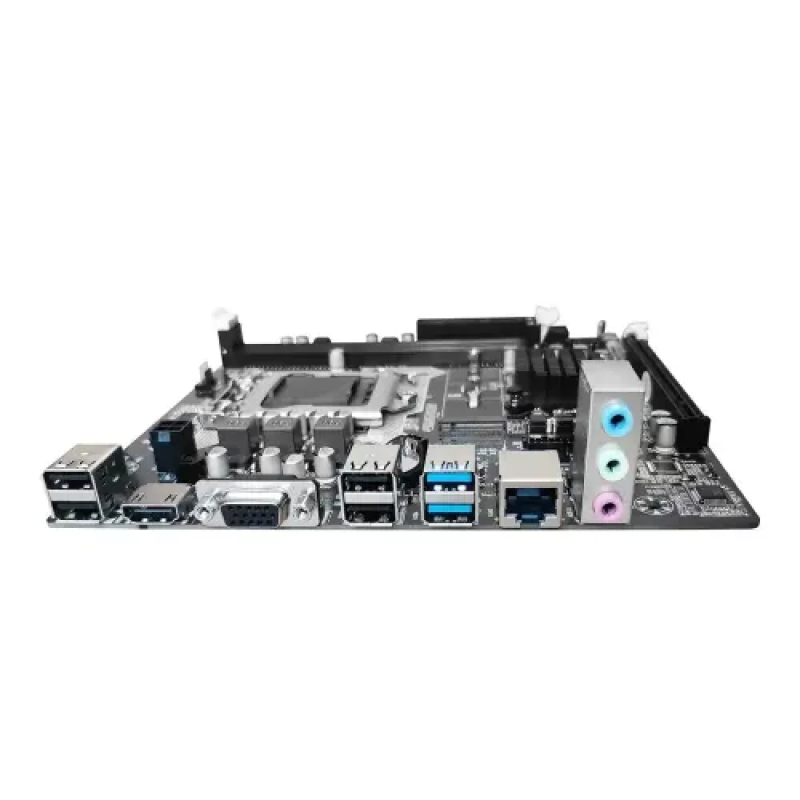

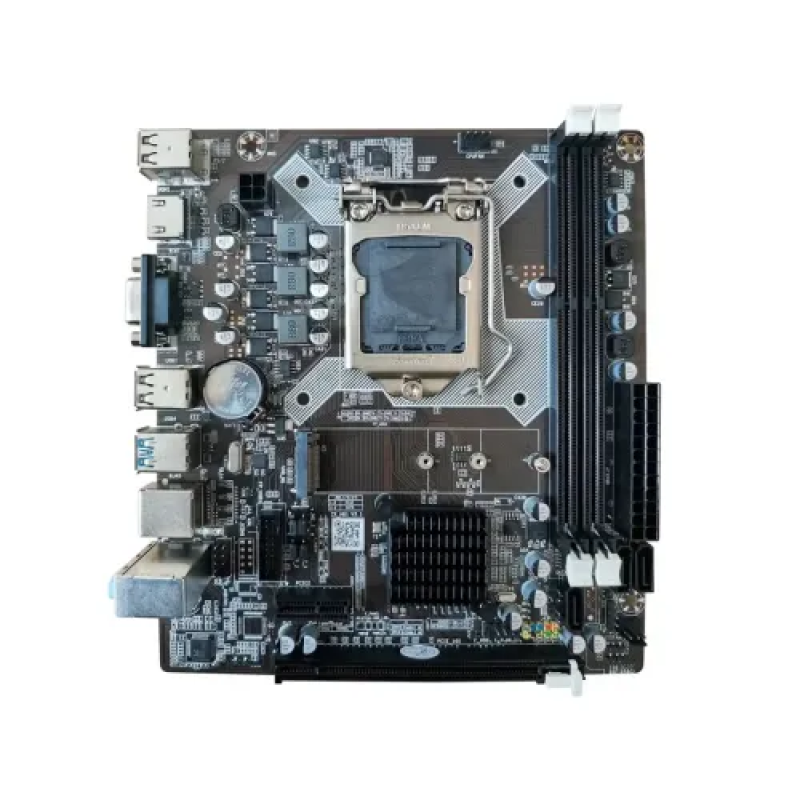

ARKTEK AK-H81M EL 4th Gen Micro-ATX Motherboard

Regular Price	5,000৳
Status	In Stock
Product Code	6103
Brand	ARKTEK

Short Details

Model: AK-H81M EL
Supported CPU: Intel Core i7/i5/i3/Pentium/ Celeron for LGA1150
Supported RAM: 2x DIMM, DDR3 1066/1333/1600MHz
Graphics Output: 1 x HDMI, 1 x VGA Port
Features: Realtek RTL8105E/8111E Gigabit 100/1000 Mbps

More Info

5000৳

Product Price

Contact for bulk quantity: 01733-080376 , 01733-080350 ,

Share:

Specification
Description
Products
Question
Review

Specification

Basic Information
Supported CPU	Support Intel Core i7/i5/i3/Pentium/ Celeron processors in the LGA1150 package. Support Intel 4th generation multi-core processors
Chipset	Intel H81 Chipset
BIOS	UEFI BIOS
Form Factor	Micro-ATX (19 X 17 cm)
Audio	Onboard Realtek 662 6-channel HD Audio Codec Front Panel audio-out,mic-in jack
Expansion Slots
PCI	1 x PCI Express x16 slot
Memory
Type	DDR3
Slots	2 x Memory Slots
Supported Memory	1066/1333/1600MHz, Supports non-ECC, un-buffered memory
Maximum Memory	Max. up to 8GB each
Graphics
Graphics	Integrated Graphics Processor
Connector & Ports
HDMI	1 x HDMI port
VGA (s)	1 x VGA port
USB (s)	4 x USB 2.0 port 2 x USB 3.0 port
LAN Port (s)	Onboard Realtek RTL8105E/8111E Gigabit 100/1000 Mbps
Supported Storage	3 x SATA, 1xM.2 supports NVME+NGFF
Audio	3 x Audio jack
Warranty Information
Manufacturing Warranty	2 Year

Description

ARKTEK AK-H81M EL 4th Gen Micro-ATX Motherboard

The ARKTEK AK-H81M EL 4th Gen Micro-ATX Motherboard is designed to support Intel Core i7, i5, i3, Pentium, and Celeron processors of the LGA1150 Intel 4th generation multi-core processors. It utilizes the Intel H81 chipset and features integrated graphics processing. The motherboard supports dual-channel DDR3 memory and has two slots with a maximum capacity of 8GB per slot. It offers LAN connectivity with the onboard Realtek RTL8105E/8111E Gigabit 100/1000 Mbps LAN and includes a Realtek 662 6-channel HD Audio Codec for audio functions. Storage options include three SATA ports and one M.2 slot supporting NVME and NGFF storage devices. The back panel I/O ports provide various connections, including VGA, HDMI, USB, LAN, and audio jacks. Expansion slots include one PCI Express x16 slot, and the motherboard features UEFI BIOS for system configuration. With its micro-ATX form factor and secure mounting holes, the AK-H81M EL is suitable for compact PC builds. The ARKTEK AK-H81M EL Motherboard comes with 2 years warranty.

What is the price of ARKTEK AK-H81M EL Motherboard in Bangladesh?

The latest price of ARKTEK AK-H81M EL Motherboard in Bangladesh is 5,000৳. You can buy the ARKTEK AK-H81M EL Motherboard at best price from our website or visit any of our showrooms.
