ASUS Pro B660M-C-CSM DDR5 12th Gen mATX Motherboard

Regular Price 16,200৳
Status In Stock
Product Code 161
Brand Asus
Short Details
  • Model: Pro B660M-C D4-CSM
  • Supported CPU: 14th, 13th & 12th Gen Core, Pentium Gold & Celeron (LGA1700)
  • Supported RAM: 4x DDR4, Max 128GB
  • Graphics Output: 2 x DisplayPort, 1 x D-Sub, 1 x HDMI
  • Features: 1 x Intel 1Gb Ethernet
Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Specification

Specification

Basic Information
Supported CPUIntel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel B660 Chipset
BIOS128Mb Flash ROM
Form FactormicroATX
24.4cm x 24.4cm
AudioRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback "
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots
PCIIntel 12th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
Intel B660 Chipset
2 x PCIe 3.0 x1 slots
Memory
TypeDDR4
Slots4 x DIMM slots
Supported Memory6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
Optimem
Maximum Memory128GB
Graphics
Graphics2 x DisplayPort**
1 x D-Sub port
1 x HDMI port
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Connector & Ports
HDMI1 x HDMI
Display Port (s)2 x DisplayPort
D-Sub (s)1 x D-Sub
USB (s)Rear USB (Total 4 ports)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (suppports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s)1 x Intel 1Gb Ethernet
ASUS LANGuard
Wireless Communication moduleM.2 slot only (Key E, CNVi & PCIe)
*Wi-Fi module is sold separately.
Supported StorageSupports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Intel 12th Gen processors support PCIe 4.0 x4 mode
Intel B660 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
4 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Audio3 x Audio jacks
Internal I/O PortsFan and cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 1 connector (suppports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrude header
2 x COM Port headers
1 x Front Panel Audio header (AAFP)
1 x COM debug header
1 x LPT header
1 x Mono-out header(with Amp IC)
1 x M.2 slot (Key E)
1 x SMBUS header
1 x Speaker header
1 x 10-1 pin System Panel header
Others
Special FeaturesASUS EZ DIY
- Box Headers
Bespoke Motherboard Design & Business Focused Features
- Q-LED Core
- ASUS Self Recovering BIOS
- ASUS Event Log
- ASUS Commercial BIOS kit
- Anti-Moisture
- 24/7 Reliability
- Overcurrent Protection
TPM IC onboard
Bundled SoftwareASUS Exclusive Software
IT Management software supported
- ASUS Control Center Express(ACCE)
Warranty Information
Manufacturing Warranty3 Years

Description

ASUS Pro B660M-C-CSM 12th Gen mATX Motherboard

ASUS Pro B660M-C-CSM 12th Gen Motherboard provides enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.

ASUS Corporate Stable Model

ASUS Pro B660M-C-CSM 12th Gen Motherboard is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

ASUS Control Center Express

ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.

Internationally Certified Business Motherboard

ASUS Pro B660M-C-CSM 12th Gen Motherboard are enterprise proven with leading quality that exceeds industry standards. Certified by multiple international safety and environmental organizations, ASUS business motherboards provide a safe, secure and sustainable solution, making them the ideal choice for your business.

ASUS Trouble Shooting Solution

ASUS Debug header is a 10-1 pin low pin count (LPC) header for connecting to debug cards for faster, more efficient motherboard troubleshooting. When connected to an ASUS Debug Card, administrators can view error and debugging codes on the integrated LCD display, and get better idea of initialization and recovery processes. ASUS business motherboards provide a complete troubleshooting solution, making mass production faster and more cost-effective.

The ASUS Pro B660M-C-CSM 12th Gen Motherboard comes with 3 years warranty.

Best Asus AMD Motherboard in 2026 List

Title Price
ASRock B760M-HDV/M.2 D4 Micro ATX Motherboard 13,400৳

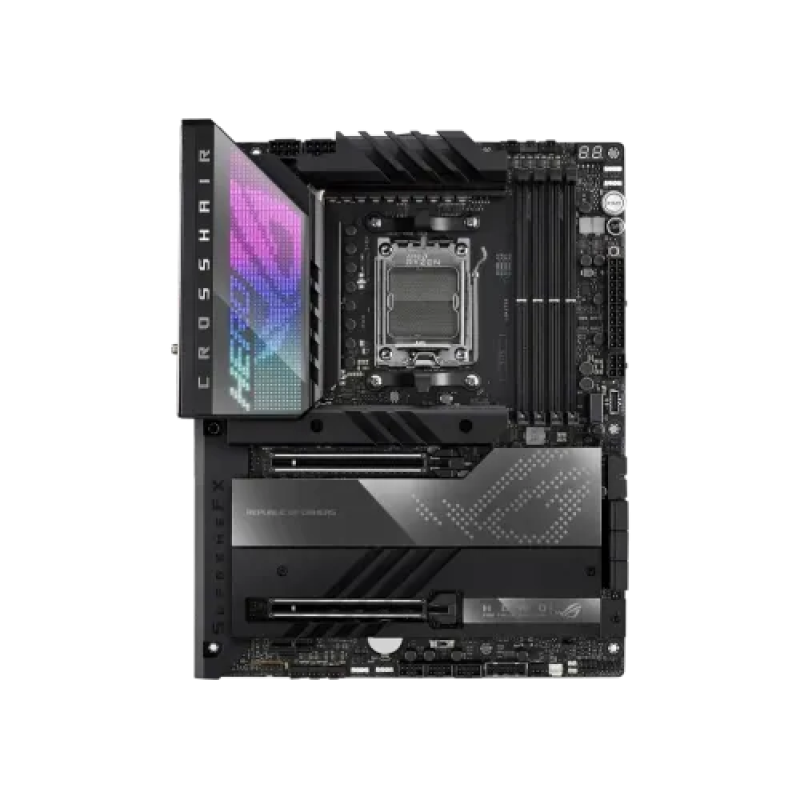

Asus ROG CROSSHAIR X670E HERO DDR5 AMD AM5 ATX Motherboard 98,800৳

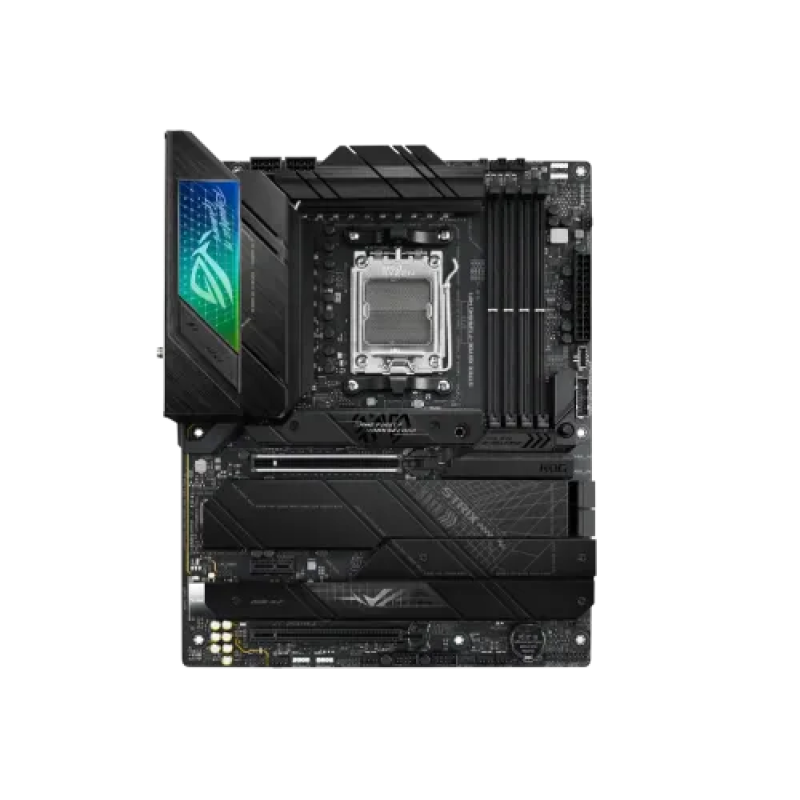

Asus ROG STRIX X670E-F GAMING WIFI DDR5 AMD AM5 ATX Motherboard 64,300৳
Asus PRIME X670E-PRO WIFI-CSM DDR5 AM5 ATX Motherboard 50,300৳

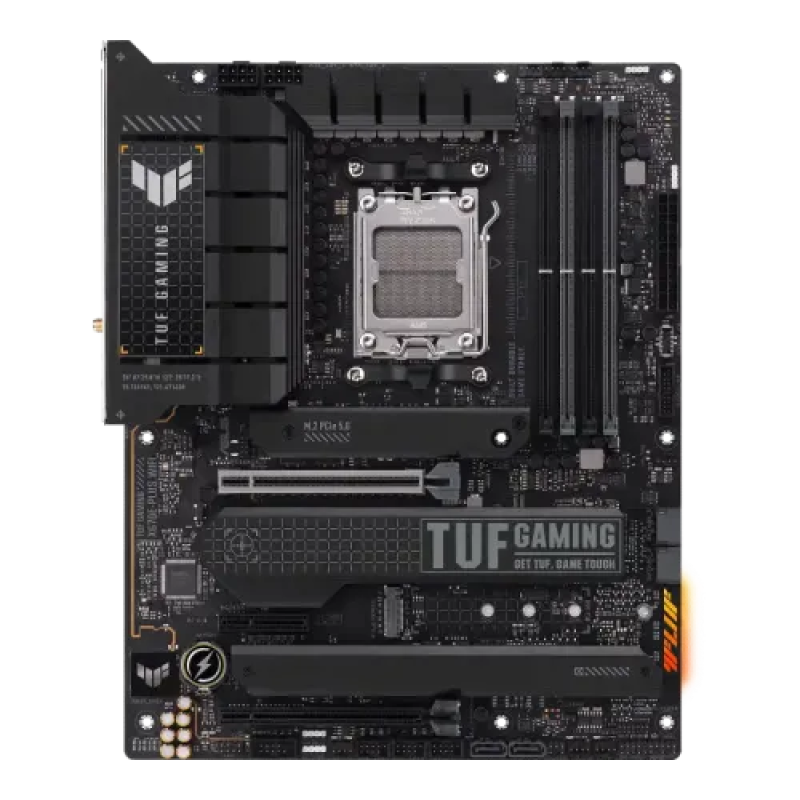

Asus TUF GAMING X670E-PLUS WIFI DDR5 AM5 ATX Motherboard 49,500৳
Asus ROG STRIX B650E-F GAMING WIFI DDR5 AM5 ATX Motherboard 45,000৳

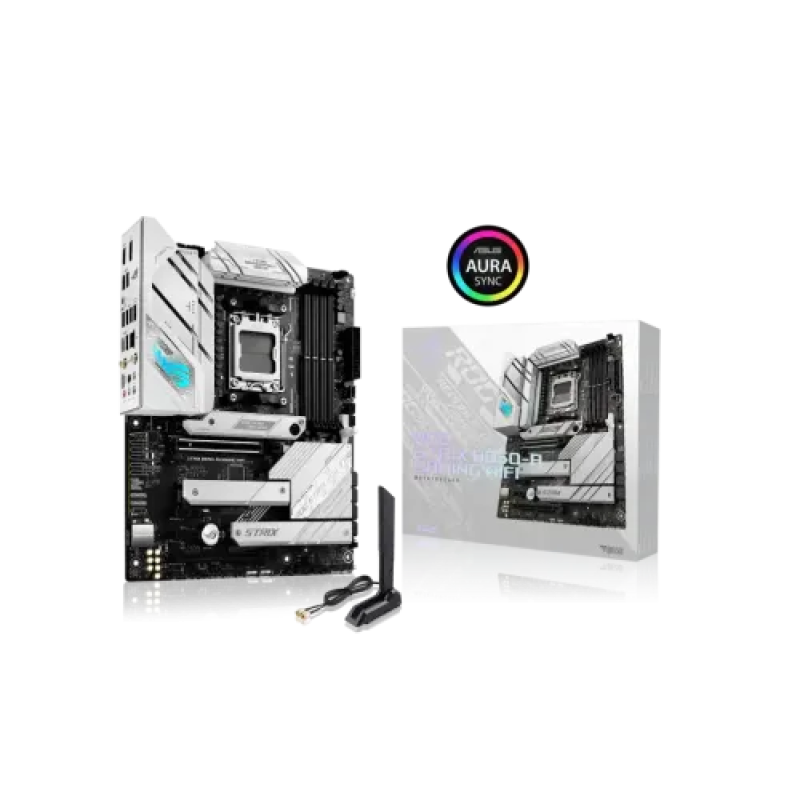

Asus ROG STRIX B650-A GAMING WIFI DDR5 AM5 ATX Motherboard 42,300৳
Asus PRIME X670-P-CSM DDR5 AM5 ATX Motherboard 39,300৳
ASUS TUF GAMING B760M-BTF WIFI micro-ATX Motherboard 36,300৳
Asus TUF GAMING B650-PLUS DDR5 AM5 ATX Motherboard 33,800৳

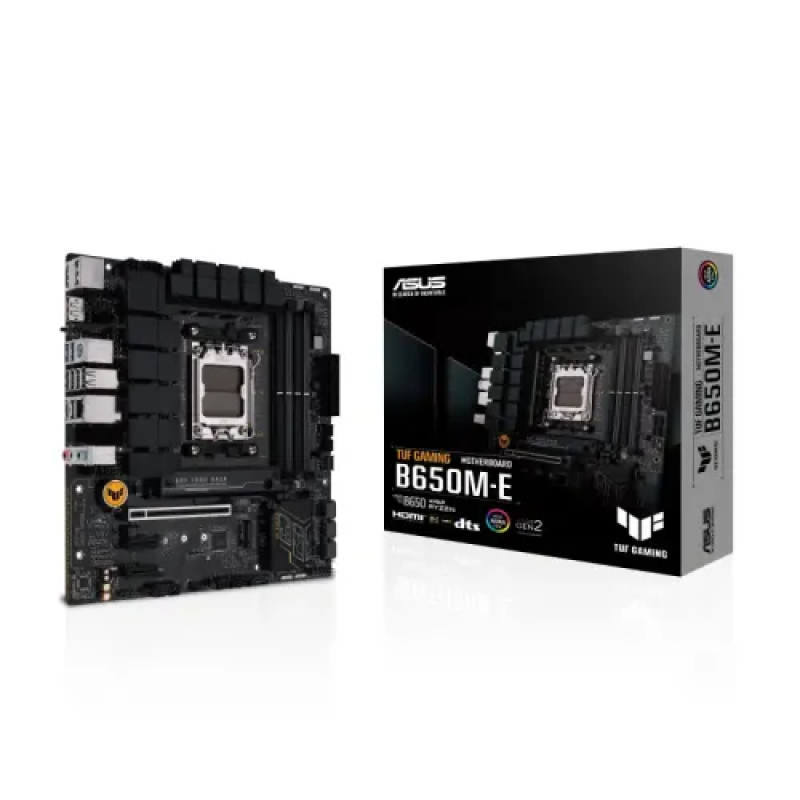

Asus TUF GAMING B650M-E WIFI AMD AM5 micro-ATX Motherboard 30,700৳
ASRock Z790 Pro RS ATX Motherboard 30,300৳
GIGABYTE Z790 D AC DDR5 ATX Motherboard 30,000৳
GIGABYTE B650M AORUS ELITE AX DDR5 AMD AM5 Micro-ATX Motherboard 29,300৳
GIGABYTE Z690 AORUS ELITE AX WiFi DDR5 ATX Motherboard 29,300৳
Asus TUF GAMING B650M-E AMD AM5 micro-ATX Motherboard 30,700৳
ASRock Z790 Pro RS/D4 ATX Motherboard 28,600৳

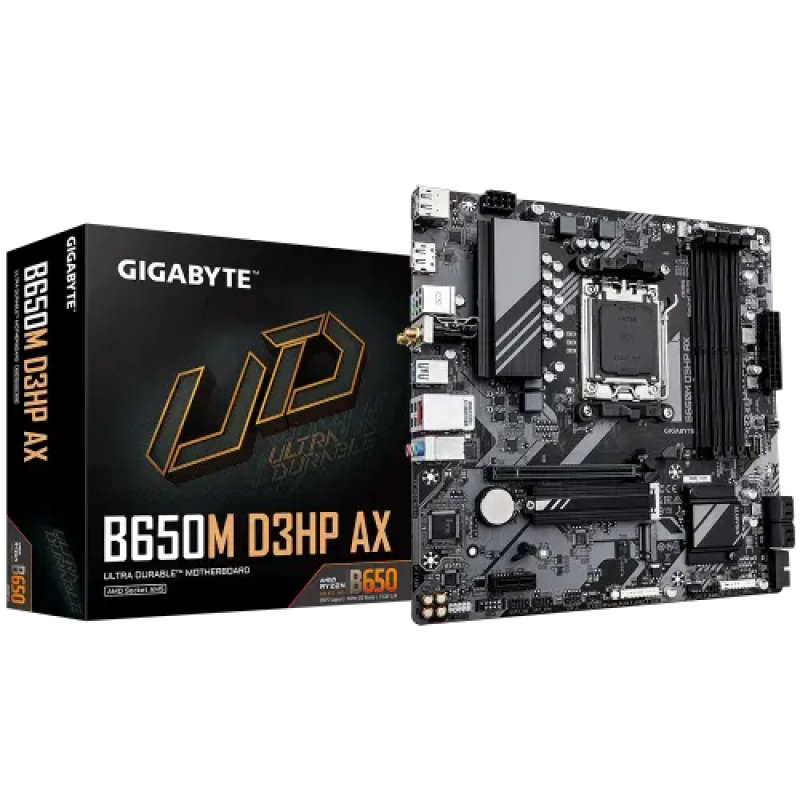

GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard 23,300৳

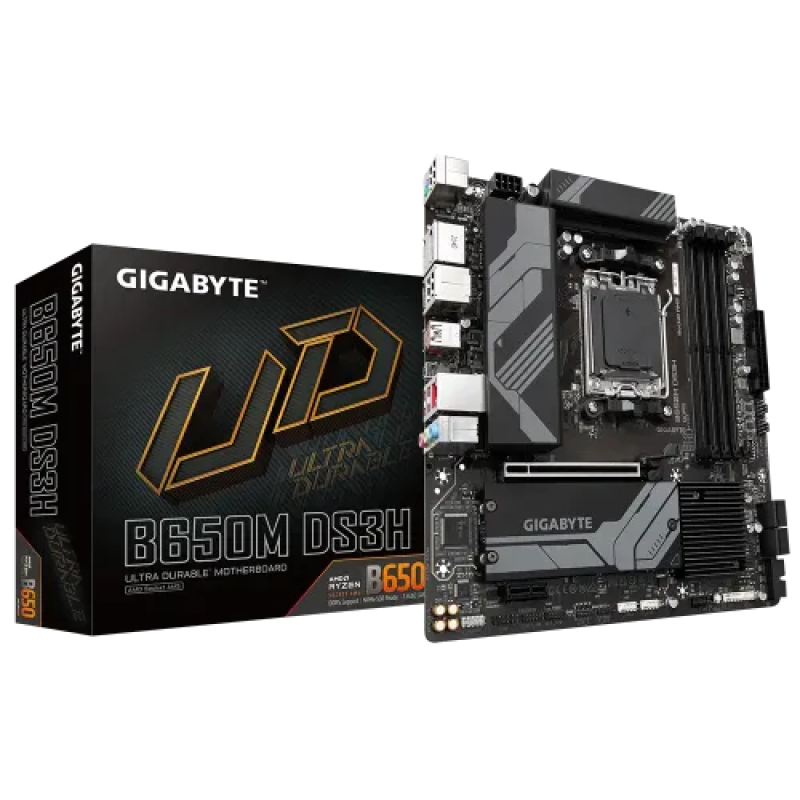

GIGABYTE B650M DS3H DDR5 AMD AM5 Micro-ATX Motherboard 22,300৳
