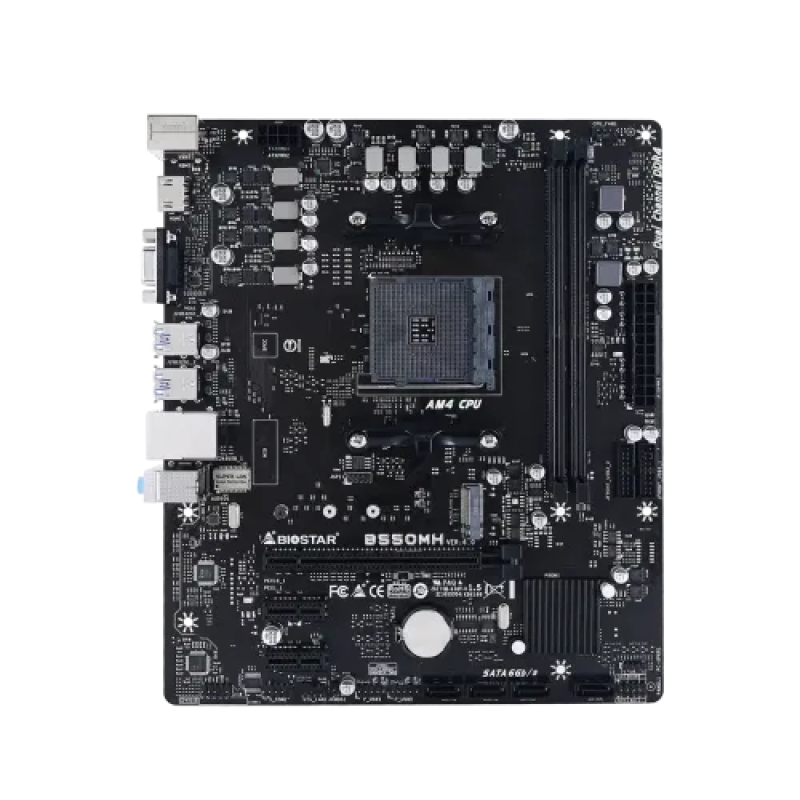

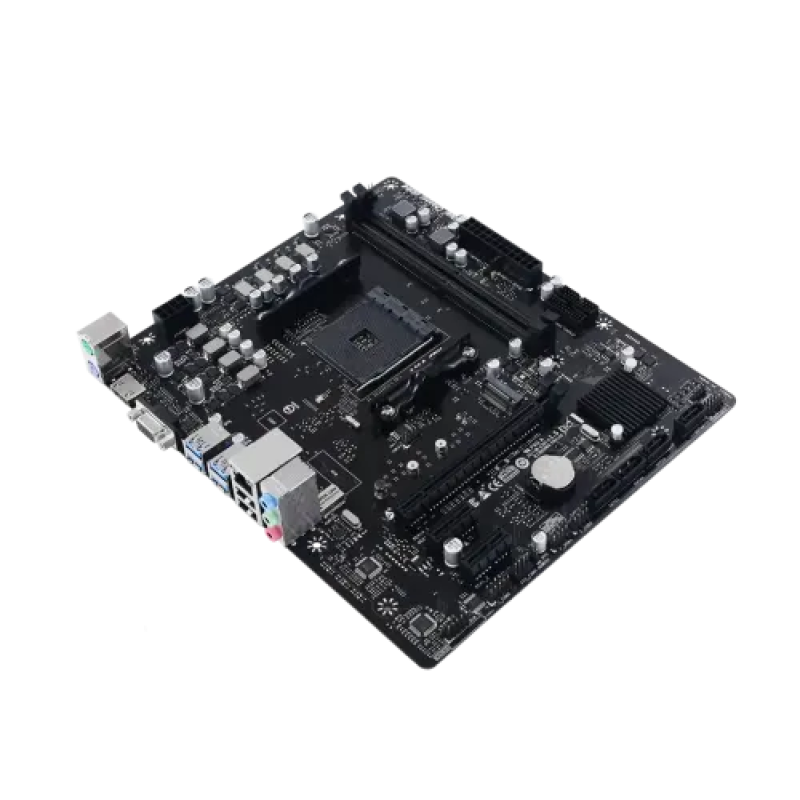

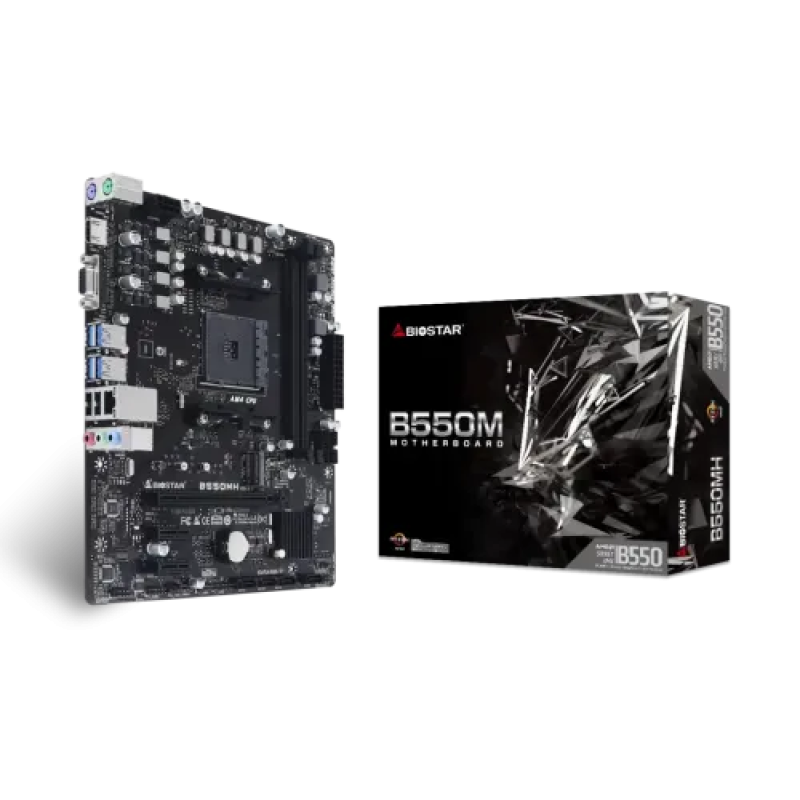

BIOSTAR B550MH DDR4 AMD AM4 Micro ATX Motherboard

Regular Price	8,200৳
Product Code	6062
Brand	Biostar

Short Details

Model: B550MH
Supported CPU: Ryzen 3rd Gen and 4th Gen processors
Supported RAM: 2x DIMM, DDR4 4933+(OC)
Graphics Output: 1 x HDMI, 1 x VGA Port
Features: 1 x M.2 Slot, Realtek RTL8111H

More Info

8200৳

Product Price

Contact for bulk quantity: 01733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Information
Supported CPU	Socket AM4 support AMD 3rd Gen Ryzen (Matisse/ Renoir) processors and Ryzen 4th Gen (Vermeer) processors Support for future AMD Ryzen processors with BIOS update
Chipset	AMD B550
Form Factor	Micro ATX Form Factor Dimension: 24.4cm x 20.8cm ( W x L )
Audio	ALC887 7.1 Channels, High Definition Audio, Hi-Fi (Front)
Expansion Slots
PCI	1 x PCIe 4.0/ 3.0 x 16 Slot: Supports PCIe 4.0 x 16 mode with AMD Ryzen processors. (Matisse only) Supports PCIe 3.0 x 16 mode AMD Ryzen with Radeon Vega Graphics processors. (Renoir only) 2 x PCIe 3.0 x 1 Slot
Memory
Type	DDR4
Slots	2 x DIMM
Supported Memory	4th Gen AMD Ryzen Processors (Vermeer CPUs/ Future APUs): Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 3rd Gen AMD Ryzen Processors (Matisse CPUs): Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs): Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 Each DIMM supports non-ECC and ECC Un-buffered 8/ 16/ 32 GB DDR4 module
Maximum Memory	Up to 64 GB
Graphics
Graphics	By CPU model Supports DX12 Supports HDCP
Connector & Ports
HDMI	1 x HDMI Port
VGA (s)	1 x VGA Port
USB (s)	8 x USB 3.2 (Gen1) ports (4 on rear I/Os and 4 via internal headers) 6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)
LAN Port (s)	Realtek RTL8111H 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability Supports Super LAN Surge Protection
Supported Storage	4 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10 1 x M.2 (M Key) Socket: Supports M.2 Type 2242/ 2260/ 2280 SSD module Supports PCIe 4.0 x 4 (64Gb/s)/ 3.0 x 4 (32Gb/s) Supports SATA III (6.0Gb/s) SSD * M.2 (M Key) Socket (M2_PCIe-SATA1): The bandwidth is depended on CPU. Supports PCIe 4.0 x 4 (64Gb/s) speed, which depends only on Ryzen 3rd Gen Matisse.
Audio	3 x Audio Jack
Internal I/O Ports	4 x SATA III (6.0Gb/s) Connectors 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 2 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Clear CMOS Header 1 x Internal Stereo Speaker Header 1 x COM Port Header
Others
Bundled Software	BullGuard
Warranty Information
Manufacturing Warranty	3 Years

Description

BIOSTAR B550MH DDR4 AMD AM4 Micro ATX Motherboard

The Biostar B550MH is a micro ATX motherboard designed for use with the latest AMD Ryzen 3rd Gen and 4th Gen processors. It features the AM4 socket and supports DDR4 memory, providing users with high-speed performance and support for the latest hardware. The B550MH motherboard has a variety of features that make it perfect for both gaming and workstation builds. It has a robust power delivery system that provides stable and efficient power to the CPU, and it also features a high-quality audio subsystem that provides clear and immersive sound. The BIOSTAR B550MH also has a wide range of connectivity options, including support for PCIe 4.0, USB 3.2, and SATA III. Additionally, it has a high-speed Ethernet port and support for wireless connectivity, which makes it easy to connect to the internet and other devices. The BIOSTAR B550MH motherboard also has a range of advanced features that make it a great choice for overclockers and enthusiasts, such as the ability to adjust the CPU voltage and monitor the temperature of the system. The BIOSTAR B550MH DDR4 AMD AM4 Micro ATX Motherboard comes with 3 years warranty.

What is the price of BIOSTAR B550MH Micro ATX Motherboard in Bangladesh?

The latest price of BIOSTAR B550MH Micro ATX Motherboard in Bangladesh is 8,400৳. You can buy the BIOSTAR B550MH Micro ATX Motherboard at best price from our website or visit any of our showrooms.
