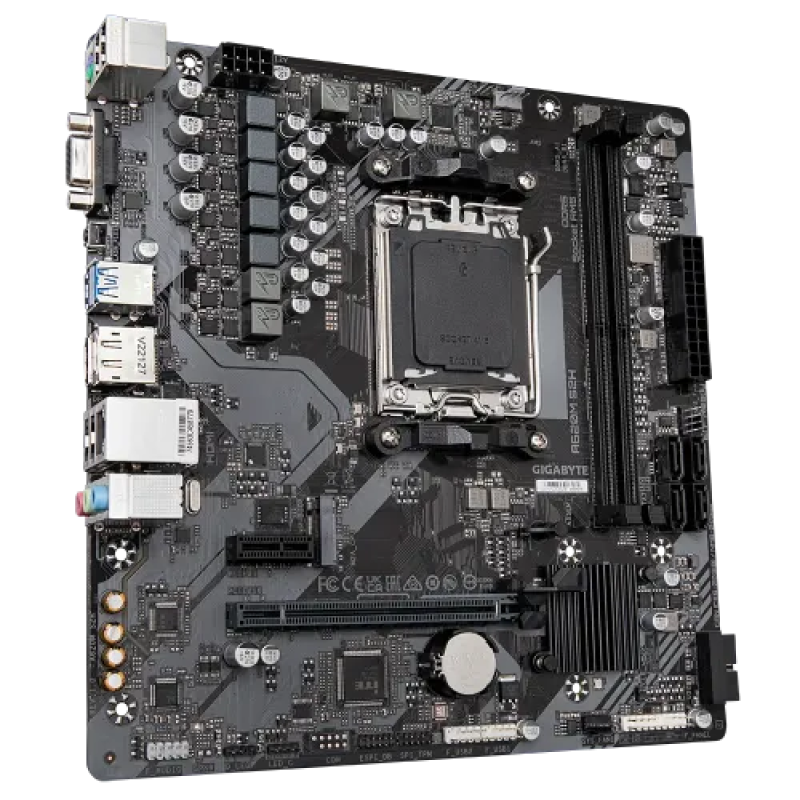

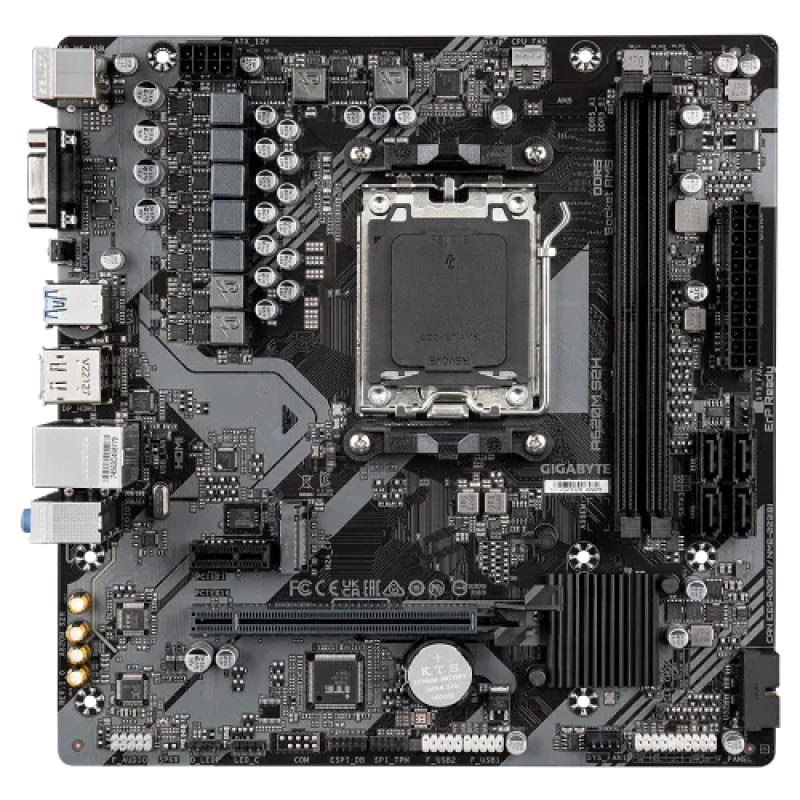

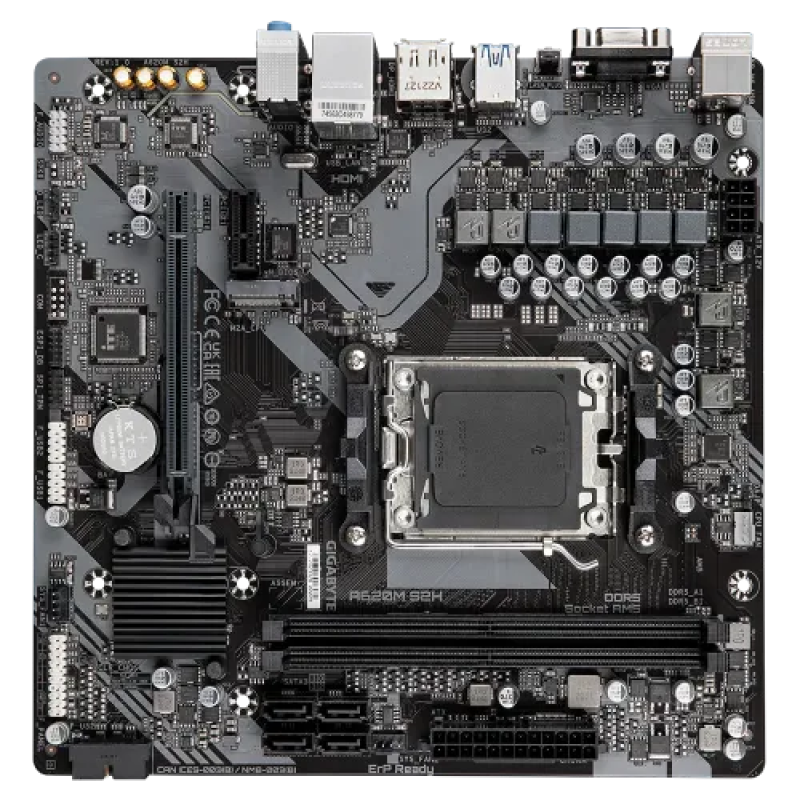

GIGABYTE A620M S2H AMD AM5 Micro-ATX Motherboard

Regular Price	14,000৳
Status	In Stock
Product Code	6078
Brand	Gigabyte

Short Details

Model: A620M S2H
Supported CPU: Ryzen 8000 / 7000 Series Processors for Socket AM5
Supported Memory: 2 x DDR5 6400(OC) Max. 96GB
Graphics Output: 2 x DisplayPort, 1 x HDMI port
Features: 1 x D-Sub, 1 x DisplayPort, 1 x HDMI

More Info

14000৳

Product Price

Contact for bulk quantity: 01733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Information
Supported CPU	AMD Socket AM5, support for: AMD Ryzen 8000 / 7000 Series Processors
Chipset	AMD A620
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 23.0cm x 22.5cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Expansion Slots
PCI	CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Memory
Type	DDR5
Slots	2 x DIMM
Supported Memory	Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Maximum Memory	96 GB
Graphics
Graphics	Integrated Graphics Processor: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

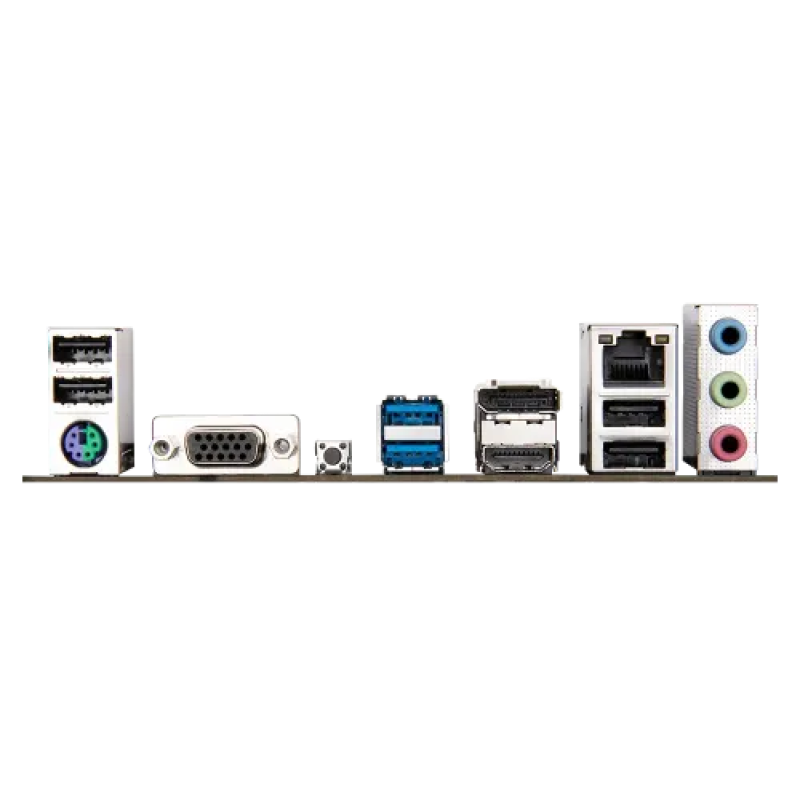

Connector & Ports
HDMI	1 x HDMI
Display Port (s)	1 x DisplayPort
D-Sub (s)	1 x D-Sub port
USB (s)	CPU: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage	CPU: - 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) Chipset: - 4 x SATA 6Gb/s connectors
RAID	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio	3 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty	3 Years

Description

GIGABYTE A620M S2H AMD AM5 Micro-ATX Motherboard

The GIGABYTE A620M S2H AMD AM5 Micro-ATX Motherboard is designed to support AMD Ryzen 7000 Series Processors through its AMD Socket AM5. Unleash unparalleled performance with its advanced 5+2+2 Phases Digital VRM Solution. Embrace the speed of Dual Channel DDR5 with 2*SMD DIMMs, offering support for both AMD EXPO and Intel XMP Memory Modules. Benefit from SuperSpeed Storage with its PCIe 4.0 x4 M.2 Connector. The EZ-Latch PCIe x16 Slot features a Quick Release Design for seamless upgrades. Connect swiftly with Fast Networks through GbE LAN. Expand your possibilities with Extended Connectivity options including DP, HDMI, and D-Sub ports. Keep your system cool and quiet with Smart Fan 6, equipped with multiple temperature sensors and Hybrid Fan Headers featuring FAN STOP technology. The Q-Flash Plus functionality allows BIOS updates without the need to install the CPU, memory, or graphics card.

The GIGABYTE A620M S2H Motherboard comes with 3 years of warranty.

What is the price of GIGABYTE A620M S2H Motherboard in Bangladesh?

The latest price of GIGABYTE A620M S2H Motherboard in Bangladesh is 14,000৳. You can buy the GIGABYTE A620M S2H Motherboard at best price from our website or visit any of our showrooms.
