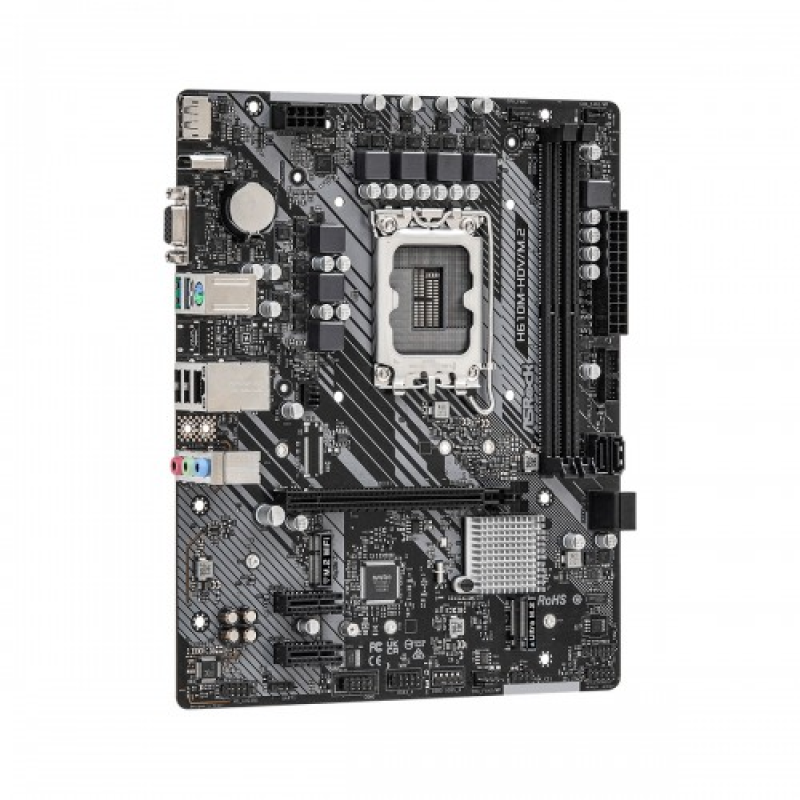

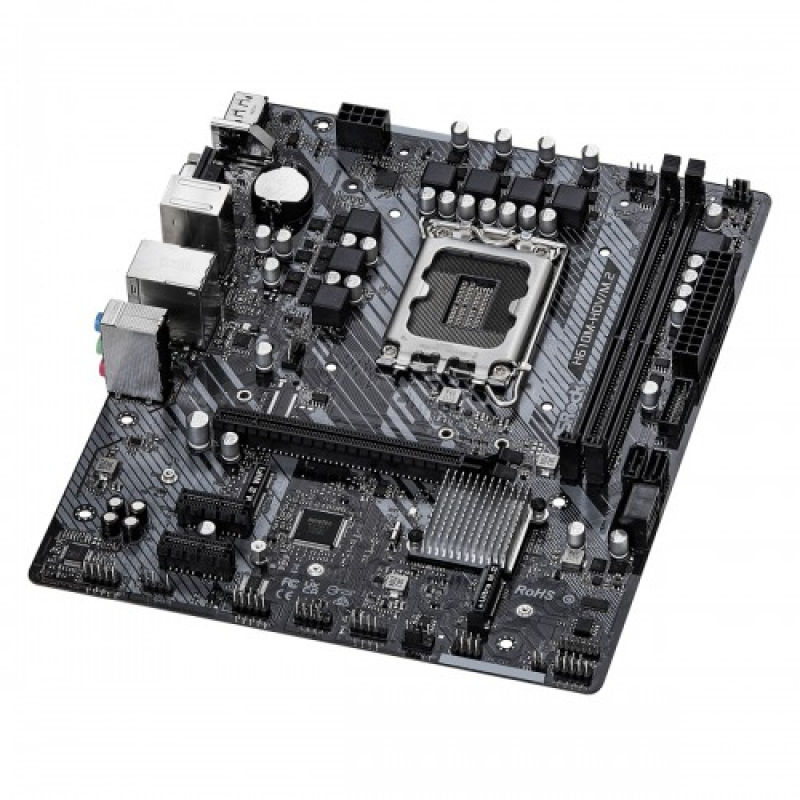

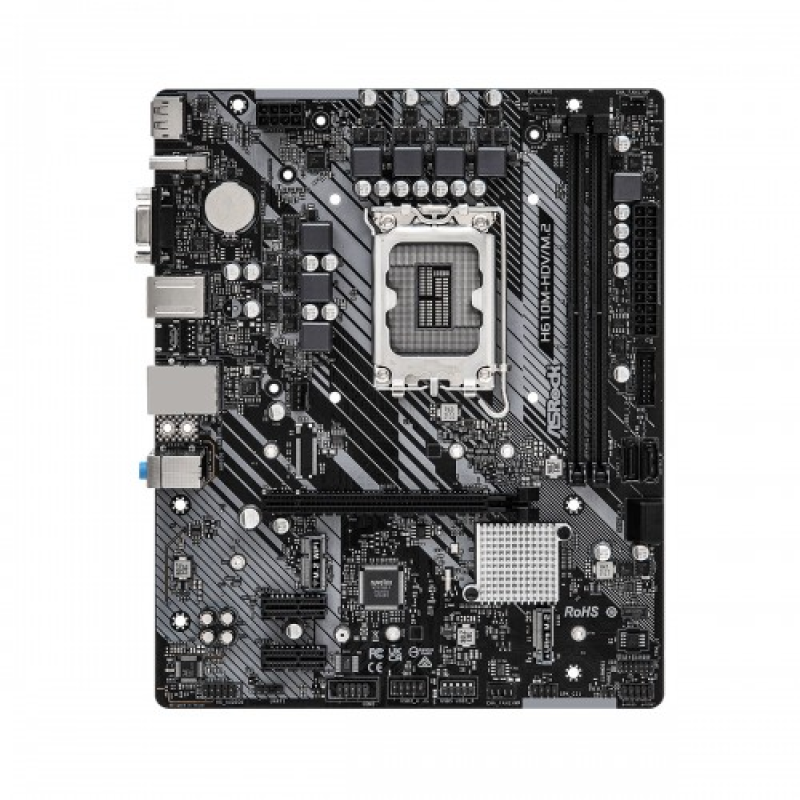

ASRock H610M-HDV/M.2 Micro ATX Motherboard

Regular Price	9,400৳
Status	In Stock
Product Code	6068
Brand	ASRock

Short Details

Model: H610M-HDV/M.2
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
6 Phase Power Design
Supports DDR4 3200MHz
Graphics Output Options: HDMI, DisplayPort, D-Sub

More Info

9400৳

Product Price

Contact for bulk quantity: 01733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Information
Supported CPU	- Supports 14th Gen, 13th Gen & 12th Gen Intel Core Processors (LGA1700) - Digi Power design - 6 Power Phase design - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology
Chipset	Intel H610
BIOS	- 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Form Factor	- Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm - Solid Capacitor design
Audio	- 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec) - Supports Surge Protection
Expansion Slots
PCI	- 1 x PCIe Gen4x16 Slot - 2 x PCIe Gen3x1 Slots - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Memory
Type	Dual Channel DDR4 Memory Technology
Slots	2 x DDR4 DIMM Slots
Supported Memory	- Supports DDR4 non-ECC, un-buffered memory up to 3200 - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0
Maximum Memory	64GB
Graphics
Graphics	- Intel Xe Graphics Architecture (Gen 12) - Three graphics output options: D-Sub, HDMI and DisplayPort 1.4 - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
Connector & Ports
HDMI	1 x HDMI Port
Display Port (s)	1 x DisplayPort 1.4
D-Sub (s)	1 x D-Sub Port

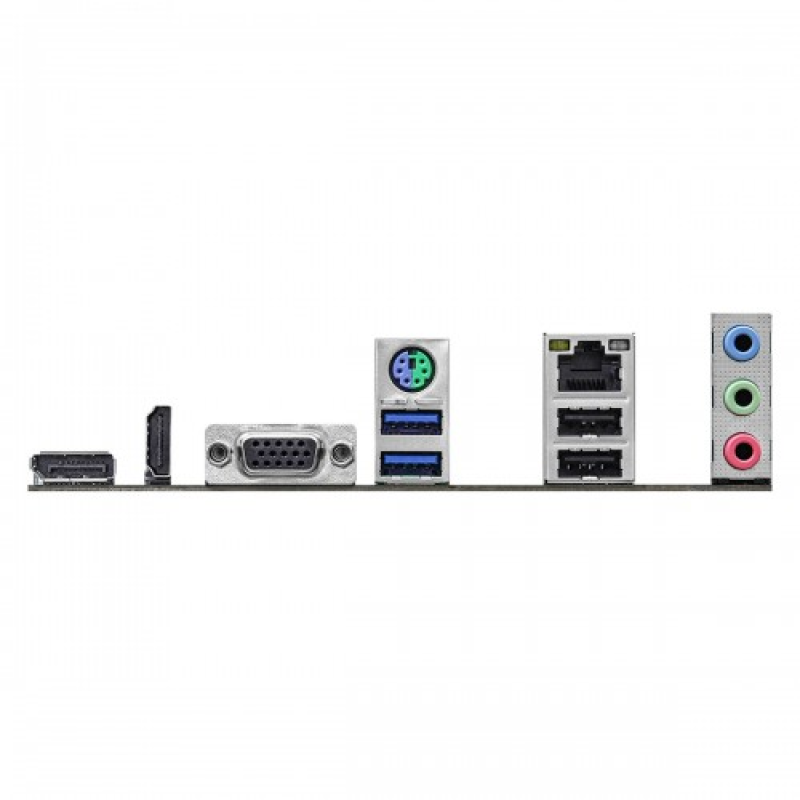

USB (s)	- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
LAN Port (s)	- Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports UEFI PXE
Supported Storage	- 4 x SATA3 6.0 Gb/s Connectors - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes
Audio	- HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Ports	- 1 x COM Port Header - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
TPM (Trusted Platform Module )	1 x SPI TPM Header
Others
Special Features	ASRock Super Alloy - Premium Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
Warranty Information
Manufacturing Warranty	3 years

Description

ASRock H610M-HDV/M.2 Micro ATX Motherboard

The ASRock H610M-HDV/M.2 Motherboard supports 14th Gen, 13th Gen, and 12th Gen Intel Core Processors (LGA1700). It features a 6-phase power design and supports DDR4 at 3200 MHz. uses a next-generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard are greatly enhanced.

PCIe Gen3 x4 Ultra M.2 interface

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32 GB/s. In addition, it also supports SATA3 6Gb/s M.2 modules. Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability, and is able to deliver the ultimate network experience to users. Besides the onboard LAN port, users may also choose 802.11ac wireless connections via the M.2 (Key E) slot.

3 Graphics Outputs

It comes with a D-Sub, DisplayPort, and HDMI combo. It supports HDMI 2.1 TMDS compatibility with a maximum resolution of 4K x 2K (4096 x 2160) at 60 Hz. It also supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) at 60Hz and 5K (5120x3200) at 120Hz. D-Sub with a maximum resolution of up to 1920x1200 at 60 Hz. It comes with support for HDCP 2.3, HDMI 2.1 TMDS compatibility, and DisplayPort 1.4 ports.

The ASRock H610M-HDV/M.2 Motherboard has 03 years warranty.

What is the price of ASRock H610M-HDV/M.2 Motherboard in Bangladesh?

The latest price of ASRock H610M-HDV/M.2 Motherboard in Bangladesh is 10,200৳. You can buy the ASRock H610M-HDV/M.2 Motherboard at best price from our website or visit any of our showrooms.
