GIGABYTE H510M H V2 10th Gen Micro ATX Motherboard

Regular Price 10,000৳
Status In Stock
Product Code 6066
Brand Gigabyte
Short Details
  • Model: H510M H V2
  • Supported CPU: 10th Gen Intel Core Processors (LGA1200)
  • Supported RAM: DDR4, 2 DIMMs, up to 64 GB
  • Graphics Output: 1 x D-Sub, 1 x HDMI
  • Features: Intel GbE LAN with cFosSpeed
Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Specification

Information
Supported CPU LGA1200 package:
10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
L3 cache varies with CPU
Chipset Intel H470 Express Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor: 22.6cm x 18.5cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Expansion Slots
PCI CPU:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Memory
Type DDR4
Slots 2 x DIMM
Supported Memory 10th Generation Intel Core i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel Core i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer to "Memory Support List" for more information.)
Maximum Memory 64GB (32 GB single DIMM capacity)
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Connector & Ports
HDMI 1 x HDMI port
D-Sub (s) 1 x D-Sub port
USB (s) Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices
Internal I/O Ports Internal I/O Connectors:

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x Clear CMOS jumper

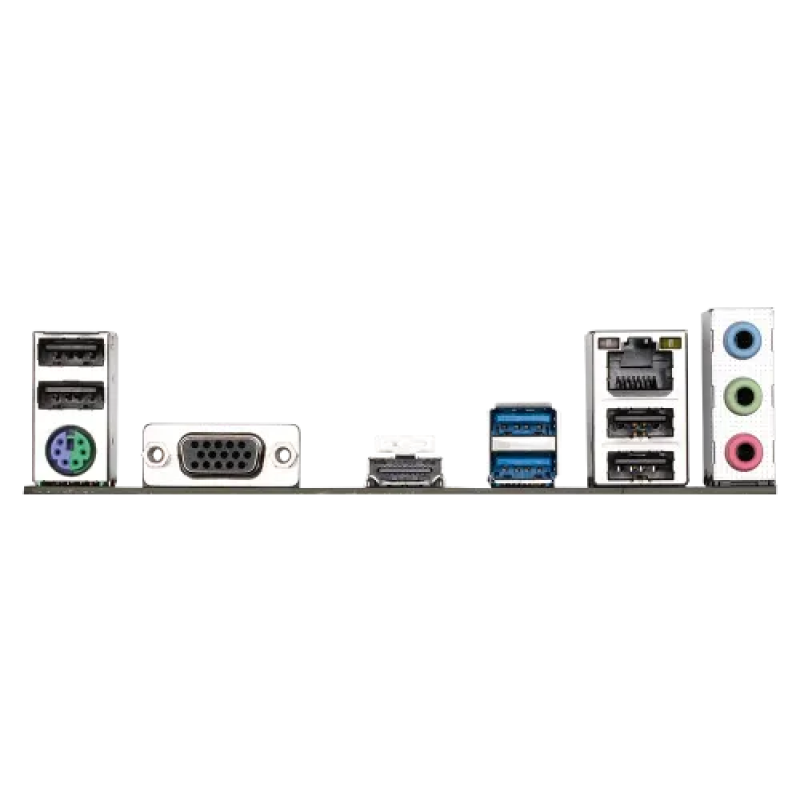

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty Information
Manufacturing Warranty 03 Years Warranty

Description

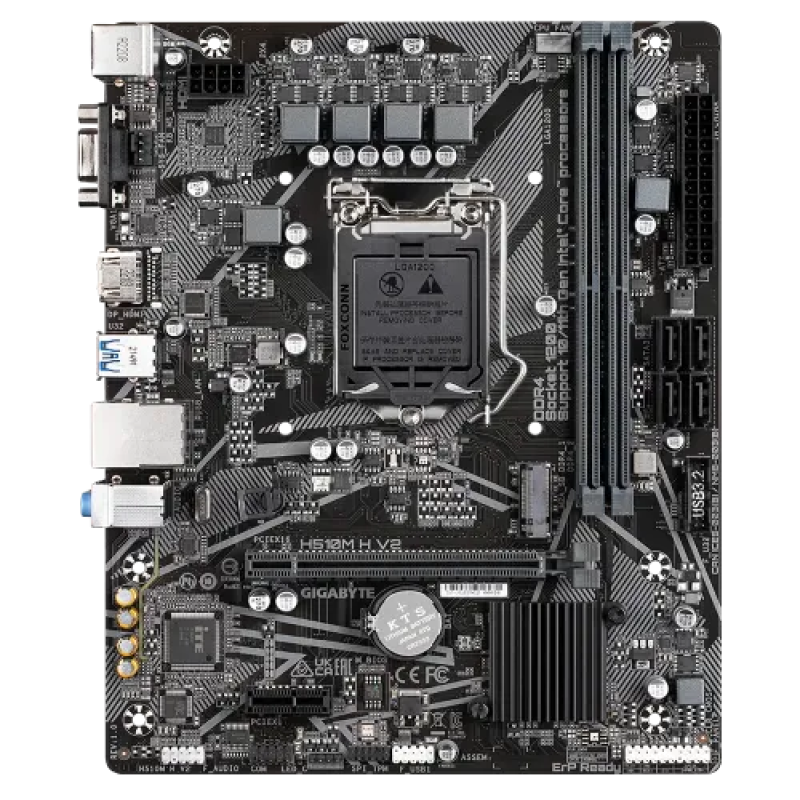

GIGABYTE H510M H V2 10th Gen Micro ATX Motherboard

The GIGABYTE H510M H V2 10th Gen Micro ATX Motherboard is a compact yet powerful solution tailored to support 10th Gen Intel Core Processors. With a Dual Channel Non-ECC Unbuffered DDR4 design and two DIMM slots, it facilitates efficient and high-speed memory configurations. The motherboard offers versatile display options through 1 x D-Sub and 1 x HDMI ports, ensuring flexibility in connecting monitors and displays. Audio enthusiasts will appreciate the 8-channel HD Audio with High-Quality Audio Capacitors, delivering an immersive sound experience for multimedia and gaming. Its NVMe PCIe Gen3 x4 2280 M.2 Connector ensures swift data transfer for compatible storage devices, contributing to a more responsive system. Equipped with GbE LAN featuring Bandwidth Management, the motherboard optimizes network performance for seamless online activities. The Smart Fan 5 technology, incorporating Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP, allows efficient cooling management to maintain optimal temperatures. The user-friendly GIGABYTE APP Center provides easy access to utilities and applications for system customization and management. Additionally, the motherboard is designed with an Anti-Sulfur Resistors feature, enhancing durability and reliability, making it an ideal choice for various computing needs. In summary, the GIGABYTE H510M H V2 combines performance, connectivity, and user-friendly features, providing a solid foundation for building a robust and efficient PC system. The GIGABYTE H510M H V2 10th Gen Motherboard comes with 3 years warranty.

What is the price of GIGABYTE H510M H V2 10th Gen Motherboard in Bangladesh?

The latest price of GIGABYTE H510M H V2 10th Gen Motherboard in Bangladesh is 9,600৳. You can buy the GIGABYTE H510M H V2 10th Gen Motherboard at best price from our website or visit any of our showrooms.
