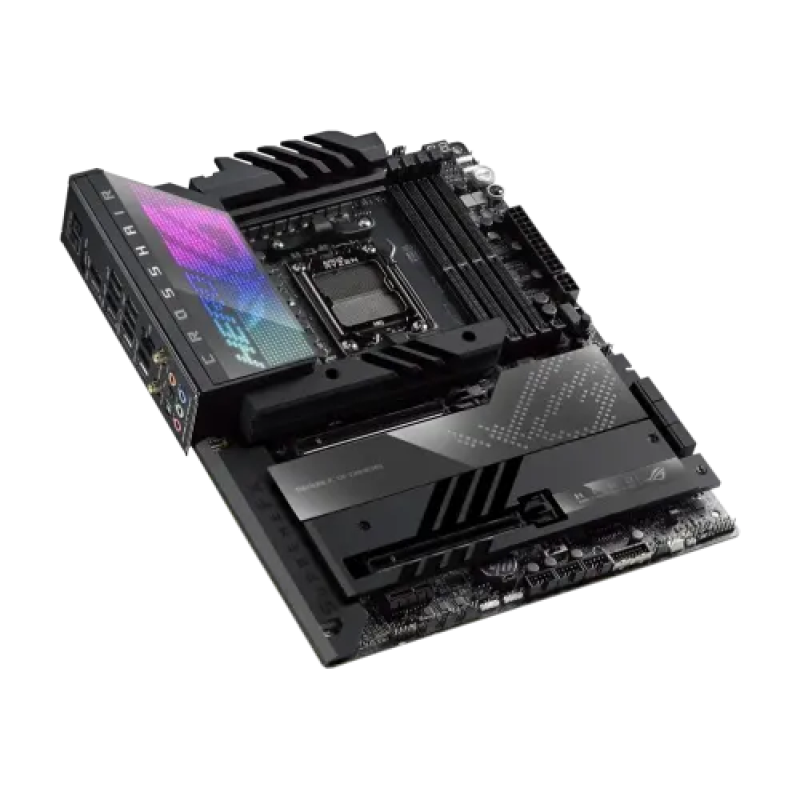

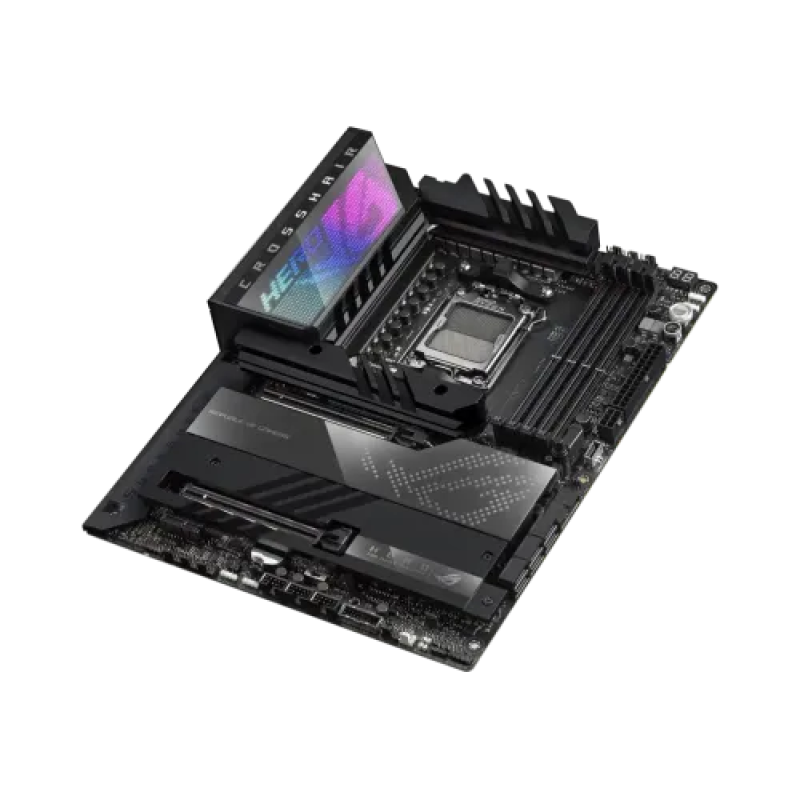

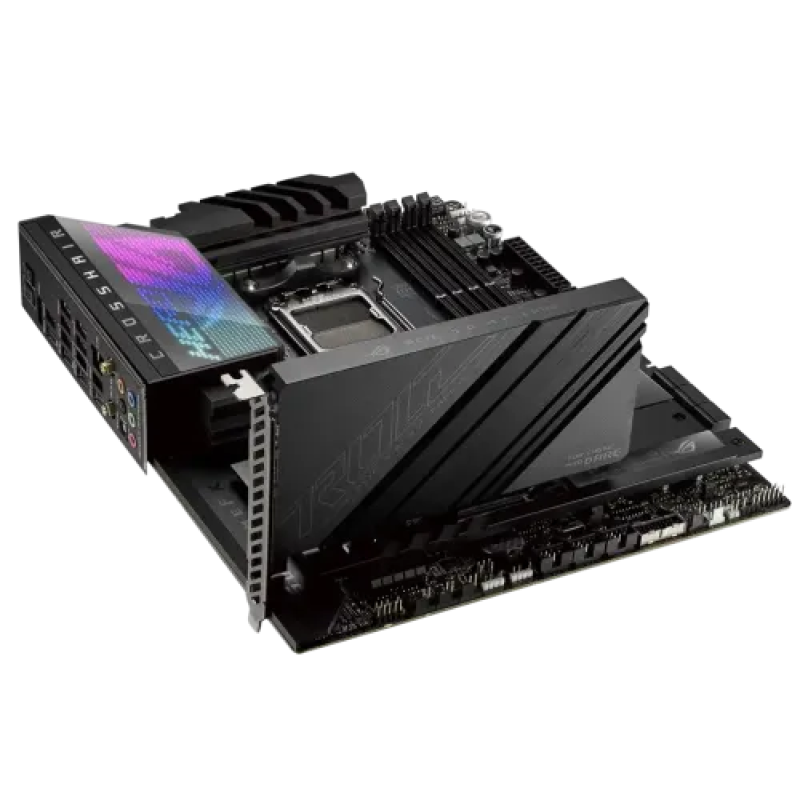

Asus ROG CROSSHAIR X670E HERO DDR5 AMD AM5 ATX Motherboard

Regular Price 98,800৳
Product Code 6101
Brand Asus
Short Details
  • Model: ROG CROSSHAIR X670E HERO
  • Supported CPU: Ryzen 8000/ 7000 Series Processors for Socket AM5
  • Supported RAM: 4x DDR5, up to 192GB, 8000+(OC)
  • Graphics Output: 1x HDMI, 2x USB
  • Features: 1 x 2.5Gb Ethernet, Wi-Fi 6E
Contact for bulk quantity: 01733-080376 , 01733-080350 ,

Specification

Information
Supported CPU AMD Socket AM5 for AMD Ryzen 8000 & 7000 Series Desktop Processors
Chipset AMD X670
BIOS 256Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio ROG SupremeFX 7.1 Surround Sound High
Definition Audio CODEC ALC4082
Audio CODEC
- Supports: Jack-detection,
- Supports up to 24-Bit/192 kHz playback
Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback
output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- SupremeFX Shielding Technology
- ESS ES9218 QUAD DAC
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
Expansion Slots
PCI AMD Ryzen 7000 Series Desktop Processors
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 mode(s)
When the PCIe 5.0 M.2 card is installed on the PCIEX16_2 slot, PCIEX16_1 will run x8 only.
AMD Ryzen 8700/8600 Series Desktop Processors
2 x PCIe 4.0 x16 slots (only supports PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled)
AMD Ryzen 8500/8300 Series Desktop Processors
2 x PCIe 4.0 x16 slots (only supports PCIEx16_1 & total bandwidth for x4, PCIEx16_2 will be disabled)
AMD X670 Chipset
1 x PCIe 4.0 x1 slots
M.2 Socket Supports 5 x M.2 slots
Memory
Type DDR5
Slots 4 DIMMs
Supported Memory 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/
5800(OC)/5600(OC)/5400(OC)/5200/5000/4800, ECC and Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II
Maximum Memory 192GB
Graphics
Graphics 1 x HDMI port
2 xUSB4 ports support USB Type-C display outputs
Connector & Ports
HDMI 1x HDMI
USB (s) Rear USB (Total 12 ports)
2 x USB4 ports with Intel JHL8540 USB4 controller (2 x USB Type-C)
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C)
Front USB (Total 11 ports)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 60W PD/QC4+)
2 x USB 3.2 Gen 1 headers) support additional 4 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
LAN Port (s) 1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless Communication module Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.3
Supported Storage Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports
AMD Ryzen 8000 / 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280
- AMD Ryzen 7000 Series Desktop Processors support PCIe 5.0 x4 mode
- AMD Ryzen 8000 Series Desktop Processors support PCIe 4.0 x4 mode
M.2_2 slot (Key M), type 2242/2260/2280
- Only AMD Ryzen 7000 Series Desktop Processors support PCIe 5.0 x4 mode
- AMD Ryzen 8000 Series Desktop Processors support PCIe 4.0 x2 mode
PCIe 5.0 M.2 slot (Key M) via PCIe 5.0 M.2 card, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
- Only AMD Ryzen 7000 Series Desktop Processors support PCIe 5.0 x4 mode
- AMD Ryzen 8000 Series Desktop Processors support PCIe 4.0 x4 mode
RAID AMD RAID Xpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10
Audio 5 x Gold-plated audio jacks
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
1 x 2-pin Water In header
1 x 2-pin Water Out header
1 x 3-pin Water Flow header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
1 x 6-pinPCIe Power connector
Storage related
4 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Alteration Mode Switch
1 x Aura RGB header
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x ReTry button
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Others
Special Features Extreme OC Kit
- FlexKey button
- ReTry button
- Start button
Extreme Engine Digi+
- 10K Black Metallic Capacitors
- MicroFine Alloy Choke
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Code
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support
- Support: up to 60W charging
- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
- Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS
To support 60W, please install the power cable to 6-pin PCIe power connector or can only support 27W
Bundled Software ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS Sound Unbound
- BullGuard or equivalent internet security (1-year full version)
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (1 year full version)
- Aura Creator
- Aura Sync
- Fan Xpert 4 with AI Cooling II
- Power Saving
- Polymo Lighting
- Two-Way AI Noise Cancellation
AI Suite 3
TPU
DIGI+ Power Control
Turbo app
PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty 3 Years

Description

Asus ROG CROSSHAIR X670E HERO DDR5 AMD AM5 ATX Motherboard

The Asus ROG CROSSHAIR X670E HERO DDR5 AMD AM5 ATX Motherboard has been painstakingly designed to serve as the foundation of your dream gaming setup. With its innovative design, this motherboard guarantees unmatched performance and compatibility with the newest Ryzen 8000 and 7000 Series Processors for Socket AM5. You can expect lightning-fast responsiveness and smooth multitasking with up to 192GB of RAM, clocked at frequencies of up to 8000MHz with overclocking, spread across four DDR5 DIMM slots. The graphics output of the Asus ROG CROSSHAIR X670E HERO is impressive. It provides flexible connecting choices for your display configuration with one HDMI connector and two USB ports, guaranteeing clear graphics and fluid gaming. WThis motherboard provides the graphical performance you want, whether you're playing the newest AAA games or competing in fierce esports tournaments. The Asus ROG CROSSHAIR X670E HERO is designed for networking proficiency and connection as well as raw power. You may enjoy lightning-fast network speeds for lag-free online gaming, flawless streaming, and lightning-fast downloads thanks to its 1x 2.5Gb Ethernet and Wi-Fi 6E connectivity. Thanks to the sophisticated networking capabilities on this motherboard, you can wave goodbye to annoying latency and welcome to uninterrupted gaming sessions. Apart from its remarkable performance and connection, the Asus ROG CROSSHAIR X670E HERO has an array of gaming-specific features that are intended to optimize your gaming encounter. This motherboard has everything you need, including sophisticated cooling options and RGB lights that can be customized. This Asus ROG CROSSHAIR X670E HERO DDR5 AMD AM5 ATX Motherboard is the ideal starting point for any kind of gaming system, be it competitive or casual, with the aim of pushing the boundaries of performance. With its superior performance, networking, and features designed just for gaming, it's ready to elevate your gaming experience.The Asus ROG CROSSHAIR X670E HERO DDR5 AMD AM5 ATX Motherboard comes with 3 years of warranty.

What is the price of Asus ROG CROSSHAIR X670E HERO DDR5 AM5 ATX Motherboard in Bangladesh?

The latest price of Asus ROG CROSSHAIR X670E HERO DDR5 AM5 ATX Motherboard in Bangladesh is 98,800৳. You can buy the Asus ROG CROSSHAIR X670E HERO DDR5 AM5 ATX Motherboard at best price from our website or visit any of our showrooms.
