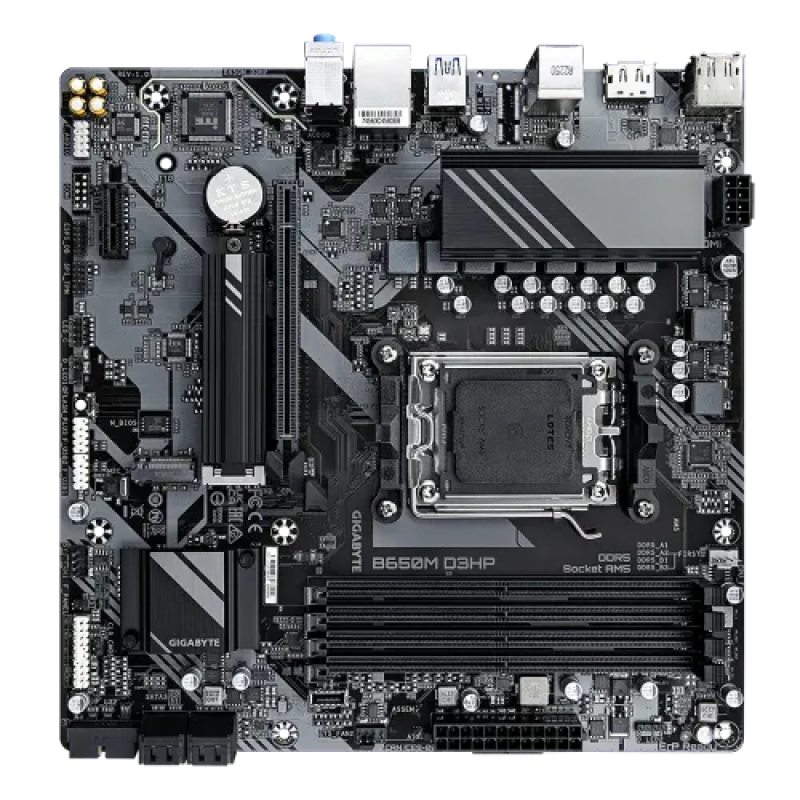

GIGABYTE B650M D3HP DDR5 AM5 Motherboard

Regular Price 22,000৳
Status In Stock
Product Code 6106
Brand Gigabyte
Short Details
  • Model: B650M D3HP
  • Supported CPU: Ryzen 8000/ 7000 Series Processors for Socket AM5
  • Supported RAM: 4x DDR5, up to 192GB, 7600(OC)
  • Graphics Output: 2x Display Port, 1 x HDMI
  • Features: Realtek 2.5GbE LAN chip
Contact for bulk quantity: 01733-080376 , 01733-080350 ,

Specification

Basic Information
Supported CPU AMD Socket AM5, support for: AMD Ryzen 8000/ 7000 Series Processors
Chipset AMD B650
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Expansion Slots
PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Memory
Type DDR5
Slots 4 DIMMs
Supported Memory 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Maximum Memory up to 192 GB (48 GB single DIMM capacity) of system memory
Graphics
Graphics Integrated Graphics Processor with AMD Radeon Graphics support
- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
Support for up to triple-display at the same time
(Graphics specifications may vary depending on CPU support.)
Connector & Ports
HDMI 1x HDMI
Display Port (s) 2 x DisplayPorts
USB (s) CPU:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
- 1 x USB 3.2 Gen 1 port on the back panel
- 1 x USB 2.0/1.1 port on the back panel
Chipset:
- 2 x USB 3.2 Gen 1 ports on the back panel
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:
- AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio 3 x Audio jacks
Internal I/O Ports Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x USB Type-C port, with USB 3.2 Gen 1 support
3 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x HDMI port
2 x DisplayPorts
1 x RJ-45 port
3 x audio jacks
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others
Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash
Support for Q-Flash Plus
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty Information
Manufacturing Warranty 3 Years

Description

GIGABYTE B650M D3HP DDR5 AM5 Motherboard

The GIGABYTE B650M D3HP motherboard is a high-performance component designed to support the latest AMD Ryzen 7000 Series processors with its AMD Socket AM5. This motherboard features a robust 5+2+2 phases digital VRM solution, ensuring stable power delivery for enhanced performance, especially under heavy loads and overclocking conditions. It supports dual-channel DDR5 memory with four SMD DIMMs, accommodating both AMD EXPO and Intel XMP memory modules for flexible configurations and higher bandwidth. The GIGABYTE B650M D3HP includes a PCIe 4.0 x4 M.2 connector, allowing for ultra-fast data access and reduced load times in applications and games. The motherboard also features an EZ-Latch quick-release design on the PCIe x16 slot, simplifying the installation and removal of graphics cards. Networking capabilities are bolstered by a 2.5 Gigabit Ethernet LAN port, providing faster and more reliable connections for gaming, streaming, and downloading. Extended connectivity options include two DisplayPort outputs and one HDMI port, offering versatile display connections for multi-monitor setups. Cooling solutions are advanced with the Smart Fan 6, which incorporates multiple temperature sensors and hybrid fan headers with a fan stop function for quieter operation. Additionally, the Q-Flash Plus feature allows users to update the BIOS without needing to install the CPU, memory, or graphics card, simplifying the update process and ensuring compatibility with new hardware. For gamers, content makers, and tech enthusiasts, the GIGABYTE B650M D3HP DDR5 AM5 motherboard is a flexible and strong solution, offering the newest in technology and connection choices to suit a range of computing demands.The GIGABYTE B650M D3HP DDR5 AM5 Motherboard comes with 3 years of warranty.

What is the price of GIGABYTE B650M D3HP Motherboard in Bangladesh?

The latest price of GIGABYTE B650M D3HP Motherboard in Bangladesh is 22,000৳. You can buy the GIGABYTE B650M D3HP Motherboard at best price from our website or visit any of our showrooms.
