GIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard

Regular Price 29,800৳
Status In Stock
Product Code 6105
Brand Gigabyte
Short Details
  • Model: B650 EAGLE AX
  • Supported CPU: Ryzen 8000/ 7000 Series Processors for Socket AM5
  • Supported RAM: 4x DDR5, up to 192GB, 7600(OC)
  • Graphics Output: 1x Display Port, 1 x HDMI
  • Features: Realtek GbE LAN chip & Realtek Wi-Fi 6E RTL8852CE
Contact for bulk quantity: 01733-080376 , 01733-080350 ,

Specification

Information
Supported CPU AMD Socket AM5, support for: AMD Ryzen 8000/ 7000 Series Processors
Chipset AMD B650
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Expansion Slots
PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1
* The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 2 processor is used.
1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1
Memory
Type DDR5
Slots 4 DIMMs
Supported Memory 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Maximum Memory 192GB
Graphics
Graphics Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.


- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.


(Graphics specifications may vary depending on CPU support.)
Connector & Ports
HDMI 1x HDMI
Display Port (s) 1 x DisplayPorts
USB (s) CPU:
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
CPU+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Chipset:
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module Realtek Wi-Fi 6E RTL8852CE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
- AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
- AMD Ryzen 7000 Series Processors support PCIe 4.0 x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio 3 x Audio jacks
Internal I/O Ports Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
2 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
3 x USB 2.0/1.1 headers
1 x Q-Flash Plus button
1 x serial port header j
1 x Clear CMOS jumper

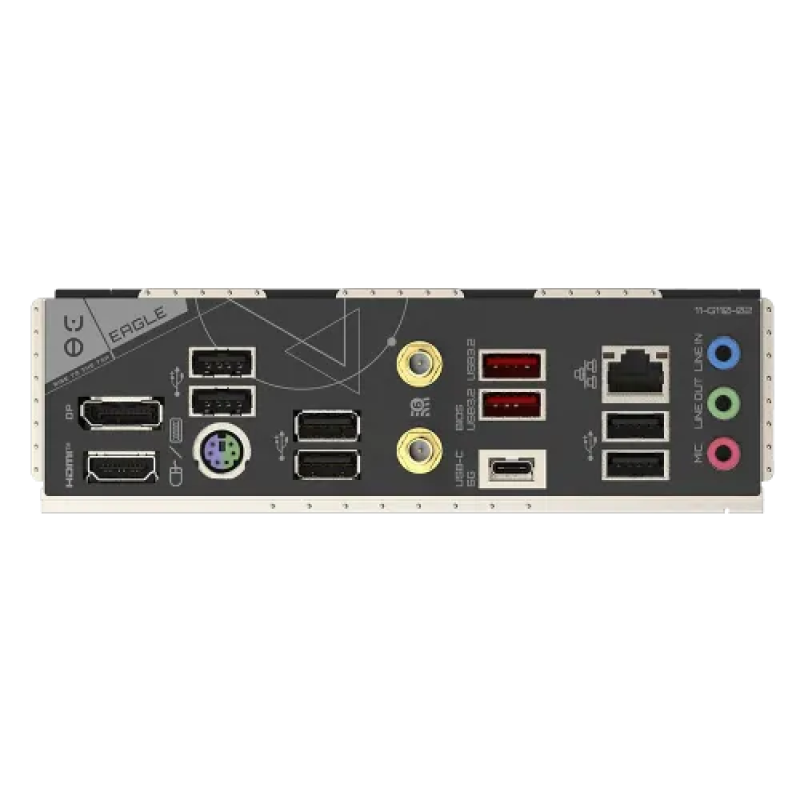

Back Panel Connectors
1 x DisplayPort
1 x HDMI port
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x USB Type-C port, with USB 3.2 Gen 1 support
2 x USB 3.2 Gen 2 Type-A ports (red)
6 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others
Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


Support for Q-Flash
Support for Q-Flash Plus
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty Information
Manufacturing Warranty 3 Years

Description

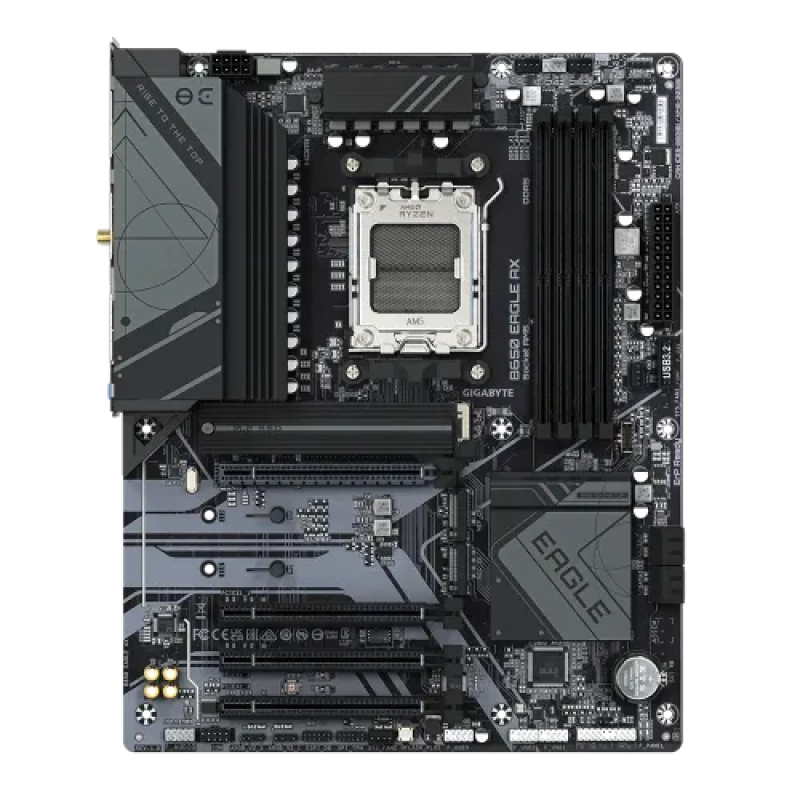

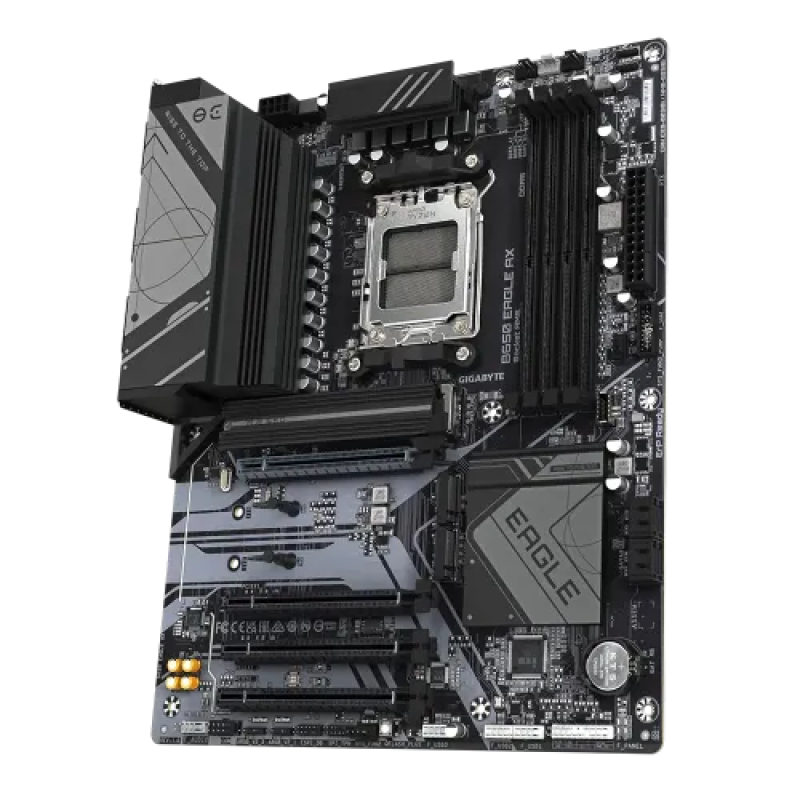

GIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard

The GIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard is designed to support AMD's latest Ryzen 7000 and 8000 series processors, offering unparalleled performance for both gaming and professional applications. This motherboard features a robust 12+2+2 phase digital VRM solution, ensuring stable power delivery and efficient performance under heavy workloads. With its dual-channel DDR5 memory support, the board includes 4 SMD DIMM slots compatible with AMD EXPO and Intel XMP memory modules, providing enhanced performance and flexibility. The motherboard's SuperSpeed storage features, which include two PCIe 4.0 M.2 and one PCIe 5.0 M.2 connection, allow for quick data access and transfer. VRM power stability and excellent performance for 25110 M.2 SSDs are guaranteed by its sophisticated thermal design, which includes an M.2 thermal protection. With its rapid-release design and hassle-free maintenance and upgrades, the EZ-Latch PCIe x16 slot makes expansion simple. Gigabit Ethernet LAN for dependable wired networking and Wi-Fi 6E 802.11ax for quick wireless connectivity are examples of networking capabilities. The board offers a wide range of connectivity choices, including back USB, HDMI, and DisplayPort ports that can carry data at up to 10 Gbps. Smart Fan 6 efficiently controls cooling with its various temperature sensors and hybrid fan headers that include a fan stop functionality to keep the system cooled at its best. Updating the system firmware is made easier for customers by the Q-Flash Plus function, which enables BIOS updates without requiring the installation of a CPU, RAM, or graphics card. For those looking for cutting-edge performance and dependability, the GIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard offers a comprehensive solution. As such, it's a great option for both enthusiasts and professionals.The GIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard comes with 3 years of warranty.

What is the price of GIGABYTE B650 EAGLE AX Motherboard in Bangladesh?

The latest price of GIGABYTE B650 EAGLE AX Motherboard in Bangladesh is 30,000৳. You can buy the GIGABYTE B650 EAGLE AX Motherboard at best price from our website or visit any of our showrooms.
