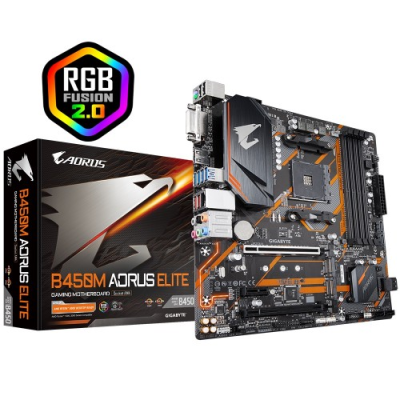

Gigabyte B450M AORUS Elite AMD Gaming Motherboard

Regular Price 10,700৳
Status In Stock
Product Code 219
Brand Gigabyte
Short Details
null
Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Specification

Specification

Basic Information
Supported CPUAMD Socket AM4, support for: AMD Ryzen 5000 series/ 3rd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen processors/ 1st Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/ 1st Generation AMD Ryzen with Radeon Vega Graphics processors/ AMD Ryzen with Radeon Vega Graphics processors
ChipsetAMD B450
BIOS1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form FactorMicro ATX Form Factor; 24.4cm x 24.4cm
Expansion Slots
PCI1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI Express x1 slots
M.2 Socket1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET)
Memory
TypeDual channel memory architecture
Slots4 x DIMM
Supported MemorySupport for DDR4 3600(O.C.)/ 3466(O.C.)/ 3200(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory128 GB
Graphics
GraphicsIntegrated Graphics Processor:
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version, HDCP 2.2, and HDR
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Max Shared Memory16 GB
Connector & Ports
HDMI1 x HDMI
DVI-D (s)1 x DVI-D
USB (s)Integrated in the CPU:
4 x USB 3.1 Gen 1 ports on the back panel
Integrated in the Chipset:
2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.1 Gen 1 ports available through the internal USB headers
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)Realtek GbE LAN chip (10/100/1000 Mbit)
Supported StorageIntegrated in the CPU:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET)
2 x SATA 6Gb/s connectors (ASATA3 1/2)
Integrated in the Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSD support) (M2B_SOCKET)
4 x SATA 6Gb/s connectors (SATA3 0/1/2/3)
AudioRealtek ALC892 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Internal I/O Ports1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
2 x addressable LED strip headers
2 x addressable LED strip power select jumpers
1 x CPU cooler LED strip/RGB LED strip header
1 x RGB (RGBW) LED strip header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x speaker header
1 x Clear CMOS jumper
1 x chassis intrusion header
TPM (Trusted Platform Module )1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Others
Special FeaturesSupport for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
AutoGreen
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
Smart Keyboard
Smart Survey
System Information Viewer
USB Blocker
Support for Q-Flash
Support for Xpress Install
Warranty Information
Manufacturing Warranty03 years

Description

Gigabyte B450M AORUS Elite AMD Gaming Motherboard

GIGABYTE 400-series maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system. AORUS 400-series motherboards use Hybrid Digital PWM + Lower RDS(on) MOSFETs design to support the 2nd Gen AMD Ryzen™ processors by offering incredible precision in developing power of the motherboard’s most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability. AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their systems’ potential. AMD 400-series chipset provides native USB 3.1 Gen2 ports with speeds up to 10Gbps. Available over the USB Type-A connector, the USB3.1 Gen2 is much improved with twice the bandwidth compared to its previous generation as well as backwards compatibility with USB2.0 and USB3.1 Gen1. Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience. With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
