GIGABYTE Z790 AORUS ELITE X AX ATX Motherboard

Regular Price 39,200৳
Status In Stock
Product Code 4741
Brand Gigabyte
Short Details
  • Model: Z790 AORUS ELITE X AX
  • Supported CPU: 14th Gen, 13th Gen & 12th Gen Processors (LGA1700)
  • Supported RAM: 4 x DDR5 DIMMs, up to 8266(O.C.)
  • Graphics Output: 1 x HDMI, 1 x DisplayPort
  • Features: Intel 2.5GbE LAN chip, Intel Wi-Fi 6E
Contact for bulk quantity: 01733-080376 , 01733-080350 ,

Specification

Information
Supported CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
Chipset Intel Z790 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek ALC1220-VB CODEC
High Definition Audio
2/4/5.1/7.1-channel
Expansion Slots
PCI CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/PCIEX4_2)
Memory
Type DDR5
Slots 4 x DIMM sockets
Supported Memory Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in
non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory up to 192 GB (48 GB single DIMM capacity)
Graphics
Graphics Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.


- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3

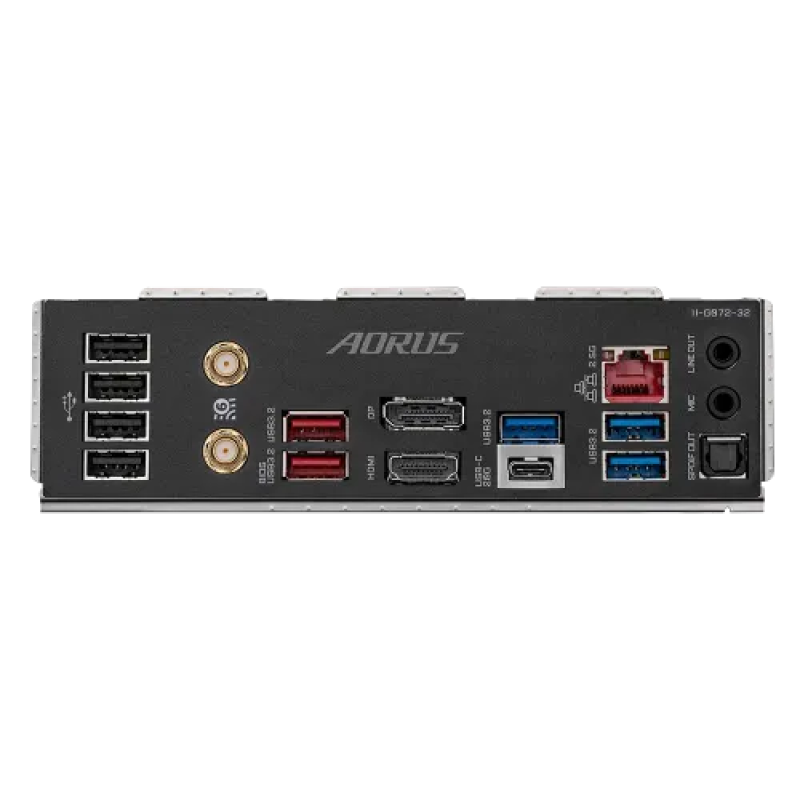

Connector & Ports
HDMI 1 x HDMI
Display Port (s) 1 x DisplayPort
USB (s) Chipset:
- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support
- 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the
internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available
through the internal USB header)
Chipset+2 USB 2.0 Hubs:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through
the internal USB headers)
LAN Port (s) Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
Intel Wi-Fi 6E AX211 (For PCB rev. 1.1)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Supported Storage CPU:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
- 6 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 2 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x reset button
1 x Q-Flash Plus button
1 x Clear CMOS button
1 x reset jumper
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header
(For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others
Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty Information
Manufacturing Warranty 3 years


Description

Description

GIGABYTE Z790 AORUS ELITE X AX ATX Motherboard

The GIGABYTE Z790 AORUS ELITE X AX ATX Motherboard stands out as a high-performance motherboard designed to meet the demands of both gamers and professionals. This motherboard supports a wide range of Intel processors, including the newest 14th-generation CPUs, thanks to its LGA1700 socket. This processor support offers high compatibility and performance for a wide range of computer workloads. Its Digital twin 16+1+2 phases VRM design ensures a steady and efficient power supply, making it an excellent choice for overclocking, where accurate and dependable power delivery is critical. Memory performance is very remarkable, with 4 DIMM slots supporting Dual Channel DDR5 memory. The motherboard also includes XMP 3.0 memory module compatibility, which enables smooth, high-speed memory configurations to boost performance for demanding applications and gaming. Gamers and multimedia makers will love the PCIe UD Slot X's outstanding graphics compatibility, which offers a PCIe 5.0 x16 slot with 10X strength, ideal for fitting high-end GPUs and multi-GPU systems. Four PCIe 4.0 x4 M.2 slots provide ultra-fast storage capabilities, providing speedy data access and overall system responsiveness. All of these high-performance components must be kept cool, which the motherboard accomplishes with VRM Thermal Armor Advanced and M.2 Thermal Guard L, which efficiently dissipate heat and maintain appropriate operating temperatures. The incorporation of 2.5GbE LAN and Wi-Fi 6E, along with an ultra-high gain antenna, ensures fast and robust networking, providing uninterrupted online gaming and flawless multimedia streaming. Furthermore, the motherboard has DisplayPort (DP), HDMI, Front USB-C 10Gb/s, and Rear USB-C 20Gb/s connections, making it simple to connect a broad range of peripherals and devices. Audiophiles will like the ALC1220 audio codec and audiophile-grade capacitors, which give an immersive gaming and entertainment experience with crystal-clear sound. The motherboard includes a user-friendly UC BIOS with a Quick Access option to make system control easier. This streamlines system settings and modifications, offering a smooth and straightforward user experience regardless of whether you're a rookie or a seasoned PC expert.

Buy GIGABYTE Z790 AORUS ELITE X AX ATX Motherboard from Star Tech

In Bangladesh, you can get original GIGABYTE Z790 AORUS ELITE X AX ATX Motherboard From Star Tech. We have a large collection of latest GIGABYTE Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The GIGABYTE Z790 AORUS ELITE X AX ATX Motherboard comes with 3 years warranty.

What is the price of GIGABYTE Z790 AORUS ELITE X AX Motherboard in Bangladesh?

The latest price of GIGABYTE Z790 AORUS ELITE X AX Motherboard in Bangladesh is 35,000৳. You can buy the GIGABYTE Z790 AORUS ELITE X AX Motherboard at best price from our website or visit any of our showrooms.
