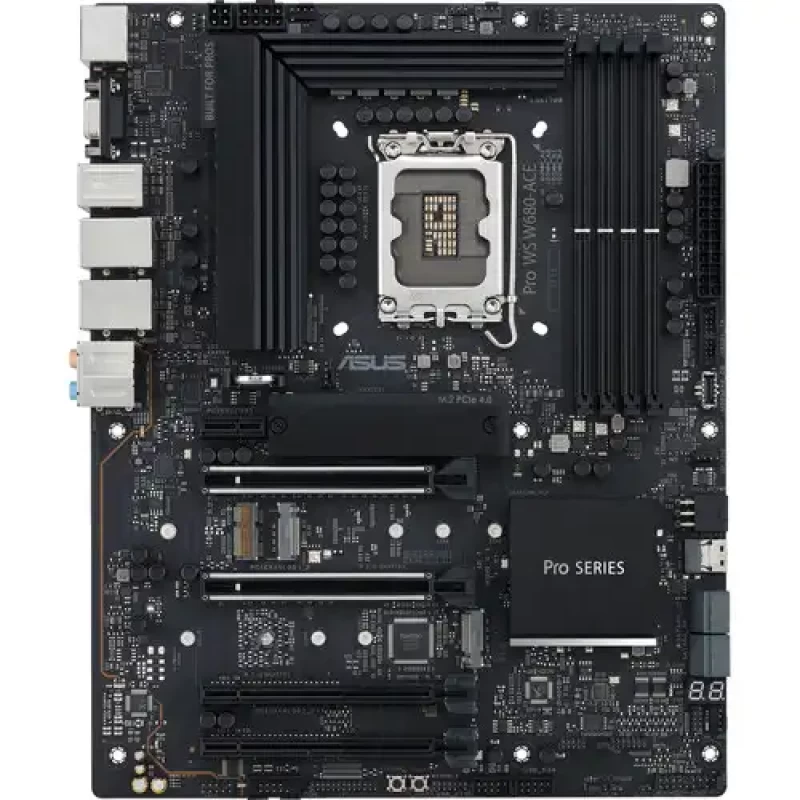

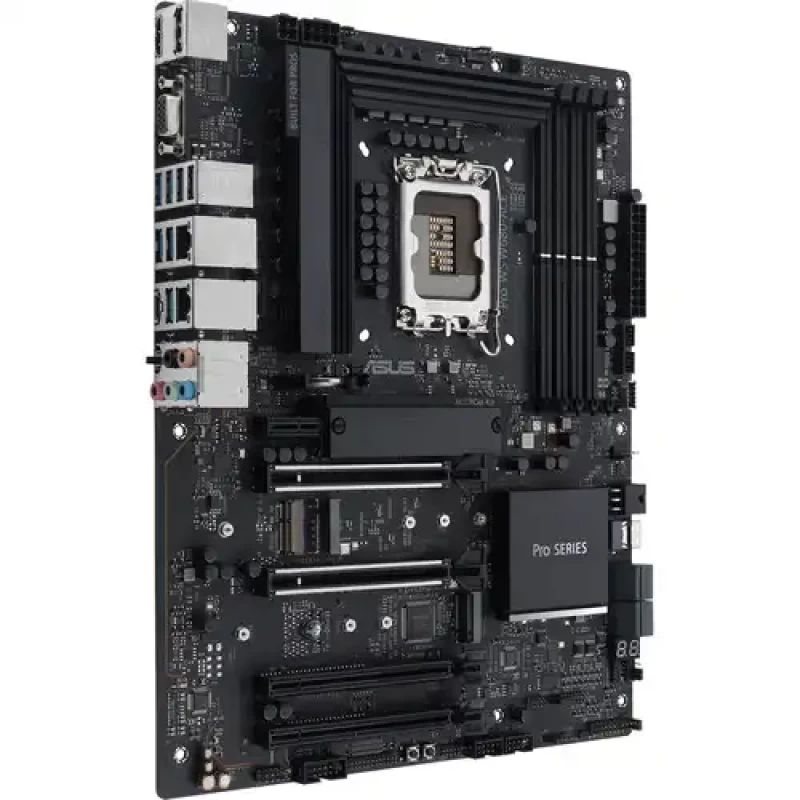

Asus Pro WS W680-ACE ATX Motherboard

Regular Price 49,000৳
Status In Stock
Product Code 6116
Brand AMD
Short Details
  • Model: Pro WS W680-ACE
  • Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
  • Supported Memory: 4 x DIMM, Max. 192GB, DDR5
  • Graphics Output: 1 x DisplayPort, 2 x HDMI, 1 x VGA port
  • Features: 2 x Intel 2.5Gb Ethernet, ASUS LANGuard
Contact for bulk quantity: 01733-080376 , 01733-080350 ,

Specification

Information
Supported CPU Intel® LGA 1700 socket: Ready for 14th, 13th Gen Intel Core processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Chipset Intel W680 Chipset
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit
Expansion Slots
PCI Intel® 13th & 12th Gen Processors
- 2 x PCIe 5.0 x16 slots (support x16 or x8 / x8 mode)
Intel® W680 Chipset
- 2 x PCIe 3.0 x16 slots (supports x4 mode)
- 1 x PCIe 3.0 x1 slot
M.2 Socket Total supports 3 x M.2 slots
Memory
Type DDR5
Slots 4 x DIMM
Supported Memory DDR5 ECC and Non-ECC Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Maximum Memory Max. 192GB
Graphics
Graphics supports max. 8K@60Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1.
Connector & Ports
HDMI 2 x HDMI port
Display Port (s) 1 x DisplayPort
VGA (s) 1 x VGA port
USB (s) Rear USB (Total 8 ports)
- 2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C®)
- 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
- 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s) 2 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless Communication module M.2 slot only (Key E, CNVi & PCIe)*
*Wi-Fi module is sold separately.
Supported Storage Total supports 3 x M.2 slots and 8 x SATA 6Gb/s ports*
Intel 13th & 12th Gen Processors
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel W680 Chipset
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports
- 1 x SlimSAS Slot Support SlimSAS NVMe device (supports PCIe 4.0 x4 mode and up to 4 SATA devices)
RAID Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Audio 5 x Audio jacks
Internal I/O Ports Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin W_PUMP+ header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
1 x 6-pin PCIe Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
1 x SlimSAS port
USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
1 x LPT header
1 x T-sensor
1 x Clear CMOS header
1 x COM Port header
1 x BMC Header
1 x Front Panel Audio header (AAFP)
1 x Start button
1 x Flexkey button
1 x 20-3 pin System Panel header with Chassis intrude function
1 x M.2 slot (Key E)
1 x LPT_P80 Switch
1 x Thunderbolt header
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
Others
Special Features ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-Code
- M.2 Q-Latch
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- CPU Socket lever protector
- SafeDIMM
- SafeSlot
- BIOS FlashBack button
- BIOS FlashBack LED
Bespoke Motherboard Design & Business Focused Features
- 24/7 Reliability
Bundled Software Intel® vPro support
ASUS Exclusive Software
Armoury Crate
- Fan Xpert 4
- Power Saving
ASUS CPU-Z
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
IT Management software supported
- ASUS Control Center Express(ACCE)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
FlexKey
Intel® vPro support
ASUS Exclusive Software
Armoury Crate
- Fan Xpert 4
- Power Saving
ASUS CPU-Z
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
IT Management software supported
- ASUS Control Center Express(ACCE)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
FlexKey
Warranty Information
Manufacturing Warranty 3 years warranty

Description

Asus Pro WS W680-ACE ATX Motherboard in BD

In the heart of Dhaka, Bangladesh, building a powerful, reliable, and future-proof PC starts with selecting the right motherboard. If you are seeking unparalleled performance and extensive features, the Asus Pro WS W680-ACE ATX Motherboard is the ultimate solution. Designed for those who demand excellence, this motherboard is tailored to meet the needs of high-end computing enthusiasts and professionals alike.



Features of Asus Pro WS W680-ACE ATX Motherboard

The Asus Pro WS W680-ACE ATX Motherboard stands out as a beacon of cutting-edge technology and robust performance. Supporting 14th, 13th, and 12th Gen processors (LGA1700), it ensures compatibility with the latest Intel CPUs, delivering exceptional processing power for all your computing needs. With four DIMM slots, it supports up to 192GB of DDR5 memory, providing the speed and capacity required for intensive multitasking, content creation, and complex computational tasks.

This motherboard’s graphics capabilities are equally impressive, offering multiple output options including DisplayPort, two HDMI ports, and a VGA port. This variety ensures seamless connectivity with various displays, enhancing your productivity and entertainment experiences.



Key Features of Asus Pro WS W680-ACE ATX Motherboard in Bangladesh

Engineered for excellence, the Asus Pro WS W680-ACE ATX Motherboard is equipped with dual Intel 2.5Gb Ethernet ports. This advanced networking feature ensures faster data transfer rates, reduced latency, and improved overall network performance. Whether you're streaming high-definition content, engaging in online gaming, or managing a network of devices, this motherboard guarantees a seamless and efficient network experience.

Moreover, ASUS LANGuard technology offers enhanced protection against surges and electrostatic discharge, safeguarding your investment and ensuring the longevity of your system.



The Emotional Benefits of Using Asus Pro WS W680-ACE ATX Motherboard

Imagine the peace of mind knowing that your PC is powered by one of the most reliable and advanced motherboards available. The Asus Pro WS W680-ACE ATX Motherboard not only meets your performance expectations but exceeds them, allowing you to work, play, and create without limitations. Its robust design and advanced features provide a sense of security, knowing your system is future-proof and capable of handling the most demanding tasks.



Technical Specifications and Usage of Asus Pro WS W680-ACE ATX Motherboard



  • Model: Pro WS W680-ACE
  • Supported CPU: 14th, 13th, 12th Gen Processors (LGA1700)
  • Memory: 4 x DIMM, Max. 192GB, DDR5
  • Graphics Output: 1 x DisplayPort, 2 x HDMI, 1 x VGA port
  • Ethernet: 2 x Intel 2.5Gb Ethernet, ASUS LANGuard



Usage Guidance:

Setting up the Asus Pro WS W680-ACE ATX Motherboard is straightforward, thanks to its user-friendly design and comprehensive manual. Begin by ensuring your workspace is static-free to avoid damaging sensitive components. Install your chosen Intel CPU, followed by the DDR5 memory modules. Securely connect your power supply, graphics card, and other peripherals. The multiple output options provide flexibility in connecting to your preferred display setup, making the entire process hassle-free.



Pricing and Availability in CTG Computer

The Asus Pro WS W680-ACE ATX Motherboard is available at CTG Computer for 49,000 BDT. This competitive pricing makes it an excellent investment for those looking to build or upgrade their system with top-tier components. With its extensive feature set and robust performance capabilities, it offers outstanding value for money, ensuring you get the most out of your budget.



FAQs



Q1: Is the Asus Pro WS W680-ACE ATX Motherboard compatible with older processors?

A1: The Asus Pro WS W680-ACE ATX Motherboard supports 14th, 13th, and 12th Gen Intel processors, ensuring compatibility with a wide range of CPUs for various performance needs.



Q2: Can I use DDR4 memory with this motherboard?

A2: No, the Asus Pro WS W680-ACE ATX Motherboard is designed to support DDR5 memory only, providing higher speed and better performance.



Q3: What type of graphics output does this motherboard support?

A3: It supports multiple graphics outputs including one DisplayPort, two HDMI ports, and one VGA port, offering flexibility in connecting to different types of displays.



Q4: How does ASUS LANGuard benefit my network connection?

A4: ASUS LANGuard protects against surges and electrostatic discharge, ensuring a more stable and reliable network connection, which is particularly beneficial for online gaming and streaming.



Q5: Where can I purchase the Asus Pro WS W680-ACE ATX Motherboard in Bangladesh?

A5: The Asus Pro WS W680-ACE ATX Motherboard is available at CTG Computer in Dhaka, Bangladesh, for 49,000 BDT.
