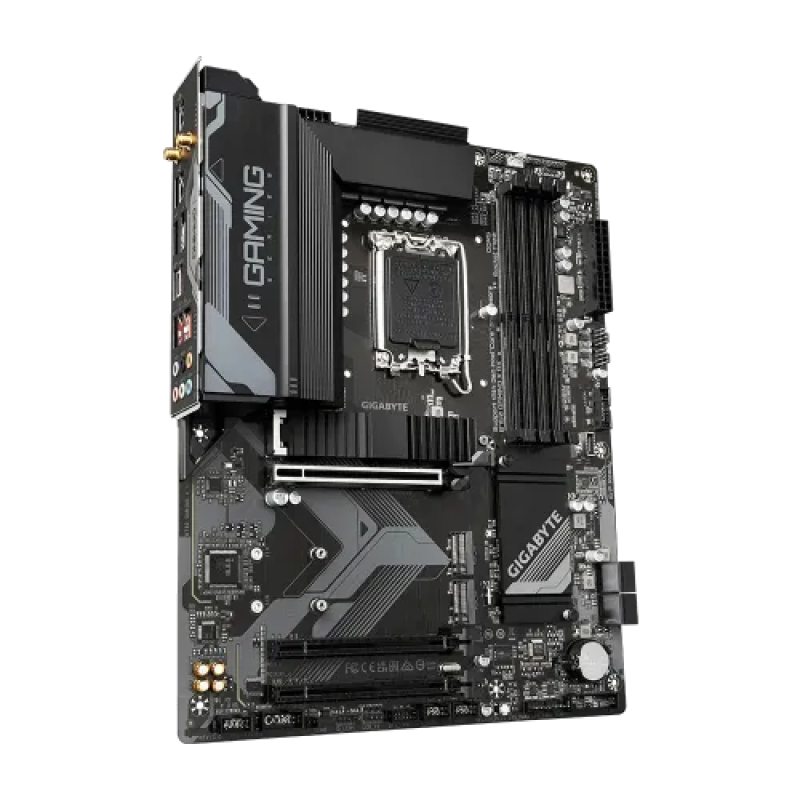

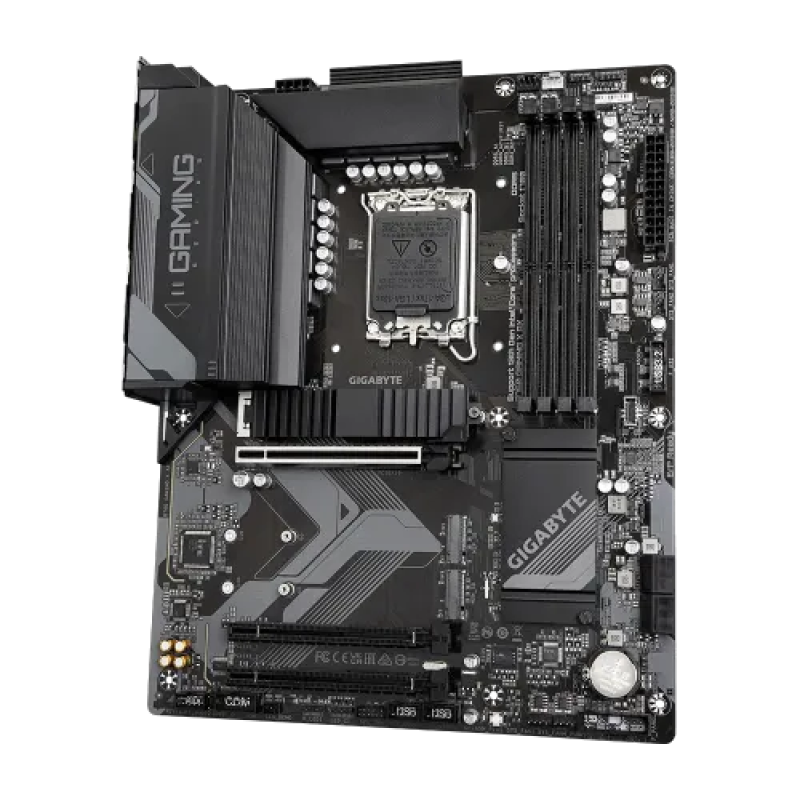

GIGABYTE B760 GAMING X AX ATX Motherboard

Regular Price	23,400৳
Status	In Stock
Product Code	4731
Brand	Gigabyte

Short Details

Model: B760 GAMING X AX
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 4x DDR5, Max 192GB 7600(OC)
Graphics Output: 1x HDMI, 1x DisplayPort
Features: 2.5GbE LAN & Wi-Fi 6E 802.11ax

More Info

23400৳

Product Price

Contact for bulk quantity: 01733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Information
Supported CPU	LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset	Intel B760 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Expansion Slots
PCI	CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Memory
Type	DDR5
Slots	4
Supported Memory	Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	192GB
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3.
Connector & Ports
HDMI	1x HDMI
Display Port (s)	1x DisplayPort
USB (s)	Chipset: 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) 1 x USB 2.0/1.1 port on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	AMD Wi-Fi 6E RZ608 (MT7921K) (PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate Intel Wi-Fi 6E AX210 (PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Intel Wi-Fi 6E AX211 (PCB rev. 1.2) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.3) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) 4 x SATA 6Gb/s connectors
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio	6 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty	3 years

Description

GIGABYTE B760 GAMING X AX ATX Motherboard

The GIGABYTE B760 GAMING X AX is a high-performance motherboard designed for gaming enthusiasts and power users. It supports both 14th, 13th, and 12th-generation Intel processors with its LGA 1700 socket, ensuring compatibility with the latest CPU technologies. This 14th Gen motherboard is its Hybrid 8+1+1 Phases Digital VRM solution, which provides exceptional power delivery and stability for optimal performance. This ensures that the motherboard can handle demanding tasks and overclocking without any issues. The motherboard supports Dual Channel DDR5 memory, allowing for faster data transfer rates and improved multitasking capabilities. With four DIMM slots and XMP memory module support, users can easily install and configure high-speed RAM for smooth and responsive system performance. The GIGABYTE B760 GAMING X AX motherboard. It features two PCIe 4.0 x4 M.2 connectors, enabling lightning-fast storage solutions. Additionally, the motherboard incorporates an advanced thermal design and M.2 Thermal Guard to maintain VRM power stability and optimize M.2 SSD performance, preventing thermal throttling and ensuring reliable operation. The EZ-Latch feature of the PCIe 4.0x16 slot allows for easy installation and removal of graphics cards, making it convenient for users who frequently upgrade their GPUs. The motherboard also offers fast networking capabilities with 2.5GbE LAN and Wi-Fi 6E 802.11ax support, ensuring low latency and high-speed connectivity for online gaming and other network-intensive tasks. The GIGABYTE B760 GAMING X AX provides a front USB-C® port with a 10Gb/s transfer speed, as well as DisplayPort (DP) and HDMI ports for multiple display setups. This allows users to connect various peripherals and external devices with ease. The Smart Fan 6 feature is designed to keep the system cool and quiet. It includes multiple temperature sensors and hybrid fan headers with FAN STOP technology, enabling precise control over fan speeds and optimizing cooling performance while minimizing noise levels. The Q-Flash Plus, allows users to update the motherboard's BIOS firmware without the need to install the CPU, memory, and graphics card. This feature provides a convenient and hassle-free method for keeping the system up to date with the latest firmware releases. The GIGABYTE B760 GAMING X AX motherboard offers a comprehensive range of features and technologies for gamers and power users seeking exceptional performance, reliable connectivity, and convenient upgradability. The GIGABYTE B760 GAMING X AX Motherboard comes with 3 years warranty.
