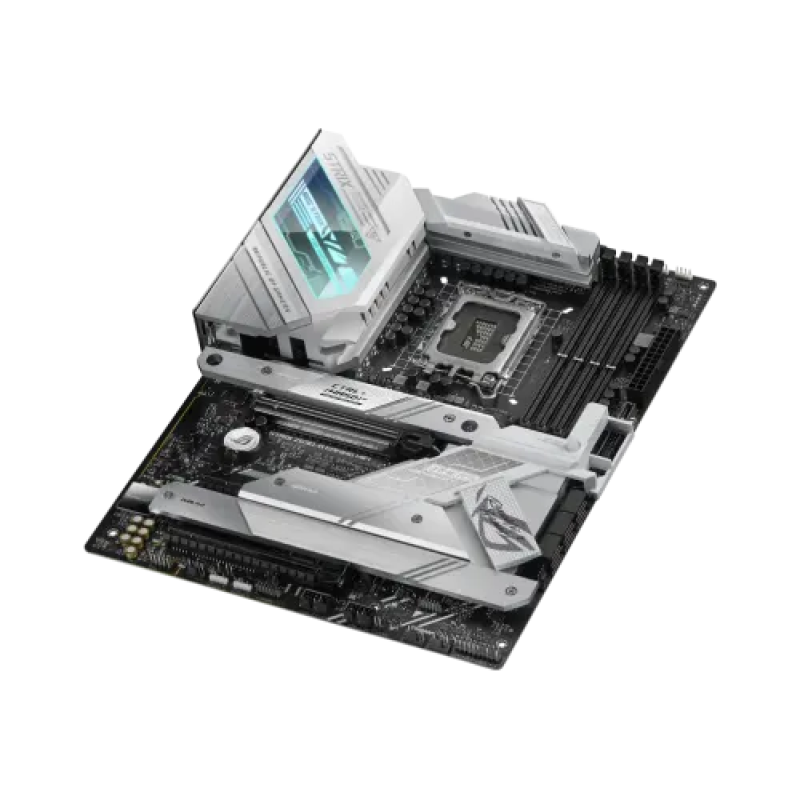

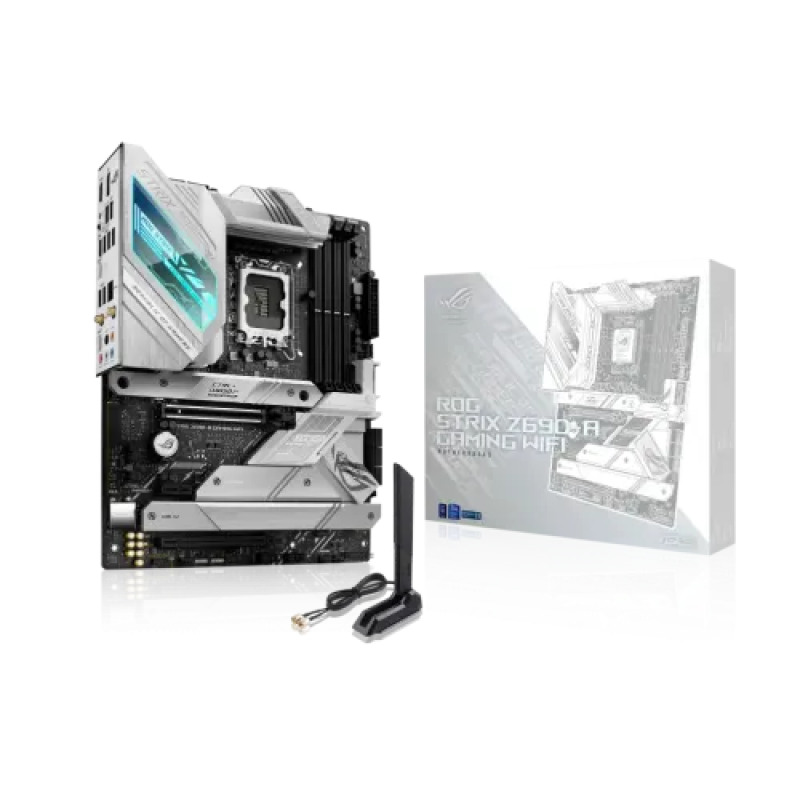

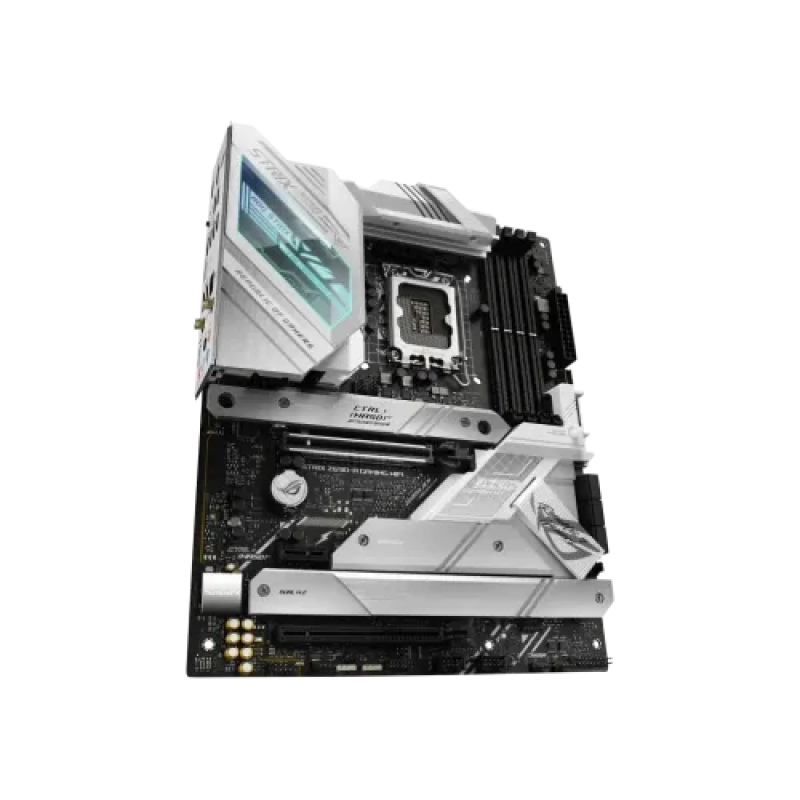

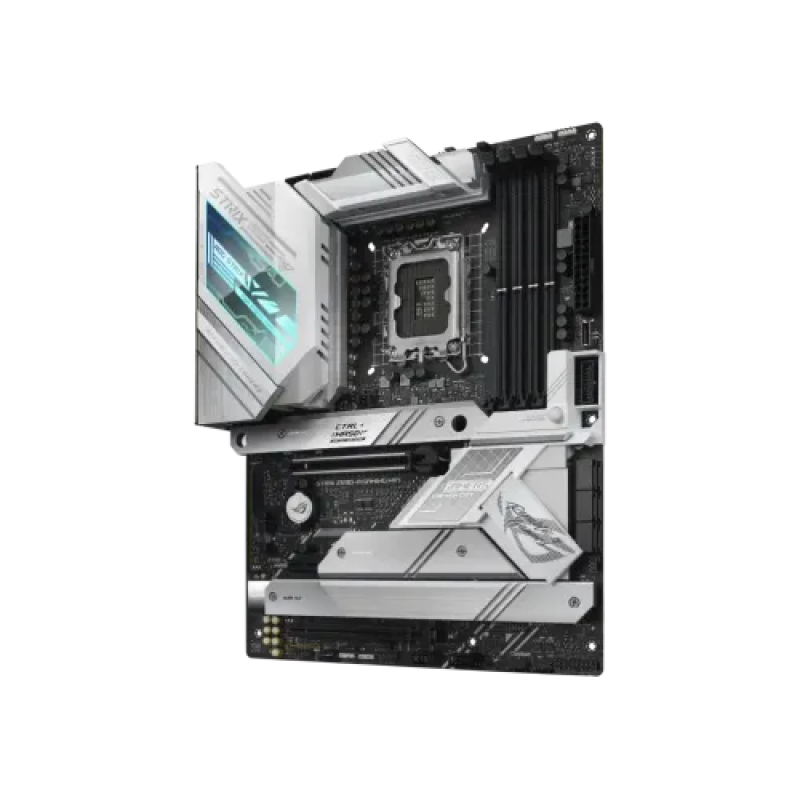

Asus ROG STRIX Z690-A GAMING WIFI ATX Motherboard

Regular Price	37,000৳
Product Code	5025
Brand	Asus

Short Details

Model: ROG STRIX Z690-A GAMING WIFI
Supported CPU: Intel LGA 1700 socket for 14th, 13th and 12th Gen processors
Supported RAM: 4 x DIMM, Max. 192GB, DDR5 6400(OC)
Graphics Output: 1 x DisplayPort, 1 x HDMI
Features: Intel WiFi 6E and Intel 2.5 Gb Ethernet

More Info

37000৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Basic Information
Supported CPU	Intel Socket LGA1700 for 14th, 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Z690
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX 30.5cm x 24.4cm
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Premium audio capacitors - Audio cover
Expansion Slots
PCI	Intel 13th & 12th Gen Processors 1 x PCIe 5.0/4.0/3.0 x16 slot Intel® Z690 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)* 1 x PCIe 3.0 x1 slot
Memory
Type	DDR5
Slots	4 x DIMM
Supported Memory	DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory	192GB
Graphics
Graphics	1 x DisplayPort 1 x HDMI
Connector & Ports
HDMI	1 x HDMI
Display Port (s)	1 x DisplayPort
USB (s)	Rear USB: Total 10 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB: Total 7 ports 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s)	1 x Intel 2.5Gb Ethernet ASUS LANGuard
Wireless Communication module	Intel Wi-Fi 6E Intel Wi-Fi 6E Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.2 hardware ready
Supported Storage	Supports 4 x M.2 slots and 6 x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 13th & 12th Gen processors support PCIe 4.0 x4 mode. Intel® Z690 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 6 x SATA 6Gb/s ports
RAID	Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. RAID configuration is not supported on the SATA6G_E1-2 ports.
Audio	5 x Audio jacks
Internal I/O Ports	Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 4 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (support USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x CPU Over Voltage jumper 1 x 12-1 pin Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
Others
Special Features	Extreme Engine Digi+ -5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers ASUS HYDRANODE - 1 x 12-1 pin Front Panel Audio header (AAFP) - 1 x Chassis fan support* (CHA_FAN1P)
Bundled Software	ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - Easy Optimization with AI Overclocking TPU EPU DIGI+ VRM Turbo app MyAsus WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey MemTest86
Warranty Information
Manufacturing Warranty	3 years

Description

Asus ROG STRIX Z690-A GAMING WIFI ATX Motherboard

The Asus ROG STRIX Z690-A GAMING WIFI Motherboard features an Intel LGA 1700 socket Ready for 14th, 13th and 12th Gen Intel Core, Pentium Gold, and Celeron Processors. Asus Prime series motherboards are expertly engineered to unleash the full potential of 13th and 12th Generation Intel processors. It comes with an enhanced power solution. 16+1 power stages with 8+8 ProCool II power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors. It features an Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, L-shaped Heatpipe, four onboard M.2 heatsinks, and M.2 backplate for the M.2_1 slot. It features onboard Intel WiFi 6E (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard. The Asus ROG STRIX Z690-A GAMING WIFI 12th Gen ATX Motherboard is supported with DDR5 memory, PCIe 5.0, Intel 2.5 Gb Ethernet, USB 3.2 Gen2x2 Type-C, front panel USB 3.2 Gen 2 Type-C, Thunderbolt 4 header support, 4 PCIe 4.0 M.2. It comes with ASUS-exclusive AI Overclocking, AI Cooling, AI Networking, and Two-Way AI Noise Cancelation to simplify setup and improve performance. With four strategically placed M.2 slots, ROG STRIX Z690-A GAMING WIFI D4 leverages mighty CPU and chipset bandwidth to deliver lightning-fast PCIe 4.0 data transfers, Intel NVM Express RAID, and high-capacity drive options that blaze past traditional SATA-based SSDs. The Asus ROG STRIX Z690-A GAMING WIFI offers a sleek, futuristic-looking build with a black and white finish, space-shuttle-inspired design elements, metallic nameplates, and PCB cover.

What is the price of Asus ROG STRIX Z690-A GAMING WIFI Motherboard in Bangladesh?

The latest price of Asus ROG STRIX Z690-A GAMING WIFI Motherboard in Bangladesh is 38,400৳. You can buy the Asus ROG STRIX Z690-A GAMING WIFI Motherboard at best price from our website or visit any of our showrooms.
