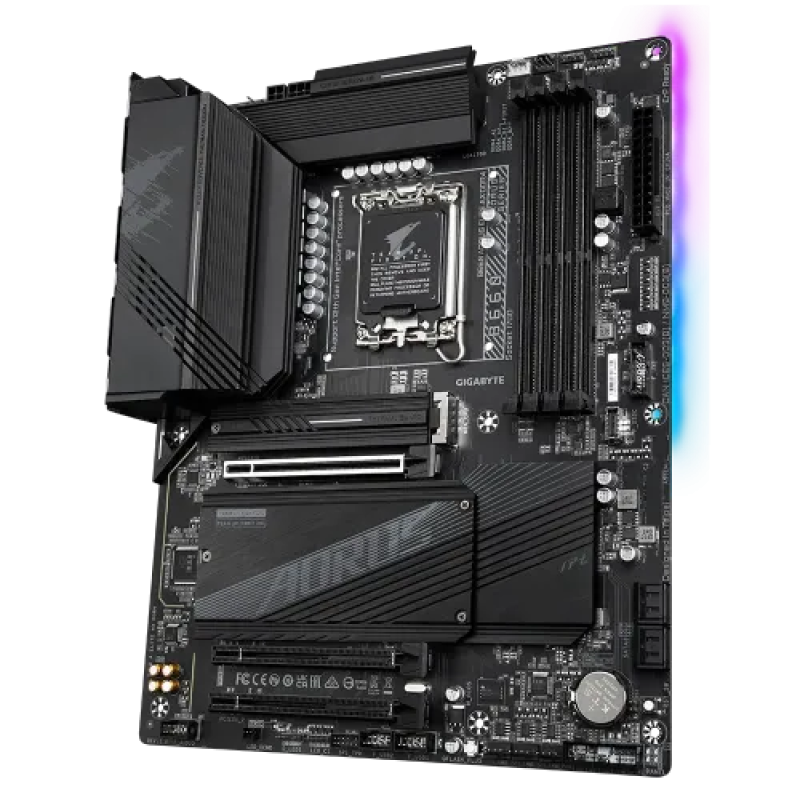

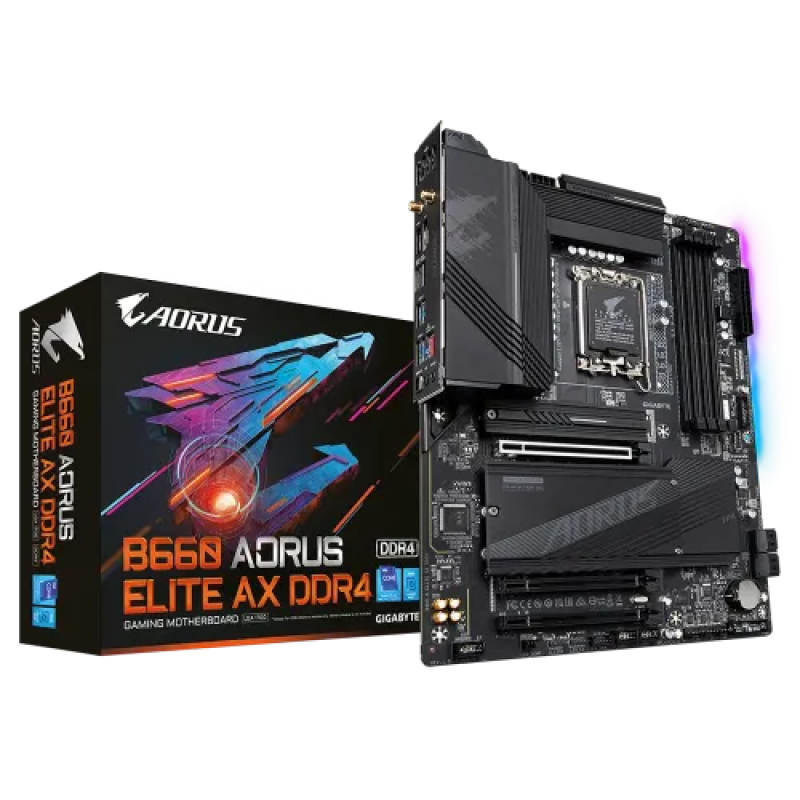

GIGABYTE B660 AORUS ELITE AX DDR4 ATX Motherboard

Regular Price	22,500৳
Product Code	4710
Brand	Gigabyte

Short Details

Model: B660 AORUS ELITE AX DDR4
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
12+1+1 Twin Hybrid Digital VRM Design with 60A DrMOS
WIFI 6E 802.11ax 2T2R & BT5 with AORUS Antenna

More Info

22500৳

Product Price

Contact for bulk quantity: 01733-080376 , 01733-080350 ,

Share:

Specification
Description
Products
Question
Review

Specification

Information
Supported CPU	LGA1700 socket: Support for 14th, 13th & 12th Generation Intel Core, Pentium Gold, and Celeron L3 cache varies with CPU
Chipset	Intel B660 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 2 x PCI Express x1 slots (The PCIEX1 slots conform to PCI Express 3.0 standard.)
Memory
Type	DDR4
Slots	4 x DIMM
Supported Memory	Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer to "Memory Support List" for more information.)
Maximum Memory	up to 128 GB (32 GB single DIMM capacity) of system memory
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.)
Connector & Ports
HDMI	1 x HDMI 2.0 port
Display Port (s)	1 x DisplayPort
USB (s)	Chipset: 2 x USB Type-C ports with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header) 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports, available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Intel® Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB) 4 x SATA 6Gb/s connectors Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. Support for S/PDIF Out
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty	3 years

Description

GIGABYTE B660 AORUS ELITE AX DDR4 ATX Motherboard

The GIGABYTE B660 AORUS ELITE AX DDR4 is a Motherboard from GIGABYTE. With technology moving so fast, GIGABYTE still keeps up with the latest trends and provides our customers with advanced features and the latest technology. GIGABYTE B660 Series motherboards come with upgraded power solutions, the latest storage standards, and outstanding connectivity to enable optimized performance for gaming. GIGABYTE B660 AORUS ELITE AX DDR4 features a fully Covered Thermal Design which features a high coverage MOSFET and integrated molding heatsinks to improve thermal efficiency with better airflow and heat exchange. it has an M.2 Thermal Guard. The M.2 Thermal Guard prevents throttling and bottlenecks from high-speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. The 2X Copper PCBs design effectively lowers the component temperature by its high thermal conductivity and low impedance. The GIGABYTE B660 AORUS ELITE AX DDR4 lets you experience ultimate connection flexibility and blazing data-transfer speed with next-generation network and storage connectivity. GIGABYTE motherboard is bundled with several useful and intuitive software to help users to control every aspect of the motherboard and provides customizable lighting effects with outstanding aesthetics to fit your unique personality. GIGABYTE Ultra Durable features its product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slot to make each of them solid and durable. GIGABYTE B660 AORUS ELITE AX DDR4 Supports 14th, 13th & 12th Gen Intel Core Series Processors With Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs which feature 12+1+1 Twin Hybrid Digital VRM Design with 60A DrMOS. It has a Fully Covered Thermal Design with High Coverage VRM Heatsink and a Fast 2.5 GbE GAMING LAN with Bandwidth Management. The Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guard and USB 3.2 Gen1 Type-C for Fast and Versatile Connections alongside pre-installed IO Shield for easy and quick installation. The GIGABYTE B660 AORUS ELITE AX DDR4 also has high-quality Audio Capacitors and Audio Noise guards. This gaming motherboard has RGB FUSION 2.0 supports Addressable LED & RGB LED Strips. It also supports Smart Fan 6; which Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. The Q-Flash Plus Update BIOS without Installing the CPU, Memory, and Graphics Card. The GIGABYTE B660 AORUS ELITE AX DDR4 offers 03 years of Warranty.

What is the price of GIGABYTE B660 AORUS ELITE AX DDR4 Motherboard in Bangladesh?

The latest price of GIGABYTE B660 AORUS ELITE AX DDR4 Motherboard in Bangladesh is 22,700৳. You can buy the GIGABYTE B660 AORUS ELITE AX DDR4 Motherboard at best price from our website or visit any of our showrooms.
