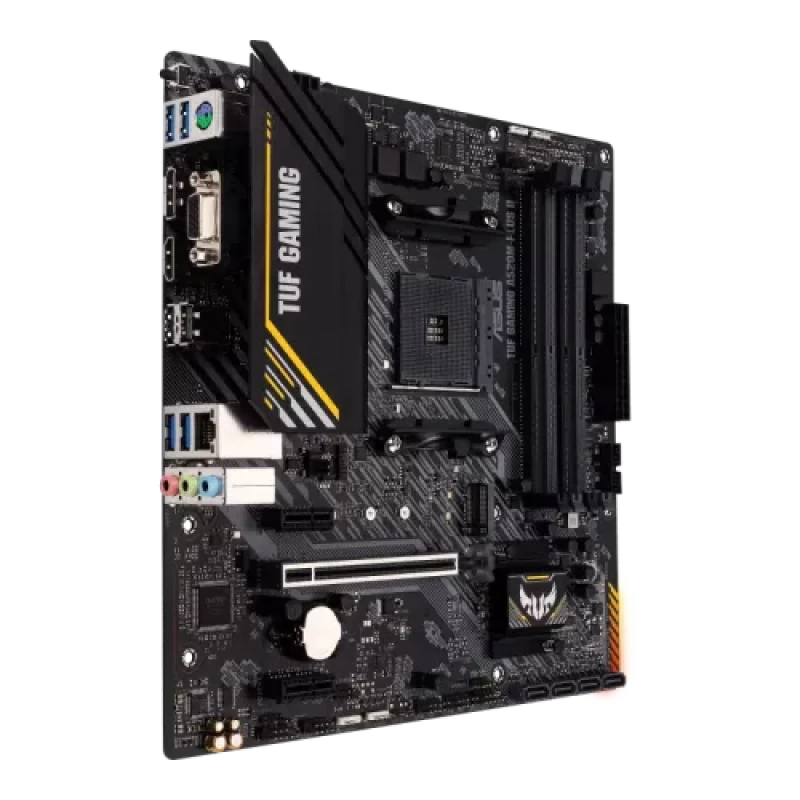

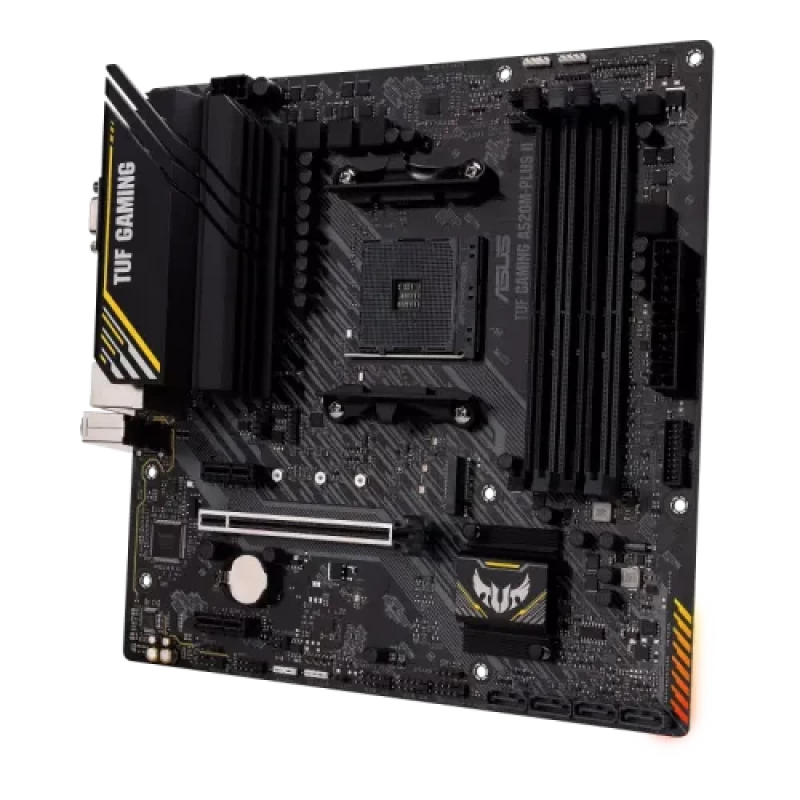

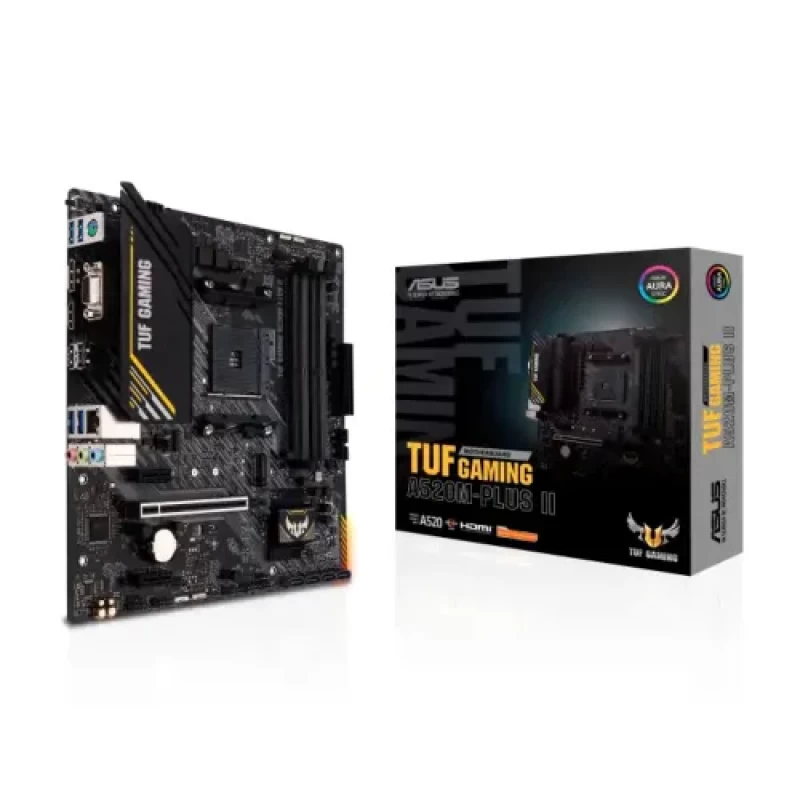

Asus TUF GAMING A520M-PLUS microATX Motherboard

Regular Price 11,700৳
Status In Stock
Product Code 5999
Brand Asus
Short Details
  • Model: TUF GAMING A520M-PLUS II
  • Supported CPU: Ryzen 5000/ 4000 G/ 3000 Series
  • Supported RAM: 4 x DIMM, Max. 128GB, DDR4
  • Graphics Output: 1 x DisplayPort 1.2, 1 x HDMI 2.1, 1 x D-Sub
  • Features: Onboard RGB headers
Contact for bulk quantity: 01733-080376 , 01733-080350 ,

Specification

Basic Information
Supported CPU AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset A520
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor microATX
24.4cm x 24.4cm
Audio Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
*A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots
PCI AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
1 x PCIe 3.0 x16 slot (supports x16 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1 slots
Memory
Type DDR4
Slots 4 x DIMM
Supported Memory 4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory
Dual Channel Memory Architecture
Maximum Memory 128GB
Graphics
Graphics 1 x DisplayPort 1.2
1 x HDMI 2.1(4K@60Hz)
1 x D-Sub
Connector & Ports
HDMI 1 x HDMI port
Display Port (s) 1 x DisplayPort
D-Sub (s) 1 x D-Sub
USB (s) 4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB:Total 6 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
LAN Port (s) 1 x Realtek 1Gb Ethernet
TUF LANGuard
Supported Storage AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
AMD A520 Chipset:
4 x SATA 6Gb/s ports
Support RAID 0, 1, 10
Audio 3 x Audio jacks
Internal I/O Ports Fan and cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous
2 x AURA Addressable Gen 2 header
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
Others
Special Features ASUS TUF PROTECTION
- DIGI+ VRM
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headers
Bundled Software ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 2+
- EZ update
- PC Cleaner
- System Information
TUF GAMING CPU-Z
AI Charger
ASUS Turbo LAN
DAEMON Tools
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty 3 Years

Description

Asus TUF GAMING A520M-PLUS microATX Motherboard

Searching for a reliable and high-performance motherboard to power your next gaming rig? Look no further than the Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard. Designed with gamers in mind, this motherboard offers an array of features that ensure top-notch performance, durability, and ease of use. In this comprehensive product description, we'll delve into the details of the Asus TUF GAMING A520M-PLUS II, highlighting its benefits and why it's the perfect choice for gaming enthusiasts in Dhaka, Bangladesh.

Asus TUF Gaming A520M-Plus ATX Motherboard Price In BD

Unleash Your Gaming Potential with Asus A520 Motherboard Price in BD

The Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard is engineered to provide gamers with a solid foundation for their high-performance gaming systems. Whether you're a seasoned gamer or a first-time builder, this motherboard offers everything you need to create a powerful, reliable, and easy-to-build gaming rig.

Built for Durability and Performance

Crafted with military-grade components and an upgraded power solution, the Asus TUF GAMING A520M-PLUS II ensures rock-solid performance and unwavering gaming stability. The motherboard's comprehensive cooling options keep your system running smoothly, even during the most intense gaming sessions. With support for the latest AMD Ryzen CPUs and faster memory, this motherboard is designed to handle high-core-count processors, making it an excellent choice for gamers who demand the best.

Key Features of the Asus TUF Gaming A520m-Plus Wifi

  • Military-Grade Components: Ensures durability and longevity.
  • Upgraded Power Solution: Provides stable and efficient power delivery to the CPU.
  • Comprehensive Cooling Options: Keeps your system cool and stable.
  • Support for Latest AMD Ryzen CPUs: Handles high-core-count processors with ease.
  • Fast Memory Support: Enhances overall system performance.

Easy Setup and Configuration

Building your gaming rig with the Asus TUF GAMING A520M-PLUS II is a breeze, thanks to the TUF Gaming Alliance. This collaboration between ASUS and trusted PC component brands ensures compatibility with a wide range of parts, including PC cases, power supplies, CPU coolers, and memory kits. Armoury Crate software offers full control of system settings via a single dashboard, making it easy to configure your system just the way you want.

Asus TUF GAMING A520M-PLUS II Motherboard Price in BD | RYANS

Enhanced Gaming Experience

The Asus TUF GAMING A520M-PLUS II offers a complete, high-performance gaming package with features designed to improve your gaming experience. Ultrafast networking ensures smoother online gameplay, while onboard RGB lighting syncs with attached accessories to create a personalized gaming atmosphere. Turbo LAN network-optimization software with cFosSpeed traffic-shaping technology allows you to configure application priority and reduce network lag for an optimized gaming experience.

Benefits: How It Transforms Your Gaming

Imagine the thrill of playing your favorite games on a system built with the Asus TUF GAMING A520M-PLUS II. This motherboard not only enhances your gaming performance but also provides the peace of mind that comes with using a reliable and durable product. With its robust features and seamless compatibility, you can focus on your gameplay without worrying about system stability or performance issues.

Technical Specifications of Asus TUF GAMING A520M-PLUS II

  • Model: Asus TUF GAMING A520M-PLUS II
  • Form Factor: MicroATX
  • Socket: AMD AM4
  • Chipset: AMD A520
  • Memory Support: 2 x DIMM, up to 64GB, DDR4 4600(OC) MHz
  • Graphics Support: Integrated graphics with HDMI 2.1 and DisplayPort 1.2
  • Expansion Slots:
    • 1 x PCIe 3.0/3.2 x16 slot
    • 2 x PCIe 3.0 x1 slots
  • Storage:
    • 1 x M.2 slot (PCIe 3.0 x4 & SATA mode)
    • 4 x SATA 6Gb/s ports
  • Networking: Realtek L8200A Gigabit Ethernet
  • Audio: Realtek ALC887 7.1-Channel High Definition Audio CODEC
  • USB Ports:
    • Rear: 4 x USB 3.2 Gen 1 ports, 2 x USB 2.0 ports
    • Front: 2 x USB 3.2 Gen 1 headers, 2 x USB 2.0 headers
  • Cooling: Comprehensive cooling with multiple fan headers
  • RGB Lighting: Onboard RGB headers, supports Aura Sync

Usage Guidance for Asus TUF Gaming A520m-Plus II

Setting up your Asus TUF GAMING A520M-PLUS II is straightforward. Begin by installing the motherboard into your case, connect the power supply, and install your CPU, memory, and storage. Use the Armoury Crate software to configure your system settings and sync your RGB lighting. Connect your peripherals and enjoy a seamless gaming experience with optimal performance.

Pricing and Availability in CTG Computer

The Asus TUF GAMING A520M-PLUS II is available for 14,000 BDT, making it an affordable yet high-performance option for gamers in Dhaka, Bangladesh. Visit CTG Computer to purchase this motherboard and elevate your gaming setup.

Frequently Asked Questions (FAQs)

Q: What is the Asus TUF GAMING A520M-PLUS II price in BD?

A: The Asus TUF GAMING A520M-PLUS II is priced at 14,000 BDT in Bangladesh.

Q: Does the Asus TUF GAMING A520M-PLUS II support the latest AMD Ryzen CPUs?

A: Yes, it supports the latest AMD Ryzen CPUs, providing excellent performance and compatibility.

Q: What kind of cooling options does the Asus TUF GAMING A520M-PLUS II offer?

A: The motherboard includes comprehensive cooling options, including multiple fan headers, to ensure your system remains cool and stable.

Q: Is the Asus TUF GAMING A520M-PLUS II easy to set up?

A: Yes, the motherboard is designed for easy setup and configuration, even for first-time builders, thanks to the TUF Gaming Alliance and Armoury Crate software.

Q: Where can I buy the Asus TUF GAMING A520M-PLUS II in Bangladesh?

A: You can purchase the Asus TUF GAMING A520M-PLUS II from CTG Computer and other authorized retailers.



Elevate your gaming experience with the Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard. With its durable design, comprehensive features, and competitive price, it's the perfect choice for gamers in Bangladesh looking to build a powerful and reliable gaming rig.
