Asus ProArt Z790-CREATOR WIFI ATX Motherboard

Regular Price 73,000৳
Product Code 5032
Brand Asus
Short Details
  • Model: ProArt Z790-CREATOR WIFI
  • Supported CPU: 14th 13th Gen & 12th Gen Processors (LGA1700)
  • Supported Memory: 4 x DIMM, Max. 128GB, DDR5
  • Graphics Output: Intel Thunderbolt 4 ports, HDMI
  • Features: 1 x Realtek 2.5Gb Ethernet, Wi-Fi 6E
Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Specification

Basic Information
Supported CPU Intel Socket LGA1700 for 14th 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0
and Intel Turbo Boost Max Technology 3.0
Chipset Intel Z790 Chipset
BIOS 256 Mb
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphones and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High-quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
Expansion Slots
PCI Intel 13th & 12th Gen Processors
2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)
Intel Z790 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
M.2 Socket Total supports 4 x M.2 slots
Memory
Type DDR5
Slots 4 x DIMM
Supported Memory 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)
/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Maximum Memory Max. 128GB
Graphics
Graphics 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4)
1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
Connector & Ports
HDMI 1 x HDMI port
Display Port (s) 2 x DisplayPort
USB (s) Rear USB (Total 8 ports)
2 x Thunderbolt 4 port(s) (2 x USB Type-C) with up to 5V/3A, 15W charging support
6 x USB 3.2 Gen 2 port(s) (6 x Type-A)

Front USB (Total 7 ports)
1 x USB 3.2 Gen 2x2 connector(s) (support(s) USB Type-C with 60W PD 3.0 / QC 4+)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
LAN Port (s) 1 x Marvell AQtion 10Gb Ethernet
1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless Communication module Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.3
Supported Storage Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports*
Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
8 x SATA 6Gb/s ports
RAID Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10
Audio 5 x Audio jacks
Internal I/O Ports Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
5 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
1 x 6-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
8 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 (support(s) USB Type-C)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x Clear CMOS header
1 x COM Port header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header

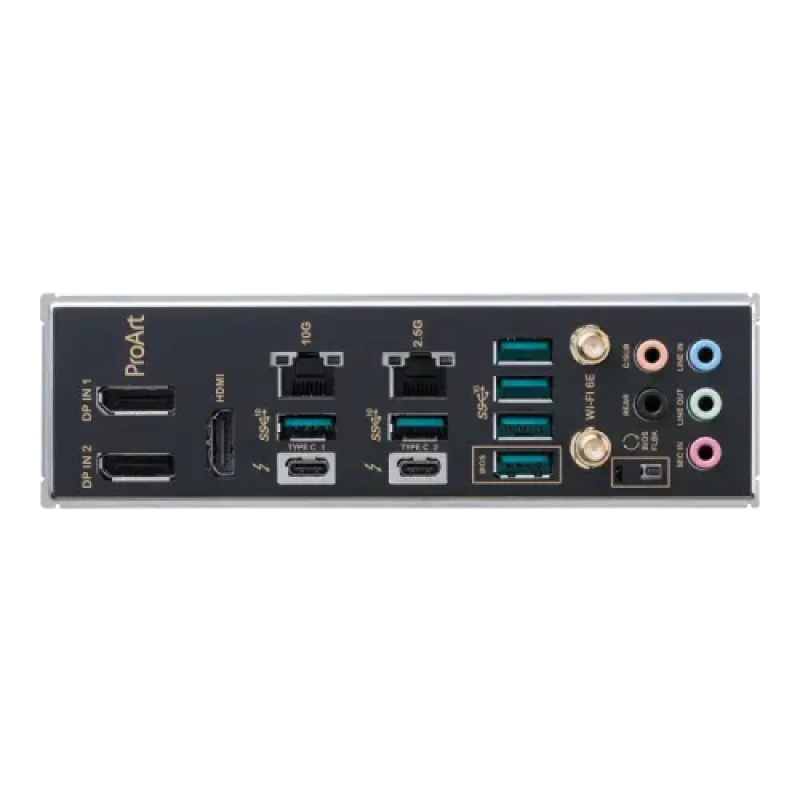

Back Panel I/O Ports
2 x Thunderbolt 4 USB Type-C port(s)
6 x USB 3.2 Gen 2 port(s) (6 x Type-A)
2 x DisplayPort (Input only)
1 x HDMI port
1 x ASUS Wi-Fi Module
1 x Marvell AQtion 10Gb Ethernet port
1 x Intel 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack button
Others
Special Features ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Box Headers
- ProCool II
- Pre-mounted I/O shield
AURA Sync
- AURA RGB header(s)
- Addressable Gen 2 header(s)
Bundled Software ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 4 with AI Cooling II
- Two-Way AI Noise Cancelation
- Power Saving
AI Suite 3
- Easy Optimization with AI Overclocking
- TPU
- DIGI+ Power Control
- Turbo app
- PC Cleaner
ASUS CPU-Z
IT Management software supported
- ASUS Control Center Express(ACCE)
ProArt Creator Hub
CreationFirst
MyAsus
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
MemTest86
Warranty Information
Manufacturing Warranty 3 years warranty

Description

Asus ProArt Z790-CREATOR WIFI ATX Motherboard

The ASUS ProArt Z790-CREATOR WIFI LGA 1700 ATX Motherboard is designed for experienced builders who want to make use of the power of Intel's 14th 13th and 12th Generation CPUs and gaming-focused components. With an Intel Z790 socket, you may easily install a wide choice of 12th and 14th Generation CPUs. Four DDR5 DIMM slots provide you with the increased speed and performance you need to streamline your production as well as edit and relive your favorite in-game moments. You may add an array of storage disks using the eight SATA and four M.2 connectors, resulting in a vast library for your media assets. Put graphics and utility cards in two PCIe 5.0 x16 slots and one PCIe 4.0 x16 (in x4 mode). With USB 2.0, 3.2 Gen 1, Gen 2, and Gen 2x2 connectivity, you may plug in your favorite peripherals such as keyboards, mice, audio interfaces, and more. Bluetooth 5.3 allows you to utilize wireless devices like keyboards, mice, and headphones. Dual RJ45 ports offer 2.5 and 10 Gigabit Ethernet speeds, allowing you to use teaming features to swiftly upload and download huge data. You may also connect to your network without a cable connection by using Wi-Fi 6E (802.11ax) wireless networking.

Power Design

The ASUS ProArt Z790-CREATOR WIFI ATX Motherboard A 16+1 paired power solution, 8+4 ProCool sockets, and alloy chokes with durable capacitors provide consistent electrical loads perfect for resource-hungry games.

M.2 PCIe 4.0 Storage

The ASUS ProArt Z790-CREATOR WIFI ATX Motherboard has M.2 PCIe 4.0 technology, which allows you to load programs quicker from your M.2 SSD, allowing you to get into your games and apps faster.

Thunderbolt 4

The ASUS ProArt Z790-CREATOR WIFI ATX Motherboard Dual Thunderbolt 4 ports give you up to 40 Gb/s data transfer speeds as well as DisplayPort and Power Delivery capabilities, giving you a one-cable solution to connect external storage arrays, displays, and more.

Connectivity

The ASUS ProArt Z790-CREATOR WIFI ATX Motherboard has USB-C 3.2 Gen 2 and Gen 2x2 interfaces provide you with enhanced data transfer speeds up to 10 and 20 Gb/s, respectively, allowing you to utilize a wide range of peripherals such as audio interfaces, external storage solutions, and more. With front panel support, the ProArt incorporates internal headers for USB-A and USB-C 3.2 Gen 1 devices, giving you up to 5 Gb/s data transfer speeds for quick file management.

AI Noise Cancelation

The 14th Gen Motherboard is Two-way AI Noise Cancelation reduces background noise from the microphone and audio output for clear communication in games and conferences.

Comprehensive Cooling

Enlarged VRM and PCH heat sinks, M.2 heat sinks, hybrid fan headers, and Fan Xpert 2+ utility in Armoury Crate software allow you to optimize cooling capabilities whether you prefer fan or AiO liquid cooling.

Aura Sync

The ASUS ProArt Z790-CREATOR WIFI ATX Motherboard The stylish edge lighting design, addressable RGB headers, and RGB strip header enable you to add a splash of color to your system, transforming it into the focal point of your gaming area.

What is the price of Asus ProArt Z790-CREATOR WIFI ATX Motherboard in Bangladesh?

The latest price of Asus ProArt Z790-CREATOR WIFI ATX Motherboard in Bangladesh is 64,700৳. You can buy the Asus ProArt Z790-CREATOR WIFI ATX Motherboard at best price from our website or visit any of our showrooms.
