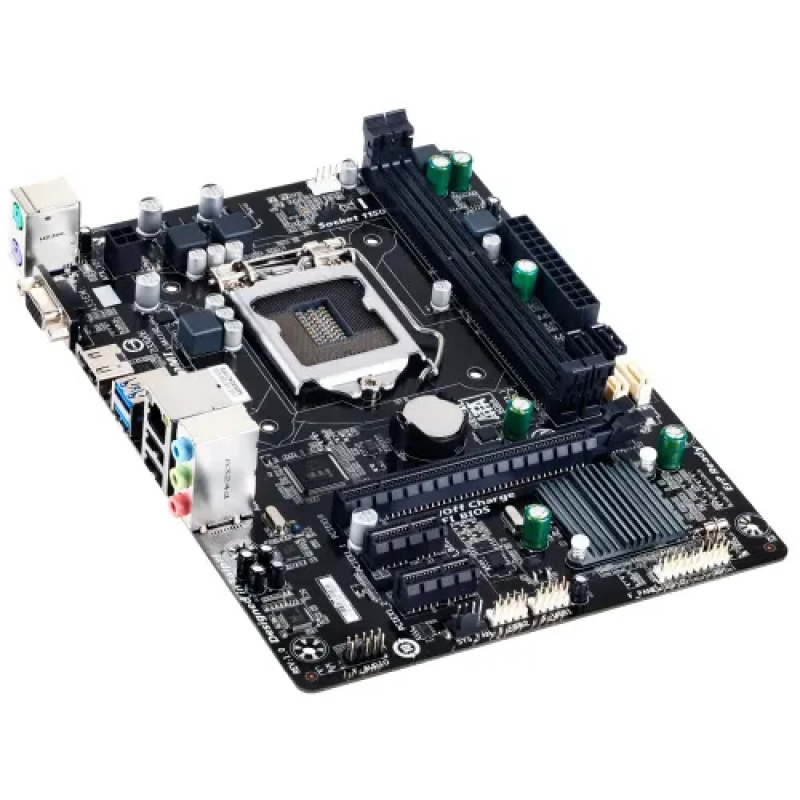

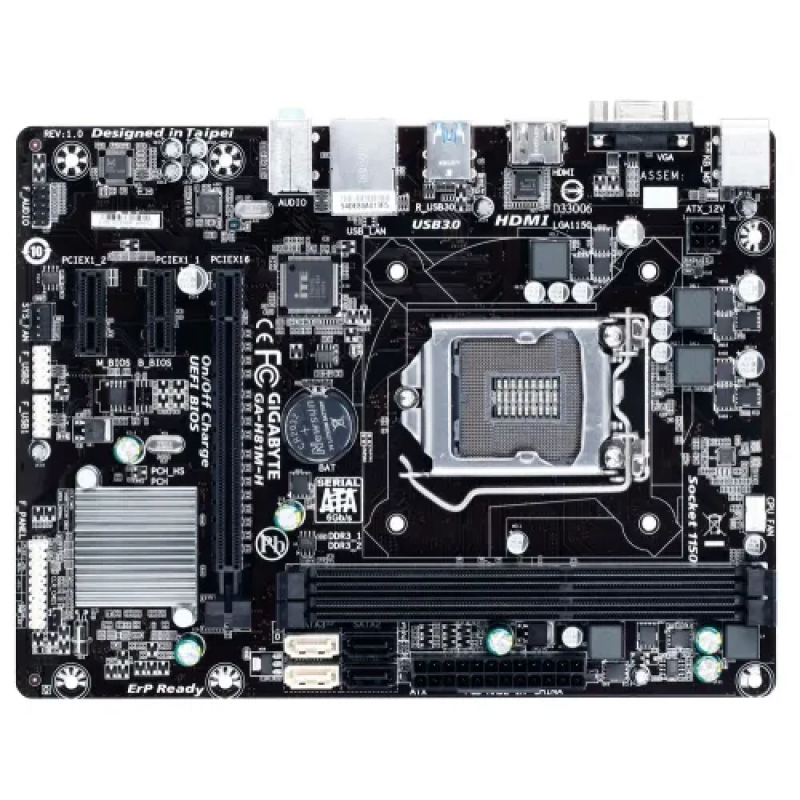

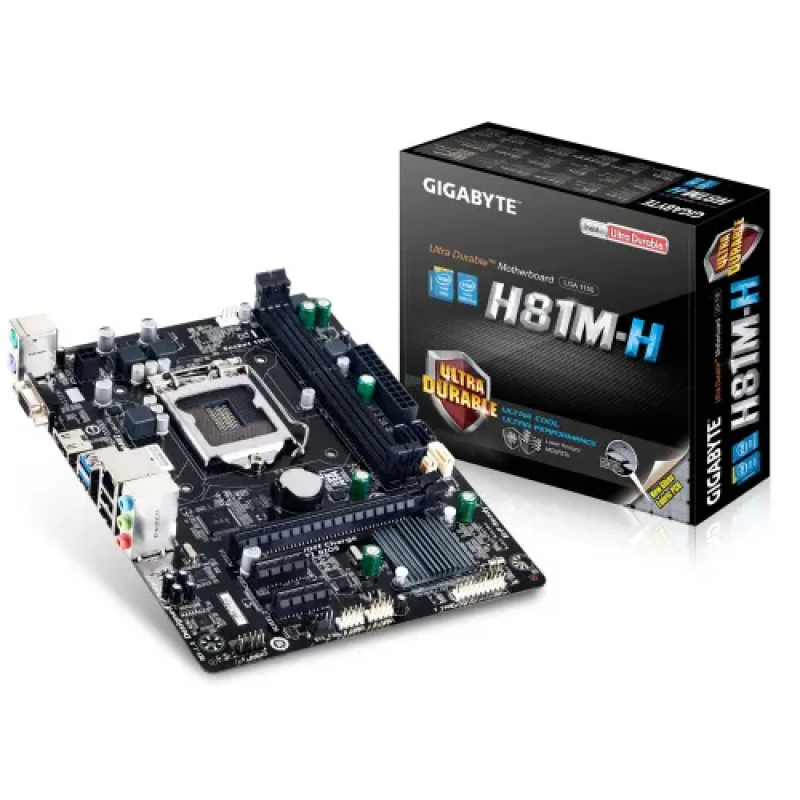

GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard

Regular Price 9,500৳
Product Code 4460
Brand Gigabyte
Short Details
  • Model: GA-H81M-H
  • Supported CPU: 4th Generation Intel Core processors (LGA1150)
  • Supported RAM: 2 x 1.5V DDR3 DIMM up to 16 GB 1600MHz
  • Graphics Output: 1 x D-Sub, 1 x HDMI
  • Features: LAN with high ESD Protection
Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Specification

 Information
Supported CPU Support for Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1150 package
L3 cache varies with CPU
Chipset Intel H81 Express Chipset
BIOS 1 x 32 Mbit flash
Use of licensed AMI EFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 22.6cm x 17cm
Audio Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots
Memory
Type DDR3
Slots 2 x 1.5V DIMM sockets
Supported Memory Dual channel memory architecture
Support for DDR3 1600/1333 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 16 GB
Graphics
Graphics Integrated Graphics Processor - Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200
1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
* Support for HDMI 1.4a version.
Max Shared Memory 1 GB

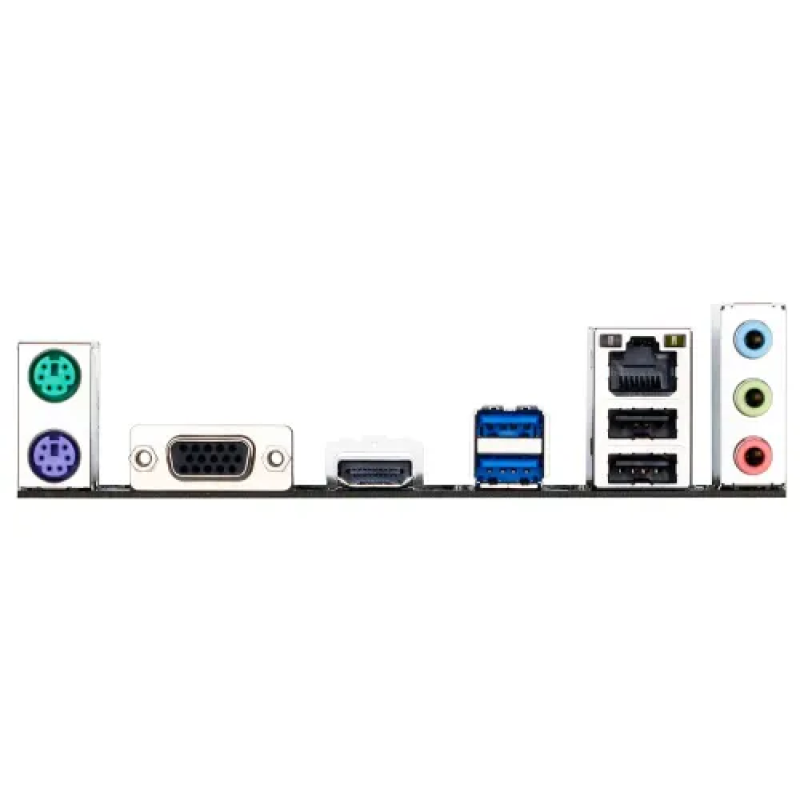

Connector & Ports
HDMI 1 x HDMI
D-Sub (s) 1 x D-Sub
USB (s) Chipset:
2 x USB 3.0/2.0 ports on the back panel
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek GbE LAN chip (10/100/1000 Mbit)
Supported Storage Chipset:
2 x SATA 6Gb/s connectors (SATA3 0/1)
2 x SATA 3Gb/s connectors (SATA2 2/3)
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
2 x SATA 6Gb/s connectors
2 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
2 x USB 2.0/1.1 headers
1 x Clear CMOS jumper
Others
Special Features Support for Q-Flash
Support for Xpress Install
Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
@BIOS
EasyTune
EZ Setup
USB Blocker
Smart TimeLock
Smart Recovery 2
Support for ON/OFF Charge
Warranty Information
Manufacturing Warranty 3 Years

Description

GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard

The GIGABYTE GA-H81M-H Motherboard is a powerful and feature-rich platform designed to support 4th Generation Intel Core processors. It incorporates GIGABYTE's Ultra Durable Technology, ensuring efficient performance and extended motherboard lifespan. The GIGABYTE GA-H81M-H Motherboard boasts a GIGABYTE UEFI BIOS for streamlined configuration, USB 3.0 ports with GIGABYTE 3x USB power for faster charging and data transfer, and GIGABYTE On/Off Charge for convenient USB device charging even when the PC is off. High ESD Protection safeguards both USB and LAN ports, while the inclusion of HDMI and D-SUB ports on the rear panel offers versatile display connectivity options. The use of solid capacitors for CPU VRM design ensures stability and durability. The GIGABYTE GA-H81M-H Motherboard present a unique blend of cutting-edge features, including support for the latest Intel 8 Series platform, offering enhanced performance and power efficiency. With features like Humidity Protection, Power Failure Protection, and Electrostatic Protection, this motherboard is designed to withstand various challenges. The integration of GIGABYTE's LAN Optimizer and EasyTune technologies, along with Smart Fan 2 for optimal cooling, provides efficient management and customization options. The GIGABYTE App Center offers easy access to a range of GIGABYTE apps for seamless user experience, and the BIOS app allows BIOS updates from within Windows. The GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard comes with 3 years warranty.

What is the price of GIGABYTE GA-H81M-H Motherboard in Bangladesh?

The latest price of GIGABYTE GA-H81M-H Motherboard in Bangladesh is 8,200৳. You can buy the GIGABYTE GA-H81M-H Motherboard at best price from our website or visit any of our showrooms.
