GIGABYTE A520M DS3H AC Ultra Durable AM4 Micro-ATX Motherboard

Regular Price 10,300৳
Status In Stock
Product Code 6117
Brand Gigabyte
Short Details
  • Model: A520M DS3H AC
  • AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
  • Smart Fan 5 Features
  • RGB FUSION 2.0 Supported
  • 5+3 Phases Pure Digital VRM
Contact for bulk quantity: 01733-080376 , 01733-080350 ,

Specification

Information
Supported CPU AMD Socket AM4, support for: AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
Chipset AMD A520
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Expansion Slots
PCI CPU:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2)
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280 SATA and PCIe 3.0 x4/x2 SSD support)
Memory
Type DDR4
Slots 4 x DIMM sockets
Supported Memory AMD Ryzen 5000 series processors/ 3rd Generation AMD Ryzen:
Support for 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3rd Gen AMD Ryzen with Radeon Graphics processors:
Support for 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 128 GB (32 GB single DIMM capacity)
Graphics
Graphics Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors:
1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 @60 Hz
1 x DisplayPort, supporting a maximum resolution of 5120 x 2880 @60 Hz
1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz
Support for up to 3 displays at the same time
Max Shared Memory 16 GB

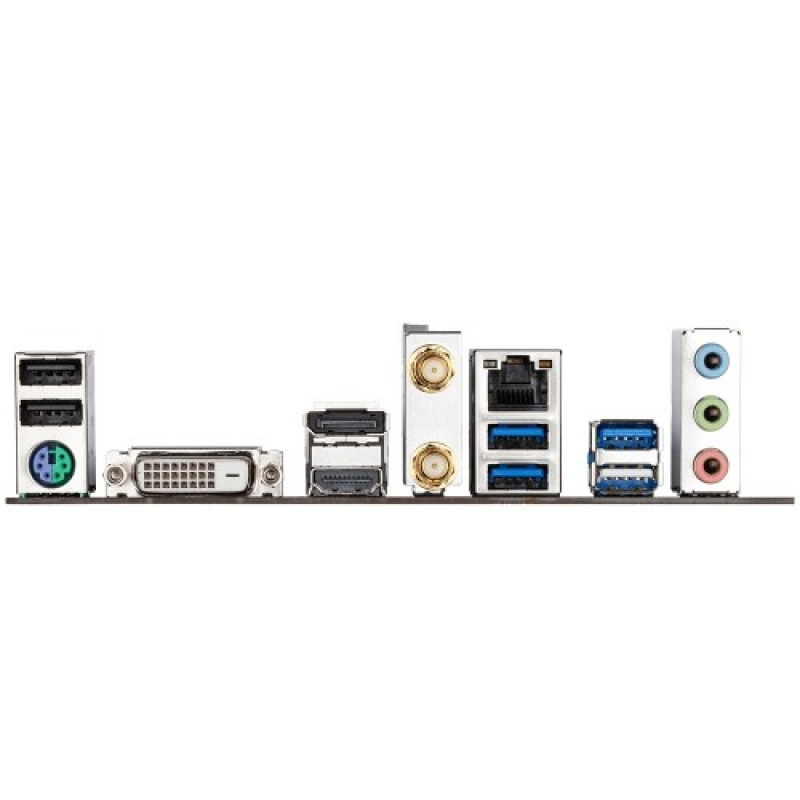

Connector & Ports
HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Display Port (s) 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
DVI-D (s) 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
USB (s) 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s) Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Wireless Communication module Intel Wi-Fi 3168
WIFI 802.11a/b/g/n/ac, supporting 2.4/ 5 GHz Dual-Band
BLUETOOTH 4.2
Support for 11ac wireless standard and up to 433 Mbps data rate
Supported Storage CPU:
1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280 SATA and PCIe 3.0 x4/ x2 SSD support)
Chipset:
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
TPM (Trusted Platform Module ) 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Others
Special Features Support for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Warranty Information
Manufacturing Warranty 3 Years

Description

GIGABYTE A520M DS3H AC Ultra Durable AM4 Micro-ATX Motherboard in BD

In the bustling city of Dhaka, Bangladesh, tech enthusiasts and gamers alike face the challenge of finding a motherboard that combines performance, durability, and affordability. For those seeking the perfect balance, the GIGABYTE A520M DS3H AC Ultra Durable AM4 Micro-ATX Motherboard emerges as the solution. With its robust features, this motherboard is tailored to meet the demands of the modern user, providing a seamless experience whether you're gaming, designing, or working on intensive tasks.



Key Features of the GIGABYTE A520M DS3H AC in Bangladesh

The GIGABYTE A520M DS3H AC Ultra Durable AM4 Micro-ATX Motherboard offers a range of features designed to enhance your computing experience. Supporting AMD Ryzen 5000/4000G Series and 3rd Generation Processors, it ensures compatibility with the latest technologies, delivering high performance and efficiency. The Smart Fan 5 feature provides optimal cooling, adjusting fan speeds according to system requirements to maintain peak performance without overheating.

RGB FUSION 2.0 support allows users to personalize their systems with stunning lighting effects, making it ideal for gamers and PC builders who want their systems to stand out. The 5+3 Phases Pure Digital VRM solution provides precise power delivery to the motherboard's most power-sensitive components, ensuring system stability and reliability.

The GIGABYTE A520M DS3H AC also includes dual M.2 slots, enabling faster data transfer speeds and quick boot times. Its Micro-ATX form factor ensures compatibility with a wide range of cases, making it a versatile choice for various builds. Whether you're looking to upgrade your existing setup or build a new system, this motherboard offers a perfect foundation.



Emotional Benefits: Enhancing Your Experience

Imagine the peace of mind that comes with knowing your system is equipped with a motherboard that offers both performance and durability. The GIGABYTE A520M DS3H AC Ultra Durable AM4 Micro-ATX Motherboard not only meets your computing needs but also elevates your experience by providing reliability and efficiency. No more worrying about overheating during intense gaming sessions or lagging performance when multitasking. With this motherboard, you can focus on what matters most: enjoying your activities without interruptions.



Technical Specifications and Usage of GIGABYTE A520M DS3H AC Ultra Durable AM4 Micro-ATX Motherboard

  •
  • Processor Support      : AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
  • Chipset                          : AMD A520
  • Memory                         : 4 x DDR4 DIMM slots supporting up to 128 GB
  • Storage                         : Dual M.2 slots and 4 SATA ports
  • Graphics                       : Integrated AMD Radeon™ Graphics support
  • Audio                            : High-quality Audio Capacitors
  • Network                        : Realtek GbE LAN with cFosSpeed Internet Accelerator Software
  • Form Factor                 : Micro-ATX



Usage Guidance for the GIGABYTE A520M DS3H AC in BD

Setting up the GIGABYTE A520M DS3H AC Ultra Durable AM4 Micro-ATX Motherboard is straightforward, thanks to its user-friendly design. Begin by installing your chosen AMD Ryzen processor and compatible DDR4 memory modules. Next, connect your storage devices to the M.2 slots or SATA ports. The board's BIOS is intuitive, allowing for easy configuration and updates. Ensure your cooling solutions are properly connected and configured using the Smart Fan 5 feature to maintain optimal temperatures. Finally, enjoy the customization options available through RGB FUSION 2.0 to make your system truly yours.



Pricing and Availability in CTG Computer

The GIGABYTE A520M DS3H AC Ultra Durable AM4 Micro-ATX Motherboard is available at CTG Computer for BDT 10,500. This competitive pricing offers exceptional value for a motherboard that delivers both durability and performance, making it an ideal choice for those looking to upgrade their systems in Bangladesh. Whether you're building a new PC or enhancing your current setup, this motherboard provides the features you need without breaking the bank.



FAQs



Q1: Is the GIGABYTE A520M DS3H AC compatible with all AMD Ryzen processors?

Yes, the GIGABYTE A520M DS3H AC Ultra Durable AM4 Micro-ATX Motherboard supports AMD Ryzen 5000/4000G Series and 3rd Generation Processors, ensuring compatibility with a wide range of CPUs.



Q2: How does the Smart Fan 5 feature benefit my system?

The Smart Fan 5 feature provides optimal cooling by allowing users to configure fan speeds according to the system's needs. This ensures that your system runs efficiently without overheating, extending the lifespan of your components.



Q3: Can I customize the lighting on the GIGABYTE A520M DS3H AC?

Yes, the motherboard supports RGB FUSION 2.0, enabling you to customize lighting effects to match your preferences and create a visually stunning system.



Q4: What type of audio quality can I expect from this motherboard?

The GIGABYTE A520M DS3H AC Ultra Durable AM4 Micro-ATX Motherboard is equipped with high-quality audio capacitors, providing clear and immersive sound for all your entertainment needs.



Q5: Where can I purchase the GIGABYTE A520M DS3H AC in Bangladesh?

You can purchase this motherboard from CTG Computer, a trusted retailer in Bangladesh, ensuring you receive a genuine product with reliable customer service.
