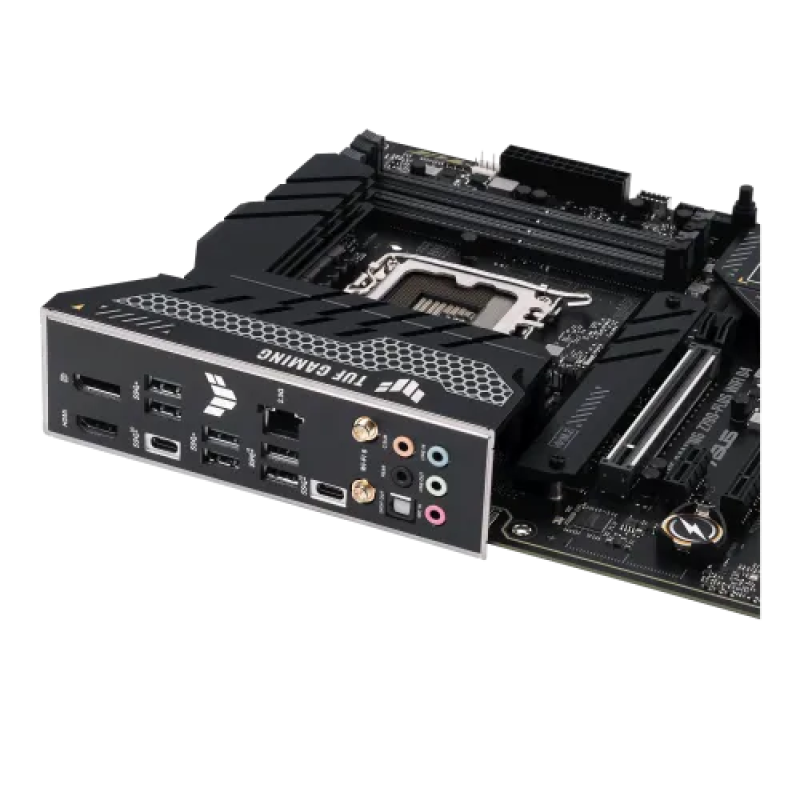

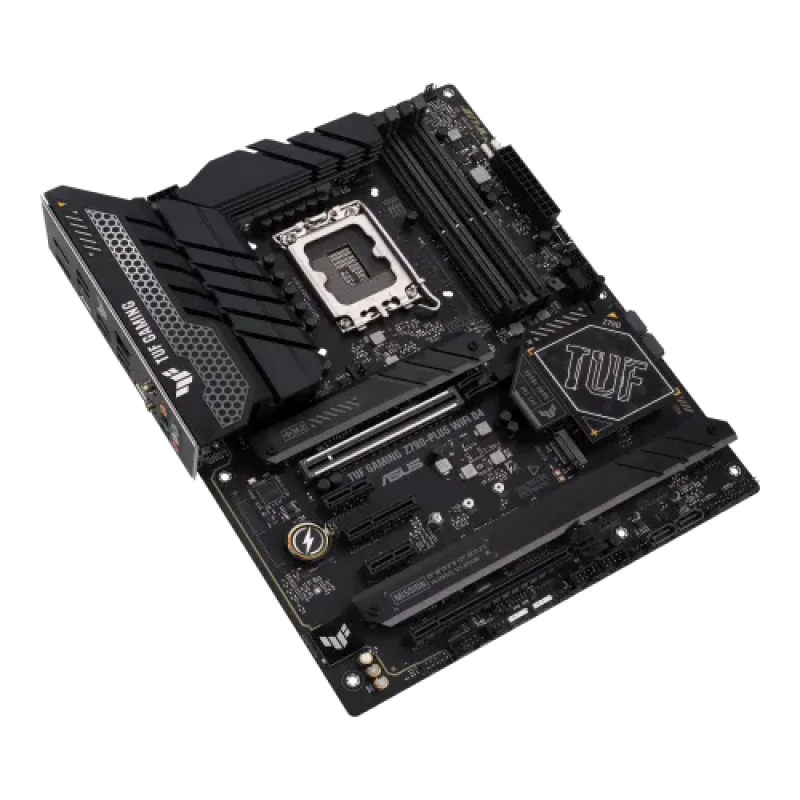

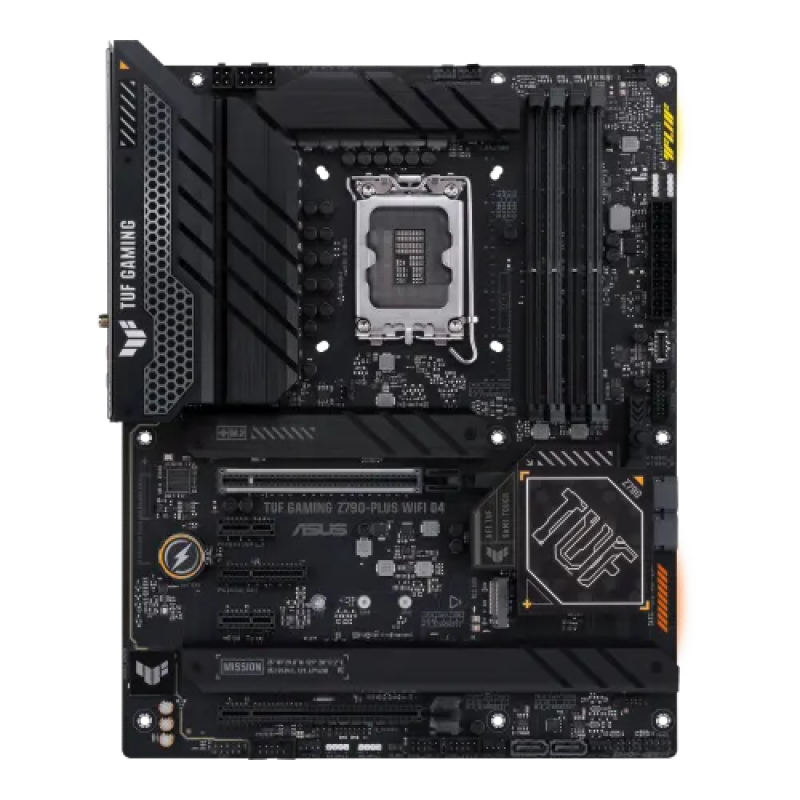

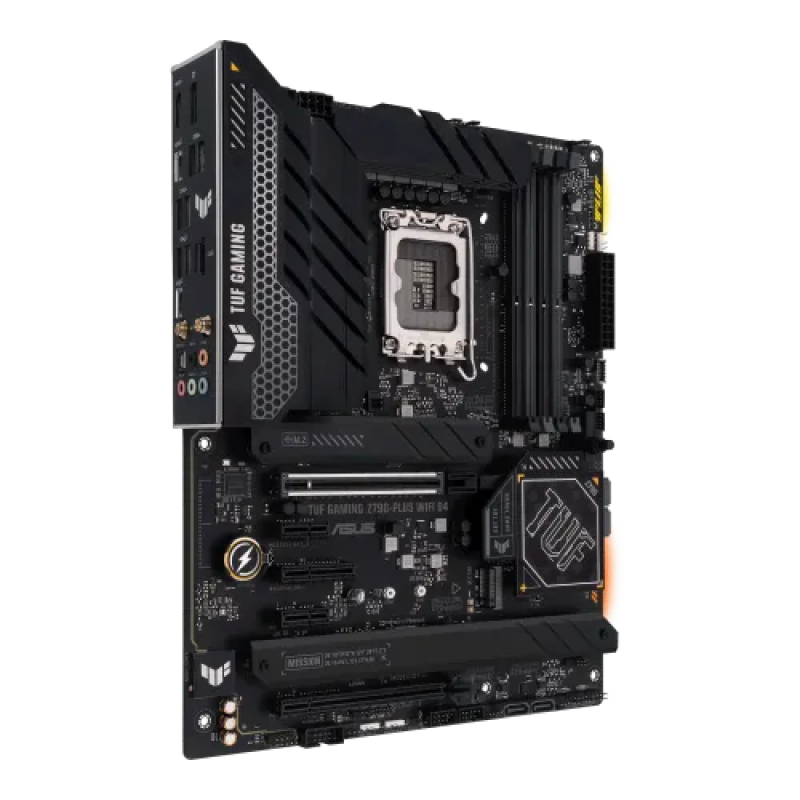

ASUS TUF GAMING Z790-PLUS WIFI D4 ATX Motherboard

Regular Price 36,500৳
Status In Stock
Product Code 4767
Brand Asus
Short Details
  • Model: TUF GAMING Z790-PLUS WIFI D4
  • Supported CPU: 14th Gen, 13th Gen & 12th Gen Processors (LGA1700)
  • Supported RAM: 4 x DIMM, Max. 128GB, DDR4
  • Graphics Output: 1 x DisplayPort, 1 x HDMI
  • Features: 4 x M.2 slots, Wi-Fi 6, Bluetooth v5.2
Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Specification

 Information
Supported CPU Intel Socket LGA1700 for 14th Gen, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel Z790 Chipset
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*"
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio Cover
Expansion Slots
PCI Intel 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot
Intel Z790 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x4 slot
2 x PCIe 3.0 x1 slots
Memory
Type DDR4
Slots 4 x DIMM
Supported Memory 5333(OC)/ 5133(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)
/3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Maximum Memory 128GB
Graphics
Graphics 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4)
1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
Connector & Ports
HDMI 1 x HDMI
Display Port (s) 1 x DisplayPort
USB (s) Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s) 1 x Intel 2.5Gb Ethernet
TUF LANGuard
Wireless Communication module Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
Supported Storage Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Intel 13th & 12th Gen processors support PCIe 4.0 x4 mode
Intel Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
RAID Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
Audio 5 x Audio jacks
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt (USB4) header
Others
Special Features ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- Safeslot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
AURA Sync
- Aura RGB header
- Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Two-Way AI Noise Cancelation
- Power Saving
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
MyAsus
Norton 360 for Gamers
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty 3 years

Description

ASUS TUF GAMING Z790-PLUS WIFI D4 ATX Motherboard

ASUS TUF GAMING Z790-PLUS WIFI D4 Motherboard comes with LGA 1700 socket and Z790 chipset. It supports 14th Gen, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold, and Celeron Processors. The motherboard has 4x DDR4 Dual-Channel RAM slots that allow you to equip up to 128GB of memory for enhanced multitasking capabilities and complex photo and video rendering. ASUS TUF GAMING Z790-PLUS WIFI D4 Motherboard also supports 4 x M.2 slots and 4 x SATA 6Gb/s ports so you can build a large library of storage drives for your games or creative projects. while PCIe 5.0 x16, 4.0 x16, 4.0 x4, and two 3.0 x1 slots accommodate adapter cards. Connect to wired peripherals through two USB-A 3.2 Gen 2 and four 3.2 Gen 1 ports, or two USB-C 3.2 Gen 2x2 and four 3.2 Gen 2 ports. DisplayPort 1.4 or HDMI 2.1 interfaces are used to output video. An RJ45 port enables 2.5 Gigabit Ethernet, and the bundled antenna supports Wi-Fi 6. The rear I/O panel also includes five 1/8" audio jacks and a digital audio S/PDIF output. Fans, Clear CMOS, Thunderbolt 4, RGB lighting, and front-panel USB-C 3.2 Gen 2 and USB-A 3.2 Gen 1 and 2.0 ports are all supported by internal headers. The ASUS TUF GAMING Z-790 PLUS WIFI D4 LGA 1700 ATX Motherboard is 64-bit compatible with Windows 10 and later.

Enhanced Power Solution

The ASUS TUF GAMING Z790-PLUS WIFI D4 delivers consistent power throughout the entire motherboard, preserving electrical volume whether you are performing simple chores or operating at full power during resource-demanding procedures. It is equipped with a 16+1 Phase Power DrMOS, six-layer PCB, ProCool sockets, alloy chokes, and durable capacitors that allow for stable power delivery.

Comprehensive Cooling

The ASUS TUF GAMING Z790-PLUS WIFI D4 motherboard has a large VRM heatsink for capacitors and chokes, as well as integrated M.2 heatsinks and backplates for greater thermal performance and throttling prevention. Fan Xpert 4 software and hybrid fan headers control fans and liquid cooling elements for increased cooling that may be customized.

Connectivity to the Core

Fast internals and accessories can be connected to via PCIe 5.0 and Thunderbolt 4 headers, as well as a front-panel USB-C 3.2 Gen 2x2 port. USB 3.2 Gen 2 doubles the speed of its predecessor, with a maximum throughput of 10 Gb/s when utilized with compatible devices, and is synonymous with USB 3.1 Gen 2.

Aura Sync RGB Effects

This 14th Gen Motherboard offers an edge lighting design, addressable RGB headers, and RGB strip header support to let you set the mood for your favorite games.

What is the price of ASUS TUF GAMING Z790-PLUS WIFI D4 ATX Motherboard in Bangladesh?

The latest price of ASUS TUF GAMING Z790-PLUS WIFI D4 ATX Motherboard in Bangladesh is 38300৳. You can buy the ASUS TUF GAMING Z790-PLUS WIFI D4 ATX Motherboard at best price from our website or visit any of our showrooms.
