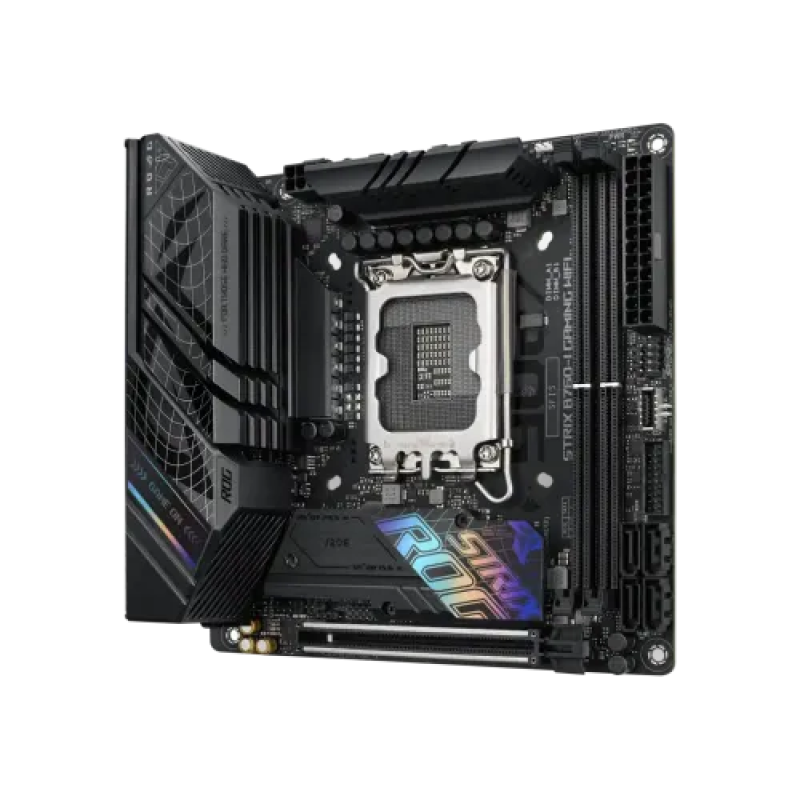

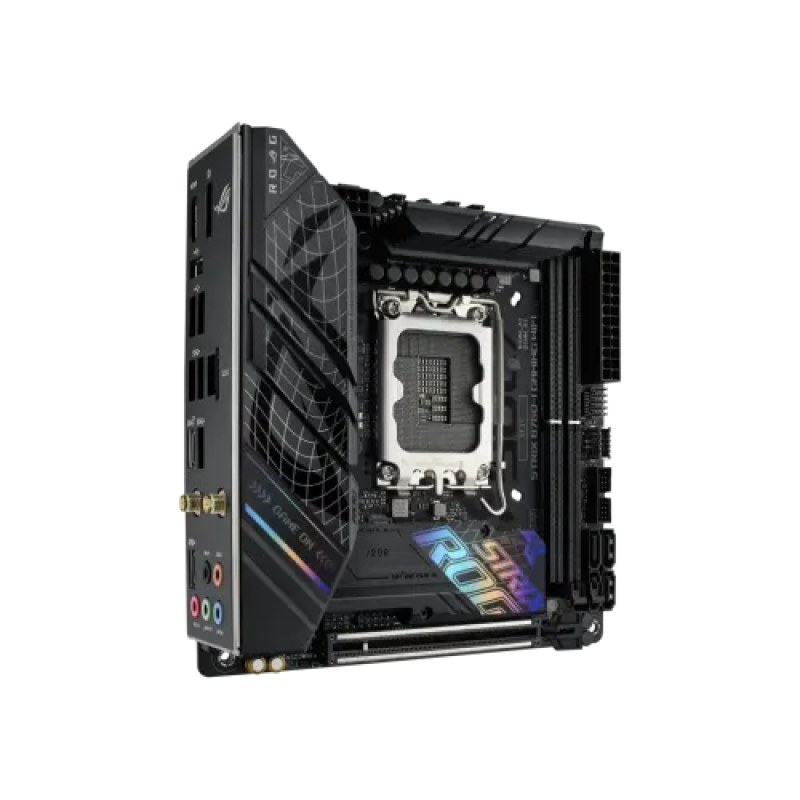

Asus ROG STRIX B760-I GAMING WIFI Mini-ITX Motherboard

Regular Price	31,800৳
Status	In Stock
Product Code	4761
Brand	Asus

Short Details

Model: ROG STRIX B760-I GAMING WIFI
Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
Supported Memory: 2 x DDR5 7600(OC), Max. 96GB
Graphics Output: 1 x DisplayPort, 1 x HDMI
Features: 1 x Intel 2.5Gb Ethernet, Wi-Fi 6E, Bluetooth v5.3

More Info

31800৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Information
Supported CPU	Intel Socket LGA1700 for 14th 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel B760 Chipset
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	Mini-ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm )
Audio	ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Premium audio capacitors * Due to limitations in HAD bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Expansion Slots
PCI	Intel 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot
Memory
Type	DDR5
Slots	2 x DIMM
Supported Memory	7600(OC)/ 7466(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory	Max. 96GB
Graphics
Graphics	1 x DisplayPort 1 x HDMI* * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Support 4K@60Hz as specified in DisplayPort 1.4 * Support 4K@60Hz as specified in HDMI 2.1.
Connector & Ports
HDMI	1 x HDMI
Display Port (s)	1 x DisplayPort

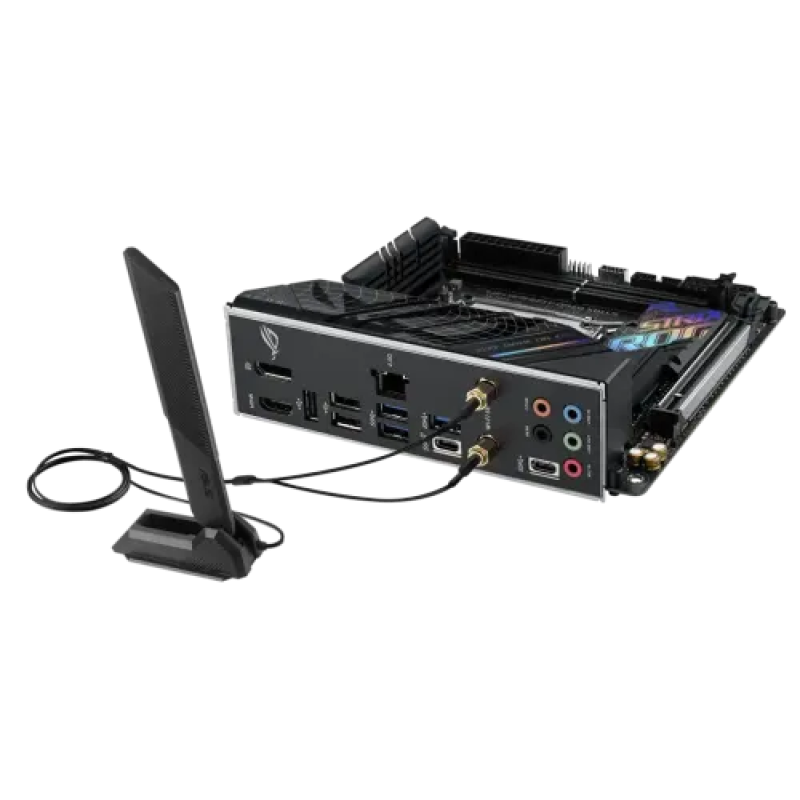

USB (s)	Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C) 3 x USB 2.0 ports (3 x Type-A) Front USB (Total 5 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports
LAN Port (s)	1 x Intel 2.5Gb Ethernet ASUS LANGuard
Wireless Communication module	Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.3
Supported Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
RAID	Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio	5 x Audio jacks
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chasis Fan header 1 x 4-pin AIO Pump header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 headers support additional 2 USB 2.0 ports Miscellaneous 1 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header 1 x Thermal Sensor header
Others
Special Features	Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate ASUS EZ DIY -CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - Aura RGB header - Addressable Gen 2 header
Bundled Software	ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation - Power Saving AI Suite 3 - Performance And Power Saving Utility PC Cleaner DIGI+ VRM MyAsus Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode MemTest86
Warranty Information
Manufacturing Warranty	3 years

Description

Asus ROG STRIX B760-I GAMING WIFI Mini-ITX Motherboard

The Asus ROG STRIX B760-I GAMING WIFI 14th Gen Motherboard is designed for use with Intel's 12th and 13th Generation CPUs, and delivers greater system-wide capabilities by allowing you to add a diverse selection of components, making it perfect for gaming aficionados. Based on the Intel B760 chipset, the system includes an LGA1700 socket, four dual-channel DDR4 RAM slots, four SATA III ports, and three PCIe 4.0 M.2 interfaces, all of which work together to improve system performance. With one PCIe 5.0 x16, one PCIe 3.0 x16 (in x4 mode), and two PCIe 3.0 x1 slots, you can connect a choice of graphics and utility cards. USB 3.2 Gen 1, Gen 2, and Gen 2x2 ports support a variety of peripherals, including keyboards, mice, external drives, and more. Bluetooth 5.3 technology allows items such as controllers and headphones to communicate wirelessly. Wi-Fi 6E (802.11ax) connection enables wireless networking or usage of the 2.5 Gigabit Ethernet connector, both of which are suited for competitive online gaming. Furthermore, the ROG STRIX B760-I GAMING WIFI comes pre-installed with both Windows 10 and 11 (64-bit). You have USB 3.2 Gen 1 and Gen 2 connections, which are equipped with numerous connectors and headers designed to deliver power to external devices and have data transfer speeds of up to 5 and 10 Gb/s, respectively. The USB 3.2 Gen 2x2 supports data transmission rates of up to 20 Gb/s, allowing you to employ modern devices such as audio and video interfaces. UEFI BIOS allows you to manage your machine and enable overclocking.

What is the price of Asus ROG STRIX B760-I GAMING WIFI Mini-ITX Motherboard in Bangladesh?

The latest price of Asus ROG STRIX B760-I GAMING WIFI Mini-ITX Motherboard in Bangladesh is 33,000৳. You can buy the Asus ROG STRIX B760-I GAMING WIFI Mini-ITX Motherboard at best price from our website or visit any of our showrooms.
