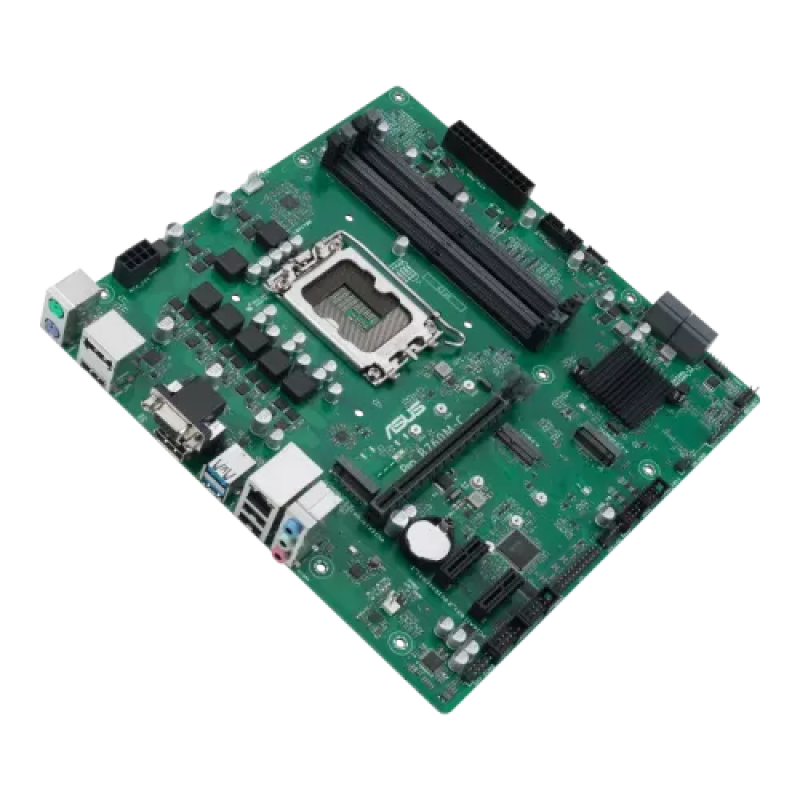

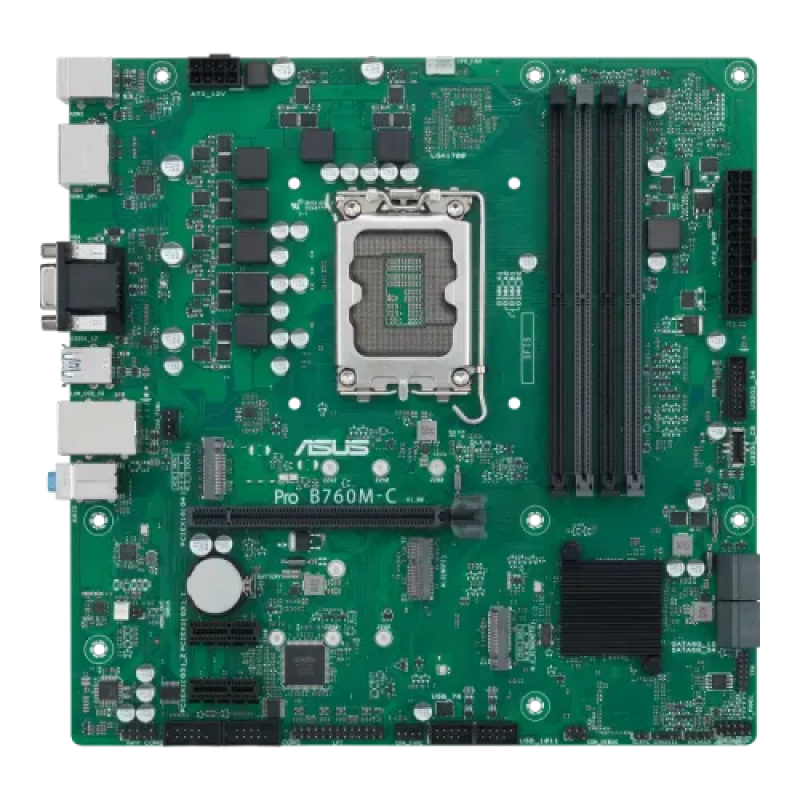

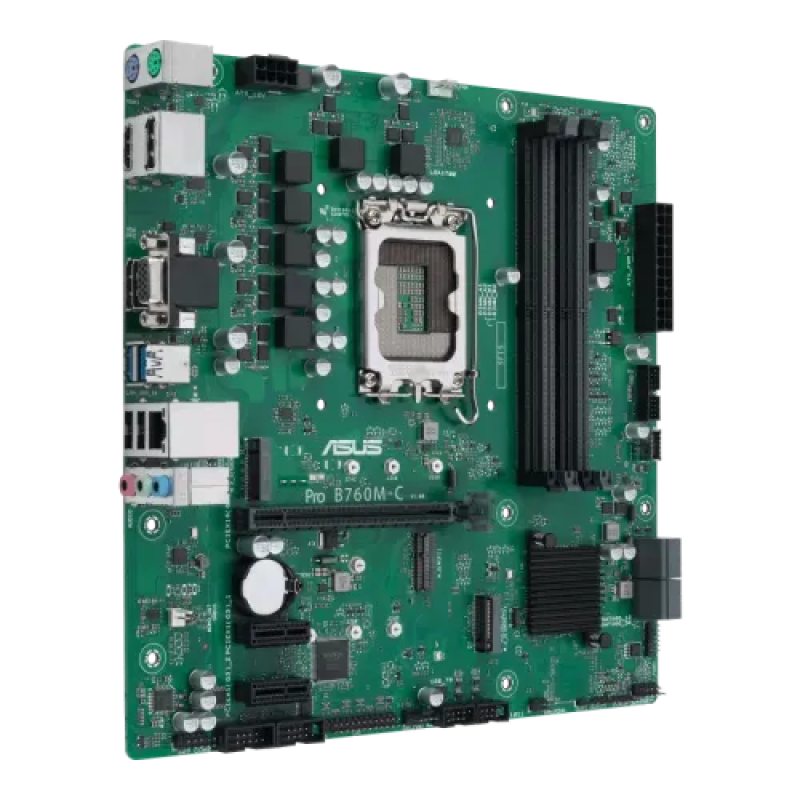

ASUS PRO B760M-C-CSM Micro-ATX Motherboard

Regular Price	19,000৳
Status	In Stock
Product Code	4753
Brand	Asus

Short Details

Model: PRO B760M-C-CSM
Supported CPU: 14th 13th Gen & 12th Gen Processors (LGA1700)
Supported Memory: 4 x DIMM, Max. 192GB, DDR5 6200(OC)
Graphics Output: 2 x DisplayPort, 1 x VGA, 1 x HDMI
Features: 1 x Intel 1Gb Ethernet

More Info

19000৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Information
Supported CPU	Intel Socket LGA1700 for 14th 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel B760 Chipset
BIOS	128Mb Flash ROM
Form Factor	mATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback
Expansion Slots
PCI	Intel 13th & 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel B760 Chipset 2 x PCIe 3.0 x1 slots
Memory
Type	DDR5
Slots	4 x DIMM
Supported Memory	DDR5 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Optimem II
Maximum Memory	Max. 192GB
Graphics
Graphics	2 x DisplayPort 1 x VGA port 1 x HDMI port* Support max. 4K@60Hz as specified in DisplayPort 1.4. * Supports 4K@60Hz as specified in HDMI 2.1.
Connector & Ports
HDMI	1 x HDMI
Display Port (s)	2 x DisplayPort
VGA (s)	1 x VGA port
USB (s)	Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s)	1 x Intel 1Gb Ethernet ASUS LANGuard
Wireless Communication module	M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately.
Supported Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
RAID	Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio	3 x Audio jacks
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x Mono-out header (with Amp IC) 1 x M.2 slot (Key E) 1 x SMBUS header 1 x Speaker header 1 x 10-1 pin System Panel header
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
Others
Special Features	ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - Box Headers Bespoke Motherboard Design & Business Focused Features - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit* - Anti-Moisture Coating - 24/7 Reliability - Overcurrent Protection
Bundled Software	ASUS Exclusive Software IT Management software supported - ASUS Control Center Express (ACCE)
Warranty Information
Manufacturing Warranty	3 years

Description

ASUS PRO B760M-C-CSM Micro-ATX Motherboard

The ASUS PRO B760M-C-CSM is a 14th gen micro-ATX motherboard designed for business use. It supports Intel's LGA1700 socket, making it compatible with 14th Gen Intel Core processors as well as 13th, 12th Gen Intel Core, Pentium Gold, and Celeron processors. The motherboard features the Intel B760 chipset and supports up to 192GB of DDR5 memory with speeds up to 6200(OC). It has four DIMM slots with support for dual-channel memory architecture and Intel Extreme Memory Profile (XMP). The Pro B760M-C-CSM provides multiple connectivity options, including 2 x DisplayPort, 1 x VGA port, and 1 x HDMI port. It offers expansion slots such as 1 x PCIe 4.0/3.0 x16 and 2 x PCIe 3.0 x1 for additional devices. Storage options include 2 x M.2 slots and 4 x SATA 6Gb/s ports, and it also features 1 x Intel 1Gb Ethernet port for network connectivity. The motherboard offers various USB ports, audio support with a Realtek 7.1 Surround Sound High Definition Audio CODEC, and comes with ASUS Q-Design features for easy installation and maintenance. It is designed with business-focused features like ASUS Self Recovering BIOS, ASUS Event Log, and 24/7 reliability. The ASUS PRO B760M-C-CSM is a reliable and feature-rich motherboard suitable for business users in need of a compact form factor.

What is the price of ASUS PRO B760M-C-CSM Micro-ATX Motherboard in Bangladesh?

The latest price of ASUS PRO B760M-C-CSM Micro-ATX Motherboard in Bangladesh is 22,200৳. You can buy the ASUS PRO B760M-C-CSM Micro-ATX Motherboard at best price from our website or visit any of our showrooms.
