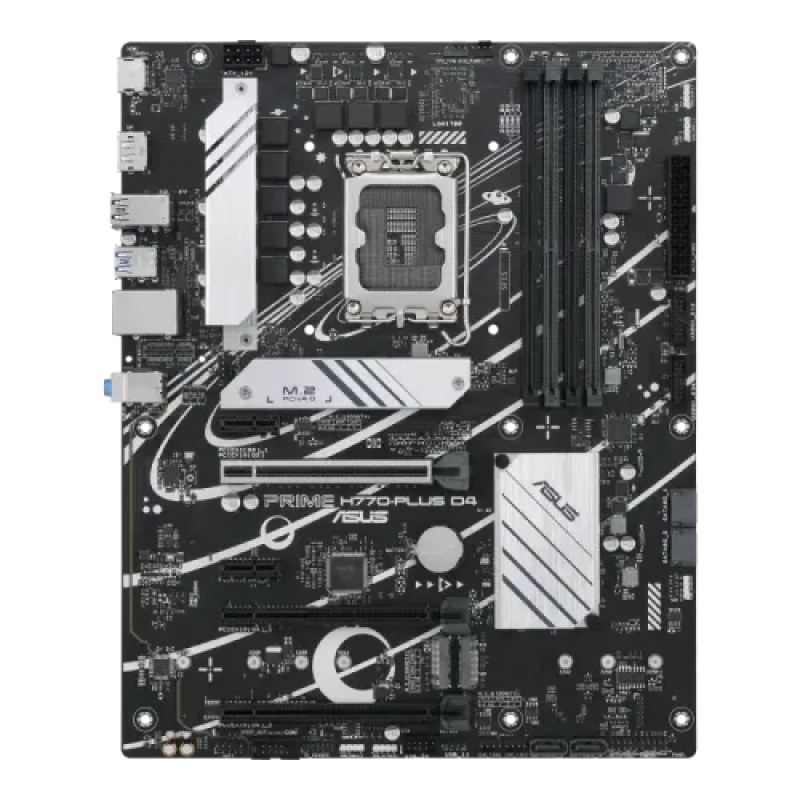

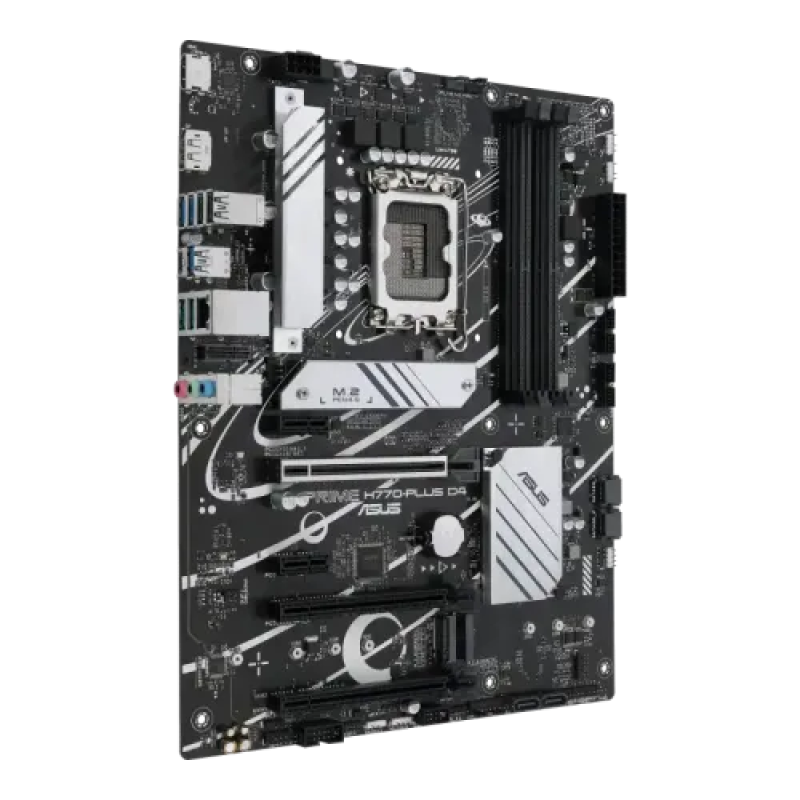

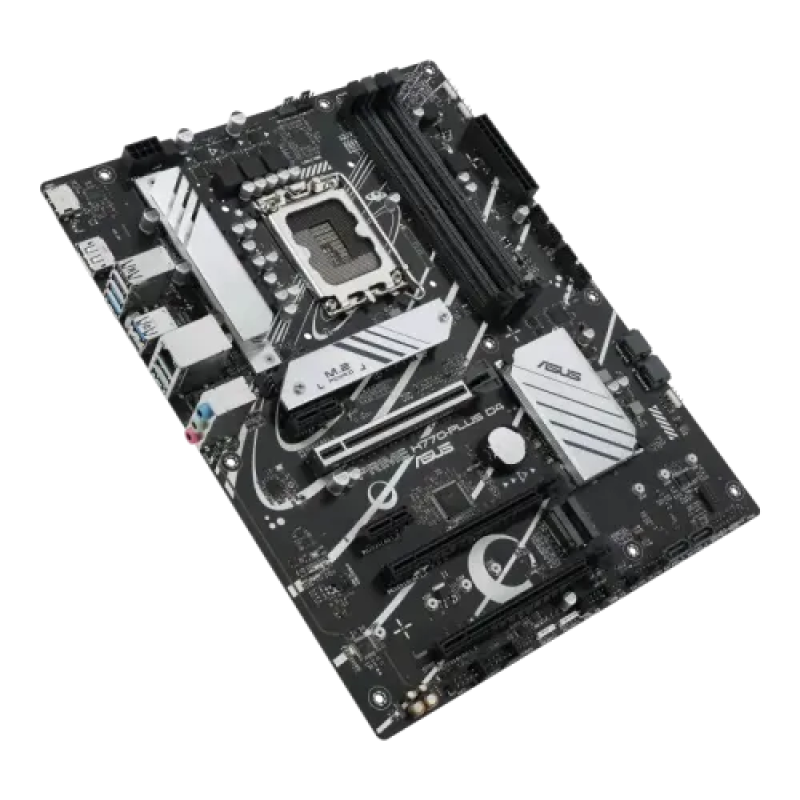

ASUS PRIME H770-PLUS D4 ATX Motherboard

Regular Price 23,300৳
Product Code 4752
Brand Asus
Short Details
  • Model: PRIME H770-PLUS D4
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported Memory: 4 x DIMM, Max. 128GB, DDR4 5066(OC)
  • Graphics Output: 1 x DisplayPort, 1 x HDMI
  • Features: 1 x Realtek 2.5Gb Ethernet
Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Specification

 Information
Supported CPU Intel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors*
Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset Intel H770 Chipset
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
Expansion Slots
PCI Intel 13th & 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
Memory
Type DDR4
Slots 4 x DIMM
Supported Memory DDR4 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem
Maximum Memory Max. 128GB
Graphics
Graphics x DisplayPort**
1 x HDMI® port***
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI® 2.1.

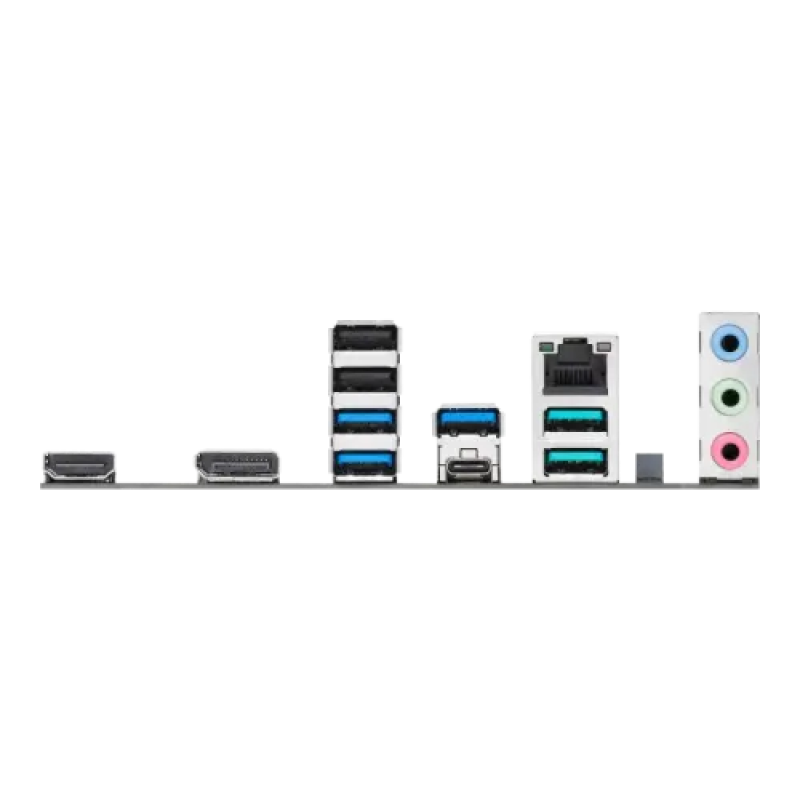

Connector & Ports
HDMI 1 x HDMI
Display Port (s) 1 x DisplayPort
USB (s) Rear USB (Total 8 ports)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
3 x USB 3.2 Gen 1 ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
Wireless Communication module Vertical M.2 slot only (Key E, CNVi & PCIe)*
* Wi-Fi module is sold separately.
Supported Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® H770 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
RAID Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
Audio 3 x Audio jacks
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
2 x Aura RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4®) header
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
Others
Special Features ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
Aura Sync
- Aura RGB headers
- Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
AI Suite 3
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty 3 years

Description

Description

ASUS PRIME H770-PLUS D4 ATX Motherboard

The ASUS PRIME H770-PLUS D4 Motherboard is a high-performance and reliable motherboard designed for 14th, 13th Gen Intel Core, 12th Gen Intel Core, Pentium Gold, and Celeron processors. It features an Intel H770 chipset and supports a maximum of 128GB DDR4 memory with speeds up to 5066MHz (OC). The motherboard provides excellent graphics capabilities with a DisplayPort and HDMI port, supporting 4K resolution at 60Hz. It offers expansion slots, including a PCIe 5.0 x16 slot and two PCIe 4.0 x16 slots, as well as multiple storage options with three M.2 slots and four SATA 6Gb/s ports. Networking is enhanced with a Realtek 2.5Gb Ethernet port, and the motherboard supports USB 3.2 Gen 2 and Gen 1 ports for high-speed data transfer. The ASUS PRIME H770-PLUS D4 also features advanced audio technologies, including Realtek 7.1 Surround Sound High Definition Audio CODEC. With its robust design and a range of convenient features, this motherboard is an ideal choice for building a powerful and versatile PC system.

What is the price of ASUS PRIME H770-PLUS D4 Motherboard in Bangladesh?

The latest price of ASUS PRIME H770-PLUS D4 Motherboard in Bangladesh is 23300৳. You can buy the ASUS PRIME H770-PLUS D4 Motherboard at best price from our website or visit any of our showrooms.
