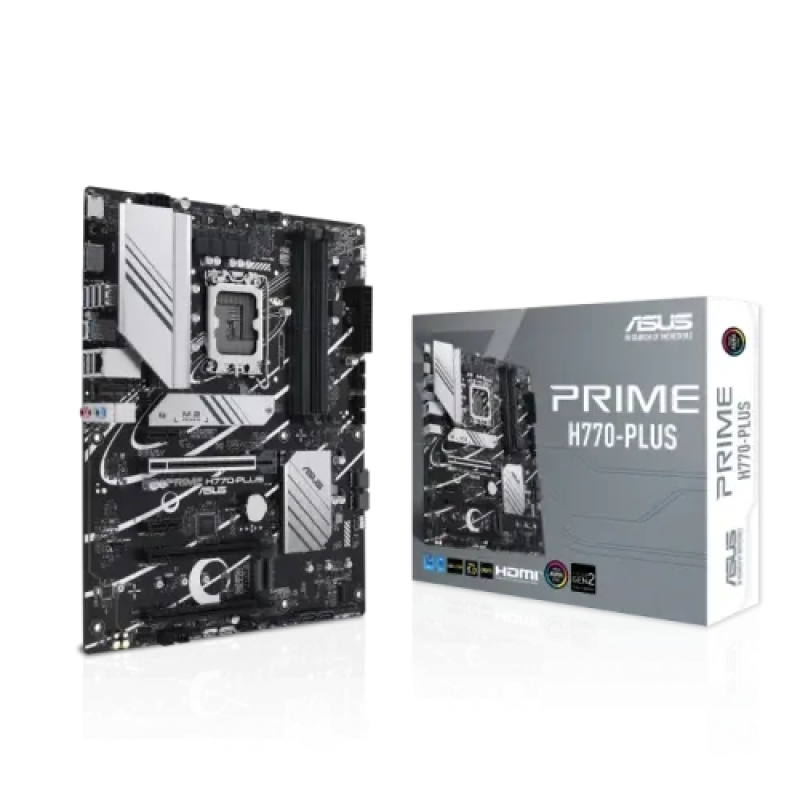

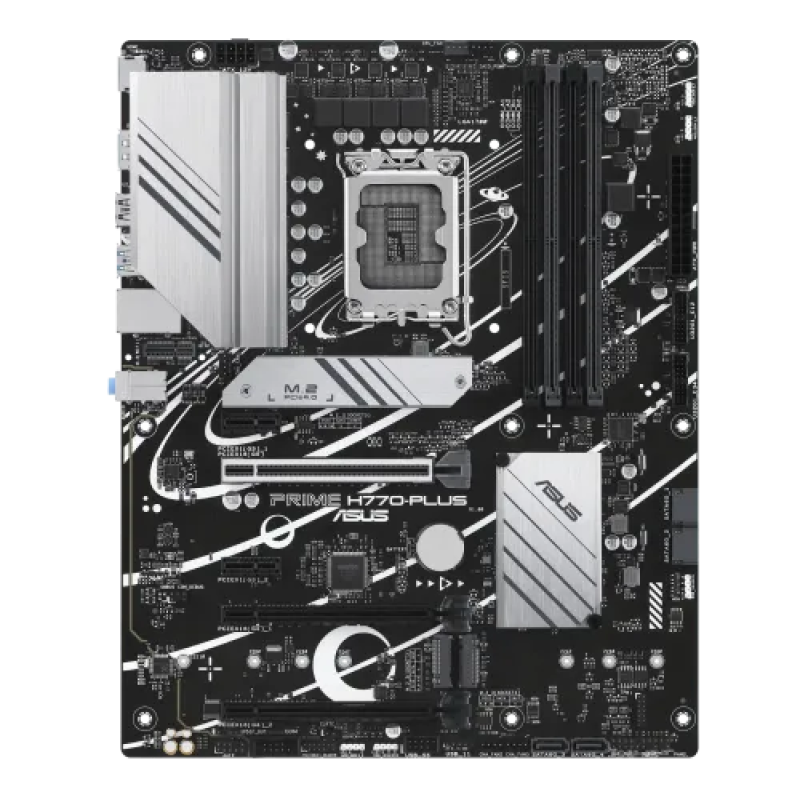

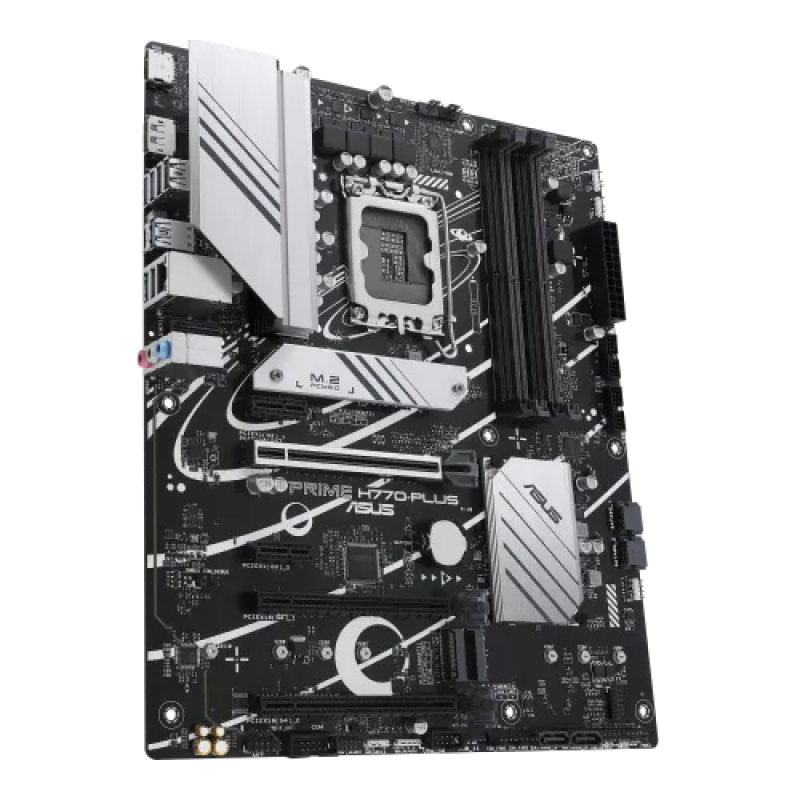

ASUS PRIME H770-PLUS ATX Motherboard

Regular Price	27,500৳
Status	In Stock
Product Code	4759
Brand	Asus

Short Details

Model: PRIME H770-PLUS
Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
Supported Memory: 4 x DIMM, Max. 192GB, DDR5 7200+(OC)
Graphics Output: 1 x DisplayPort, 1 x HDMI
Features: 1 x Realtek 2.5Gb Ethernet

More Info

27500৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Information
Supported CPU	Intel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset	Intel H770 Chipset
BIOS	192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
Expansion Slots
PCI	Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel H770 Chipset 2 x PCIe 4.0 x16 slots (support x4 mode) 2 x PCIe 3.0 x1 slots
M.2 Socket	3 x M.2
Memory
Type	DDR5
Slots	4 x DIMM
Supported Memory	7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II
Maximum Memory	Max. 192GB
Graphics
Graphics	x DisplayPort 1 x HDMI® port* Supports max. 4K@60Hz as specified in DisplayPort 1.4. * Supports 4K@60Hz as specified in HDMI® 2.1.
Connector & Ports
HDMI	1 x HDMI
Display Port (s)	1 x DisplayPort
USB (s)	Rear USB (Total 8 ports) 3 x USB 3.2 Gen 2 (10G) ports (2 x Type-A + 1 x USB Type-C®) 3 x USB 3.2 Gen 1 (5G) ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 2 x USB 3.2 Gen 1 (5G) headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports
LAN Port (s)	1 x Realtek 2.5Gb Ethernet
Wireless Communication module	Vertical M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately.
Supported Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel H770 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
RAID	Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
Audio	3 x Audio jacks

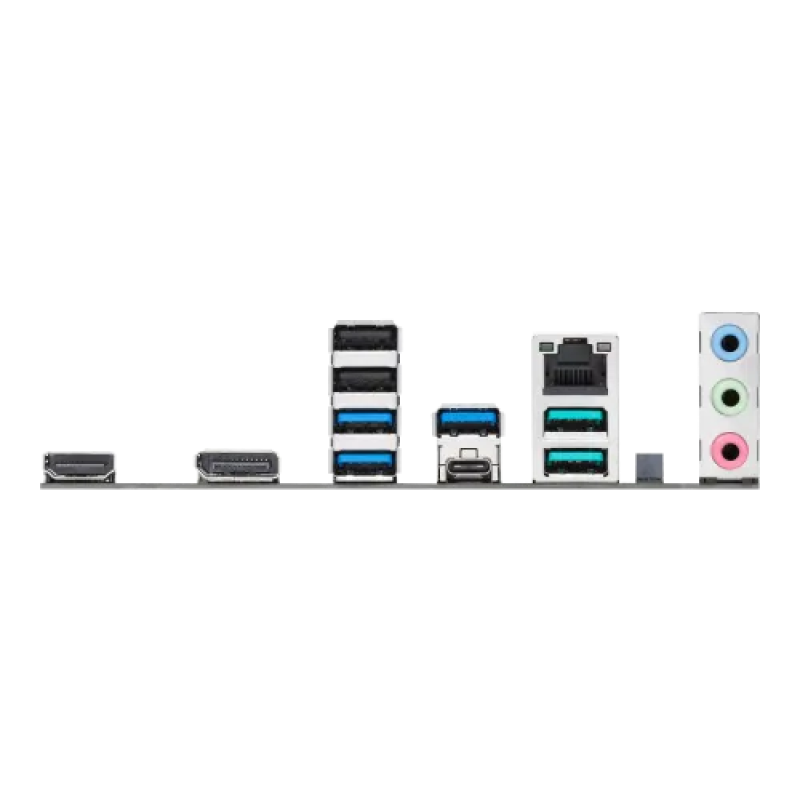

Internal I/O Ports	Back Panel I/O Ports 3 x USB 3.2 Gen 2 (10G) ports (2 x Type-A + 1 x USB Type-C) 3 x USB 3.2 Gen 1 (5G) ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Vertical M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 (5G) headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
Others
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB headers - Addressable Gen 2 headers
Bundled Software	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty	3 years

Description

ASUS PRIME H770-PLUS ATX Motherboard

The ASUS PRIME H770-PLUS ATX motherboard stands out as a versatile and powerful alternative for enthusiasts looking for a feature-rich base for their desktop computers. This motherboard is precisely designed to accommodate 14th, 13th, and 12th-generation Intel CPUs via the LGA1700 socket architecture. This versatility allows customers to select from a wide range of CPUs, assuring compatibility with Intel's most recent and prospective CPU alternatives. The PRIME H770-PLUS's memory capacities are a highlight, with four DIMM slots with a maximum capacity of 128GB. Notably, the motherboard is geared for DDR5 memory modules, with overclocked rates reaching 7000MHz. This architecture guarantees that users may fully utilize their system RAM for smooth multitasking, content production, and resource-intensive tasks. With 1 x DisplayPort and 1 x HDMI connector for graphics output, the motherboard provides a diverse option. This adaptability enables users to connect high-resolution monitors, resulting in an immersive visual experience for gaming, content production, and media consumption. The PRIME H770-PLUS excels at networking, including a Realtek 2.5Gb Ethernet interface. This not only assures fast access for online gaming but also a steady and responsive network experience for bandwidth-intensive operations like streaming and huge file transfers. In addition to its fundamental capabilities, the motherboard has a number of features designed to improve the overall user experience. This incorporates superior power delivery systems to provide consistent performance under demanding workloads, PCIe ports for accepting expansion cards like graphics cards and high-speed storage solutions, and an easy-to-use BIOS interface for system customization and tweaking. The ASUS PRIME H770-PLUS ATX motherboard is an excellent choice for developing a high-performance desktop system. This motherboard is intended to suit the different demands of customers involved in gaming, content production, and other demanding computer operations, from its broad CPU compatibility to its powerful memory support and variable graphics output. The addition of sophisticated functionality makes it a dependable and future-proof alternative for both enthusiasts and power users.

What is the price of ASUS PRIME H770-PLUS Motherboard in Bangladesh?

The latest price of ASUS PRIME H770-PLUS Motherboard in Bangladesh is 27,500৳. You can buy the ASUS PRIME H770-PLUS Motherboard at best price from our website or visit any of our showrooms.
