ASUS PRIME H670-PLUS D4 12th Gen ATX Motherboard

Regular Price 15,950৳
Product Code 4926
Brand Asus
Short Details
  • Model: PRIME H670-PLUS D4
  • Intel LGA 1700 socket: Ready for 12th Gen Intel processors
  • PCIe 4.0 slots, three M.2 slots, Realtek 2.5Gb Ethernet
  • VRM heatsink, M.2 heatsink, PCH heatsink
  • Thunderbolt 4 header support, DisplayPort, HDMI, Aura Sync
Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Specification

Basic Information
Supported CPU Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel H610 Chipset
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX
30.5cm x 24.4cm
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
- Audio Features
- Audio Shielding
- Power pre-regulator reduces power input noise to ensure consistent performance
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots
PCI Intel 12th Gen Processors*
1 x PCIe 4.0 x16 slot
Intel H670 Chipset**
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
Memory
Type DDR4
Slots 4 x DIMM
Supported Memory 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem
Maximum Memory 128GB
Graphics
Graphics 1 x DisplayPort**
1 x HDMI® port***
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' resolution.
Connector & Ports
HDMI 1 x HDMI port
Display Port (s) 1 x DisplayPort
D-Sub (s) 1 x D-Sub port

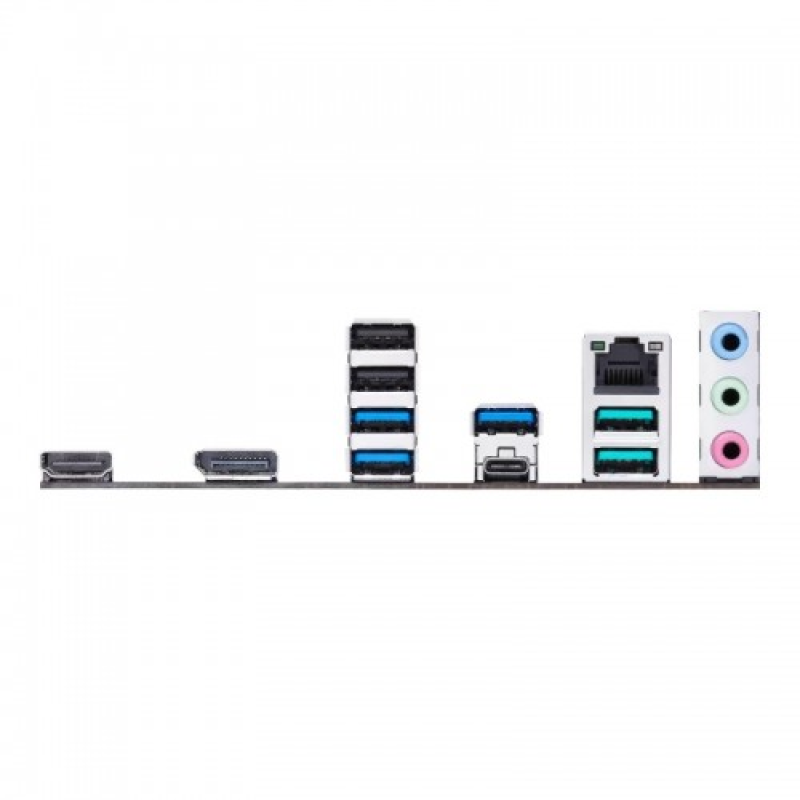

USB (s) Rear USB:Total 8 ports
Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
3 x USB 3.2 Gen 1 ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB:Total 7 ports
Front USB (Total 7 ports)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
1 x USB 2.0 header supports additional 1 USB 2.0 port
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Wireless Communication module M.2 slot only (Key E, CNVi & PCIe)*
*Wi-Fi module is sold separately.
Supported Storage Intel 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Intel 12th Gen processors support PCIe 4.0 x4 mode.
Intel® H670 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
Audio 3 x Audio jacks
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
1 x USB 2.0 header supports additional 1 USB 2.0 port

Miscellaneous
3 x Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt header
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
Others
Special Features ASUS 5X PROTECTION III
- DIGI+ VRM
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
AURA Sync
- AURA RGB headers
- Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 2+
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty 3 years

Description

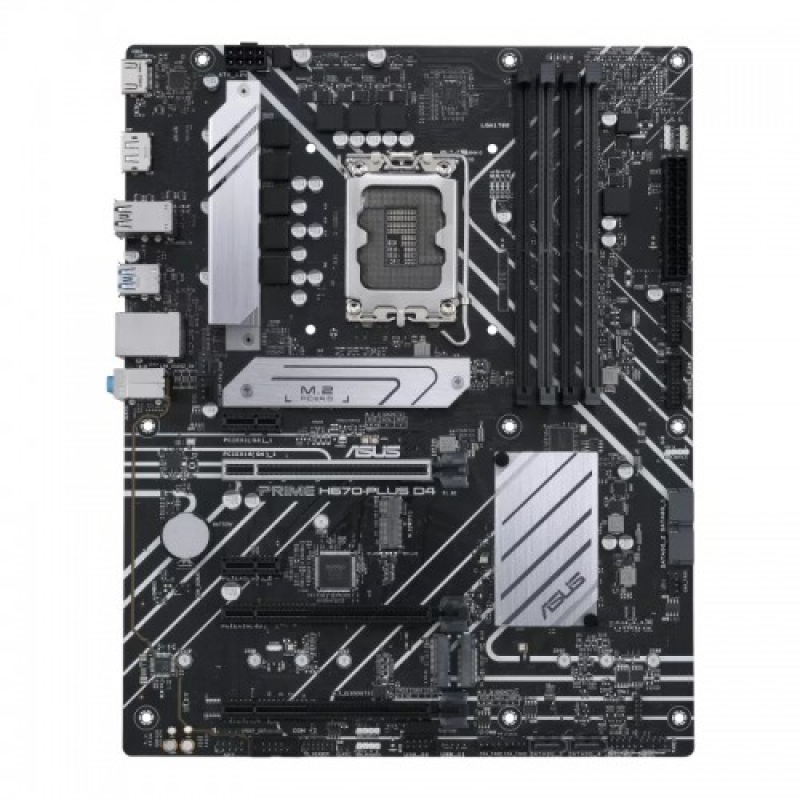

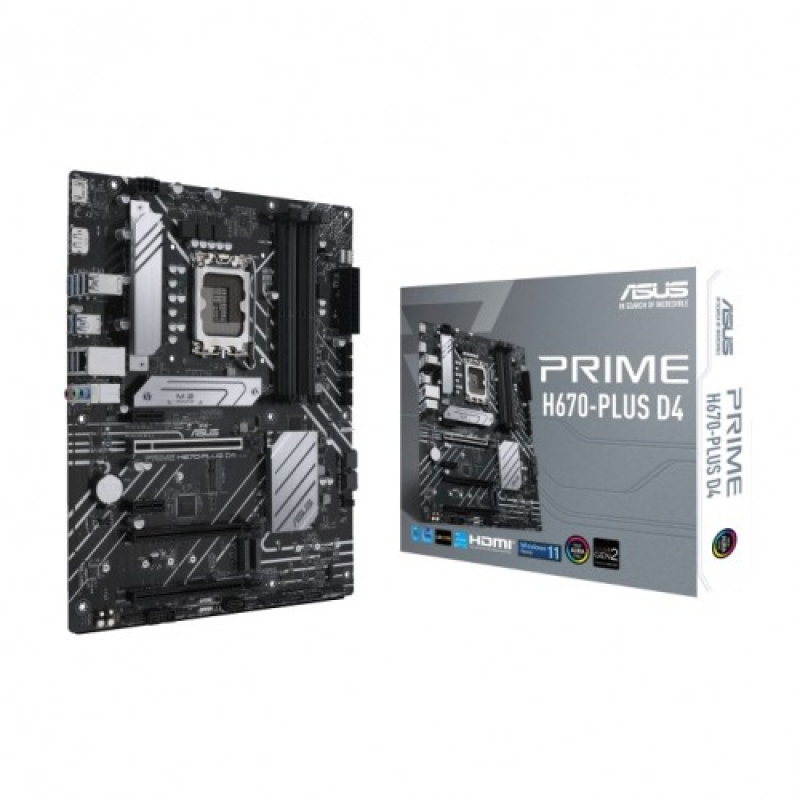

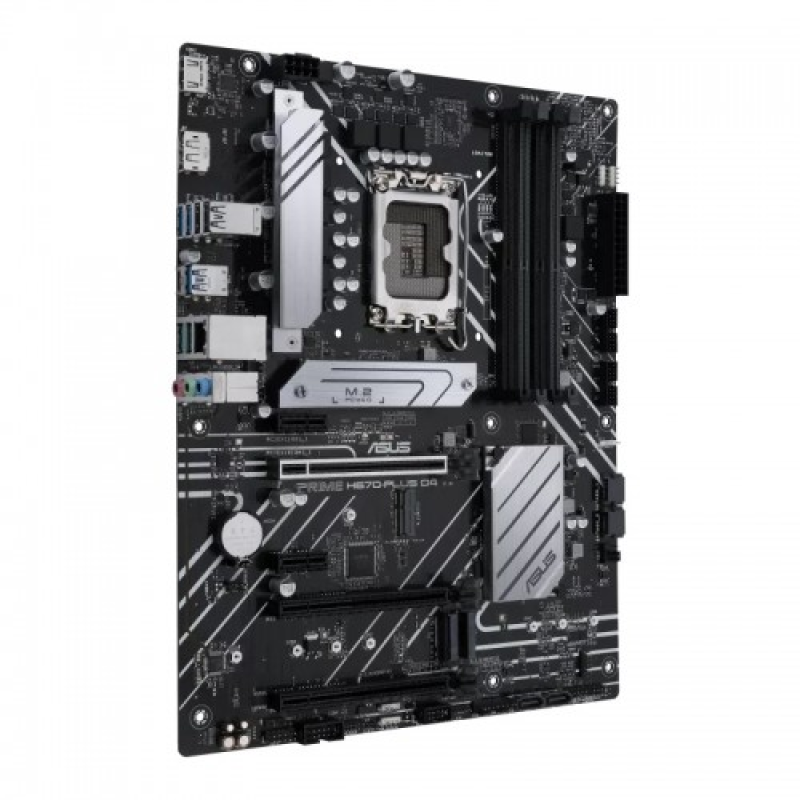

ASUS PRIME H670-PLUS D4 12th Gen ATX Motherboard

The ASUS PRIME H670-PLUS D4 comes with Intel LGA 1700 socket for 12th Gen Intel Core, Pentium Gold, and Celeron Processors. It offers ultrafast connectivity with PCIe 4.0 slots, three M.2 slots, Realtek 2.5Gb Ethernet and Thunderbolt 4 support. The ASUS PRIME H670-PLUS D4 features VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+. Careful routing of traces and vias to preserve signal integrity for improved memory stability with ASUS OptiMem. Prime H670 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features. Prime H670-PLUS D4 offers a total of three M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives. The ASUS PRIME H670-PLUS D4 comes with 3 years of warranty.

What is the price of ASUS PRIME H670-PLUS D4 12th Gen Motherboard in Bangladesh?

The latest price of ASUS PRIME H670-PLUS D4 12th Gen Motherboard in Bangladesh is 15,950৳. You can buy the ASUS PRIME H670-PLUS D4 12th Gen Motherboard at best price from our website or visit any of our showrooms.
