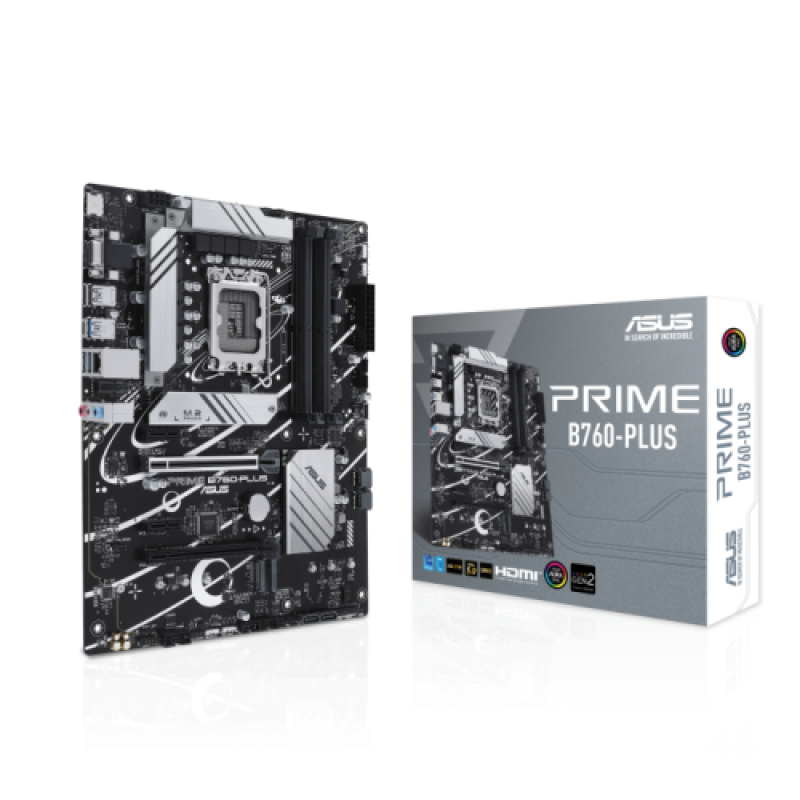

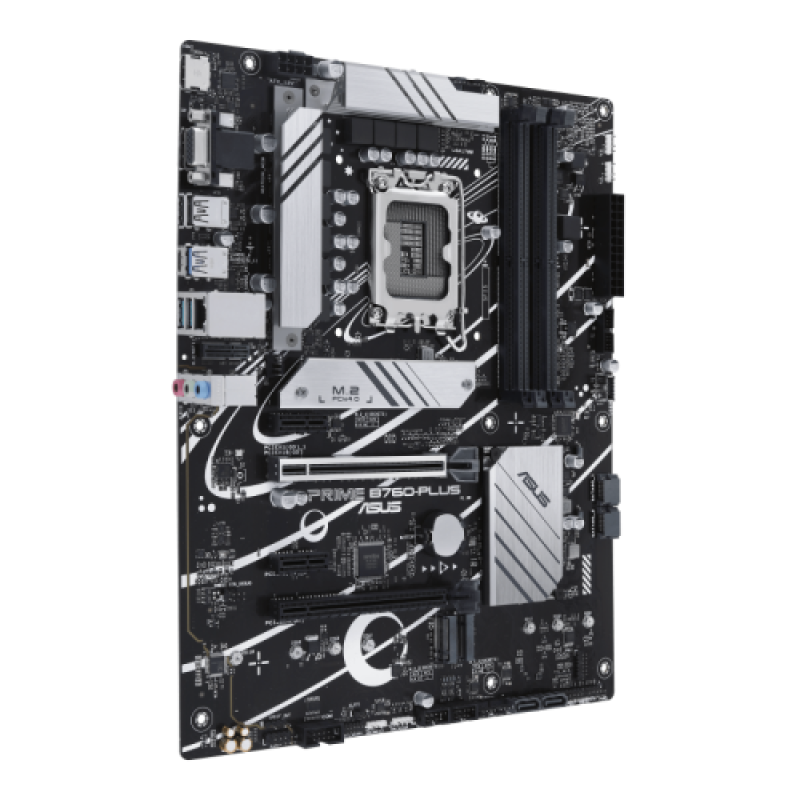

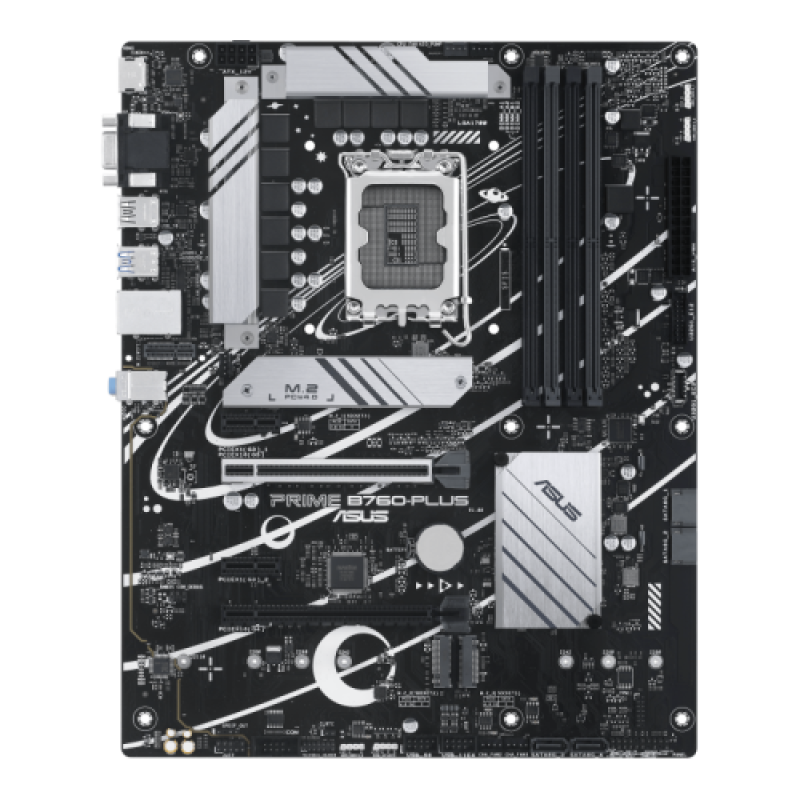

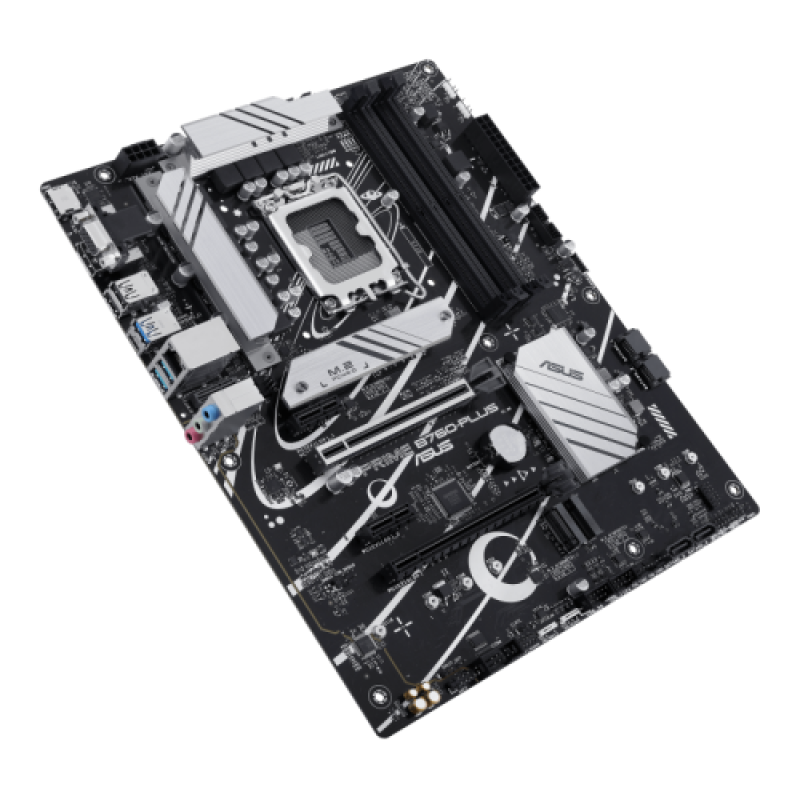

ASUS PRIME B760-PLUS ATX Motherboard

Regular Price	23,300৳
Status	In Stock
Product Code	4757
Brand	Asus

Short Details

Model: PRIME B760-PLUS
Supported CPU: 14th/12th/13th Gen Intel Processors (LGA1700)
Supported RAM: 4 x DIMM, Max. 192GB, DDR5 7200+(OC)
Graphics Output: 1x DisplayPort, 1x VGA port, 1x HDMI
Features: 3x M.2 slot, Realtek 2.5Gb Ethernet

More Info

23300৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Information
Supported CPU	Intel Socket LGA1700 for 14th, 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel B760 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
Expansion Slots
PCI	Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots
Memory
Type	DDR5
Slots	4 x DIMM
Supported Memory	DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem
Maximum Memory	192GB
Graphics
Graphics	1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4.) 1 x VGA port 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1.)
Connector & Ports
HDMI	1x HDMI
Display Port (s)	1x DisplayPort
VGA (s)	1 x VGA port
USB (s)	Rear USB (Total 6 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s)	1 x Realtek 2.5Gb Ethernet
Wireless Communication module	Vertical M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately.
Supported Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports
RAID	Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio	3 x Audio jacks
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
Others
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB header - Addressable Gen 2 headers
Bundled Software	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty	3 years

Description

ASUS PRIME B760-PLUS ATX Motherboard

ASUS PRIME B760-PLUS Motherboard supports 14th 13th/ 12th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1700 socket. It comes with four dual-channel RAM slots, and three M.2 slots allowing you to take advantage of the full power of 13th & 12th generation Intel processors. The four SATA III ports allow users to create large storage drive arrays for large file libraries. Two PCIe x16 and one PCIe x1 slot allow you to install high-end graphics cards and other expansion cards. USB 2.0 ports are also available for lower-powered devices such as mice and keyboards.

Enhanced Power Design

This 14th Gen Motherboard is designed for gamers and enthusiasts, with a 12+1+1 dual rail power system and 8+8 pin power connectors to support the Core Boost technology, which boosts the performance of your multi-core Intel processor. The Digital Power Design, Overvoltage Protection, Load-Line Calibration, Double Power Connectors, and Supplemental PCIe Power Connectors on the motherboard all work together to provide proper electrical management through your system to stabilize your system, especially under high loads.

Premium Thermal Solution

The ASUS PRIME B760-PLUS Motherboard features Extended Heatsink Design and M.2 Shield Frozr and is designed for high-performance systems and continuous operation. This motherboard's increased cooling capabilities will keep your components working at optimal temperatures. M.2 Shield Frozr, Fully Fan Control, Frozr AI Cooling, and System Cooling all work together to keep your components cool even while under high loads when gaming or generating content.

High-Quality PCB for Enhanced Protection

The ASUS PRIME B760-PLUS features a PCB optimized for higher bandwidth and faster transfer speeds, as well as reliable circuit transmission with 2oz thickened copper that allows the motherboard to easily withstand overclocking while improving heat dissipation and system reliability. The grounding layer around the mounting holes is doubled for double ESD protection, preventing static discharge spikes from damaging the motherboard.

What is the price of ASUS PRIME B760-PLUS ATX Motherboard in Bangladesh?

The latest price of ASUS PRIME B760-PLUS ATX Motherboard in Bangladesh is 23,300৳. You can buy the ASUS PRIME B760-PLUS ATX Motherboard at best price from our website or visit any of our showrooms.
