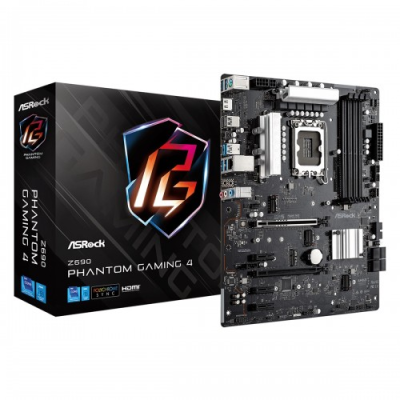

ASRock Z690 Phantom Gaming 4 12th Gen ATX Motherboard

Regular Price	20,200৳
Product Code	202
Brand	ASRock

Short Details

Model: Z690 Phantom Gaming 4
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
9 Phase Dr.MOS Power Design
Supports DDR4 5000MHz (OC)
Graphics Output Options: HDMI

More Info

20200৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Products
Question
Review

Specification

Basic Information
Supported CPU	- Supports 12th Gen Intel Core Processors (LGA1700) - 9 Power Phase design - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology
Chipset	Intel Z690
BIOS	- 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake-up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Form Factor	- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - Solid Capacitor design
Audio	- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Supports Surge Protection - Nahimic Audio
Expansion Slots
PCI	- 2 x PCIe x16 Slots (PCIE1/PCIE3: single at Gen5x16 (PCIE1); dual at Gen5x16 (PCIE1) / Gen4x4 (PCIE3)) - 3 x PCIe Gen3x1 Slots - Supports AMD CrossFire - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)
Memory
Type	Dual Channel DDR4 Memory Technology
Slots	4 x DDR4 DIMM Slots
Supported Memory	- Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC) - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0
Maximum Memory	128GB
Graphics
Graphics	- Intel Xe Graphics Architecture (Gen 12) - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port
Connector & Ports
HDMI	1 x HDMI Port
USB (s)	- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection)
LAN Port (s)	- Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports UEFI PXE
Supported Storage	- 4 x SATA3 6.0 Gb/s Connectors - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes
Audio	- HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Ports	- 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
TPM (Trusted Platform Module )	1 x SPI TPM Header
Others
Special Features	ASRock USB 3.2 Gen2 - ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy - Premium Power Choke - 50A Dr.MOS - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Steel Slot ASRock Hyper M.2 (PCIe Gen4x4) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
Warranty Information
Manufacturing Warranty	3 years

Description

ASRock Z690 Phantom Gaming 4 12th Gen ATX Motherboard

The ASRock Z690 Phantom Gaming 4 Motherboard supports 12th Gen Intel Core Processors (LGA1700). It features 9 Phase Dr.MOS Power Design and it supports DDR4 5000MHz (OC). It is ready to unleash the full potential of future high-end graphic cards. It has a blazing fast data transfer interface with a reversible USB Type-C design that fits the connector either way. USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as the previous generation.

PCIe 5.0 and High-Speed M.2 Solution

The ASRock Z690 Phantom Gaming 4 motherboard supports the lighting speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps. It is capable of accommodating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to the previous 3rd generation, giving a lightning-fast data transferring experience. It has 4 SATA3, 2 Hyper M.2 (PCIe Gen4 x4), 1 Hyper M.2 (PCIe Gen4 x4 & SATA3).

Polychrome RGB Sync-certified

ASRock Z690 Phantom Gaming 4 is equipped with onboard RGB headers and an addressable RGB header that allow the motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis, and so on.

Nahimic Audio

The ASRock Z690 Phantom Gaming 4 is featured with Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output, or even HDMI. It is also equipped with Realtek ALC897 7.1 CH HD Audio Codec.

The ASRock Z690 Phantom Gaming 4 Motherboard has 03 years warranty.
