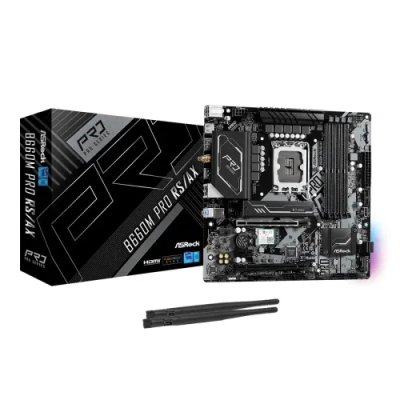

ASRock B660M Pro RS/ax 12th Gen Micro ATX Motherboard

Regular Price	19,200৳
Product Code	200
Brand	ASRock

Short Details

Model: B660M Pro RS/ax
CPU Support: Supports 14th, 13th Gen & 12th Gen Intel Core Processors (LGA1700)
RAM Support: DDR4 4800MHz (OC)
Graphics Output: HDMI, DisplayPort
802.11ax (WiFi 6E) + Bluetooth

More Info

19200৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Products
Question
Review

Specification

Basic Information
Supported CPU	Supports 12th Gen Intel Core Processors (LGA1700) Digi Power design 8 Power Phase design Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology
Chipset	Intel B660
BIOS	128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Form Factor	Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm Solid Capacitor design
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec) Supports Surge Protection Nahimic Audio
Expansion Slots
PCI	Chipset: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode* 1 x PCIe 3.0 x1 Slot (PCIE2)* 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT) Supports AMD CrossFire
Memory
Type	DDR4
Slots	4 x DIMM Slots
Supported Memory	Dual Channel DDR4 Memory Technology Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)* Supports ECC UDIMM memory modules (operate in non-ECC mode) Supports Intel Extreme Memory Profile (XMP) 2.0
Maximum Memory	128GB
Graphics
Graphics	Intel Xe Graphics Architecture (Gen 12) Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
Connector & Ports
HDMI	1 x HDMI Port
Display Port (s)	1 x DisplayPort 1.4
USB (s)	4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection) 2 x USB 2.0 Ports (Supports ESD Protection)
LAN Port (s)	Gigabit LAN 10/100/1000 Mb/s Giga PHY Intel I219V Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports UEFI PXE
Wireless Communication module	802.11ax Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ax Supports Dual-Band 2x2 160MHz with extended 6GHz band support* 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth + High speed class II Supports MU-MIMO
Supported Storage	CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* - 4 x SATA3 6.0 Gb/s Connectors
Audio	HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Ports	1 x Chassis Intrusion and Speaker Header 1 x RGB LED Header 3 x Addressable LED Headers 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)
TPM (Trusted Platform Module )	1 x SPI TPM Header
Others
Special Features	ASRock Super Alloy - Premium Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB 802.11ax Wi-Fi 6E ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology ASRock Steel Slot ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
Warranty Information
Manufacturing Warranty	3 years

Description

ASRock B660M Pro RS/ax 12th Gen Micro ATX Motherboard

The ASRock B660M Pro RS/ax Motherboard supports 12th Gen Intel Core Processors (LGA1700). It features an 8 Phase Power Design and it supports DDR4 4800MHz (OC). It supports the lighting speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high-end graphic cards. It comes with Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio. Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. It also comes with Intel Gigabit LAN and 802.11ax (WiFi 6E) + Bluetooth.
