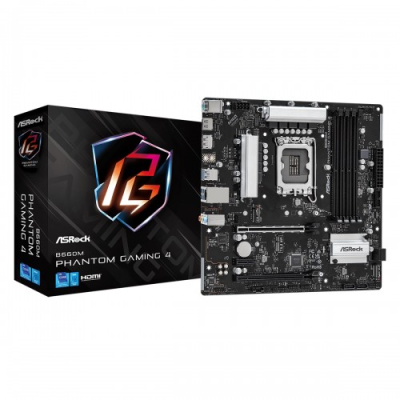

ASRock B660M Phantom Gaming 4 12th Gen Micro ATX Motherboard

Regular Price	14,300৳
Product Code	198
Brand	ASRock

Short Details

Model: B660M Phantom Gaming 4
Supported CPU: 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
9 Phase Dr.MOS Power Design
Supports DDR4 4800MHz (OC)
Graphics Output Options: HDMI, DisplayPort

More Info

14300৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Products
Question
Review

Specification

Basic Information
Supported CPU	- Supports 12th Gen Intel Core Processors (LGA1700) - Digi Power design - 8 Power Phase design - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology
Chipset	Intel B660
BIOS	- 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Form Factor	- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - Solid Capacitor design
Audio	- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Supports Surge Protection - Nahimic Audio
Expansion Slots
PCI	- 2 x PCIe x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))* - 1 x PCIe Gen3x1 Slot - Supports AMD CrossFire - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)
Memory
Type	Dual Channel DDR4 Memory Technology
Slots	4 x DDR4 DIMM Slots
Supported Memory	- Supports DDR4 non-ECC, un-buffered memory up to 4800+(OC) - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0
Maximum Memory	128GB
Graphics
Graphics	- Intel Xe Graphics Architecture (Gen 12) - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
Connector & Ports
HDMI	1 x HDMI Port
Display Port (s)	1 x DisplayPort 1.4
USB (s)	- 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection)
LAN Port (s)	- Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports UEFI PXE
Supported Storage	- 4 x SATA3 6.0 Gb/s Connectors - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio	- HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Ports	- 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
TPM (Trusted Platform Module )	1 x SPI TPM Header
Others
Special Features	ASRock Super Alloy - Premium Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology ASRock Steel Slot ASRock Hyper M.2 (PCIe Gen4x4) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
Warranty Information
Manufacturing Warranty	3 years

Description

ASRock B660M Phantom Gaming 4 12th Gen Micro ATX Motherboard

The ASRock B660M Phantom Gaming 4 Motherboard supports 12th Gen Intel Core Processors (LGA1700). It features 9 Phase Dr.MOS Power Design and it supports DDR4 5000MHz (OC). It supports the lighting speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high-end graphic cards. It features onboard RGB headers and an addressable RGB header that allow the motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis, and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
