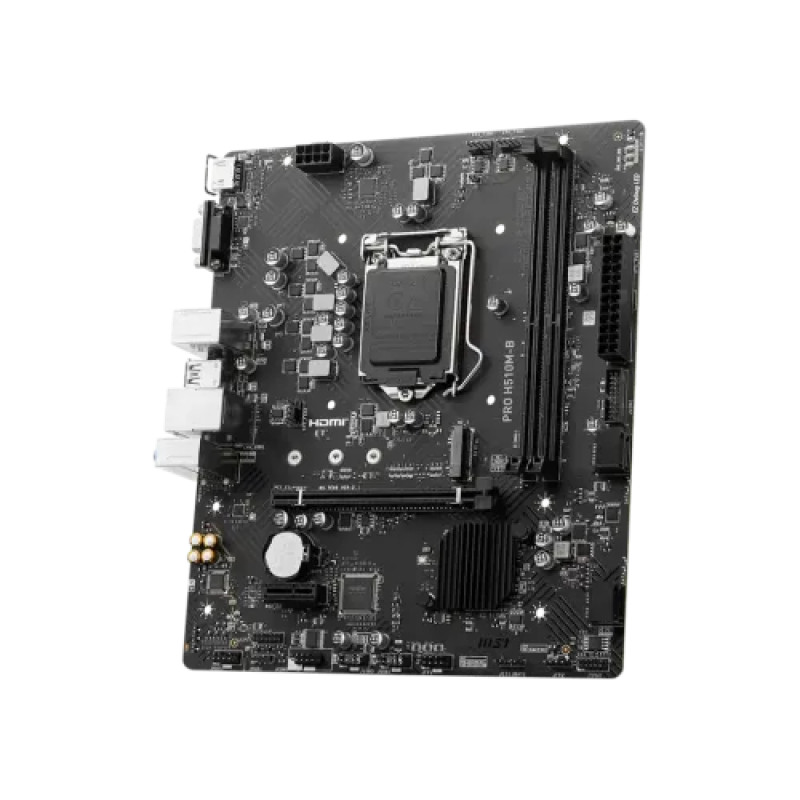

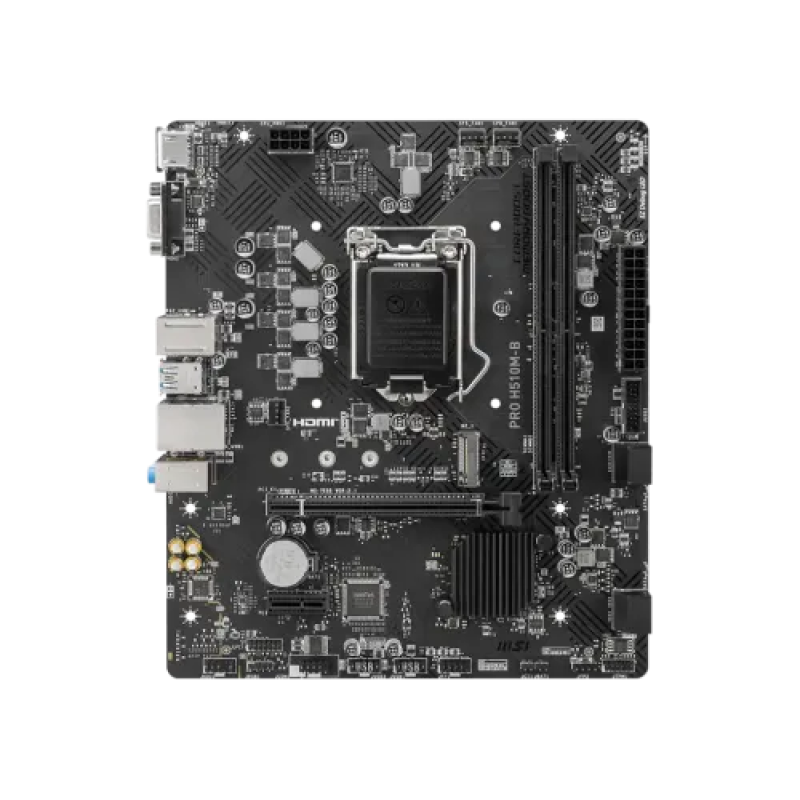

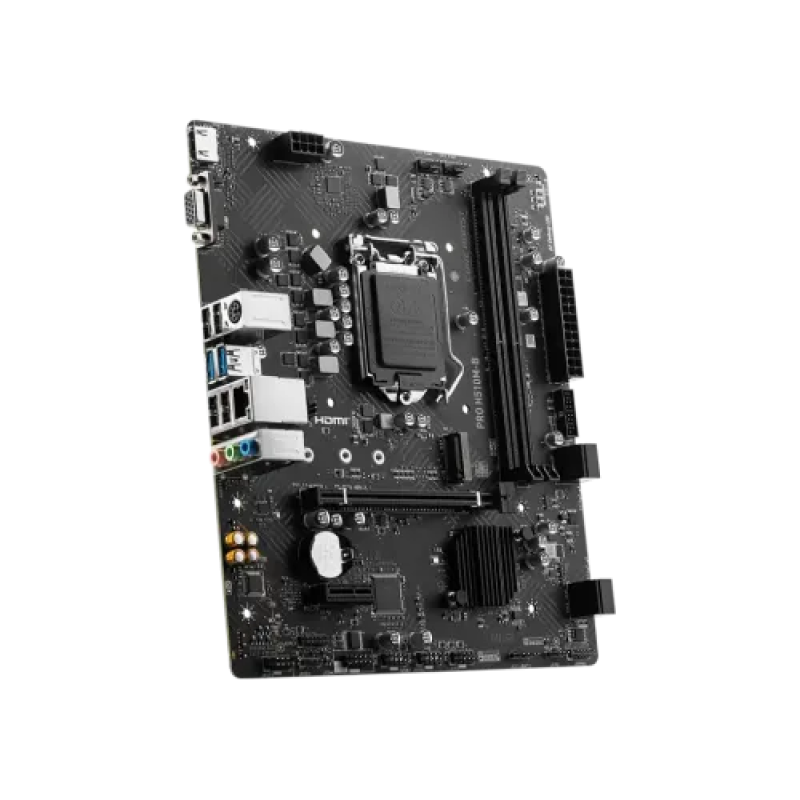

MSI PRO H510M-B 10th Gen Micro-ATX Motherboard

Regular Price	9,000৳
Status	In Stock
Product Code	5038
Brand	MSI

Short Details

Model: PRO H510M-B
Supported CPU: 10th Gen Intel processors for LGA 1200
Supported RAM: 2x DDR4, Max 64GB up to 2933MHz
Graphics Output: 1x HDMI, 1x VGA
Features: 1x M.2, Realtek 8111H Gigabit LAN

More Info

9000৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Products
Question
Review

Specification

Basic Information
Supported CPU	Supports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket
Chipset	INTEL H470
Form Factor	mATX 202mmx236mm
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots
PCI	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Memory
Type	DDR4
Slots	2
Supported Memory	Memory Support 2933/ 2666/ 2400/ 2133 MHz Supports 1R 2133/ 2666/ 2933 MHz for Intel Core i9/ Core i7 CPU Supports 1R 2133/ 2666 MHz for Intel Core i5/ Core i3/ Pentium Gold and Celeron CPU Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	64GB
Graphics
Graphics	1x HDMI Support HDMI 1.4, maximum resolution of 4K 30Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz

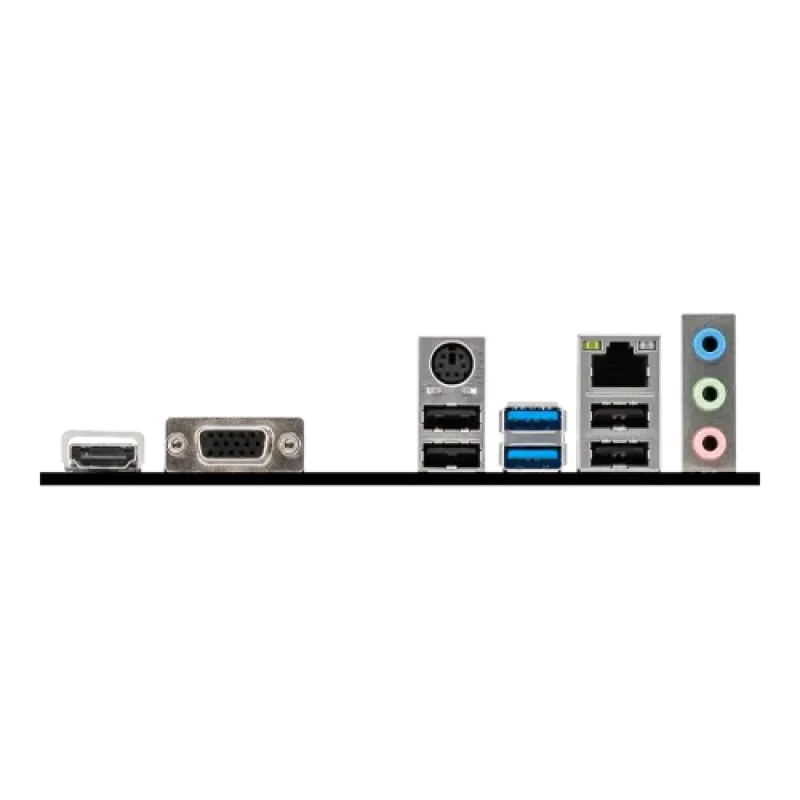

Connector & Ports
HDMI	1x HDMI 1.4
Display Port (s)	1x VGA
USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
LAN Port (s)	Realtek 8111H Gigabit LAN
Supported Storage	1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
Internal I/O Ports	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Others
Special Features	4x EZ Debug LED
Warranty Information
Manufacturing Warranty	3 years

Description

MSI PRO H510M-B 10th Gen Micro-ATX Motherboard

The MSI PRO H510M-B motherboard is a reliable and feature-packed option designed for 10th Gen Intel Core, Pentium Gold, and Celeron processors with an LGA 1200 socket. It supports DDR4 memory with speeds up to 2933MHz (MAX), offering efficient multitasking and smooth performance. The MSI PRO H510M-B motherboard features Core Boost technology and provides a premium layout and digital power design to support more cores and deliver better overall performance. The MSI PRO H510M-B motherboard also features Audio Boost technology, providing studio-grade sound quality for an immersive audio experience. The motherboard offers protection to VGA cards against bending and electromagnetic interference (EMI), contributing to improved performance, stability, and strength.

The MSI PRO H510M-B 10th Gen Micro-ATX Motherboard comes with 3 years warranty.

What is the price of MSI PRO H510M-B 10th Gen Motherboard in Bangladesh?

The latest price of MSI PRO H510M-B 10th Gen Motherboard in Bangladesh is 8,600৳. You can buy the MSI PRO H510M-B 10th Gen Motherboard at best price from our website or visit any of our showrooms.
