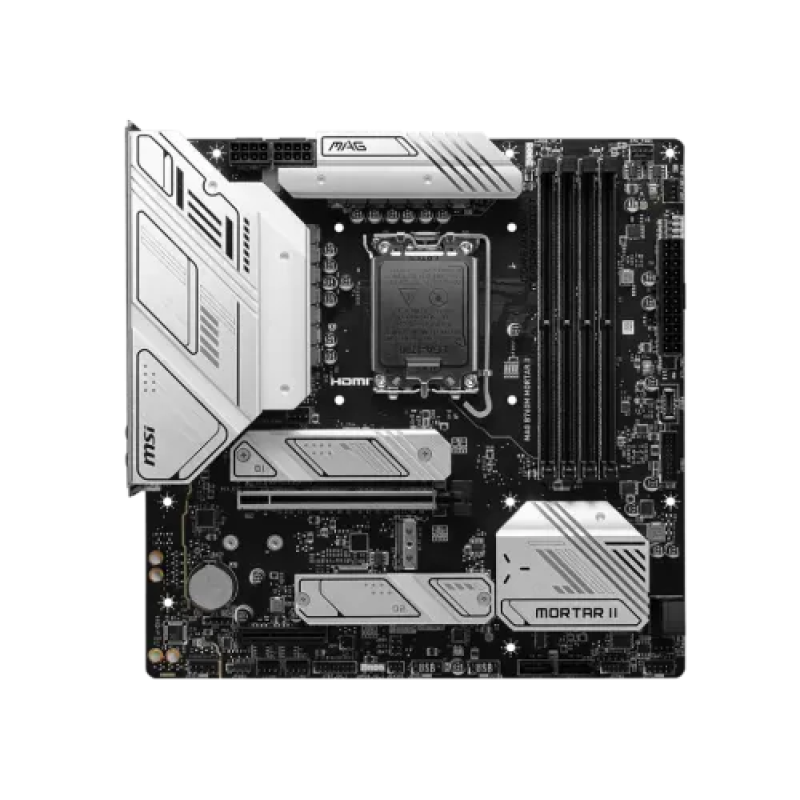

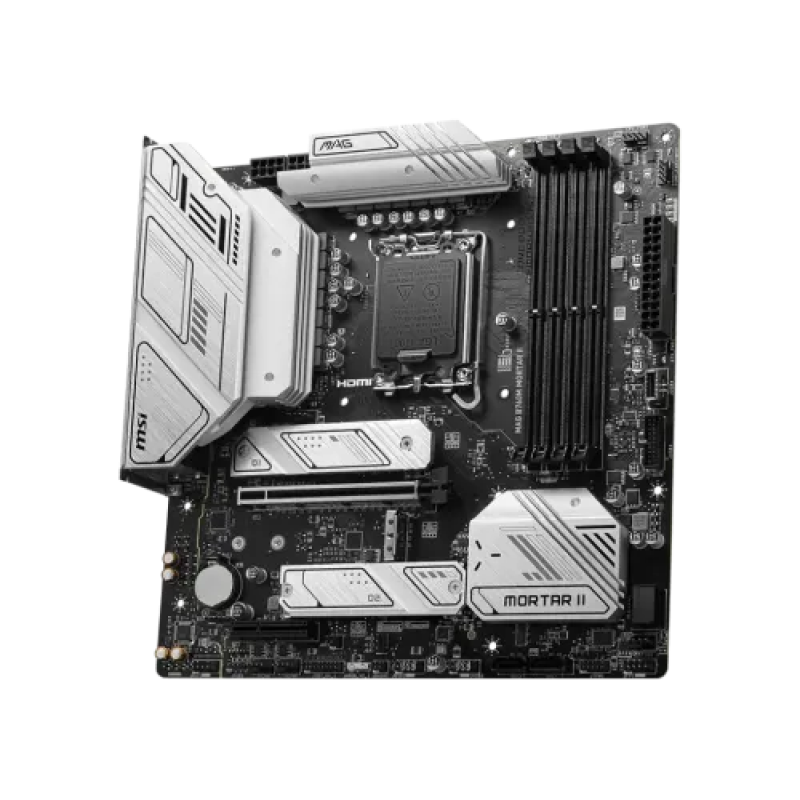

MSI MAG B760M MORTAR II DDR5 mATX Motherboard

Regular Price	21,400৳
Status	In Stock
Product Code	5223
Brand	MSI

Short Details

Model: MAG B760M MORTAR II
Supported CPU: 14th/13th/12th Gen Core, Pentium Gold & Celeron Processor (LGA 1700)
Supported RAM: 4x DDR5, 7800+MHz (OC), Max 192GB
Graphics Output: 1x HDMI, 1x DisplayPort
Features: Realtek 2.5Gbps LAN

More Info

21400৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Products
Question
Review

Specification

Information
Supported CPU	Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
Chipset	INTEL B760
Form Factor	mATX 243.84mmx243.84mm
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Expansion Slots
PCI	1x PCI-E x16 slot Supports x16/x4 PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
M.2 Socket	3x M.2 slots
Memory
Type	DDR5
Slots	4 x DIMM
Supported Memory	Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile
Maximum Memory	192GB
Graphics
Graphics	1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz*
Connector & Ports
HDMI	1x HDMI 2.1
Display Port (s)	1x DisplayPort 1.4

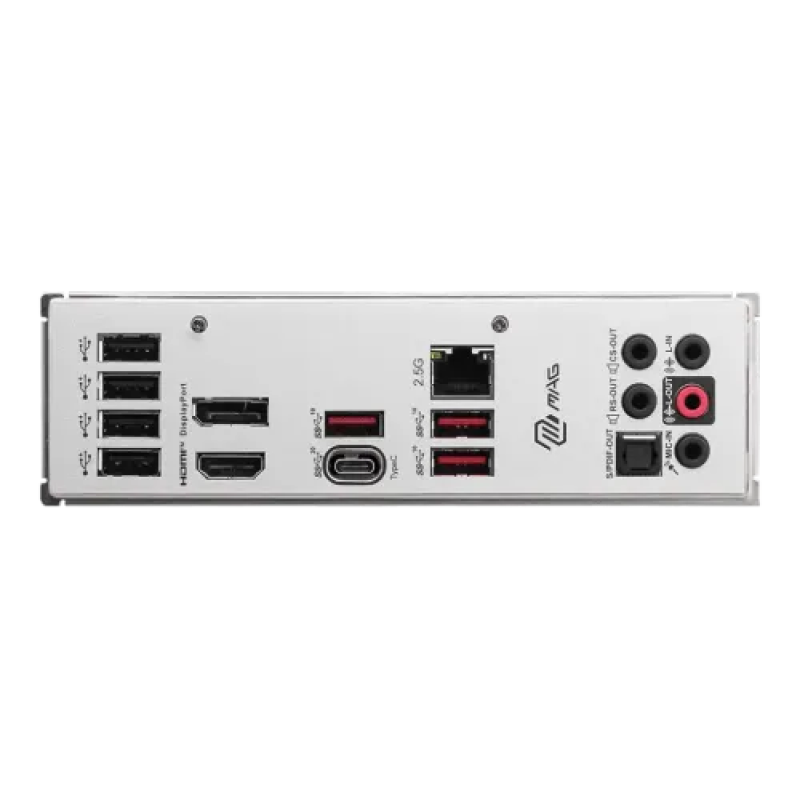

USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)	Realtek 2.5Gbps LAN
Supported Storage	3x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB4 card connector (JTBT_U4_1, supports RTD3)
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Others
Special Features	LED FEATURE: 4x EZ Debug LED
Warranty Information
Manufacturing Warranty	3 years

Description

MSI MAG Z790 TOMAHAWK MAX WIFI ATX Motherboard

The MSI MAG B760M MORTAR II DDR5 mATX Motherboard is a high-performance motherboard that supports a broad range of Intel processors, including 14th, 13th, and 12th generation Intel CPUs, as well as Intel Pentium Gold and Celeron processors, which are all LGA 1700 compatible. Notable features include DDR5 memory compatibility, which can be overclocked to rates of up to 7800+ MHz, allowing it to perform demanding workloads and games. The motherboard also has an upgraded power architecture, which includes a 12+1+1 Duet Rail Power System, twin 8-pin CPU power connections, Core Boost, and Memory Boost, which ensures reliable and efficient power supply to the CPU and memory modules for greater system performance. A PCIe 5.0 slot, Lightning Gen 4 x4 M.2 slot, and USB 3.2 Gen 2 x2 connections provide a lightning-fast gaming experience with high-speed data transmission and gaming performance. It has an Extended Heatsink Design with an M.2 Shield Frozr to keep temperatures low during heavy use. The MSI MAG B760M MORTAR II Motherboard also contains Audio Boost for studio-level sound quality, as well as a high-quality PCB with 6 layers of 2oz thicker copper and server-grade components, which improves longevity and system stability. Overall, this motherboard is a great option for gamers, content makers, and PC aficionados looking for top-tier performance and features.

What is the price of MSI MAG B760M MORTAR II Motherboard in Bangladesh?

The latest price of MSI MAG B760M MORTAR II Motherboard in Bangladesh is 21,500৳. You can buy the MSI MAG B760M MORTAR II Motherboard at best price from our website or visit any of our showrooms.
