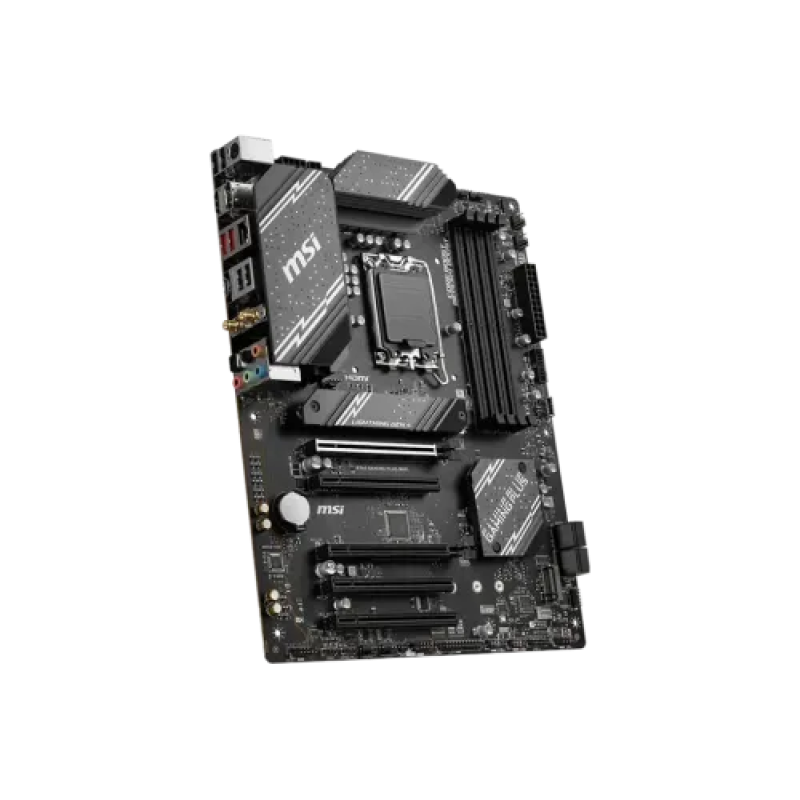

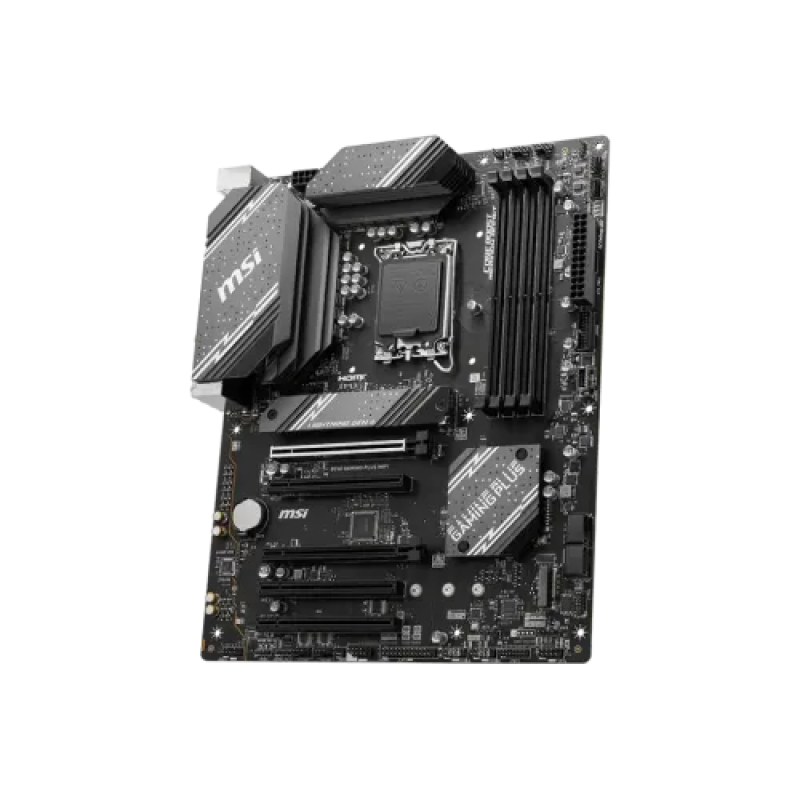

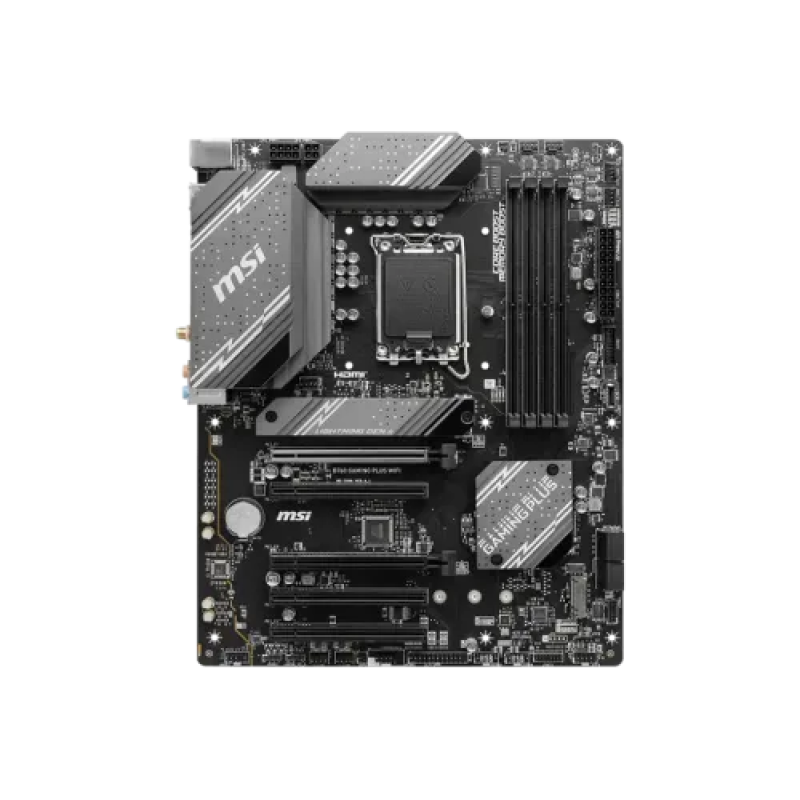

MSI B760 GAMING PLUS WIFI ATX Motherboard

Regular Price	22,800৳
Status	In Stock
Product Code	5227
Brand	MSI

Short Details

Model: B760 GAMING PLUS WIFI
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 4x DDR5, Max 192GB 6800+MHz (OC)
Graphics Output: 1x HDMI, 1x DisplayPort
Features: 2x M.2 slot, 2.5G LAN with Wi-Fi 6E

More Info

22800৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Products
Question
Review

Specification

Information
Supported CPU	Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA1700
Chipset	INTEL B760
Form Factor	ATX 243.84mmx304.8mm
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Expansion Slots
PCI	5x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
Memory
Type	DDR5
Slots	4
Supported Memory	Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory	192GB
Graphics
Graphics	1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz

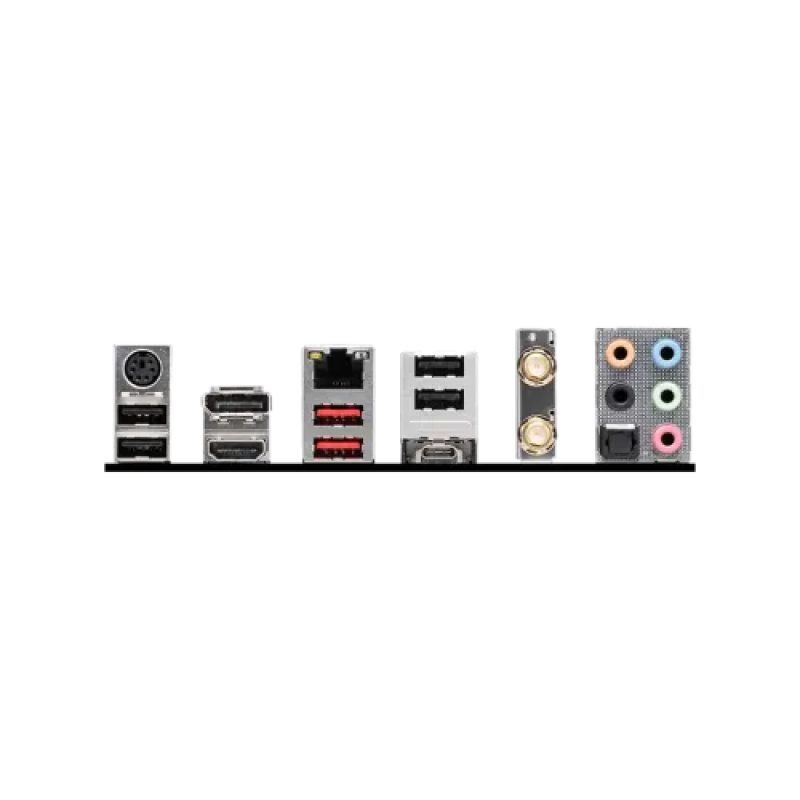

Connector & Ports
HDMI	1x HDMI
Display Port (s)	1x DisplayPort
USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen1 Type C (Front) 2x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear)
LAN Port (s)	Realtek RTL8125BG 2.5G LAN
Wireless Communication module	Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Others
Special Features	4x EZ Debug LED
Warranty Information
Manufacturing Warranty	3 years

Description

MSI B760 GAMING PLUS WIFI ATX Motherboard

The MSI B760 GAMING PLUS WIFI ATX Motherboard is a high-performance motherboard designed for gaming enthusiasts. It supports both 14th 13th and 12th Gen Intel Core, Pentium Gold, and Celeron processors for the LGA 1700 socket, ensuring compatibility with a wide range of processors. The MSI B760 GAMING PLUS WIFI Motherboard supports DDR5 memory with a dual-channel configuration, allowing for fast and efficient data transfer at speeds of 6800+MHz (OC). It features an enhanced power design with a 12+1 Duet Rail Power System, P-PAK, and 8-pin + 4-pin CPU power connectors, ensuring stable power delivery and optimal performance. The 14th Gen Motherboard also incorporates Core Boost and Memory Boost technologies to enhance performance further. For improved thermals, the motherboard includes an extended heatsink and MOSFET thermal pads rated for 7W/mK, ensuring efficient heat dissipation. Additional choke thermal pads are also included to support high-performance systems and provide a reliable gaming experience. The MSI B760 GAMING PLUS WIFI offers lightning-fast gaming experiences with a PCIe 4.0 slot, Lightning Gen 4 x4 M.2 slot with M.2 Shield Frozr, and Turbo USB 3.2 Gen 2 10G for high-speed data transfer. It also features a 2.5G LAN with Wi-Fi 6E solution, providing upgraded network connectivity for professional and multimedia use. The high-quality PCB is constructed with a 6-layer design using 2oz thickened copper for improved durability and performance. The MSI B760 GAMING PLUS WIFI Motherboard offers Audio Boost technology, and delivers studio-grade sound quality for an immersive gaming experience.

What is the price of MSI B760 GAMING PLUS WIFI ATX Motherboard in Bangladesh?

The latest price of MSI B760 GAMING PLUS WIFI ATX Motherboard in Bangladesh is 23,200৳. You can buy the MSI B760 GAMING PLUS WIFI ATX Motherboard at best price from our website or visit any of our showrooms.
