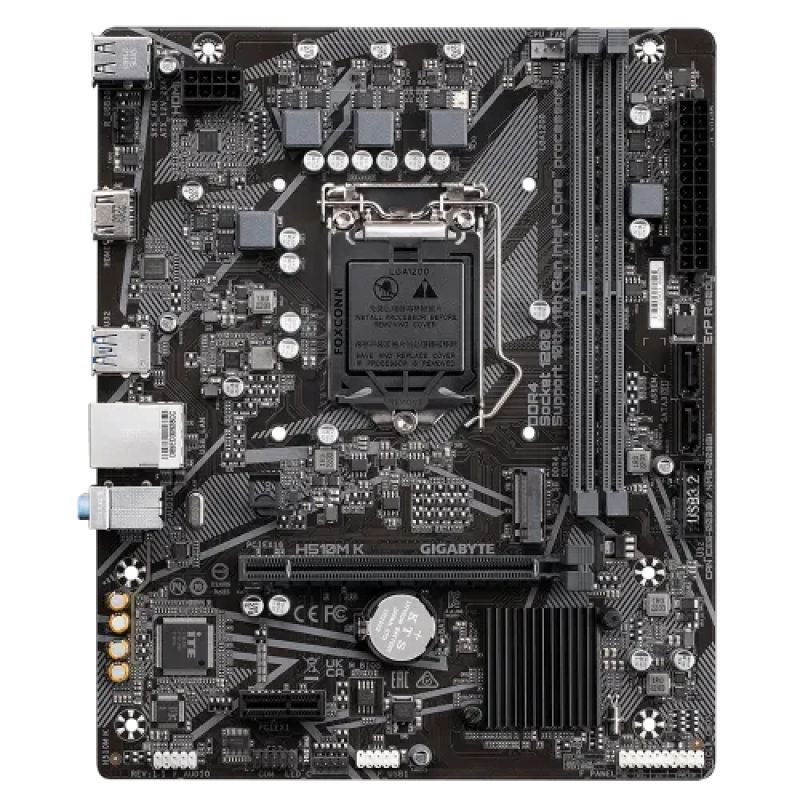

GIGABYTE H510M K Intel Micro ATX Motherboard

Regular Price 9,300৳
Status In Stock
Product Code 6120
Brand Gigabyte
Short Details
  • Model: H510M K
  • Supported CPU: 11th Gen Intel Core Processors (LGA1200)
  • Supported RAM: DDR4, 2 DIMMs, up to 64 GB
  • Graphics Output: 1 x HDMI
  • Features: Realtek GbE LAN chip (1 Gbps/100 Mbps)
Contact for bulk quantity: 01733-080376 , 01733-080350 ,

Specification

Information
Supported CPU 11th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors
10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors
L3 cache varies with CPU
Chipset Intel B560 Express Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 22.6cm x 18.5cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Expansion Slots
PCI CPU:
1 x PCI Express x16 slot:
Supporting PCIe 4.0 and running at x16
(PCIe 4.0 is only supported by 11th-generation processors.)

Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Memory
Type DDR4
Slots 2 x DIMM
Supported Memory 1th Generation Intel Core i9/i7/i5 processors:
Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
10th Generation Intel Core i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MT/s memory modules
10th Generation Intel Core i5/i3/Pentium®/Celeron processors:
Support for DDR4 2666/2400/2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 64GB (32 GB single DIMM capacity)
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Connector & Ports
HDMI 1 x HDMI port
USB (s) Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage Chipset:
1 x M.2 connector:
Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD
2 x SATA 6Gb/s connectors
Internal I/O Ports Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x Clear CMOS jumper

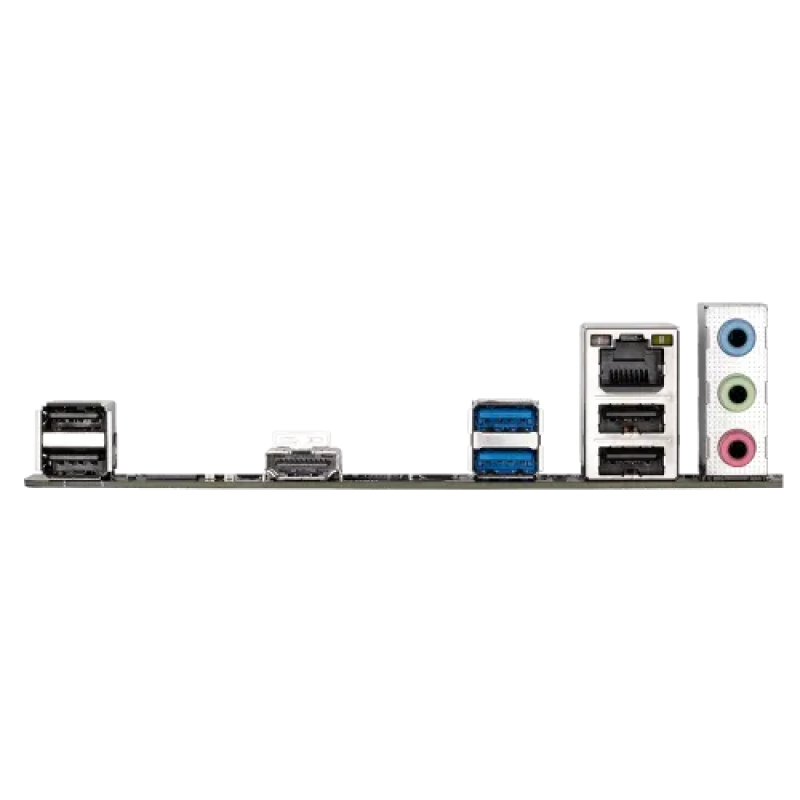

Back Panel Connectors
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Others
Special Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty Information
Manufacturing Warranty 03 Years Warranty

Description

GIGABYTE H510M K Intel Micro ATX Motherboard in 2024

In the fast-paced digital world, having the right technology at your fingertips is essential. Whether you're a tech enthusiast or someone looking to upgrade their home setup, the search for the perfect motherboard can be daunting. If you’re in Dhaka, Bangladesh, and on the hunt for a reliable, performance-driven solution, the GIGABYTE H510M K Intel Micro ATX Motherboard is your answer. This motherboard is designed to meet the demands of the modern user, offering power, efficiency, and a host of features that make it a standout choice.



Features of GIGABYTE H510M K Intel Micro ATX Motherboard

The GIGABYTE H510M K Intel Micro ATX Motherboard is built with cutting-edge technology to support 11th Gen Intel Core Processors. With its compact Micro ATX form factor, this motherboard is perfect for builds where space is at a premium without sacrificing performance. Supporting up to 64 GB of DDR4 RAM, this motherboard ensures smooth multitasking and responsive performance for gaming, content creation, and everyday computing tasks. The inclusion of a single HDMI output port allows for crisp, high-quality video, making it ideal for gamers and multimedia enthusiasts alike.



Key Features (Product) in Bangladesh

Understanding the needs of users in Bangladesh, the GIGABYTE H510M K Intel Micro ATX Motherboard comes equipped with the Realtek GbE LAN chip, providing 1 Gbps connectivity for seamless internet browsing and online gaming. This feature is particularly valuable in a region where reliable internet connectivity can enhance work and play experiences. The motherboard’s robust design and energy-efficient performance make it a cost-effective solution for those looking to build or upgrade their PC in Bangladesh.



Emotional Benefits

Imagine the feeling of opening a program, loading a game, or streaming your favorite content without a hitch. With the GIGABYTE H510M K, these experiences become a reality. No more frustrating lag or delays. Instead, you'll enjoy a fluid, efficient experience that lets you focus on what truly matters. Whether you’re completing a project, playing a game, or enjoying media, this motherboard offers the reliability and speed you need to stay connected and productive.



Technical Specifications and Usage of GIGABYTE H510M K Intel Micro ATX Motherboard

  •
  • CPU Support           : 11th Gen Intel Core Processors (LGA1200)
  • Memory                   : Supports DDR4, 2 DIMMs, up to 64 GB
  • Graphics Output      : 1 x HDMI
  • LAN                         : Realtek GbE LAN chip (1 Gbps/100 Mbps)
  • Form Factor            : Micro ATX



Usage Guidance of GIGABYTE H510M K Intel Micro ATX Motherboard in 2024

Setting up the GIGABYTE H510M K Intel Micro ATX Motherboard is straightforward. Start by installing your compatible 11th Gen Intel CPU into the LGA1200 socket. Next, insert your DDR4 RAM modules into the DIMM slots, ensuring they are properly seated. Connect your display to the HDMI port, and enjoy clear, vibrant visuals. Finally, connect the motherboard to your network using the Realtek GbE LAN chip to enjoy fast and stable internet connectivity.



Pricing and Availability in CTG Computer

The GIGABYTE H510M K Intel Micro ATX Motherboard is available at CTG Computer for a competitive price of 9300 BDT. This pricing makes it an attractive option for those looking to build or upgrade their PC with a focus on reliability and performance. Whether you're shopping online or visiting a physical store in Dhaka, this motherboard offers excellent value for its features and capabilities.



FAQs



1. What processors are compatible with the GIGABYTE H510M K Intel Micro ATX Motherboard?

The GIGABYTE H510M K supports 11th Gen Intel Core Processors, making it ideal for users seeking the latest in CPU technology.



2. How much RAM can the GIGABYTE H510M K support?

This motherboard can support up to 64 GB of DDR4 RAM across two DIMM slots, ensuring plenty of memory for demanding applications and multitasking.



3. Does the GIGABYTE H510M K offer good internet connectivity?

Yes, it features a Realtek GbE LAN chip that provides 1 Gbps connectivity, offering fast and stable internet access for gaming and streaming.



4. Is the GIGABYTE H510M K suitable for gaming?

Absolutely! With support for high-speed RAM and HDMI graphics output, this motherboard is well-suited for gaming enthusiasts looking for a smooth experience.





5. Where can I purchase the GIGABYTE H510M K Intel Micro ATX Motherboard in Dhaka?

You can find this motherboard at CTG Computer, both online and in-store, making it accessible for tech enthusiasts across Dhaka.
