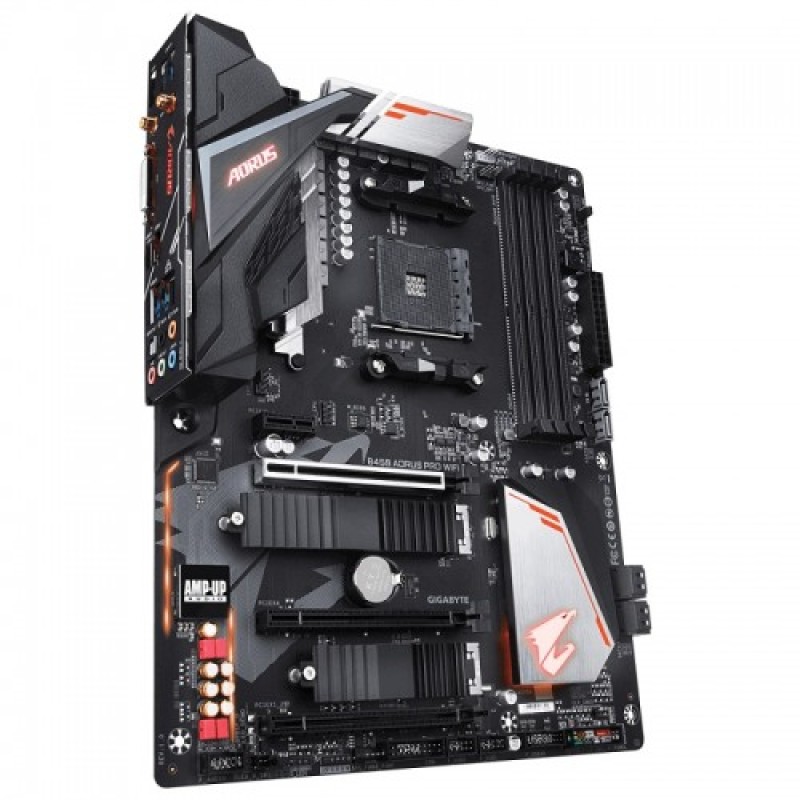

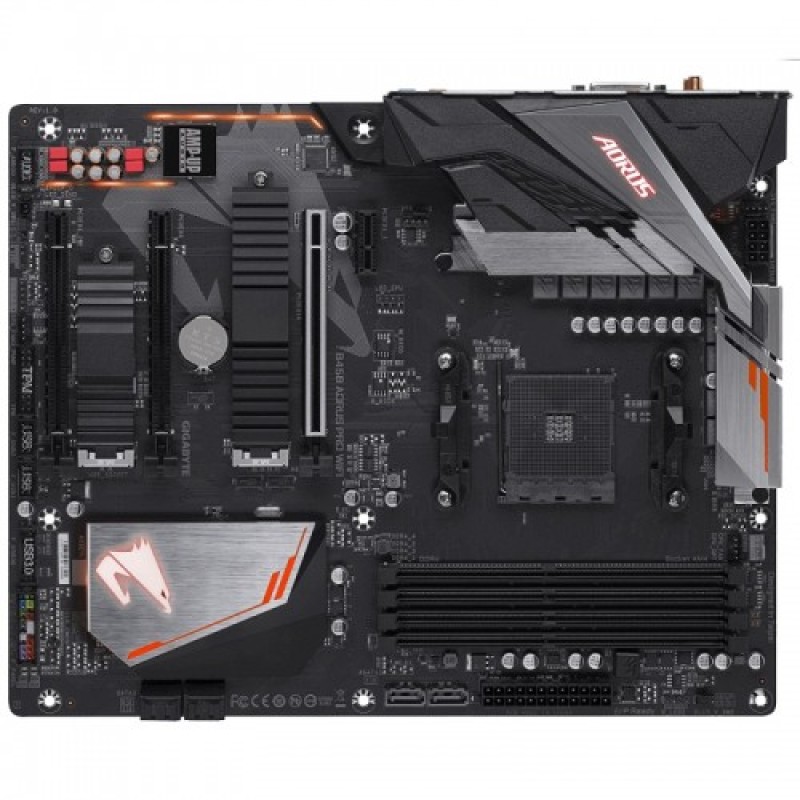

Gigabyte B450 AORUS Pro Wi-Fi AMD Micro ATX Motherboard

Regular Price	14,000৳
Product Code	224
Brand	Gigabyte

Short Details

Model: AK400 ZERO DARK PLUS
Fan Dimensions: 120×120×25 mm
Fan Speed: 500~1650 RPM±10%
Fan Airflow: 59.46 CFM
Bearing Type: Fluid Dynamic Bearing

More Info

14000৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Products
Quick Compare
Question
Review

Specification

Basic Information

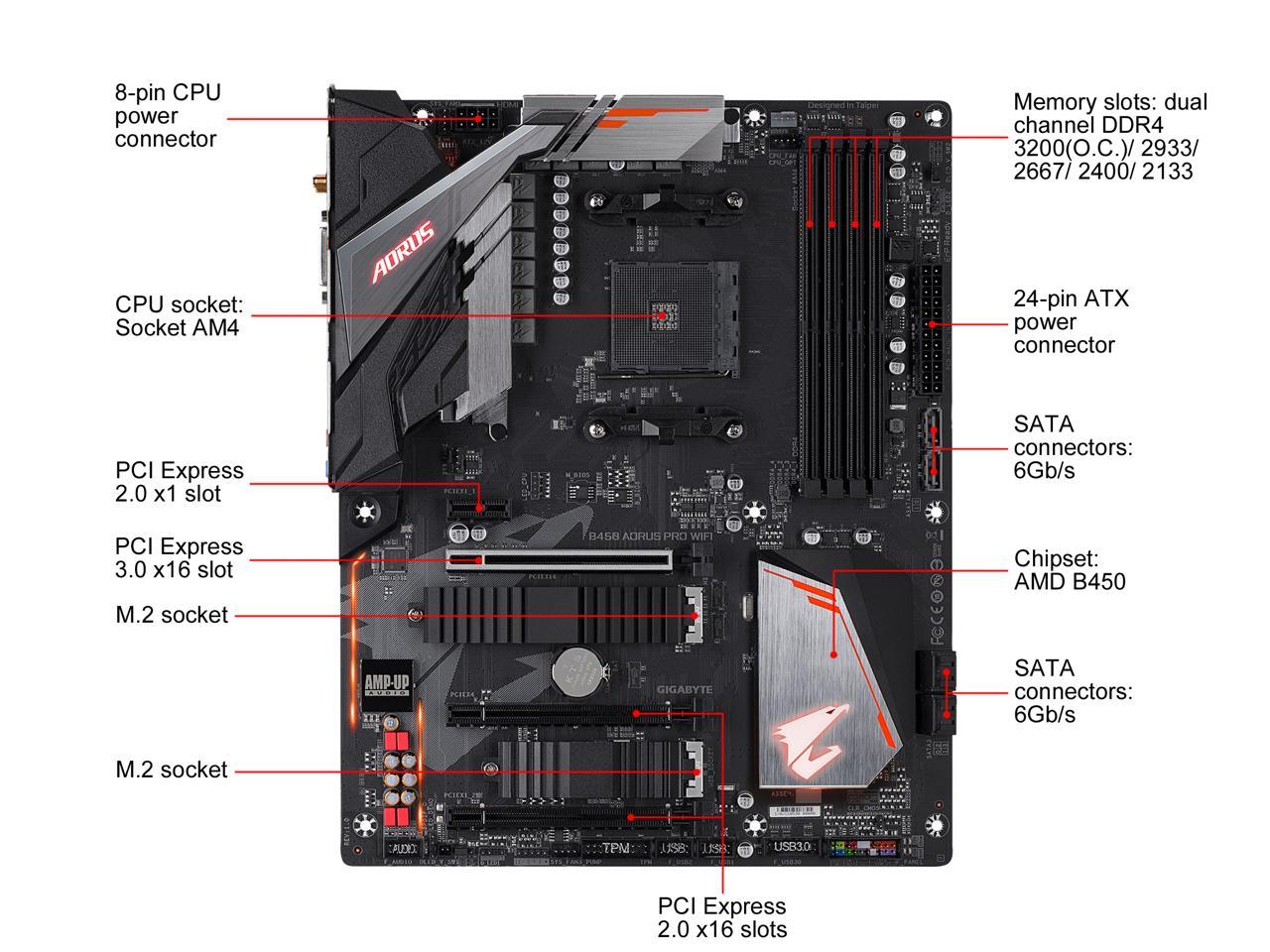

Supported CPU	AMD Ryzen™ 2nd Generation processors AMD Ryzen™ with Radeon™ Vega Graphics processors AMD Ryzen™ 1st Generation processors
Chipset	AMD B450
BIOS	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (PCIEX16) * Actual support may vary by CPU. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
M.2 Socket	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
Memory
Type	Dual Channel DDR4 Memory Technology
Slots	4 x DIMM
Supported Memory	Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	64 GB
Graphics
Graphics	1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.2. * Actual support may vary by CPU.
Max Shared Memory	16 GB
Connector & Ports
HDMI	1 x HDMI
DVI-D (s)	1 x DVI-D
USB (s)	Chipset: 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel
LAN Port (s)	Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Audio	Realtek® ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x CPU cooler LED strip/RGB LED strip header 1 x RGB (RGBW) LED strip header 2 x digital LED strip headers 2 x digital LED strip power select jumpers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
Warranty Information
Manufacturing Warranty	03 years

Description

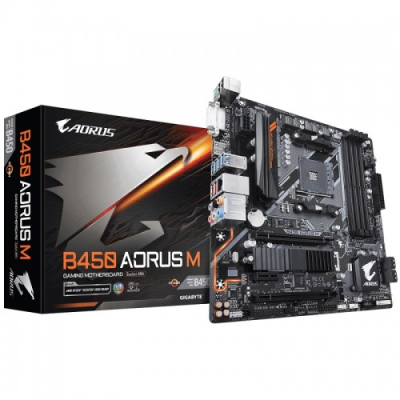

Gigabyte B450 AORUS M AMD Micro ATX Motherboard Elevate Your PC Performance

For tech enthusiasts and gamers in Dhaka, Bangladesh, the Gigabyte B450 AORUS M AMD Micro ATX Motherboard is the ultimate solution to elevate your PC performance. This powerful motherboard, designed to support AMD Ryzen series CPUs, offers an impressive array of features that cater to both casual users and hardcore gamers. With a combination of advanced technologies, robust build quality, and stunning aesthetics, the Gigabyte B450 AORUS M motherboard ensures you get the most out of your system.

Features of B450 AORUS M motherboard cost BD

The Gigabyte B450 AORUS M AMD Micro ATX Motherboard is packed with features that enhance your computing experience:

AMD Ryzen Series CPU Support: This motherboard is compatible with AMD AM4 socket Ryzen series CPUs, ensuring high performance and future-proofing your system.
Dual Channel DDR4 Memory: Supports up to 64GB of DDR4 memory, allowing for smooth multitasking and efficient data processing.
Ultra-Fast NVMe PCIe Gen3 x4 M.2: Equipped with a thermal guard, this feature ensures lightning-fast data transfer speeds and optimal performance for your storage devices.
RGB FUSION with Multi-Zone LED Light Show Design: Customize your system's aesthetics with digital LED and RGB LED strips, creating a visually stunning setup.
High-Quality Audio: Features high-quality audio capacitors and audio noise guard with LED trace path lighting, delivering crystal-clear sound for an immersive experience.
Multiple Display Support: Supports HDMI and DVI-D ports for multiple displays, with maximum resolutions of 4096x2160@60 Hz (HDMI) and 1920x1200@60 Hz (DVI-D).

How the Gigabyte B450 AORUS PRO Motherboard Works

The Gigabyte B450 AORUS M AMD Micro ATX Motherboard is designed to maximize your system's potential through its advanced features and robust build quality. Supporting the latest AMD Ryzen series CPUs, it ensures powerful performance for gaming, content creation, and everyday computing tasks. The dual-channel DDR4 memory support allows for efficient multitasking and faster data processing, while the Ultra-Fast NVMe PCIe Gen3 x4 M.2 with thermal guard enhances storage performance.

Key Features of Gigabyte B450 AORUS M AMD Micro ATX Motherboard in Bangladesh

Smart Fan 5: Features 5 temperature sensors and 3 hybrid fan headers with FAN STOP, ensuring optimal cooling and silent operation.
Exclusive 8118 Gaming LAN: Provides bandwidth management for an improved online gaming experience.
USB Type-C™: Offers versatile connectivity options for modern peripherals and devices.
Anti-Sulfur Resistors Design: Enhances durability and longevity, protecting the motherboard from sulfur damage.
Ultra Durable™ Design: Equipped with 25KV ESD and 15KV surge LAN protection, ensuring reliable and stable performance.

Benefits of Aorus b450 Pro wifi Motherboard

Choosing the Gigabyte B450 AORUS M AMD Micro ATX Motherboard means investing in a product that significantly enhances your computing experience. With this motherboard, you can enjoy:

Seamless Gaming: Experience smooth and immersive gameplay with high performance and low latency.
Aesthetic Customization: Personalize your system with stunning RGB lighting, making your setup stand out.
Enhanced Productivity: Boost your multitasking capabilities with support for up to 64GB of DDR4 memory, allowing you to handle demanding applications effortlessly.
Peace of Mind: With high-quality components and robust protection features, you can trust in the reliability and longevity of your motherboard.

Technical Specifications and Usage of Gigabyte B450 AORUS M AMD Micro ATX Motherboard

Specifications:

Model: Gigabyte B450 AORUS M
Socket: AMD AM4
CPU Support: AMD Ryzen series
Memory Support: Dual channel DDR4, up to 64GB
Storage: Ultra-Fast NVMe PCIe Gen3 x4 M.2 with Thermal Guard
Graphics Output: HDMI, DVI-D
Audio: High-quality audio capacitors, audio noise guard with LED trace path lighting
LAN: Exclusive 8118 Gaming LAN with bandwidth management
USB Ports: USB Type-C™, multiple USB 3.1 ports
Cooling: Smart Fan 5, 5 temperature sensors, 3 hybrid fan headers with FAN STOP

Usage Guidance:

Installing the Gigabyte B450 AORUS M AMD Micro ATX Motherboard is straightforward and user-friendly. Begin by securing the motherboard in your case using the appropriate screws. Insert the AMD Ryzen CPU into the AM4 socket and secure it with the retention arm. Install your DDR4 memory modules into the dual-channel slots, ensuring they are properly seated. Connect your storage devices to the Ultra-Fast NVMe PCIe Gen3 x4 M.2 slot and other available SATA ports. Attach your cooling solution to the CPU and connect all necessary power cables. Finally, connect your peripherals to the USB ports and other available connections.

Gigabyte b450 Pricing and Availability in CTG Computer

The Gigabyte B450 AORUS M AMD Micro ATX Motherboard is available at CTG Computer for a competitive price of 13,200 BDT. This motherboard offers excellent value for money, providing high performance and a range of advanced features that make it an ideal choice for PC builders in Bangladesh.

Frequently Asked Questions

Q: What CPUs are compatible with the Gigabyte B450 AORUS M motherboard? A: The Gigabyte B450 AORUS M motherboard supports AMD Ryzen series CPUs with the AM4 socket.

Q: How much RAM can this motherboard support? A: This motherboard supports up to 64GB of dual-channel DDR4 memory.

Q: Does the Gigabyte B450 AORUS M have RGB lighting? A: Yes, it features RGB FUSION with a multi-zone LED light show design, supporting digital LED and RGB LED strips.

Q: What display ports are available on this motherboard? A: The motherboard includes HDMI and DVI-D ports, supporting maximum resolutions of 4096x2160@60 Hz (HDMI) and 1920x1200@60 Hz (DVI-D).

Q: Is this motherboard suitable for gaming? A: Yes, with its support for AMD Ryzen CPUs, high-quality audio, and exclusive 8118 Gaming LAN, it is ideal for gaming setups.

Upgrade your system with the Gigabyte B450 AORUS M AMD Micro ATX Motherboard today. Experience enhanced performance, stunning visuals, and reliable operation, all at an unbeatable price. Don't wait – elevate your computing experience now!
