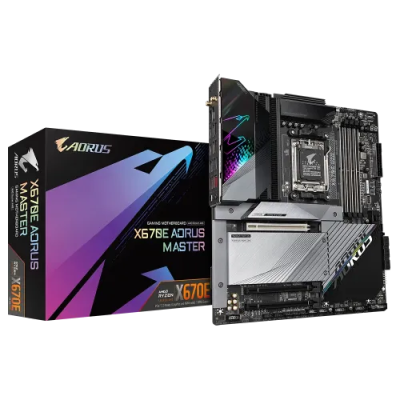

GIGABYTE X670E AORUS MASTER DDR5 AMD AM5 E-ATX Motherboard

Regular Price 50,800৳
Status In Stock
Product Code 243
Brand Gigabyte
Short Details
  • Model: X670E AORUS MASTER
  • Supported CPU: Ryzen 8000 & 7000 Series Processors for Socket AM5
  • Supported RAM: 4x DDR5, Max 128GB
  • Graphics Output: 1 x DisplayPort, 1 x USB Type-C, 1 x HDMI
  • Features: Intel 2.5GbE LAN & Intel Wi-Fi 6E 802.11ax
Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Specification

Specification

Basic Information
Supported CPUAMD Socket AM5, support for : AMD Ryzen 7000 Series Processors
ChipsetAMD X670
BIOS1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form FactorE-ATX Form Factor; 30.5cm x 26.9cm
AudioRealtek ALC1220-VB CODEC
* The back panel line out jack supports DSD audio.
Support for DTS:X Ultra
High Definition Audio
2/4/5.1/7.1-channel output
* You can change the functionality of an audio jack using the audio software. To configure
7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Expansion Slots
PCICPU:
1 x PCI Express x16 slot, supporting PCIe 5.0* and running at x16 (PCIEX16)
* Actual support may vary by CPU.
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
* The PCIEX2 slot shares bandwidth with the SATA3 4/5 connectors. The SATA3 4/5 connectors will become unavailable when a device is installed in the PCIEX2 slot.
Support for AMD CrossFire technology (PCIEX16 and PCIEX4)
Memory
TypeDDR5
Slots4 DIMMs
Supported MemorySupport for DDR5 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory module
Maximum MemoryUp to 128 GB (32 GB single DIMM capacity) of system memory
Graphics
GraphicsIntegrated Graphics Processor:
1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.
1 x USB Type-C port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
Connector & Ports
HDMI1 x HDMI port
Display Port (s)1 x DisplayPort
USB (s)CPU:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
CPU + USB 2.0 Hub:
2 x USB 2.0/1.1 ports on the back panel
Chipset:
2 x USB Type-C ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
4 x USB 3.2 Gen 1 ports available through the internal USB headers
4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports on the back panel
LAN Port (s)Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication moduleIntel Wi-Fi 6E AX210
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported StorageCPU:
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)
* Actual support may vary by CPU.
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0* x4/x2 SSD support) (M2B_CPU)
* Actual support may vary by CPU.
Chipset:
2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)
6 x SATA 6Gb/s connectors
RAIDRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio2 x audio jacks
Internal I/O Ports1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
4 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x THB_U4 add-in card connector
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers
Voltage Measurement Points
TPM (Trusted Platform Module )1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special FeaturesSupport for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled SoftwareNorton Internet Security (OEM version)
LAN bandwidth management software
Warranty Information
Manufacturing Warranty3 Years

Description

GIGABYTE X670E AORUS MASTER DDR5 AMD AM5 E-ATX Motherboard

The GIGABYTE X670E AORUS MASTER Motherboard supports AMD Ryzen 7000 Series Processors for AMD socket AM5. It can deliver unparalleled performance with direct 16+2+2 Phases Digital VRM Solution. The GIGABYTE X670E AORUS MASTER comes with 4x SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support. It supports DDR5 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules. It features 4x PCIe 5.0 x4 M.2 Connectors for next-generation storage. It has a Fins-Array III & M.2 Thermal Guard III to Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance. The new generation Fins-Array III delivers the ultimate thermal performance by using Extended Irregular fins to fill all available space and vastly increase surface area. A piece of Fins-Array III heatsink surface area is larger than 2 full-size ATX motherboard PCBs, therefore it tremendously boosts thermal efficiency and heat exchange performance. It also comes with SMD PCIe 5.0 x16 Slot & M.2 Connectors with Quick Release & Screwless Design. M.2 Thermal Guard III is constructed with a 9X optimized heat dissipation surface to prevent throttling and bottleneck that the high-speed/ large capacity of PCIe 5.0 M.2 SSDs may cause, especially under a heavy workload. The special design of heatsink grooves in the direction of the CPU further enhances the in-chassis air flow and optimizes the heat convection efficiency. DisplayPort over USB Type-C enables the delivery of full DisplayPort A/V performance (driving monitor resolutions of 4K and beyond), SuperSpeed USB (USB 3.2 Gen 2) 10Gbps data transition and power delivery with the convenience of reversible plug orientation and cable direction. The GIGABYTE X670E AORUS MASTER Motherboard is equipped with the latest Wireless solution 802.11ax Wi-Fi 6E with a new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections, and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides a 4X range over BT 4.2 and faster transmission. The GIGABYTE X670E AORUS MASTER comes with 3 years warranty.
