B760M H DDR4 (rev. 1.0)

Regular Price	14,400৳
Status	In Stock
Product Code	5593
Brand	Intel

Short Details

Key Features

Model: B760M H DDR4
Supported CPU: 14th/12th/13th Gen Intel Processors (LGA1700)
Supported RAM: 2 x DDR4, Max 64GB 3200 Mhz
Graphics Output: 1x HDMI, 1 x D-Sub
Features: Realtek GbE LAN chip

More Info

14400৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Products
Question
Review

Specification

Basic Information
Supported CPU	LGA1700 socket: Support for the 14th, 14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU
Chipset	Intel B760 Express Chipset
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 23.0cm x 21.5cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Expansion Slots
PCI	CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Memory
Type	DDR4
Slots	2
Supported Memory	Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	up to 64GB (32 GB single DIMM capacity) of system memory
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3.
Connector & Ports
HDMI	1x HDMI
D-Sub (s)	1x D-Sub

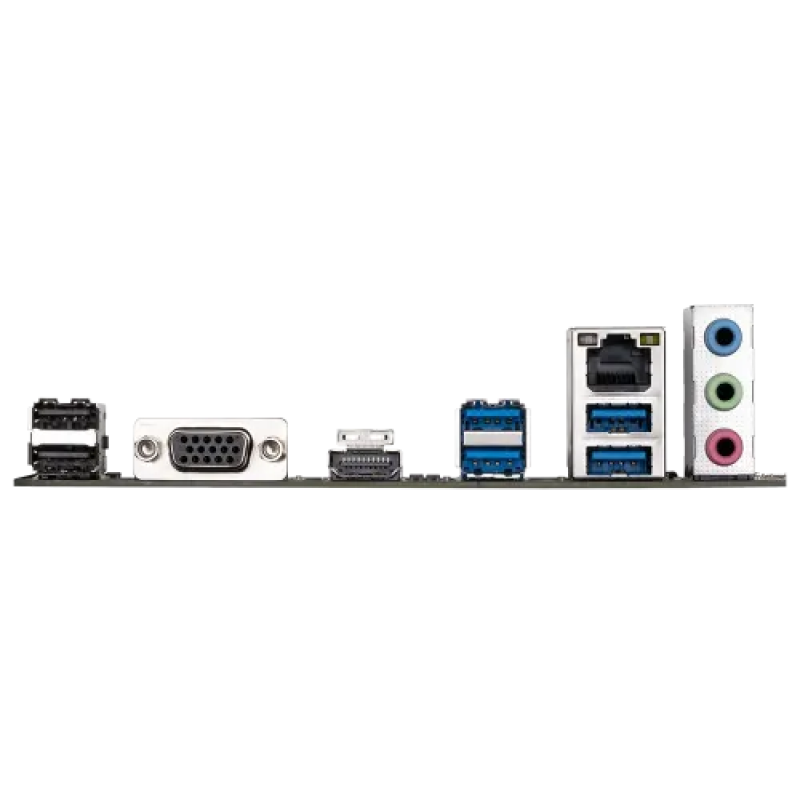

USB (s)	Chipset: - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio	3 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty	3 years

Description

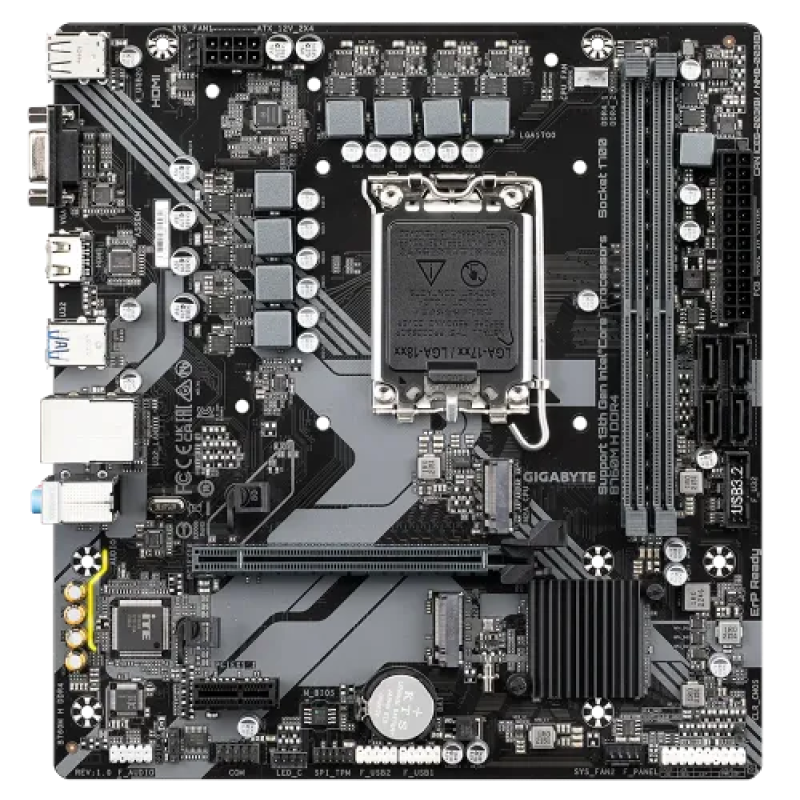

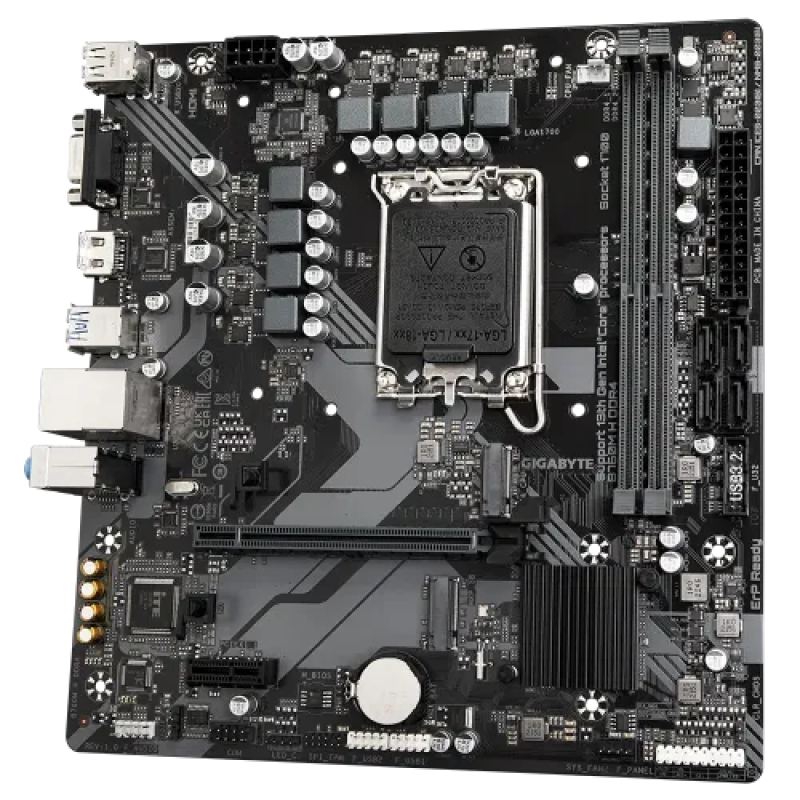

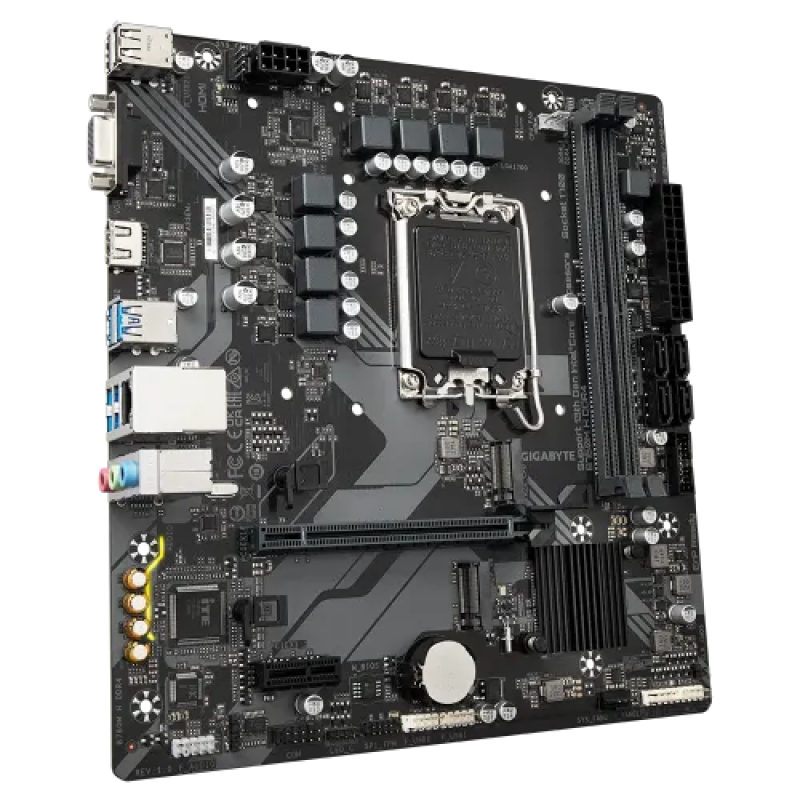

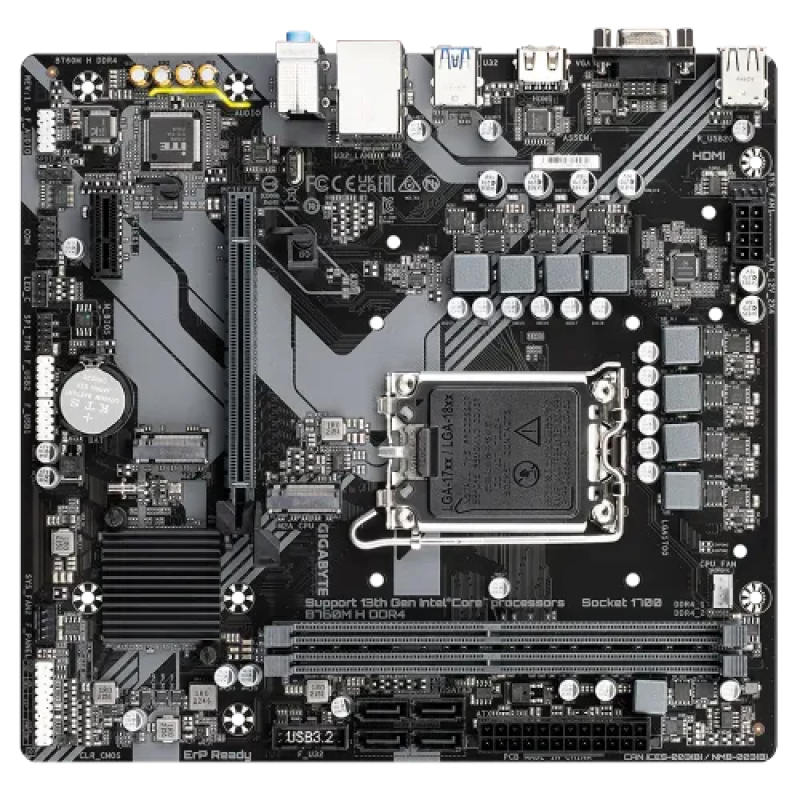

GIGABYTE B760M H DDR4 mATX Motherboard

The GIGABYTE B760M H DDR4 mATX Motherboard is designed for Intel Socket LGA 1700 and supports 14th, 13th, and 12th Generation Series Processors. The motherboard's Hybrid 6+1+1 Phases Digital VRM Solution provides unrivaled performance for dependable computing. The Dual Channel DDR4 with 2 DIMMs supports the XMP Memory Module for greater memory capacities. The motherboard has two PCIe 4.0 x4 M.2 connectors for storage, ensuring compatibility with next-generation storage devices. The 14th Gen Motherboard includes an EZ-Latch PCIe 4.0 x16 Slot with a Quick Release Design for easy hardware installation. It also offers dependable network connectivity with GbE LAN and expanded connectivity possibilities with HDMI and D-Sub connectors. The Smart Fan 6 technology improves cooling performance even further by using numerous temperature sensors and hybrid fan headers with FAN STOP functionality, making the GIGABYTE B760M H DDR4 mATX Motherboard a reliable and effective alternative for a variety of computing applications.

Buy GIGABYTE B760M H DDR4 mATX Motherboard from Star Tech

In Bangladesh, you can get the original GIGABYTE B760M H DDR4 mATX Motherboard From CTG compuer. We have a large collection of the latest GIGABYTE Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest CTG ComputerShop to get yours at the lowest price. The GIGABYTE B760M H DDR4 14th Gen Motherboard comes with 3 years warranty.
